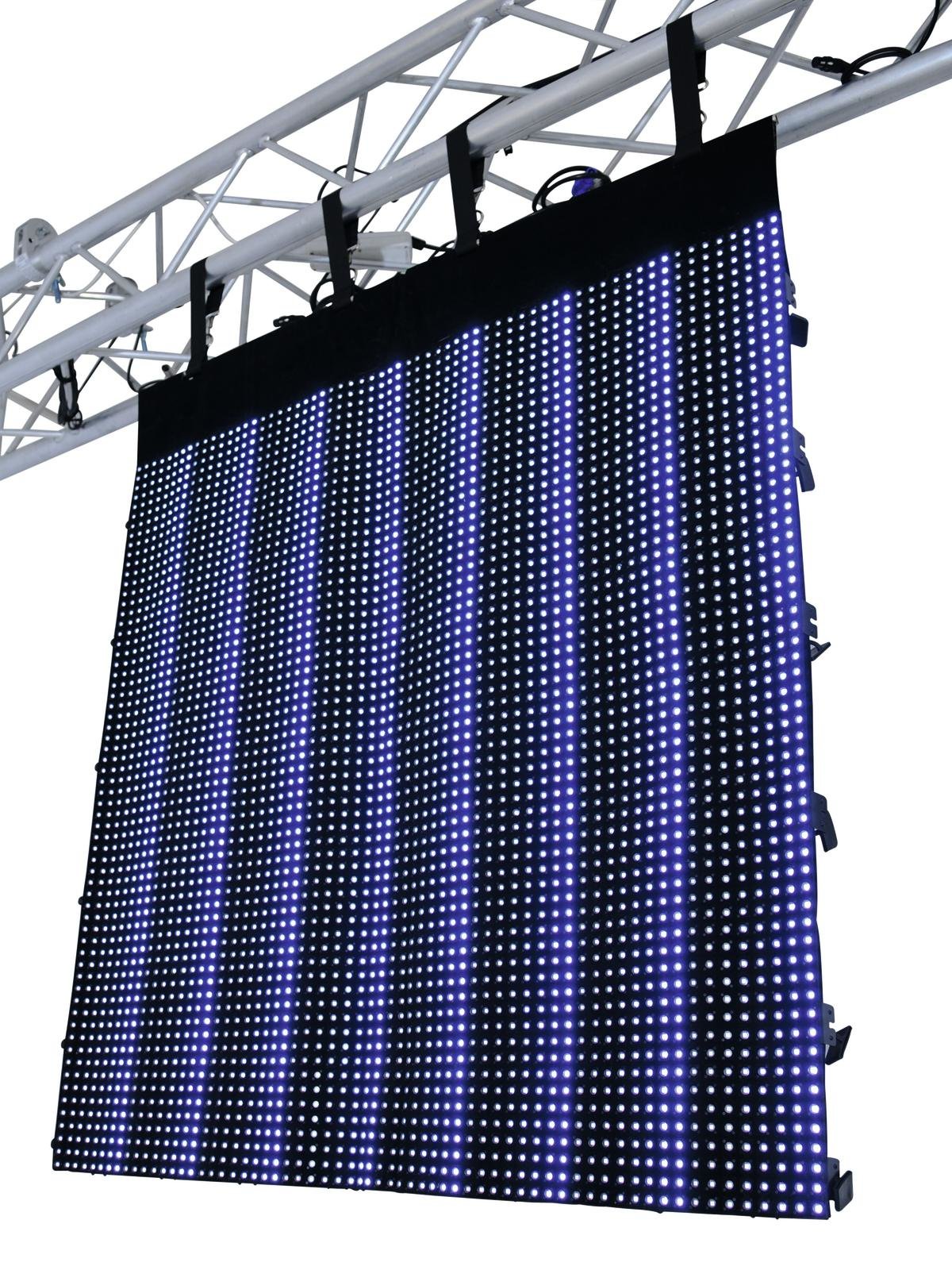

Eurolite LSD-20 MK2 (H)2.56m x (W)1.28m

LED Curtain

afișaje flexibile cu LED-uri RGB tricolore (tip SMD 5050) pentru proiecția luminoasă și colorată a videoclipurilor și a graficelor
versiune îmbunătățită cu LED-uri și mai strălucitoare și noi conectori înclinați
conceptul de afișaj modular permite construirea de suprafețe mari, ideale pentru utilizare în aer liber cu distanțe mari de vizualizare
material PVC pliabil și pliabil, potrivit pentru diverse forme, de exemplu coloane, cercuri, unghiuri
suspensie truss prin curele încorporate

7 333⁰² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

37745 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite LSD-20 MK2 (H)2.56m x (W)1.28m Add to cart: 7 333⁰² €

Soft LED display

Flexible displays with RGB tricolour LEDs (SMD 5050 type) for bright and colourful projection of videos and graphics
Enhanced version with even brighter LEDs and new angled connectors
The modular display concept allows for the construction of large surfaces, ideal for outdoor use with long viewing distances
Foldable PVC material suitable for various shapes, such as columns, circles, angles
Truss suspension via built-in straps
Easy maintenance - LEDs can be replaced without difficulty
Controllable via optional network components and PC software
All-in-one control system T9 (80503301): network interface and LED Show T9 software - ideal system for mobile use with notebooks with 1 gigabit NIC
LED Studio control system: receiver interface (80503311), PCI sending card and LED Studio software (80503130)
Custom sizes available on request (in units of 0.32 m)
8192 powerful SMD 5050 3in1 TCL RGB LEDs (homogeneous colour mix)
Easy to assemble
Various versions available
B1 low flammability
Space-saving design
Space-saving storage
Water-resistant
Network input and output for connecting power up to 8 units

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	68.00 W
IP rating:	IP44
LED:	8192 x SMD 5050 3in1 TCL RGB (homogeneous colour mix)
Established:	Easy to assemble; space-saving design; space-saving storage
Beam angle (1/2 peak):	110°
Image:	Max. 64x124 px Pixel pitch 20 mm Pixel density 2500/m² Brightness 3600cd/m²
Lamp lifespan:	100000 h
Material:	Water-resistant
Dimensions:	Width: 1.28 m Height: 2.56 m
Weight:	31.72 kg
Display port:	DVI/RJ45
Display mode:	synchronised with video source
Driving mode:	1/8 scan
Screen resolution:	max. 1280 x 1024 (LED Studio)
	max. 1024 x 896 (LED Display T9)
Frame rate:	60 Hz
Data refresh rate:	600 Hz
Colours:	16.7 million (R 256, G 256, B 256)
Operating temperature:	-10 to 45 °C
Humidity:	10 to 90 %
