Eurolite LED PT-100/32 Pixel DMX Tube

RGB pixel tube

dMX and power terminals intelligently designed for easy wiring
96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
32 segments controlled separately
color change adjustable; Dimmer electronic
strobe effect
integrated show programs

180²³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

927 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite LED PT-100/32 Pixel DMX Tube Add to cart: 180²³ €

DMX controlled pixel tube with RGB color mixing

DMX and power terminals intelligently designed for easy wiring
96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
32 segments controlled separately
Color change adjustable; Dimmer electronic
Strobe effect
Integrated show programs
Direct color selection for 17 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function
With a beam angle of 120°
With Mounting bracket

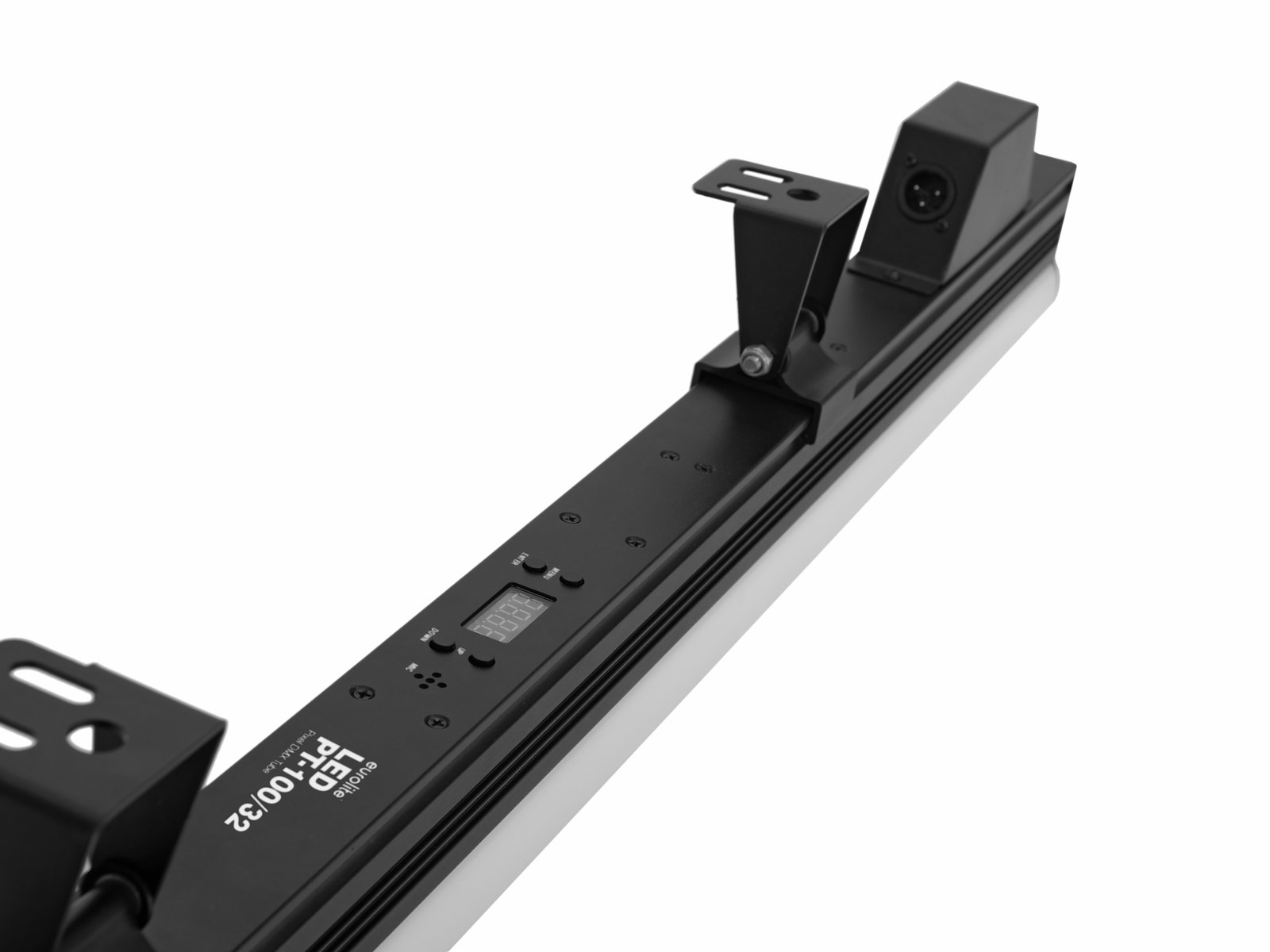

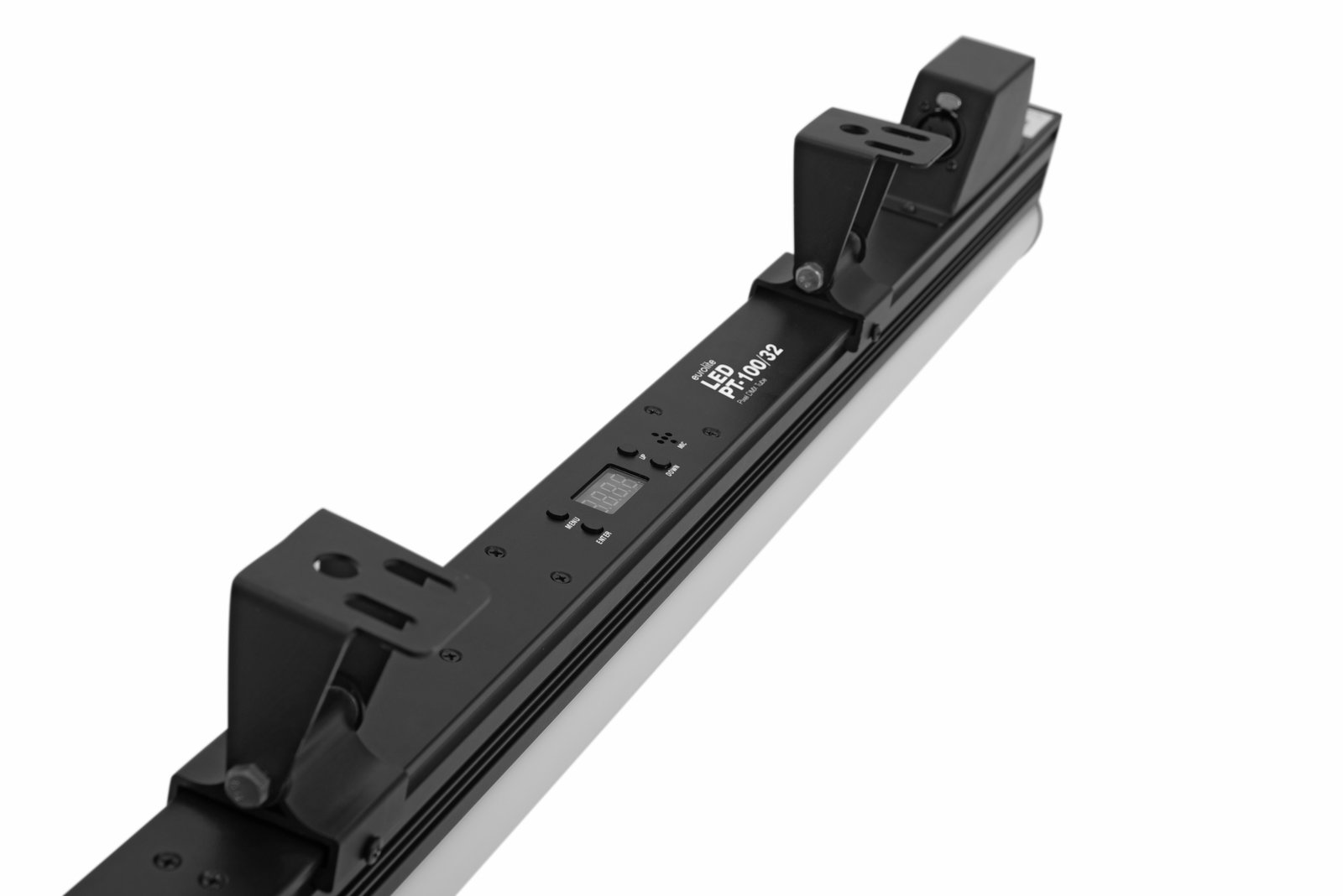

4 digit 7-segment LED display
Preprogrammed in LED PC-Control 512; Light Captain
Silent operation
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Stage; restaurants, bars and hotels
Application possibility: Suspended; Wall mounting

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	30 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
Lamp type:	LED lamp
LED:	96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Flash rate:	20 Hz
DMX channels:	3; 5; 8; 48; 96
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function
Preprogrammed in:	LED PC-Control 512; Light Captain
Beam angle:	120°
Beam angle (1/2 peak):	120°
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
Dimensions:	Length: 99,9 cm Width: 5,9 cm Height: 15,3 cm
Weight:	2,10 kg
Noise classification:	Class 0 (no noise at all)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Product code: 51928607

Unit of sale: piece
