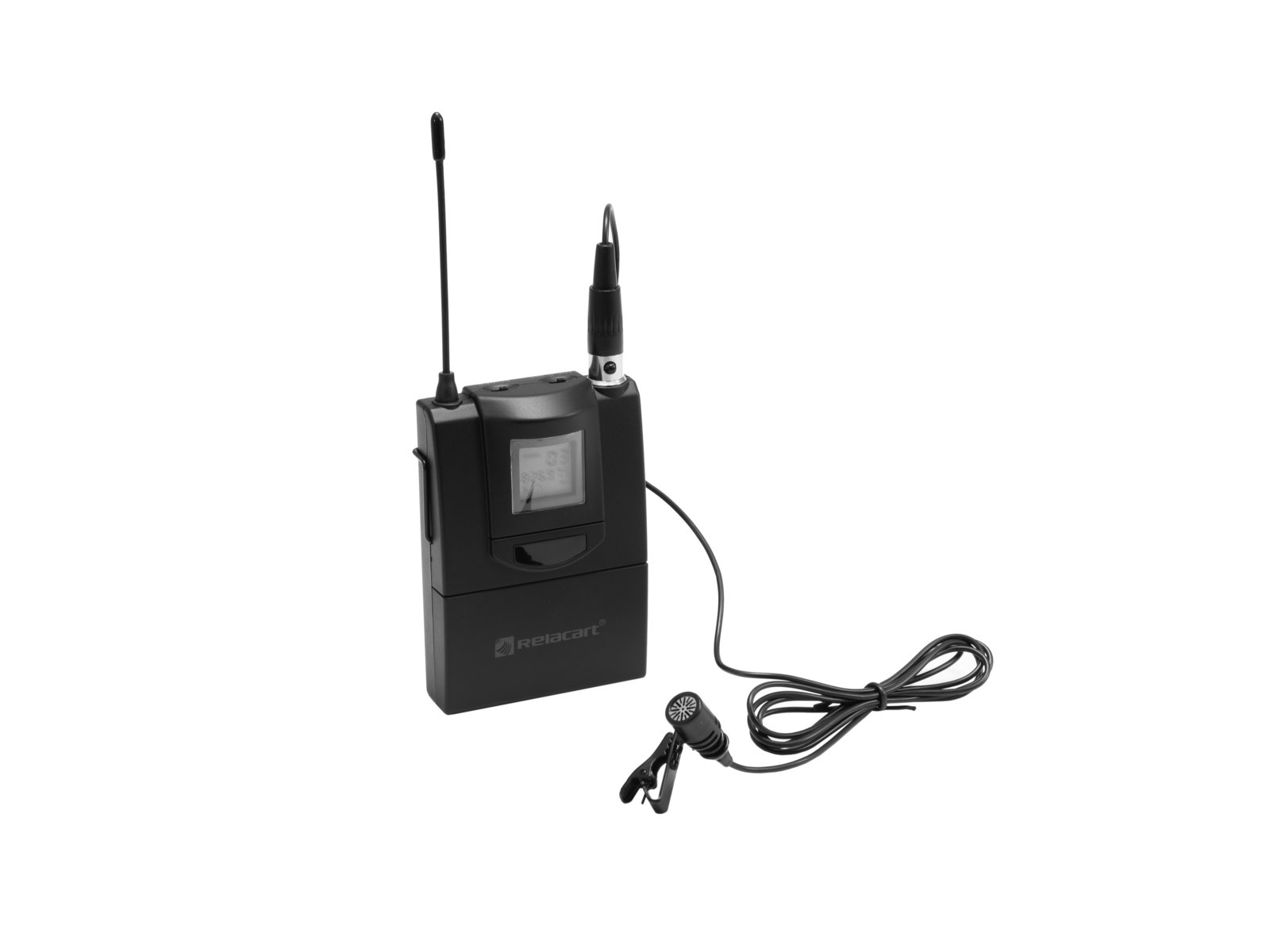

Relacart ET-60 Bodypack with Lavalier Microphone for WAM-402

Lavalier System

tehnologia squelch cu frecvență pilot șterge interferența RF fără fir
10 grupuri cu 90 de frecvențe fixe pe o lățime de bandă de comutare de 11 MHz
funcționarea în paralel a până la 8 sisteme este posibilă fără interferențe
sincronizare ușoară și fără erori între receptor și transmițător prin semnal infraroșu
lED pentru starea bateriei, frecvență, canal și grup

147⁵⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

759 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Relacart ET-60 Bodypack with Lavalier Microphone for WAM-402 Add to cart: 147⁵⁵ €

UHF pocket transmitter for the WAM-402 model, 823-832 + 863-865 MHz

Squelch technology with pilot frequency eliminates wireless RF interference
10 groups with 90 fixed frequencies across an 11 MHz switching bandwidth
Parallel operation of up to 8 systems is possible without interference
Easy and error-free synchronization between receiver and transmitter via infrared signal
LED for battery status, frequency, channel, and group
UHF 823 - 832 MHz Unlicensed and approved in large parts of Europe
UHF 863 - 865 MHz Unlicensed and approved in Europe

transmitter

Operating range up to 80 m

Microphone

Polar pattern: cardioid

Package contents

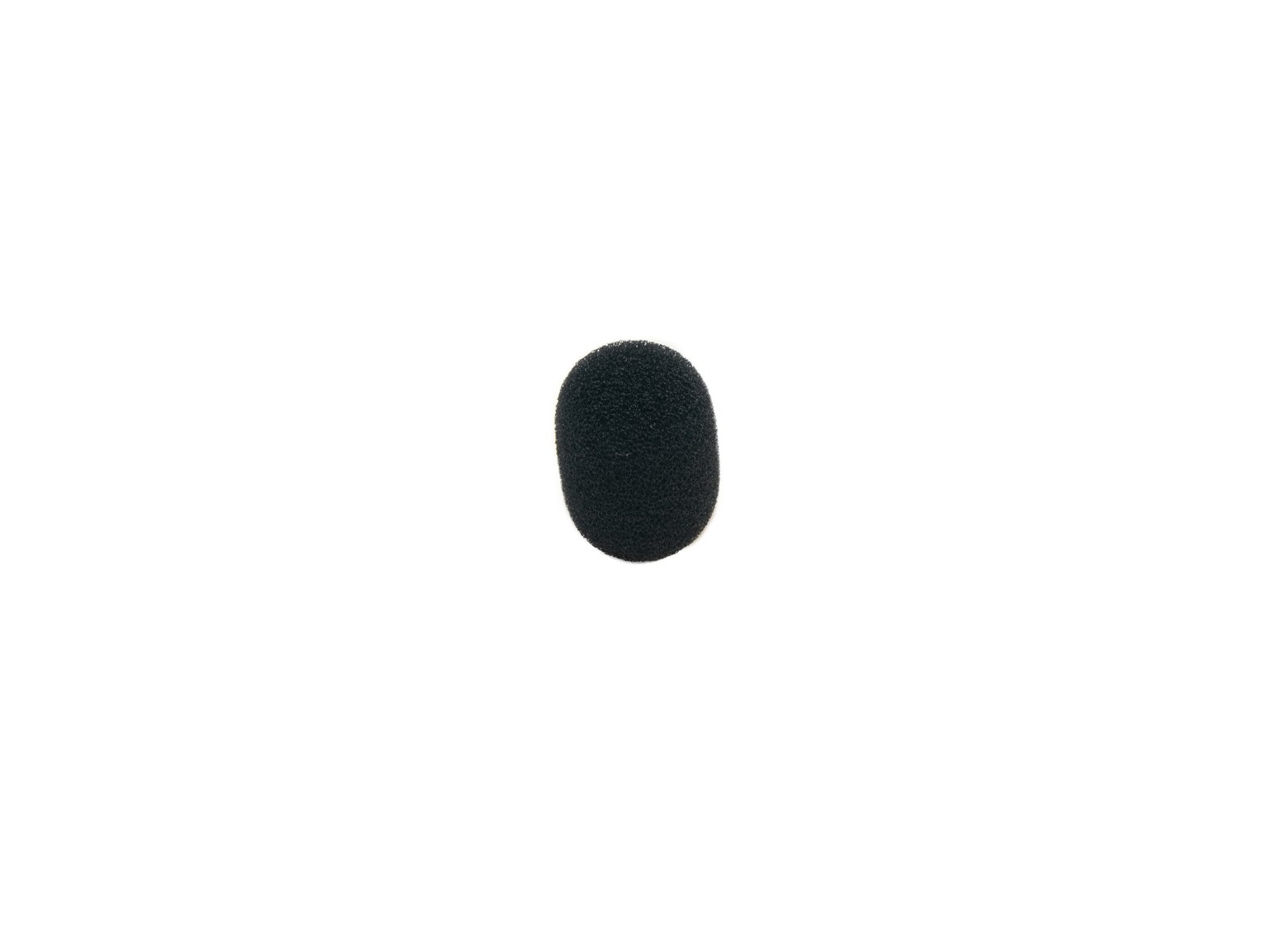

1 x transmitter, 1 x microphone, 1 x windscreen, 1 x user manual, 1 x declaration of conformity

Type:	Backpack with microphone
Power consumption:	0.42 W
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:	90 switchable frequencies In 10 groups with up to 10 preset frequencies each
Modulation:	FM
RF output power:	10 mW
Bandwidth switching:	11 MHz
Weight:	110 g

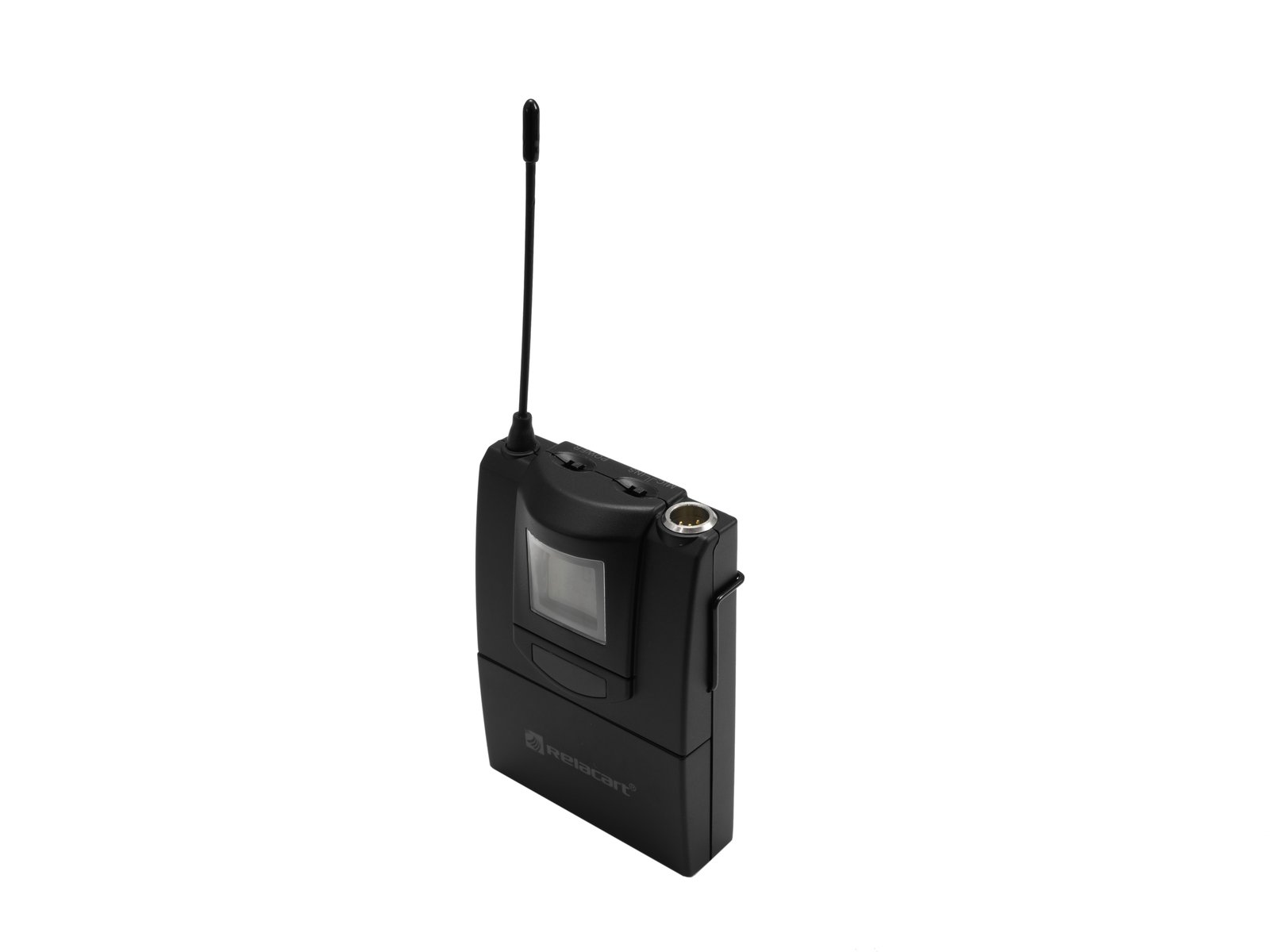

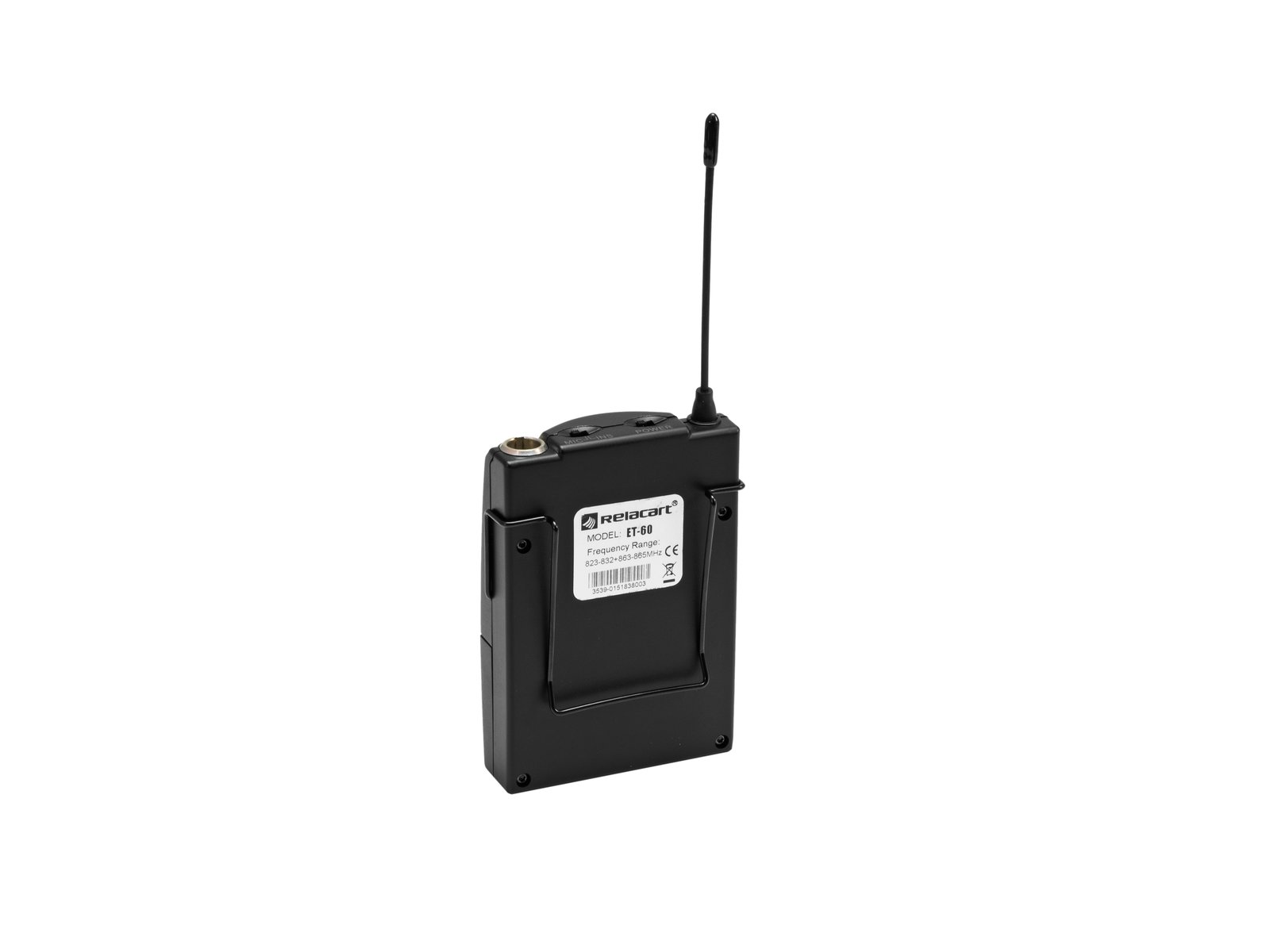

Transmitter
Power supply:	3 V DC
Power connection:	Battery/rechargeable battery pack
Battery:	2 x Mignon (AA) (not included)
Control elements:	Transmitter power switch (high-low)
Range:	Operating range up to 80 m
Switch:	On/off switch; Mic/Ins switch
Material:	Plastic
Colour:	Black
dimensions:	Width: 6.5 cm Depth: 2.5 cm Height: 9.5 cm
Weight:	86 g

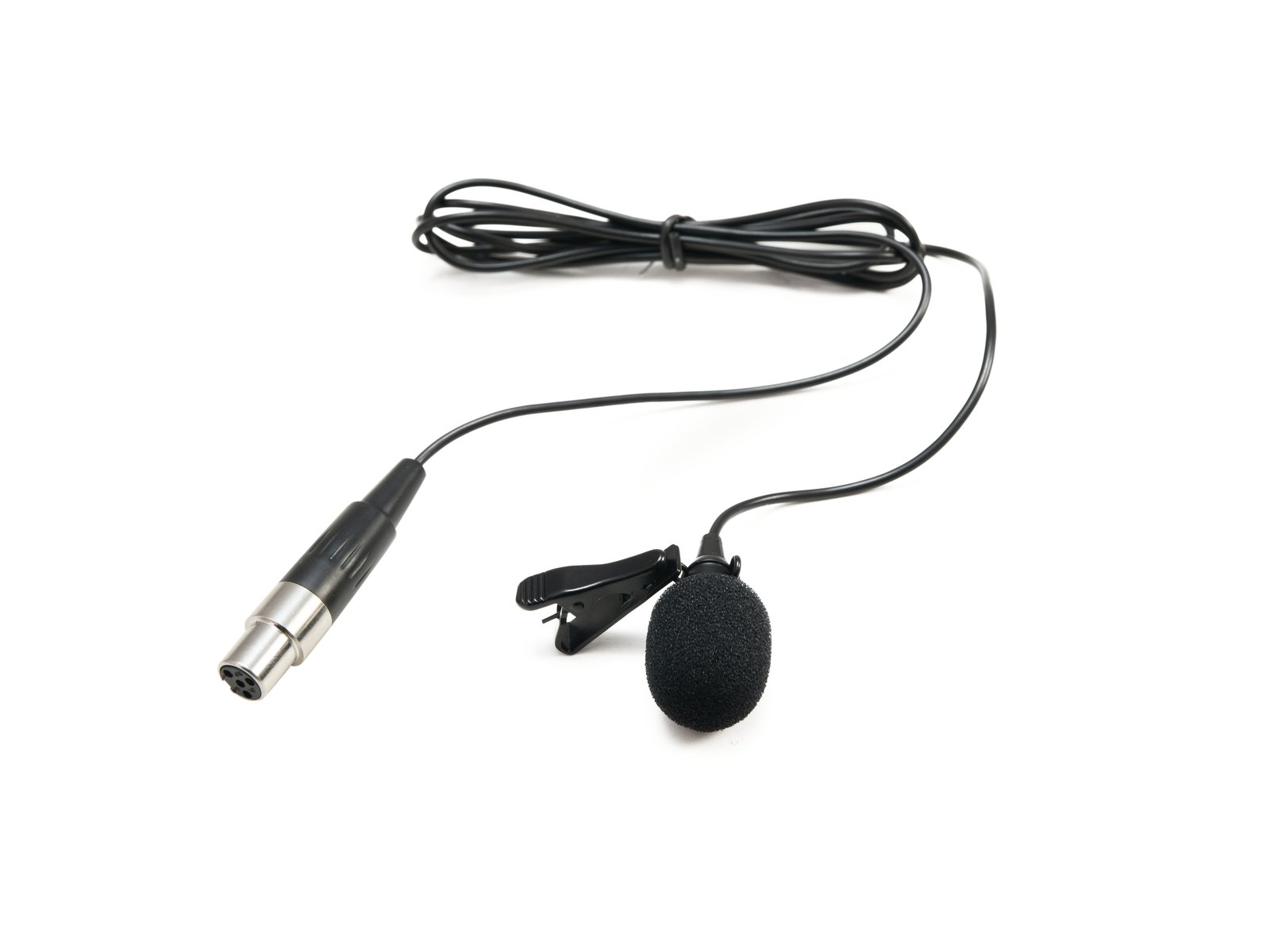

Microphone
Type:	Lavalier microphone
Cable length:	1.20 m
Capsule type:	Electret
Polar pattern:	Cardioid
Frequency range:	60 - 12000 Hz
Sensitivity:	-42 dB
Connector type:	Mini XLR (F) with 4 pins
Material:	Metal
Colour:	Black
Weight:	20 g

Product code: 13055229

Unit of sale: piece

Specifications:

Connection:	Mini XLR (F) with 4 pins
Capsule type:	condenser
Audio frequency range:	60 - 12000 Hz
Digital interface:	without
mono/stereo/set:	mono
Polar pattern:	cardioid
