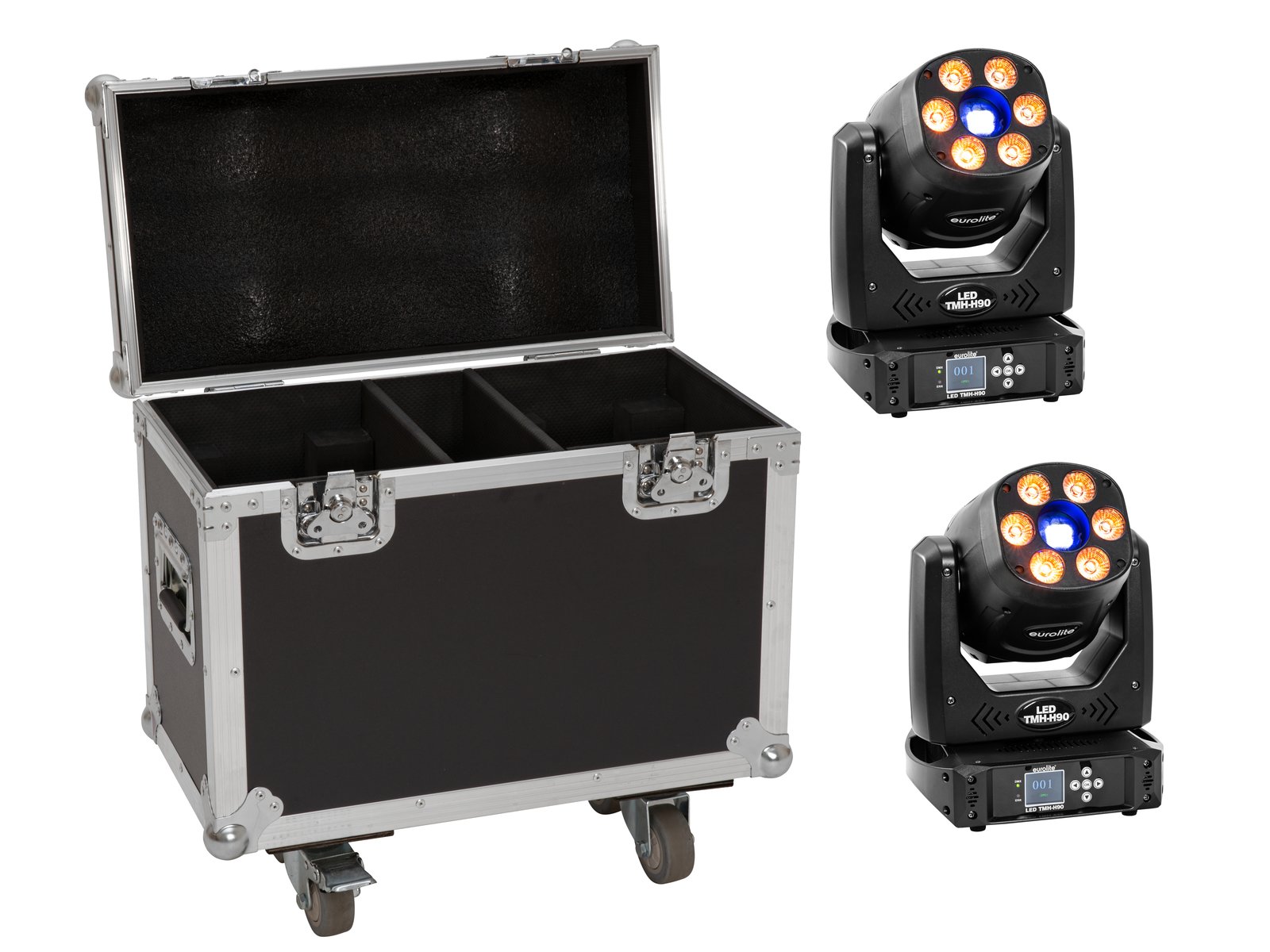

Hybrid LED moving head spot/wash with colour wheel, static and rotating gobo wheel, prism and focus
| Weight: | 26.15 kg |
| EUROLITE LED TMH-H90 Hybrid Moving Head Spot/Wash COB |
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 135 W |
| IP rating: | IP20 |
| Protection class: | Protection class I |
| Power connection: | Mains input via P-Con (blue), power cable mounting version with safety plug (supplied) |
| Output power: | P-Con (grey), mounting version |
| Fuse: | 5 x 20 mm, T 2 A replaceable fuse |
| Lamp type: | LED lamp |
| LED: | 1 x 90 W COB (chip-on-board) cool white (CW)
6 x 10 W high-power 6in1 HCL RGBWA/UV (homogeneous colour mixing) |
| Max. TILT movement: | 200° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Max. PAN movement: | 540° Precise positioning (16-bit resolution) Automatic position correction (feedback) |
| Flash rate: | 2 - 30 Hz |
| Equipment: | Threefold prism; gobo wheel with rotating gobo; gobo wheel with static gobos; motorised focus; colour palette |
| Colour generation: | Colour wheel with 7 dichroic filters plus open |
| Gobo: | Gobo wheel with static gobos, 7 gobos and open
shaking effect
Gobo wheel with rotating gobos, 6 gobos and open
Outer diameter 21.8 mm
Image diameter 16 mm
shaking effect
Changeable gobos
Gobo slot system for easy gobo replacement |
| DMX channels: | 25 |
| DMX input: | Mounting version XLR (M) with 3 pins |
| DMX output: | Mounting version XLR (F) with 3 pins |
| Cooling: | Cooling fan |
| Control: | Standalone; DMX; Sound to light via microphone; Master/slave function; QuickDMX via USB (optional); W-DMX via wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in: | Light Captain; Easy Show 3 |
| Beam angle: | 13° |
| Beam angle (1/2 peak): | Spot 13°
Wash effect 20° |
| Beam angle (1/10 peak): | Wash effect at 38° |
| Illumination in lux (lx): | Cool white (CW) spot 1m: 49373 lx, 3m: 6186 lx, 6m: 1606 lx
Red wash effect (R) 1m: 974 lx, 3m: 101 lx, 6m: 26 lx
Green wash effect (G) 1m: 2008 lx, 3m: 244 lx, 6m: 66 lx
Blue wash effect (B) 1m: 518 lx, 3m: 49 lx, 6m: 13 lx
Cool white (CW) wash effect 1m: 2527 lx, 3m: 257 lx, 6m: 69 lx
Amber wash effect (A) 1m: 733 lx, 3m: 83 lx, 6m: 21 lx
Ultraviolet wash effect (UV) 1m: 16 lx, 3m: 2 lx, 6m: 1 lx
All wash effect 1m: 5885 lx, 3m: 703 lx, 6m: 184 lx |
| Housing colour: | Black |
| Display type: | Multicolour LCD display |
| Dimensions: | Width: 25.0 cm
Depth: 22.0 cm
Height: 36.0 cm |
| Weight: | 6.50 kg |
| Noise classification: | Class 3 (clearly audible sounds) |
| Legal specifications |
| Special product: | Not designed for lighting a household room |
| Intended use: | Show lighting with effect |
| ROADINGER Flightcase 2x TMH-S90/H90/B90 |
| Maximum capacity: | 50 kg |
| Aluminium profile frames: | 30 mm |
| Case handles: | 2 pcs/piece |
| Stop hinge: | 2 pcs/piece |
| Lock: | Butterfly lock: 2 pcs/piece |
| Transport aid: | Wheels |
| Material: | Glued multilayer plywood, 7 mm |
| Colour: | Black, laminated |
| Device compartment: | 20 cm x 26 cm x 37 cm |
| Accessory compartment: | 9.5 cm x 26 cm x 37 cm |
| Dimensions: | Width: 57 cm
Depth: 31 cm
Height: 54 cm |
| Weight: | 13.15 kg |
