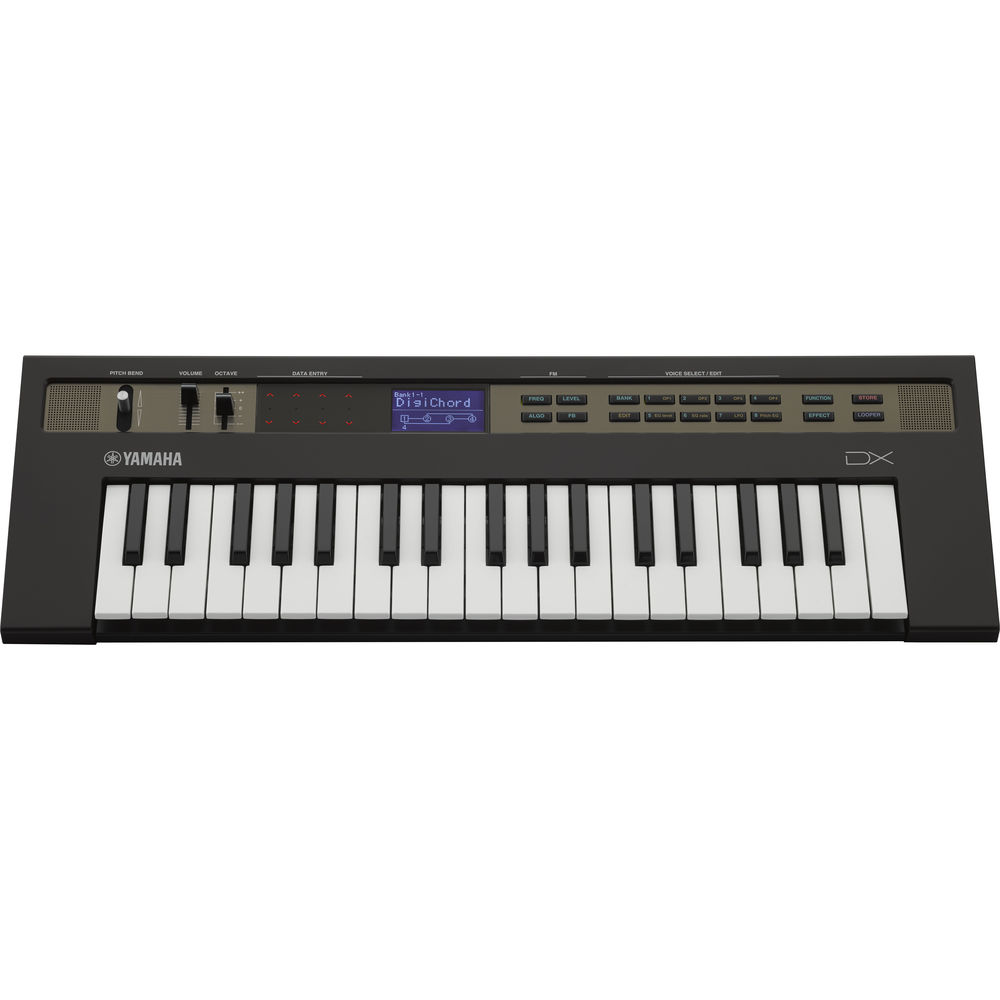

Yamaha Reface DX Mini FM Synth

Yamaha Reface DX Mini FM Synth - frequency modulation synthesiser that offers simple control possibilities and complex sounds in a compact controller. It is an 8-note polyphonic synth, allowing the creation of sounds ranging from retro 80's to modern EDM. It features a 37-key HQ Mini keyboard, built-in Phrase Looper, digital display, touch-control interface, built-in effects, stereo audio system with 3 cm/2W speakers, and an iOS Librarian app for saving presets.

Reface DX has two programmable effect blocks, each with seven types of effects including VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb, and Distortion. The multi-touch control interface provides direct access to 4 parameters simultaneously. It can be powered by 6 AA batteries, offering 5 hours of operation. The USB 'To Host' connectivity allows for USB connection to a computer or iOS devices. Outputs with unbalanced 1/4" jack connectors enable connection to mixers, audio interfaces, DI boxes, etc. Auxiliary signal input with a 3.5 mm jack socket.

• Number of keys: 37
• Key type: mini
• Sound generation technology: FM - Frequency Modulation
• Polyphony: 8 voices
• Voices: 32
• Effects: Distortion, Touch Wah, Chorus, Flanger, Phaser, Delay, Reverb
• Phrase Looper: yes
• Display: Full Dot LCD: 128 x 64 dots
• Connectors:

  • DC In: 12 VDC jack
  • Headphones: Stereo TRS 1/4" / 6.35 mm
  • Output L/Mono: unbalanced TS 1/4" / 6.35 mm
  • Output R: unbalanced TS 1/4" / 6.35 mm
  • Sustain pedal
  • Auxiliary input: Mini-stereo TRS 1/8" / 3.5 mm
  • USB: USB to Host
  • MIDI: Mini-DIN In/Out
• Amplifier power: 2x2W
• Speakers: 2x 1.2" / 3.0 cm
• Power supply: 12 VDC adapter or 6x rechargeable AA / Ni-MH batteries
• Power consumption: 6 W (when using with adapter)
• Auto Power Off: yes
• Dimensions (W x D x H): 53.0 x 17.5 x 6.0 cm
• Weight: 1.9 kg (without batteries)
