The New Oxford digital oscillators from Summit offer subtractive, FM, and wavetable synthesis and power authentic dual analog filters, distortion, and VCA.
The multitimbral engine allows for the merging and combining of two complete and independent patches, while up to 16 simultaneous voices provide enough harmonic depth even for the richest pads.
Features:
- 16-voice two-part multitimbral polyphonic synthesizer
- 3 New Oxford NCO oscillators per voice, offering subtractive, wavetable, or FM synthesis
- 12/24dB multimode analog filter per voice with Dual mode
- Premium semi-weighted 5-octave keyboard, with velocity sensitivity and aftertouch
- Per-part effects: distortion, chorus, delay, and reverb
- Internally routable stereo effects and aux outputs
Technical specifications:
Synthesizer engine
- 16-notes polyphony
- 2-part-timbral
- Layered, Split, Dual Bi-Timbral modes
- 5 Voice modes - Mono, MonoLG, Mono2, Poly, Poly2
Per voice
- 3 oscillators
- 1 noise generator with HP filter control
- 1 ring modulator
- 2 LFOs
- 1 amp envelope and 2 mod envelopes (ADHSR + looping)
- 1 filter
Waveforms include:
- Sine, triangle, sawtooth, square/pulse, plus 43 wavetables of 5 waveforms each
Filter:
- 1 OTA state variable filter per voice
- 12/24dB slope
- Low-pass / band-pass / high-pass / dual filter
- Dual filter: LP >. HP, LP >. BP, HP >. BP, LP + HP, LP + BP, HP + BP, LP + LP, BP + BP, and HP + HP
- Pre-filter overdrive
- Pre-filter distortion
Modulation:
- 16 modulation slots per patch
- 2 sources per destination per slot
Modulation sources:
- Direct (depth)
- Modulation wheel
- Aftertouch (polyphonic and channel AT)
- Expression pedal 1
- Expression pedal 2
- Keyboard velocity
- LFO1 positive
- LFO1 bi-polar
- LFO2 positive
- LFO2 bi-polar
- Amp envelope
- Mod envelope 1
- Mod envelope 2
- Animate 1
- Animate 2
- CV mod input bi-polar
- Bend Up
- Bend Down
Modulation destinations:
- Oscillator 1-3 frequency, v-sync level, shape amount and level
- Noise source level
- Ring modulator output level
- Overall synth output level
- Filter drive, distortion, cut-off frequency, and resonance
- LFO 1 and 2 frequency
- Amp env / mod env 1 / mod env 2 attack, decay, and release
- FM Osc 1 -> osc 2, osc 2 -> osc 3, osc 3 -> osc 1 and noise -> osc 1
- Osc 3 -> filter cutoff frequency
- Noise -> filter cutoff frequency
Effects:
- FX are per part
- Analogue distortion
- 3 chorus types
- Delay with 16 types of delay sync, LP and HP damping, slew, and stereo
- 3 reverb types
FX Mod Matrix Source:
- Direct (depth)
- Mod wheel
- Aftertouch
- Expression pedal 1
- Expression/breath pedal 2
- Velocity
- Keyboard
- LFO 1 +/-
- LFO 2 +/-
- LFO 3 +/-
- LFO 4 +/-
- Amp envelope
- Mod envelope 1 & 2
- Animate 1 & 2
- CV +/-
- Bendwheel +/-
- Bend up
- Bend down
FX Mod Matrix Destinations:
- Distortion level
- Chorus level
- Chorus rate
- Chorus depth
- Chorus feedback
- Delay level
- Delay time
- Delay feedback
- Reverb level
- Reverb time
- Reverb low pass
- Reverb high pass
Product hardware specifications:
- 50 control knobs
- 8 45mm sliders
- 1 volume knob
- 1 data encoder knob
- Rubberised knob caps with spun metal discs
- 55 function buttons
- 2 Animate buttons plus hold button
- OLED display
- Kensington Lock
- Power switch
- IEC power supply connector
- USB socket for system (MIDI comms only, no bus power)
- MIDI In / Out / Thru
- 2 1/4 inch jack sockets for continuous or switched pedals
- 1 3.5mm jack socket for CV in
- 2 1/4 inch jack sockets for left and right outputs
- 2 1/4 inch jack sockets for left and right auxiliary outputs
- 2 1/4 inch jack sockets for left and right inputs
- 2 1/4 inch jack socket for headphone output
- Metal chassis with American walnut wooden end cheeks
- Metal magnetic inset end pieces
Software compatibility:
- Ableton Live Lite is included
- Summit is a USB-MIDI class compliant device
Dimensions:
- 998.4 x 302.4 x 71 mm
Weight:
- 11 kg
The package includes:

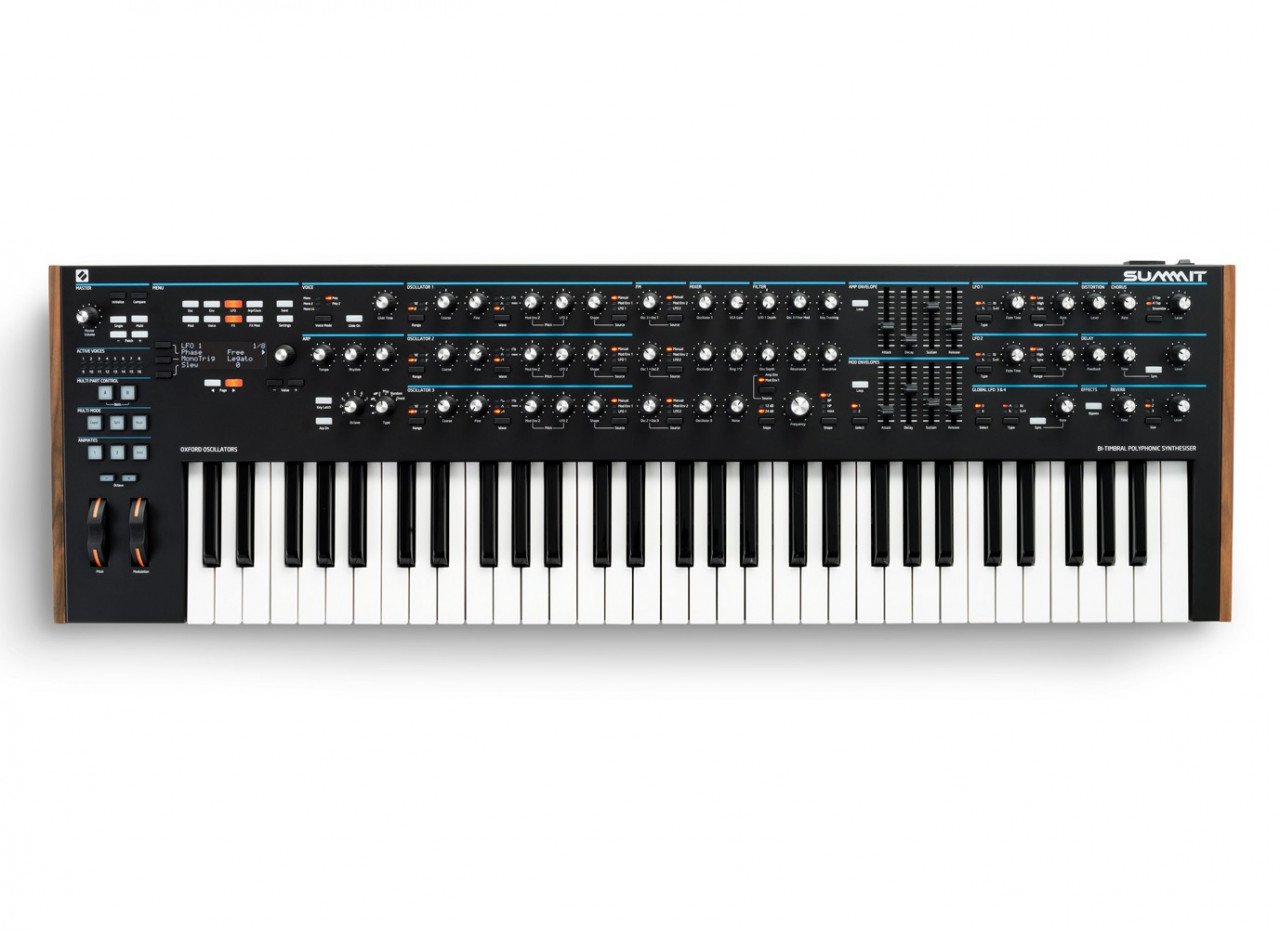

- Novation Summit synthesizer
- USB cable
- User guide
- Power supply
