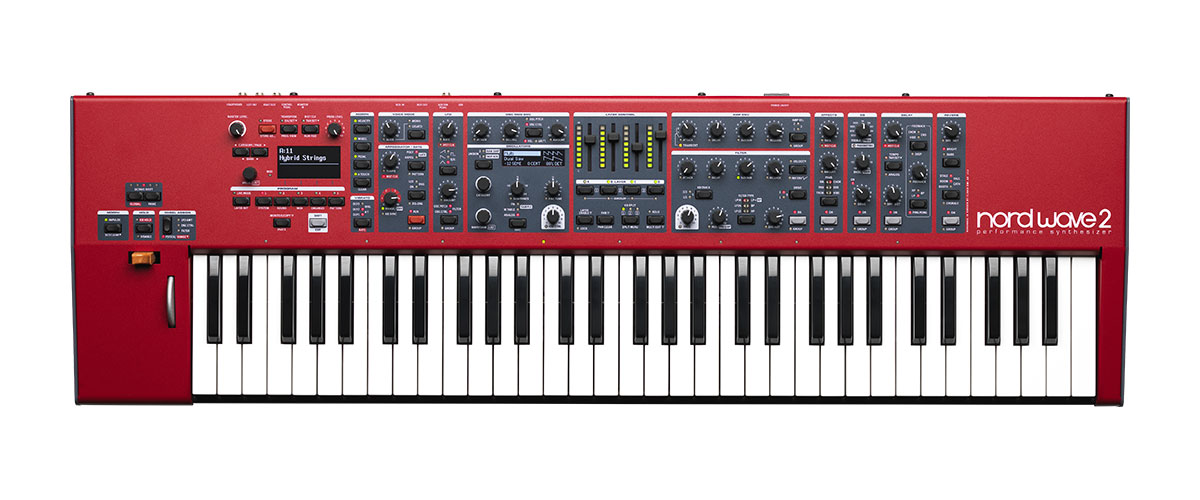

Nord Keyboards Nord Wave 2

Nord Wave 2 - Professional synthesizer in four parts:

• 4-part synthesizer with dedicated faders for volume / pan
• Sample, virtual analog synthesizer, wavetable and FM included
• Polyphony: 48 voices
• OLED displays for Program and Oscillator sections
• 1 GB memory for Nord Sample Library 3.0
• User-replaceable samples
• Includes 61-note keyboard with Aftertouch

Modulation:

• Includes LFO with 5 waveforms
• Flexible sync and routing options
• AD / AR Envelope

Amp:

• ADSR Amp Envelope
• Attack shaping function on transient

Filters:

• 12/24 dB lowpass, lowpass M, band pass, high pass, and LP+HP
• Filter Drive
• ADSR envelope

Performance:

• Advanced arpeggiator with polyphonic Trig Mode
• Gate function for rhythmic effects
• Advanced Morph functions with Impulse Morph
• Master Clock control of the Arpeggiator, LFO, and effects
• Vibrato with 3 delay modes and assignable wheels / aftertouch

Oscillators:

• Analog: Basic, Shape, Multi, Sync and Noise with up to 16 oscillators
• Samples
• Wavetable
• Advanced FM with harmonic and inharmonic algorithms
• True Unison mode

Effects:

• FX section with Tremolo, Pan, Ring Modulation, Chorus, Ensemble and Vibe.
• EQ section with Drive
• Advanced Delay section
• Reverb section with five dimensions + Dark, Bright and Chorale modes

Arpeggiator/Gate

• Arpeggiator: Interval: 1 - 4 octaves. Modes: up, down, up / down, random. Zig-Zag option. Arpeggio speed can be synced with the Master Clock.
• Poly: Polyphonic arpeggiator for positioning full chords at zero interval and polyphonic arpeggio of chord inversions at larger intervals.
• Gate: Rhythmic level Gate with adjustable envelope hardness.
• Pattern Mode: Pattern Mode for Arpeggiator, Trig or Gate with 30+ editable presets or custom pattern.
• Pattern Editor - Dedicated editor for creating custom rhythmic patterns that can be used with Arpeggiator, Trig or Gate.

Control Layer

• LED fader for each layer for instant level control and overview.
• Ability to group multiple layers for quick editing across multiple layers of Amp Env, Filter, Effects, Arpeggiator functions etc.
• Layer Lock: locks the current configuration of the active layer.
• Split functionality: 3 split points with 8 location options and Split Crossfade.
• Individual Pan control per Layer.
• Solo mode for quickly muting all except the focused layer.

Program:

• Program gain control
• Large OLED display
• Program Transpose function
• 5 program buttons
• Live mode
• Copy / Paste functionality
• Master clock control of the arpeggiator, LFO, effects and delay

Memory

• Programs (individual sounds): 16 x 25 (400) locations

Audio Outputs:

• 2 Outputs
• Headphone output
• Low noise 24-bit DACs

MIDI Facilities:

• All control buttons and switches send and receive control change messages.
• Master Clock syncs with incoming MIDI clock.
• Soft Thru

Connections:

• Inputs: Control Pedal, Sustain Pedal
• Outputs: 2x 6.3 mm TS Jack, headphone with 6.3 mm TRS Jack connector
• Includes USB to host
• Includes USB MIDI

Included accessories: IEC power cable, user manual

Dimensions: 990 x 100 x 295 mm

Weight: 8.75 kg
