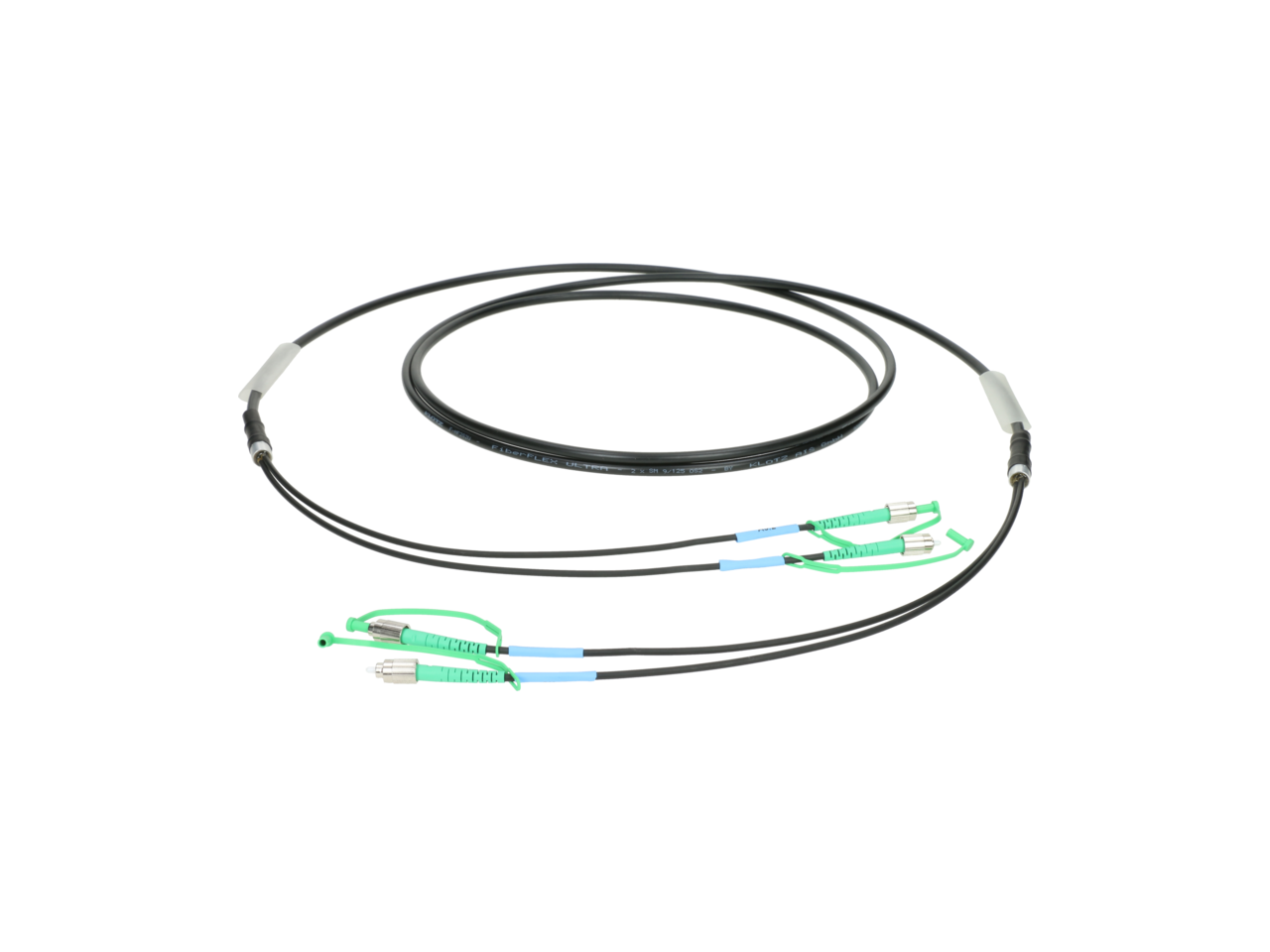

Klotz 2x FC/APC to 2x FC/APC breakout patch cableFiberLink - single-mode OS2 - 75 m

• FC/APC - fiber connectors with high return loss due to angled physical contact
• FiberFlex ULTRA cable – OS2 fibers 9/125 µm, 900 µm tight buffered, PUR jacket
• 10 Gbit/s transmission up to 10 km (specification bulk cable)
• ultra-low attenuation value of
• extremely rugged and highly flexible, suitable for outdoor use, ideal for the most challenging situations
• great mechanical strength, strong resistance to shear pressure, narrow bending ranges possible and low kinking sensitivity, strain relief due to aramid yarns

This two-strand Single-Mode cable (2 x 9/125 µm, OS2) is optimized for transmission rates of 10 GB/s over distances of up to 10.000 m. Its design, featuring 500 μm primary coating and 900 µm tight buffered fibre layers, reliably protects the conductors from external influences yet keeps bending radius to a minimum, with an external diameter of under 6 mm. The individual optical fibres are protected and separated by an extra thick acrylate layer. Ultra-low attenuation of less than 0.21 dB/km ensures superb signal quality throughout the entire transmission distance.

cable

fiber: single-mode OS2

connectors

connector 1: 2x FC

connector 2: 2x FC

Caracteristici

length	75 m
connectors	2x FC - 2x FC
fiber category	Single-Mode OS2
cable color	black
