Sennheiser L-6000

Sennheiser L-6000 expands the Digital 6000 and Digital 9000 series with a practical and intelligent charging station. Up to four modules can be mounted, each with two charging ports for bodypack or handheld microphone batteries. The three-colour LEDs provide a quick overview of the charging status. It can also be controlled via the WSM (Wireless Systems Manager) software.

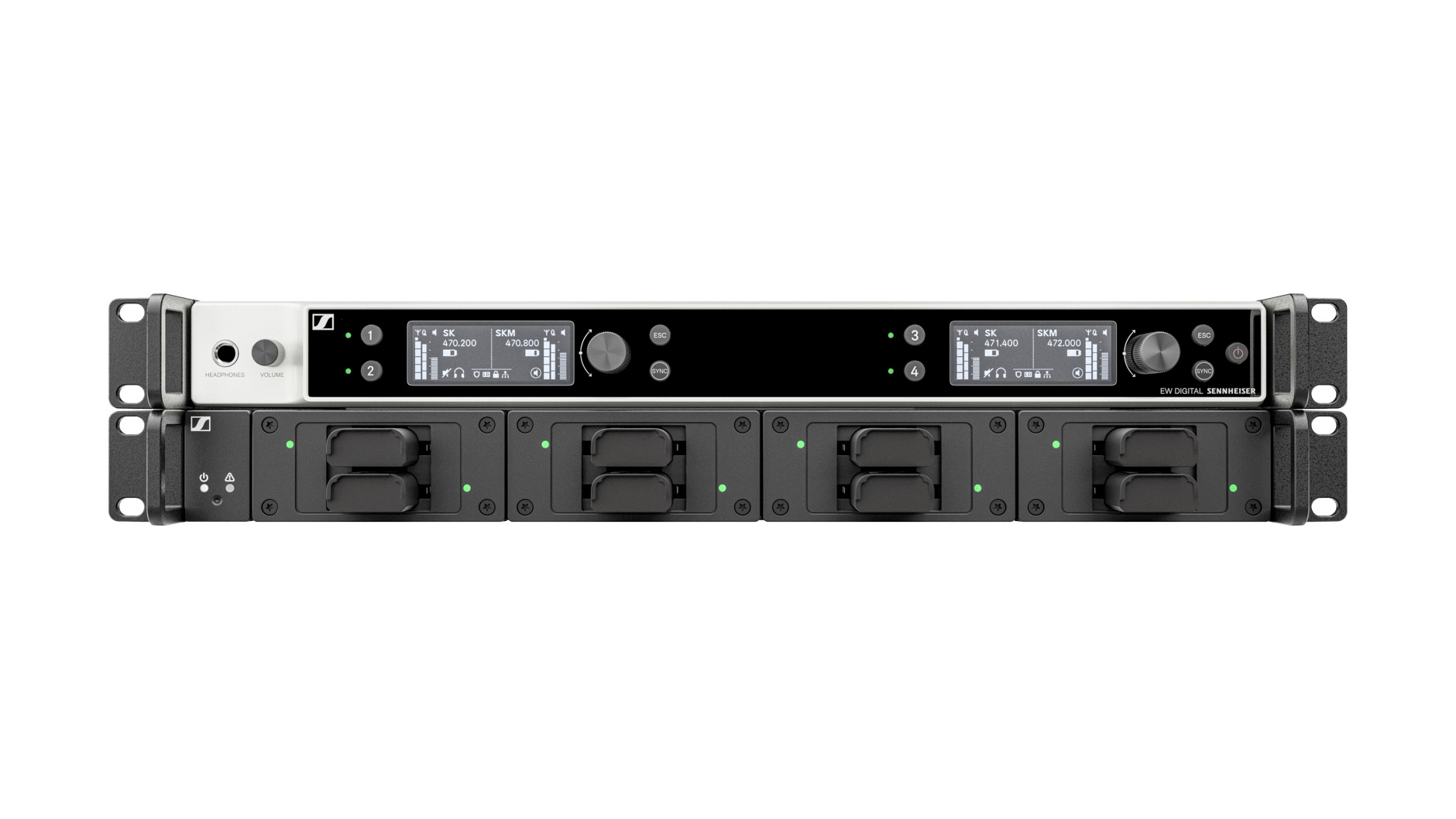

Practical, centralised, intelligent: The L 6000 charging station, in 19-inch, 1U format, offers centralised power directly in the rack. Up to four freely selectable charging modules can charge two bodypack or handheld microphone batteries each (a total of 8 charging ports for BA 60, BA 61, or BA 62 batteries). The three-colour LEDs allow for a quick check of the charging status. The intelligent control system prevents overheating and includes a special optimal charging mode for long storage periods. The L 6000 station has a modular construction and is future-ready: charging modules for types of batteries that will appear later can be easily added. Detailed information about temperature, remaining charging time, operating duration, charging cycles, and battery quality can be accessed through the Wireless Systems Manager (WSM) software.

Technical specifications:

• Charging capacity: up to 8 batteries (BA 60, BA 61, BA 62, BA 70) via 4 interchangeable charging modules (LM 6060, LM 6061, LM 6062, LM 6070). Charging modules are not included.
• Charging time BA 60 (at 20 °C)
  • 80 %: approx. 1:15 h
  • 100 %: approx. 2:30 h
• Charging time BA 61 (at 20 °C)
  • 80 %: approx. 1:45 h
  • 100 %: approx. 3:15 h
• Charging time BA 62 (at 20 °C)
  • 80 %: approx. 1:15 h
  • 100 %: approx. 2:45 h
• Charging time BA 70 (at 20 °C)
  • 80 %: approx. 1:45 h
  • 100 %: approx. 3:30 h
• Charging temperature range: -0 to 50 °C
• Charging status display: Multicolour
• Network: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
• Power supply: 100 to 240 V AC, 50/60 Hz
• Maximum power consumption: 85 W
• Minimum power consumption: 1 W
• Power connector: 3-pin connector, protection class I according to IEC/EN 60320-1
• Dimensions (H x W x D): 44 x 483 x 373 mm
• Weight: 5.1 kg
• Ambient temperature: -10 to 55 °C
• Relative humidity: Max. 90 % at 40 °C
• Protection: The product must not be exposed to leaks and splashes (IP2X)
• Optional accessories (not included)
  • LM 6060: Charging module for two BA 60 batteries
  • LM 6061: Charging module for two BA 61 batteries
  • LM 6062: Charging module for two BA 62 batteries
  • LM 6070: Charging module for two BA 70 batteries
