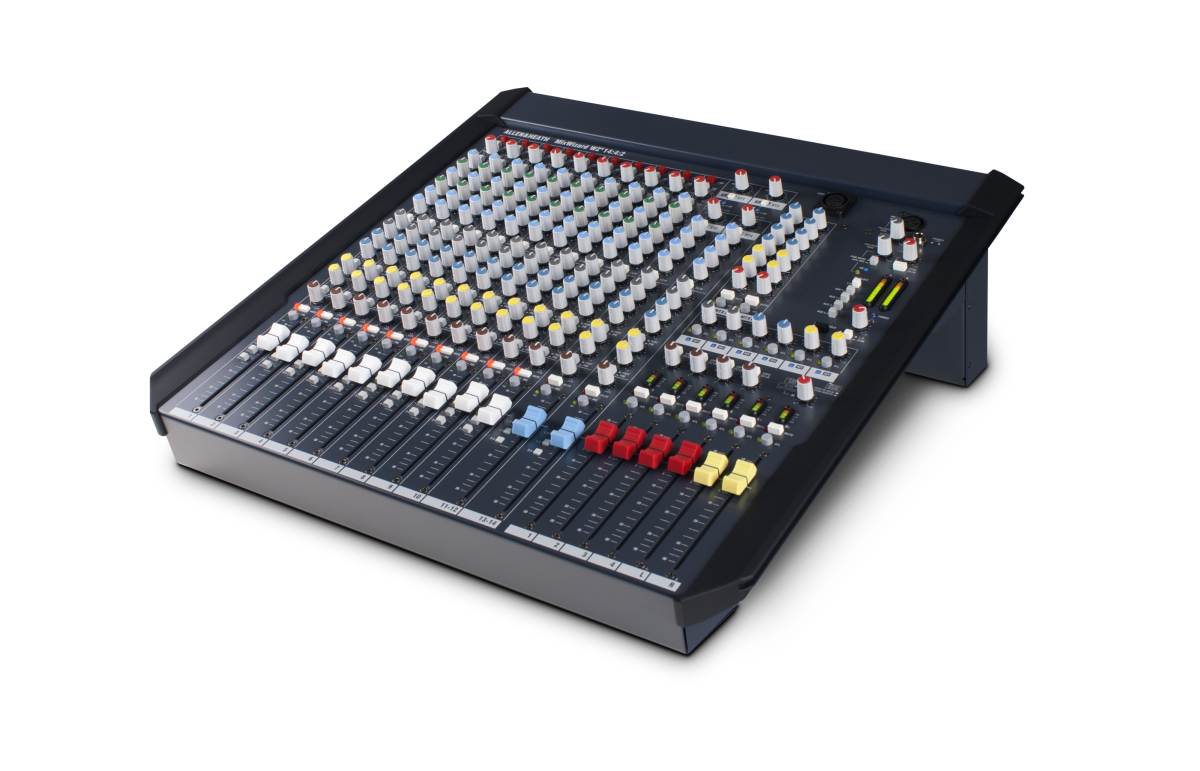

Allen&Heath MixWizard WZ4 14:4:2

Allen & Heath WZ4 14:4:2, a versatile mixer for both Front Of House mixing and monitoring applications. The WZ4 14:4:2 is equipped with a 4-band EQ with 2 sweepable mids, high-quality 100mm faders, 6 auxiliary sends, and allows optional expansion with a 16-track recording audio interface.

FoH / Monitoring / Dual Mode:

• In FoH mode, the 4 groups with inserts, faders, and XLR outputs can be routed and panned to the LR mix outputs (left/right) for flexible sub-mixing. The main LR mix has inserts, separate faders for left/right, and XLR outputs for speakers. EQ and processing can be easily inserted on both the main and group outputs.
• In monitor mode, the auxiliary mixes are routed to the faders, inserts, and group and LR mix outputs. The AFL and PFL systems are switched to the Mono output, allowing management of 6 monitor mixes.
• In dual mode, some auxiliaries can be used as monitor mixes, and some sub-groups can be used with the main LR outputs.

Features:

• 10 XLR/Jack microphone/line inputs, inertia, and direct output
• Reverse switches for changing group and aux master functionality in Monitor or Dual Mode
• 6 auxiliary sends
• 4 audio groups
• 2 x dual stereo inputs with separate Gain and ON switches
• 4-band EQ with 2 swept mids
• 6 x 2 matrix for in-ear monitors, powered speakers, video, broadcast, etc.
• Oscillator and pink noise generator for testing speakers
• 100mm faders
• Phantom power +48V
• 19" rack mountable
• Weight: 12.5 kg
