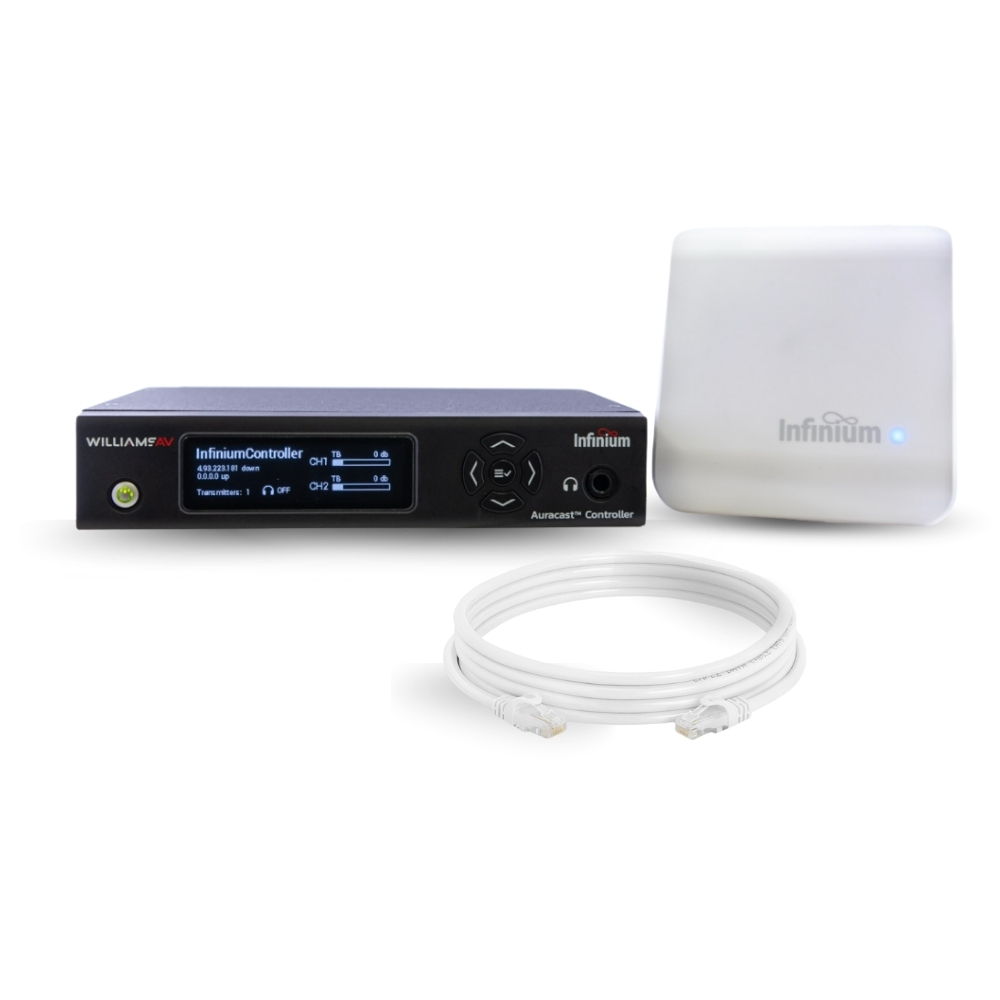

Williams AV BA CT1 Infinium Auracast Controller and Transmitter Package

Williams AV BA CT1 Infinium Auracast Controller and Transmitter Package - A set consisting of the Auracast™ Controller and Transmitter (BA CT1), offering high-fidelity audio with ultra-low latency for commercial AV environments.

It allows sound transmission to compatible Auracast™ devices, including hearing aids, cochlear implants, headphones, and Infinium™ receivers. The modular system includes a rack controller and a discreet transmitter, easy to integrate.

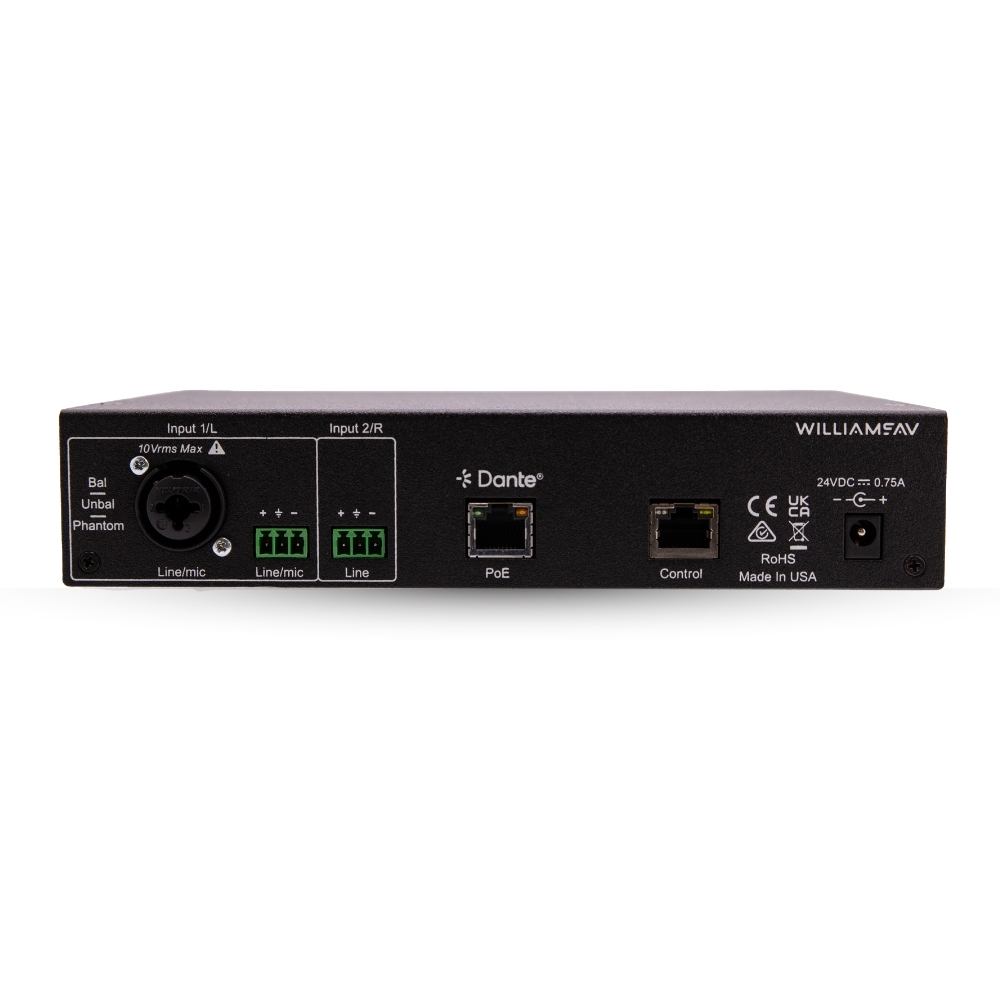

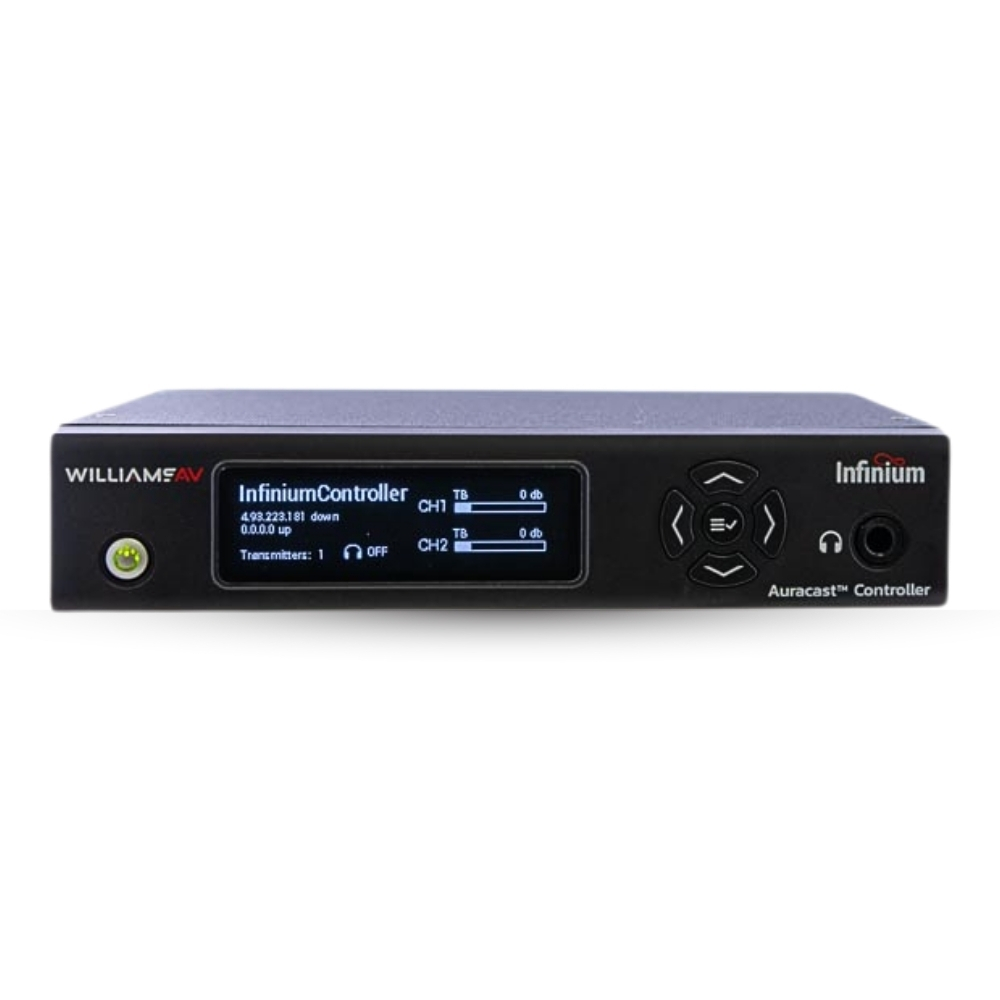

Controller (BA C1)

• Mounting: standard 19” rack, 1 EIA, can use RPK 005/006 kit for multiple units
• Operating temperature: 0° C – 50° C
• Storage temperature: -20° C – 70° C
• Power supply: 100–240 VAC, 24 VDC / 750 mA adapter
• Ethernet port: RJ-45 for web control and programming, CAT5e cable up to 100 m
• Interface: OLED 3.12” for local control and status
• Dante: 1x RJ-45 for professional AV integration
• PoE: Power Out available
• Certifications: FCC, RoHS3, WEEE, ISED, CE, UKCA, RCM, CB
• Dimensions: 21.5 x 14.6 x 4.4 cm
• Weight: 1.04 kg
• Colour: black

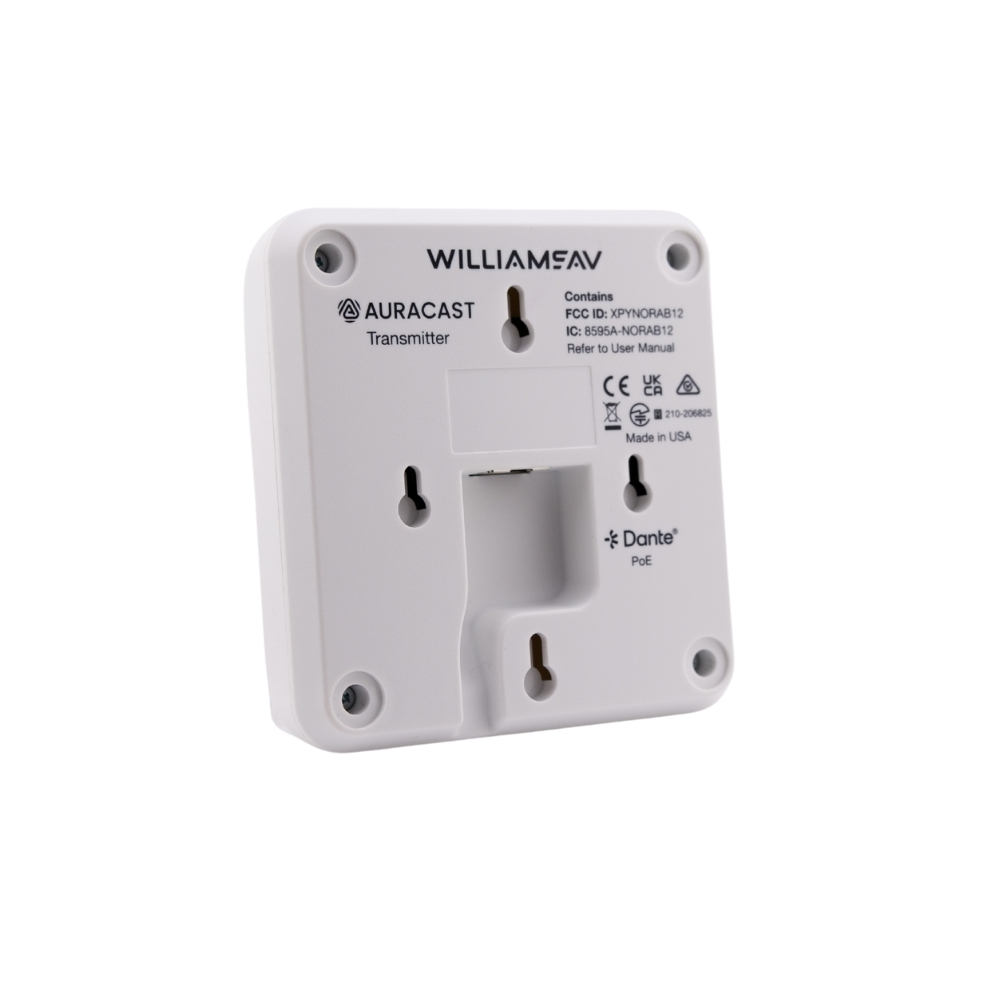

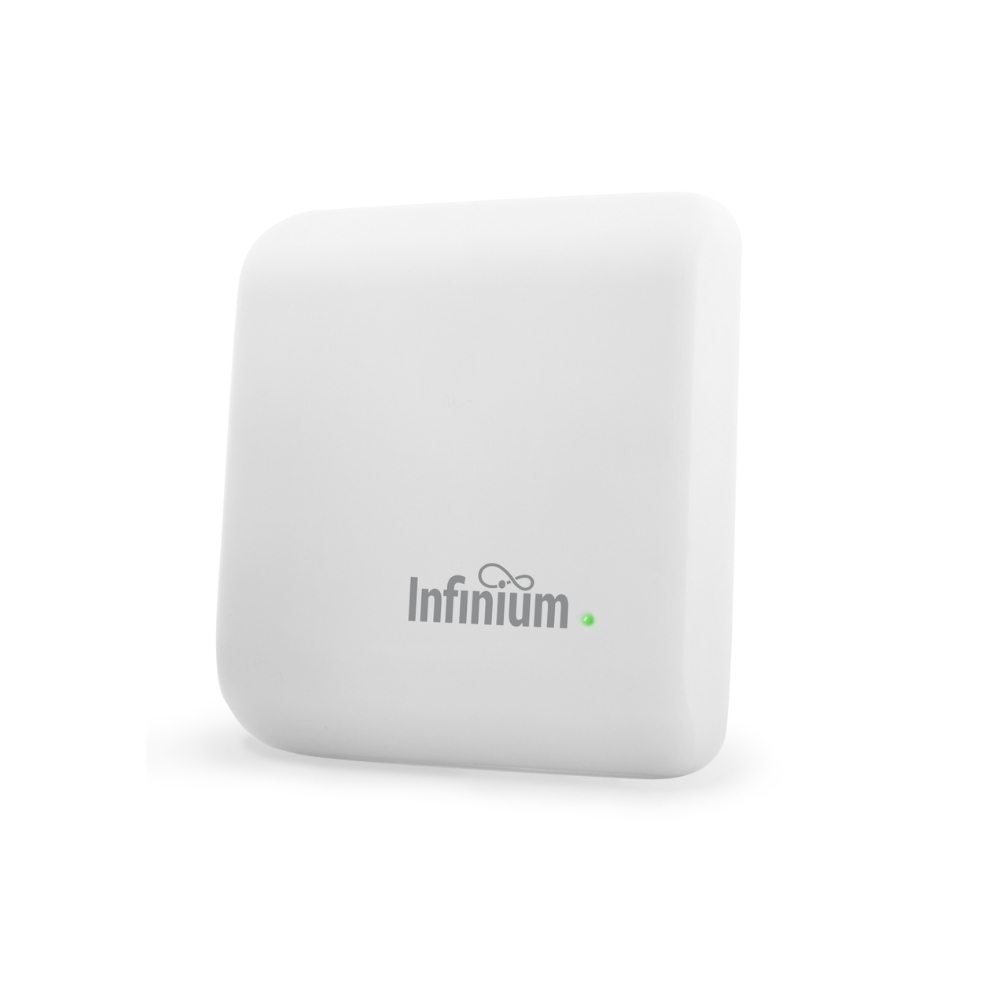

Transmitter (BA T1)

• Mounting: ceiling, wall or shelf
• Operating temperature: 0° C – 50° C
• Storage temperature: -20° C – 70° C
• Power supply: PoE
• Connection: RJ45 with audio, control and PoE
• Programmable LED indicator for power
• Certifications: FCC, RoHS3, WEEE, ISED, CE, UKCA, RCM, CB, Gitecki (Japan)
• Dimensions: 11.9 x 12.7 x 3 cm
• Weight: 0.18 kg
• Colour: white

Others:

• Modular system: separate controller and transmitter for flexibility and easy integration
• Omnidirectional audio up to 100 m

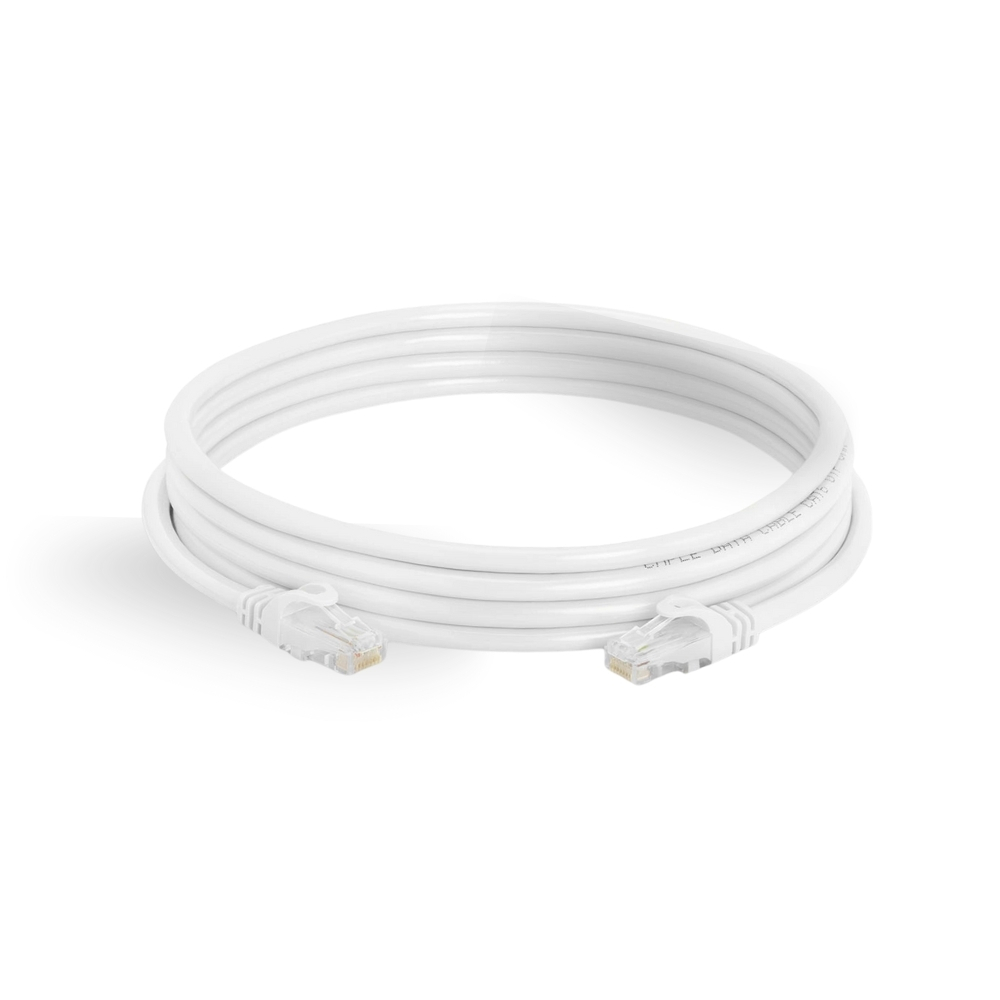

• Includes 10’ CAT5e Ethernet cable
• Compatibility: Auracast™ (hearing aids, cochlear implants, headphones), Infinium™ receivers
• Ideal for: theatres, conference rooms, airports, fitness centres
• Configuration and monitoring: locally or remotely via web interface
