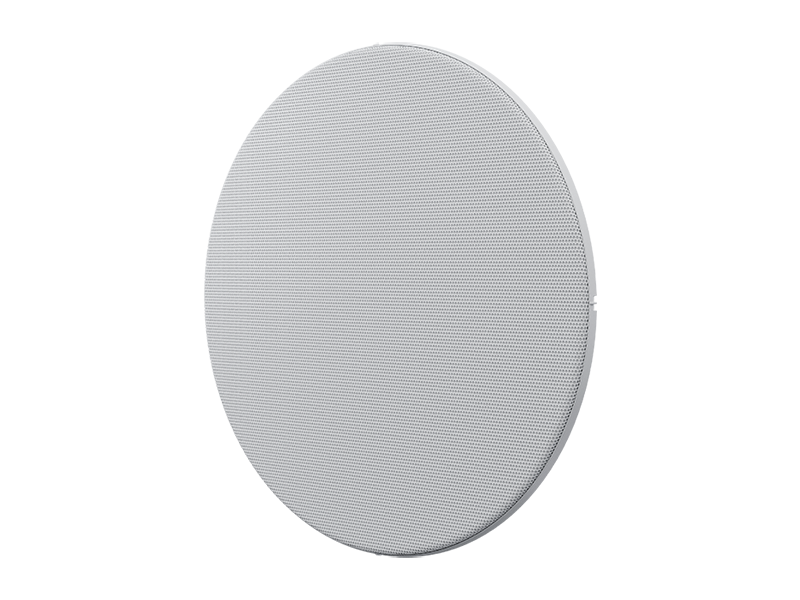

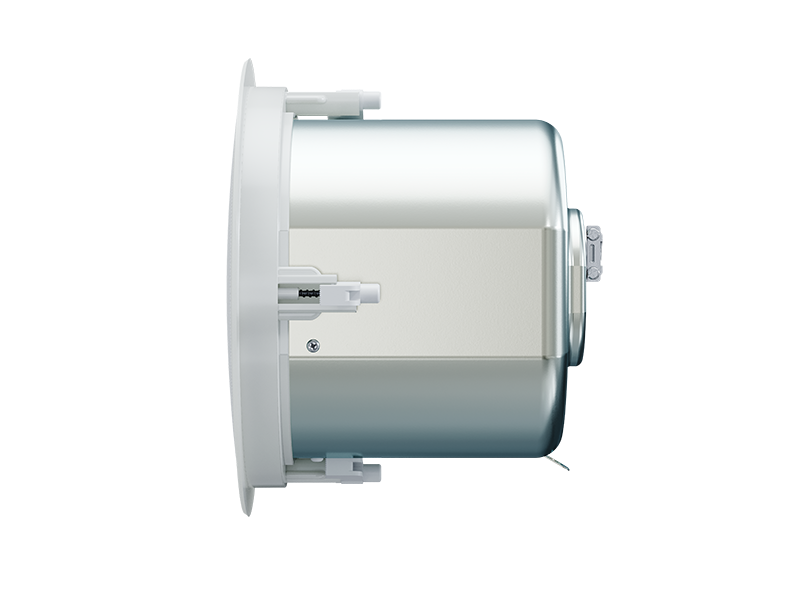

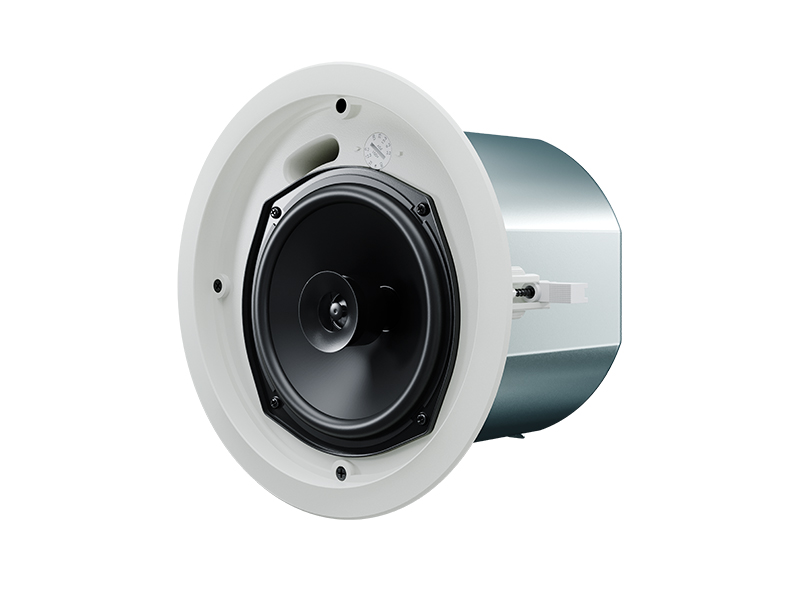

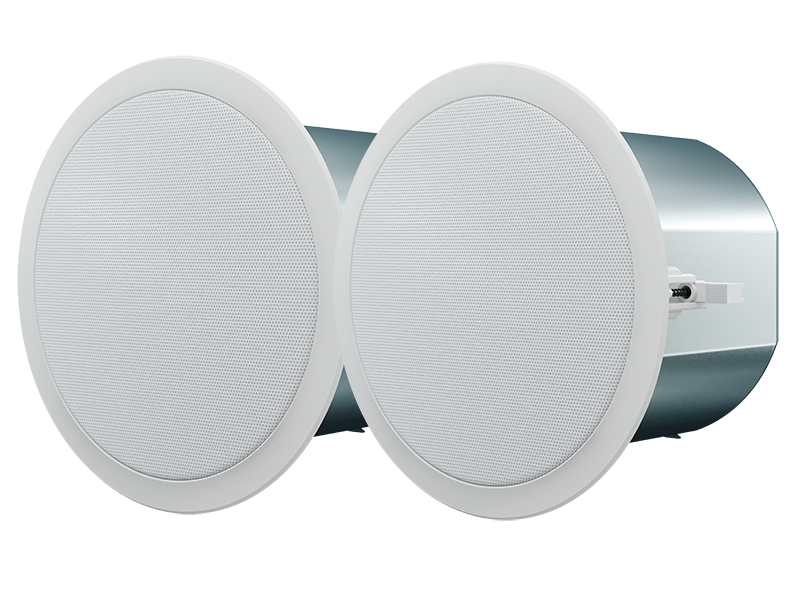

Optimal Audio UP6 White Pair – A pair of passive speakers, two-way, 6", designed for ceiling mounting, offering consistent coverage and full frequency sound in various commercial environments. It is ideal for locations requiring high sound pressure levels, such as hotels, shops, bars, and restaurants. It features an integrated mounting system for easy and clean installation, with a steel housing and perforated steel grille, finished in neutral white. The Pendant 2 and Grille 2 accessories allow for elegant suspension of the speakers or achieving a borderless look on the ceiling.
Up 6 uses a 6” driver and a 0.7” metal tweeter for high-quality sound reproduction. With a conical coverage angle of 110°, it ensures consistent sound and high performance. It can operate on 70V or 100V lines or at low impedance, with tap selection options. The SmartAmp or Zone amplifier provides optimal performance and protection, and the settings are simple and intuitive via Zone and WebApp, with the possibility of extending control through ZonePad.
Features
- 6” coaxial driver
- Discreet dimensions
- Discreet design
- Operation at 16 ohms or 70/100V lines
- Power tap range
- Wide conical coverage pattern
- Integrated mounting hardware
- Available accessories for suspension (Pendant) and borderless grille
Specifications:
- type: passive speaker, full range, for ceiling, two-way
- frequency response (with preset): 115Hz – 18kHz ± 3dB, -10dB @ 80Hz
- drivers:
- Low LF: 6.5” (162mm)
- High HF: 1” (25mm) / metal dome
- nominal power: 60W (AES), 120W (Peak)
- nominal impedance: 16Ω
- sensitivity (1W/1m): 90dB
- max SPL: 108dB (continuous), 111dB (peak)
- recommended high-pass filter: 24dB/octave @ 80Hz
- taps for transformer @ 70V: 60, 30, 15, 7.5W
- taps for transformer @ 100V: 60, 30, 15W
- dispersion (-6dB): 110° conical
- back housing: galvanized steel
- protective grille: perforated steel with fabric backing
- fire rating: UL94-V0
- connectors: Euroblock with 4 pins and link out
- accessories: C-ring support for mounting plate
- dimensions (including grille): (Ø) 251mm x (D) 205.1mm
- cutout diameter: 222mm
- weight: 3.0kg
