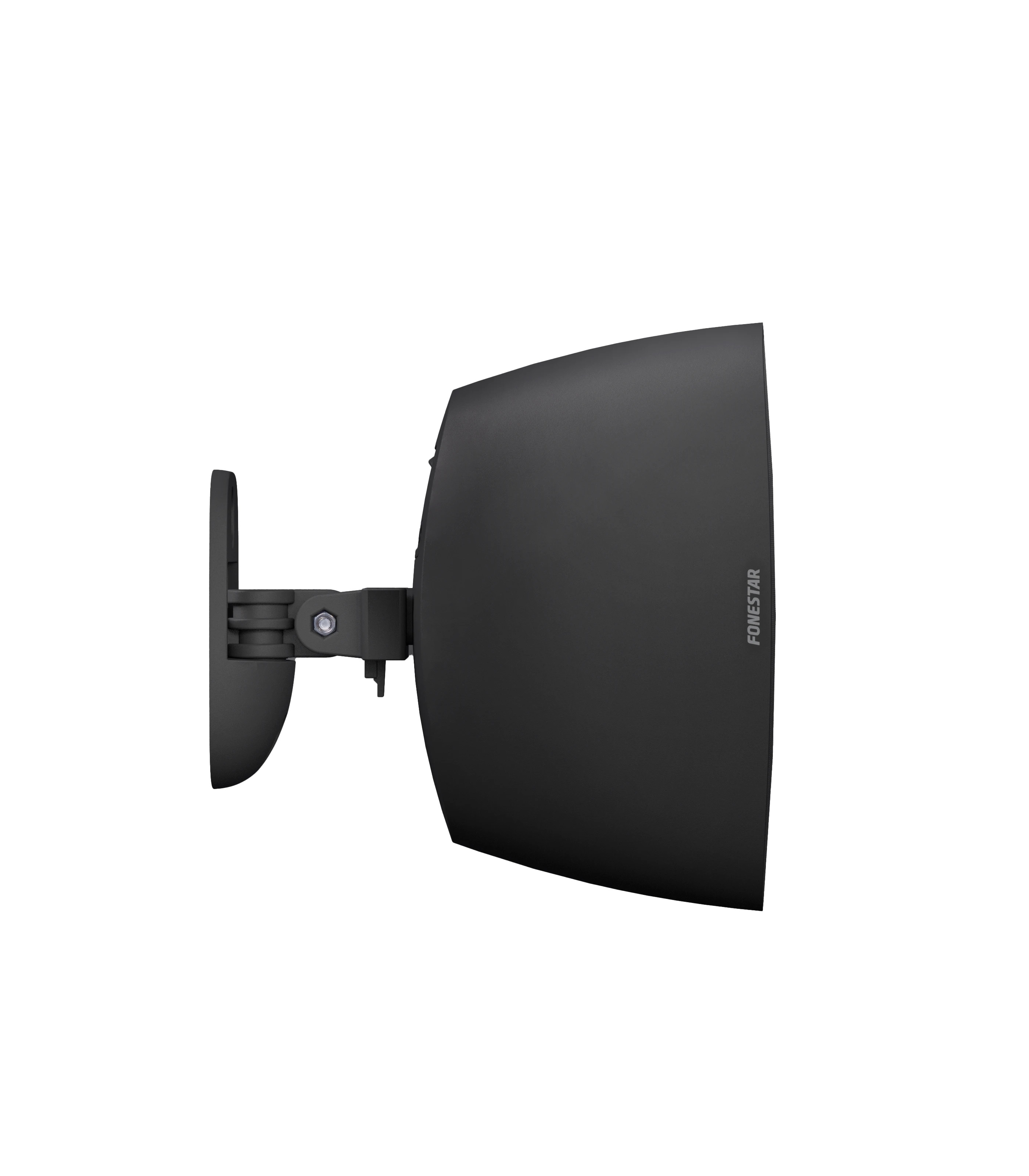

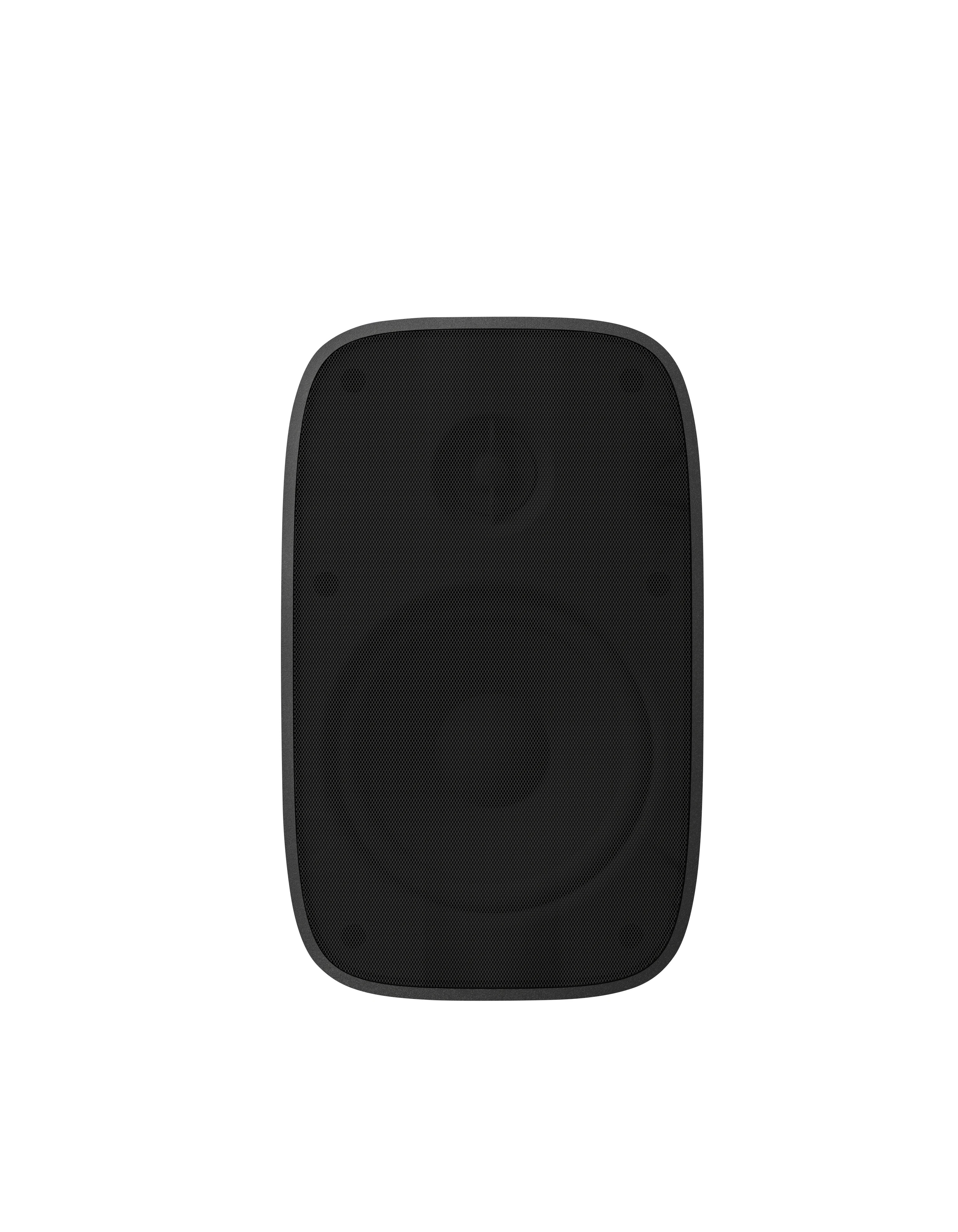

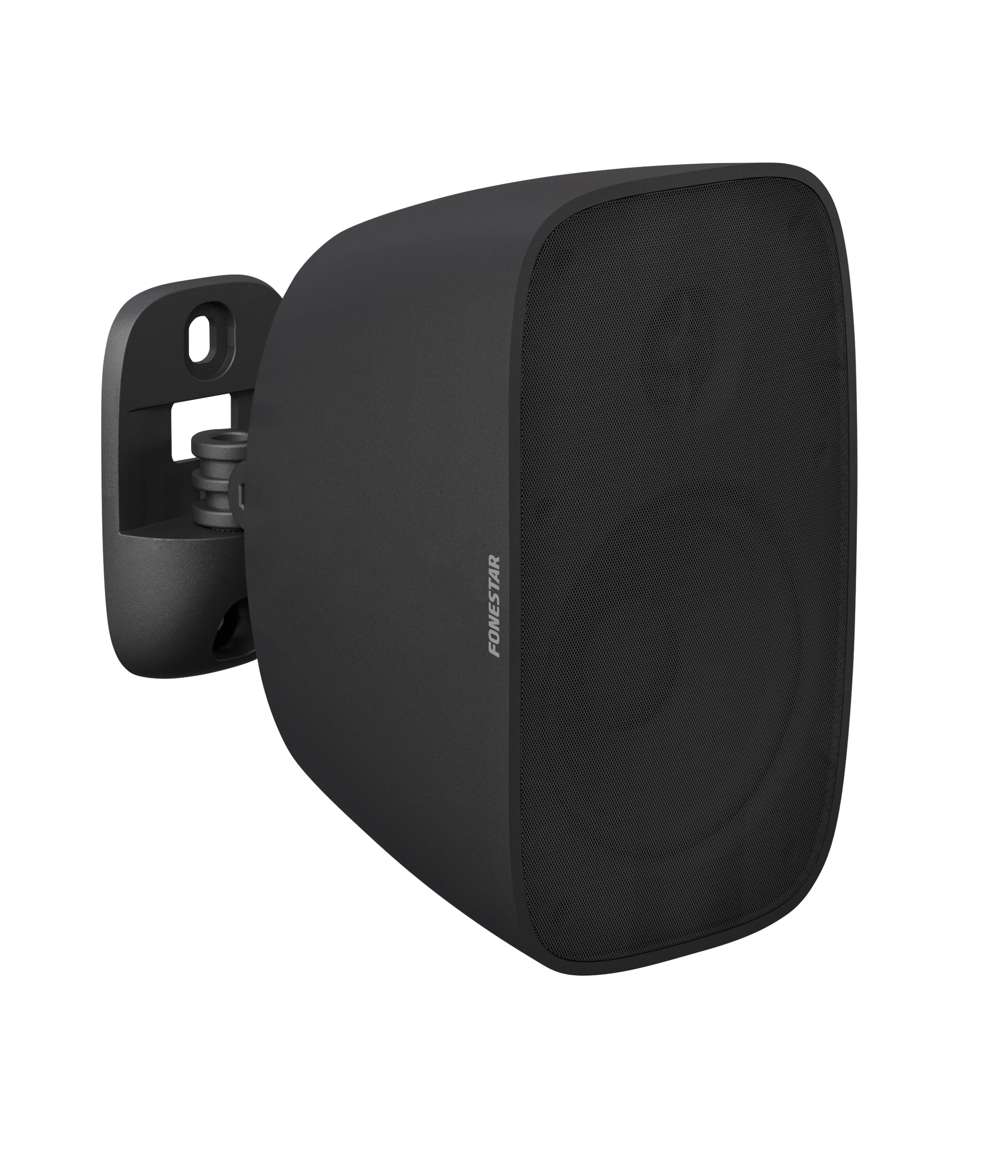

Fonestar SONORA-6TN

Fonestar SONORA-6TN - Passive installation speaker, with a 100 V line transformer and low impedance option, designed for public address applications, ambient music, and background sound. With an elegant design and robust construction, it easily integrates into any space and offers clear sound without distortion.

It is ready for outdoor use, thanks to the aluminium grille and IP-66 protection against water and corrosion. Installation is simple and quick, due to the included accessories: weather-resistant adjustable mounting bracket, stainless steel screws, and safety cable.

Recommended for public spaces such as restaurants, cafés, supermarkets, or shopping centres, the SONORA-6TN combines reliability, performance, and aesthetics into a complete sound solution.

FEATURES:

• Speaker with low impedance and 100 V line transformer
• Suitable for outdoor use, water and corrosion-resistant materials

POWER:

• 100 W maximum
• 60 W RMS

DRIVERS:

• 1 x 6" polypropylene woofer
• 1 x 1" tweeter

FREQUENCY RESPONSE:

• 75 – 20,000 Hz

IMPEDANCE:

• 60 W RMS @ 100 V – 165 Ω
• 30 W RMS @ 100 V / 70 V
  • 330 Ω / 163 Ω
• 15 W RMS @ 100 V / 70 V
  • 660 Ω / 326 Ω
• 7.5 W RMS @ 100 V
  • 1320 Ω / 653 Ω
• 3.75 W RMS @ 70 V
  • 1306 Ω
• Low impedance (Low Z): 8 Ω

SENSITIVITY:

• 4 dB @ 1 W / 1 m

MAXIMUM SOUND PRESSURE:

• 8 dB @ maximum power / 1 m

COVERAGE ANGLE:

• 150° horizontal x 120° vertical @ 1 kHz (-6 dB)

PROTECTIONS:

• IP-66 protection rating according to EN 60529
• Environmental test IEC 60068-2-11 (salt mist)

MATERIAL:

• ABS housing with UV resistance
• Front grille made of aluminium, painted in an electrostatic field
• Weather-resistant mounting bracket
• Stainless steel screws

SELECTOR:

• Switch for selection between 100 V / 70 V mode and low impedance

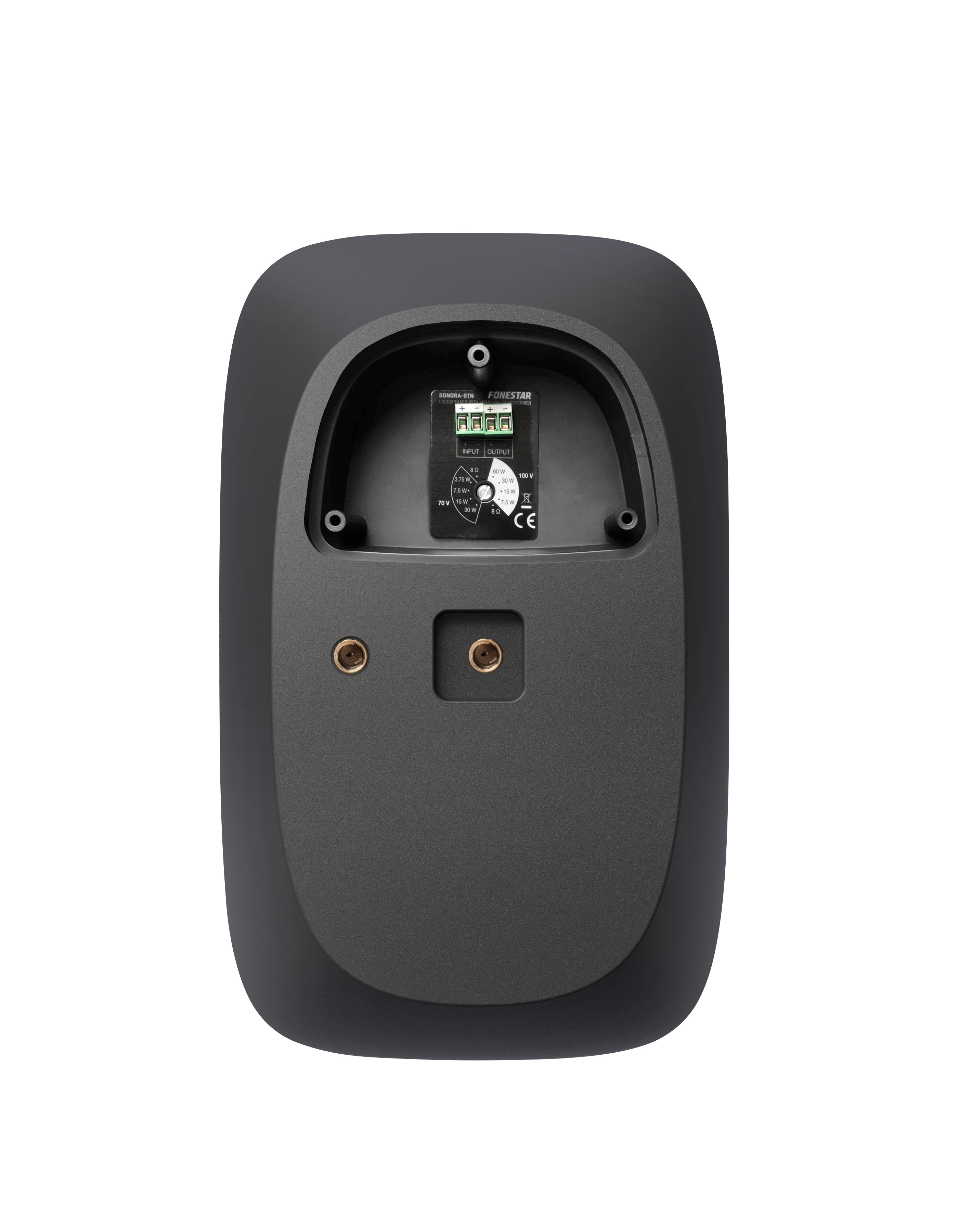

CONNECTORS:

• Euroblock IN and OUT for cables with a cross-section between 0.25 – 2.5 mm²

OPERATING TEMPERATURE:

• From -10°C to +60°C

COLOUR:

• Black (RAL 9005)

DIMENSIONS:

• Speaker: 199 x 322 x 181 mm (depth)
• Wall mounting plate: 102 x 165 mm
• Speaker with mounted bracket: 284 mm (depth)

WEIGHT:

• 3 kg

INCLUDED ACCESSORIES:

• Adjustable mounting bracket ± 60° in all directions
• Steel safety cable
