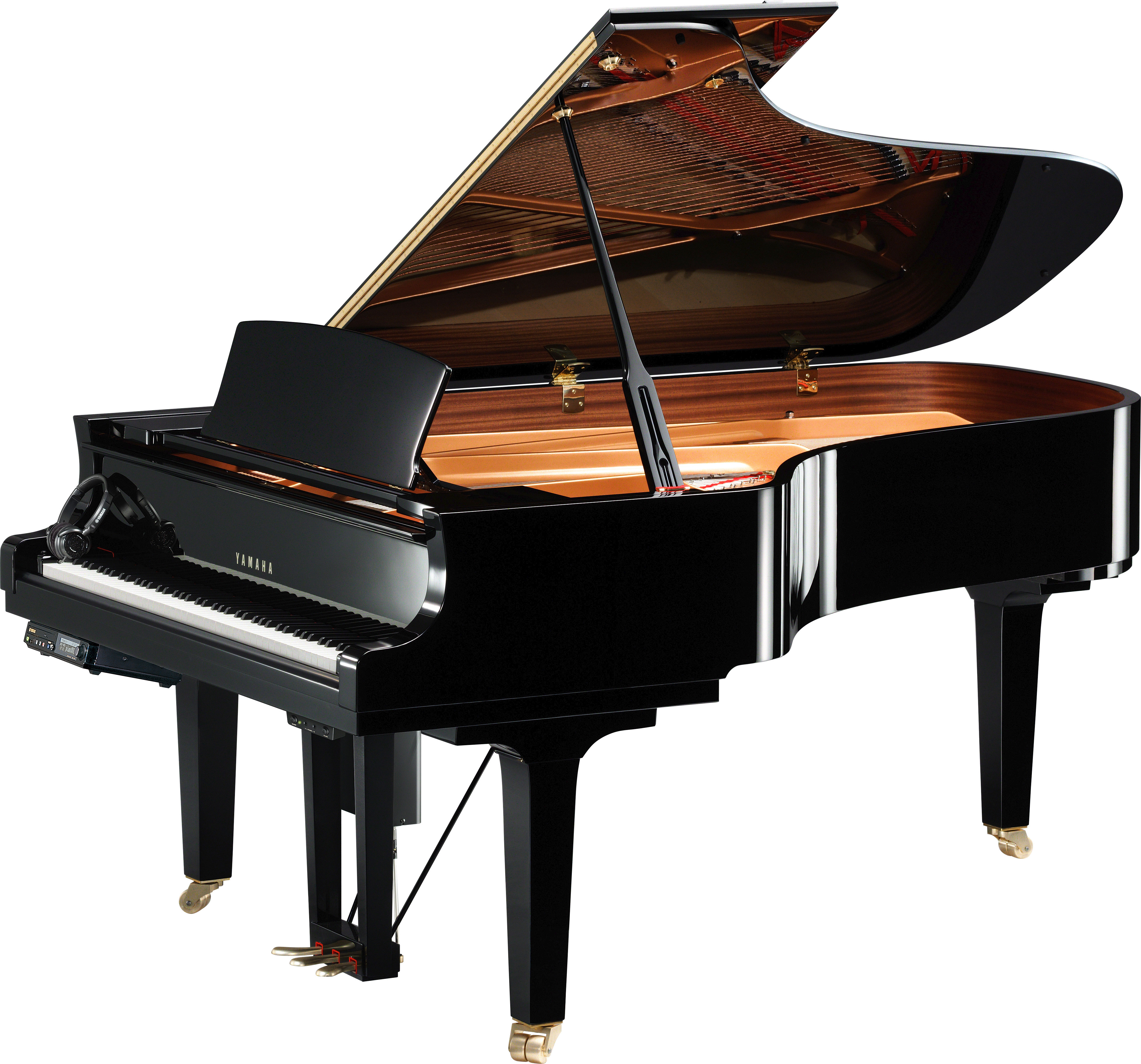

Yamaha Disklavier C7X E3 PRO is based on the Yamaha C7X acoustic piano, the flagship of the CX acoustic piano series, featuring a 212cm long tail. It is equipped with a synthesis extension for MIDI playback, a hybrid acoustic system (acoustic piano + speakers), and an auto-play function (moving keys).
The piano contains 400 playable songs. There is no need to procure special music files: the instrument can be used immediately after installation.
The playback volume is adjustable: even though it is an acoustic piano, the audible volume can be adjusted in subtle nuances.
DisklavierRadio: by connecting the instrument to the internet, you can play songs performed live from a special internet radio station. The station includes 11 different channels.
Disklavier E3 helps you create your own music
ergonomic interface with an optimal number of control means
integrated amplification system: each speaker is positioned to perfectly blend with the piano's own sound
enhanced clarity display for easy reading even from a distance
Preserve your musical memories
easy recording, sufficient storage space for hundreds of hours of playing
USB stick connection
play along with CDs: accompanying your favourite band, Disklavier allows you to record all key presses and pedal actions in MIDI data format stored in internal memory, so that during playback the performed piece perfectly synchronises with the official CD recording.
Control via iPhone, iPod Touch, iPad
Through a special app created by Yamaha, you can control the entire piano: select the storage medium, start/stop playback, change the tempo or transpose the scale, start a new recording, connect to Disklavier Radio, adjust the volume, and much more.
finish: glossy black
dimensions:
width: 155cm
height: 102cm
depth: 227cm
weight: 444kg
control interface
keyboard
88 keys
white keys coated with Ivorite, a handcrafted material developed by Yamaha to imitate ivory
black keys coated with WPC
pedals: sustain, sostenuto, shift
sensors/actuation:
key sensors: contactless optical fibre sensors for all 88 keys (registers key position, velocity of pressing, velocity of release)
pedal sensors:
for sustain and shift: optical system for incremental motion detection
sostenuto pedal: binary detection (on/off)
key and pedal actuation: servo actuator with solenoids controlled by DSP
Cabinet
safety lid
key lid: locking in position and damper upon closing
Control unit: 292x49x216mm, 2.7kg
Included speakers: 2x20W
Voices
AWM2 tone generator
32-note polyphony
preset tones: 676
21 percussion kits
tuning for digital tones in 1-cent increments over a range of +/-50 cents. Initially tuned to A=440Hz
storage medium and connectivity
128MB internal memory
CD (audio, data)
USB flash memory (optional)
USB hard disk (optional, FAT32 format)
MIDI in/out
audio: MIDI in/out/omni, 2 headphone outputs
included accessories: control unit, control unit mount, monitoring speaker, speaker installation kit, speaker cable, remote control, remote control battery, Pianosoft CD, manual
