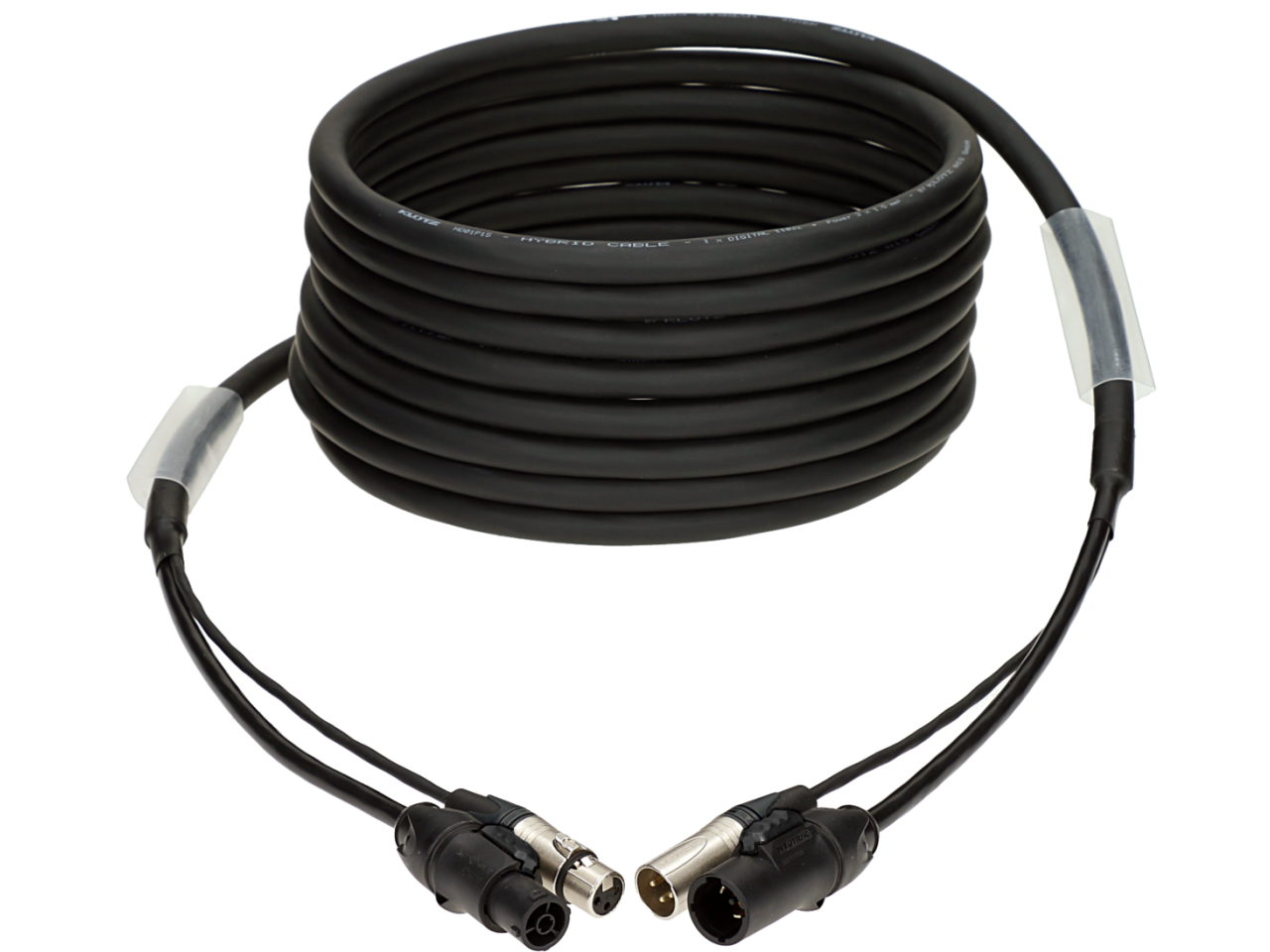

Klotz DMX & power 3G2.5 hybrid cableXLR 3p + powerCON TRUE1 - 10 m

• hybrid cable suitable for analogue and digital signals
• power cable: 3x 2.5 mm²
• the powerCON TRUE1 can be connected or disconnected under load or live
• not supplied on cable drum

A hybrid cable that combines power, audio and DMX conductors in a single product is the ideal solution. It significantly reduces cabling work – a particular advantage where long distances are involved. With characteristic impedance of 110 Ω, the double-shielded signal conductor is suitable for transmission of analogue audio signals as well as digital AES/EBU and DMX signals. However, the logic of the DMX standard is the precise opposite of audio XLR logic; in DMX, the female connector is on the transmitter side and the male connector is on the receiver. The rugged PVC outer jacket encloses the finely stranded power cable with cross-section of 3x 2.5 mm² and the double-shielded signal conductor (foil and braided copper shields). They are available with the following connector options: XLR 3-pin, power CON A, powerCON TRUE1 and earthed plug.

cable

cable typ: HD01P25: hybrid cable 1x digital audio + netz 2.5 mm²

power cable: 3x 2,5 mm²

jacket: PVC, black

connectors

connector 1: XLR 3p female, powerCON TRUE1 F

contact 1: silver-plated

connector 2: XLR 3p male, powerCON TRUE1 M

contact 2: silver-plated

Caracteristici

cable color	black
max. fuse	16 A
length	10 m
