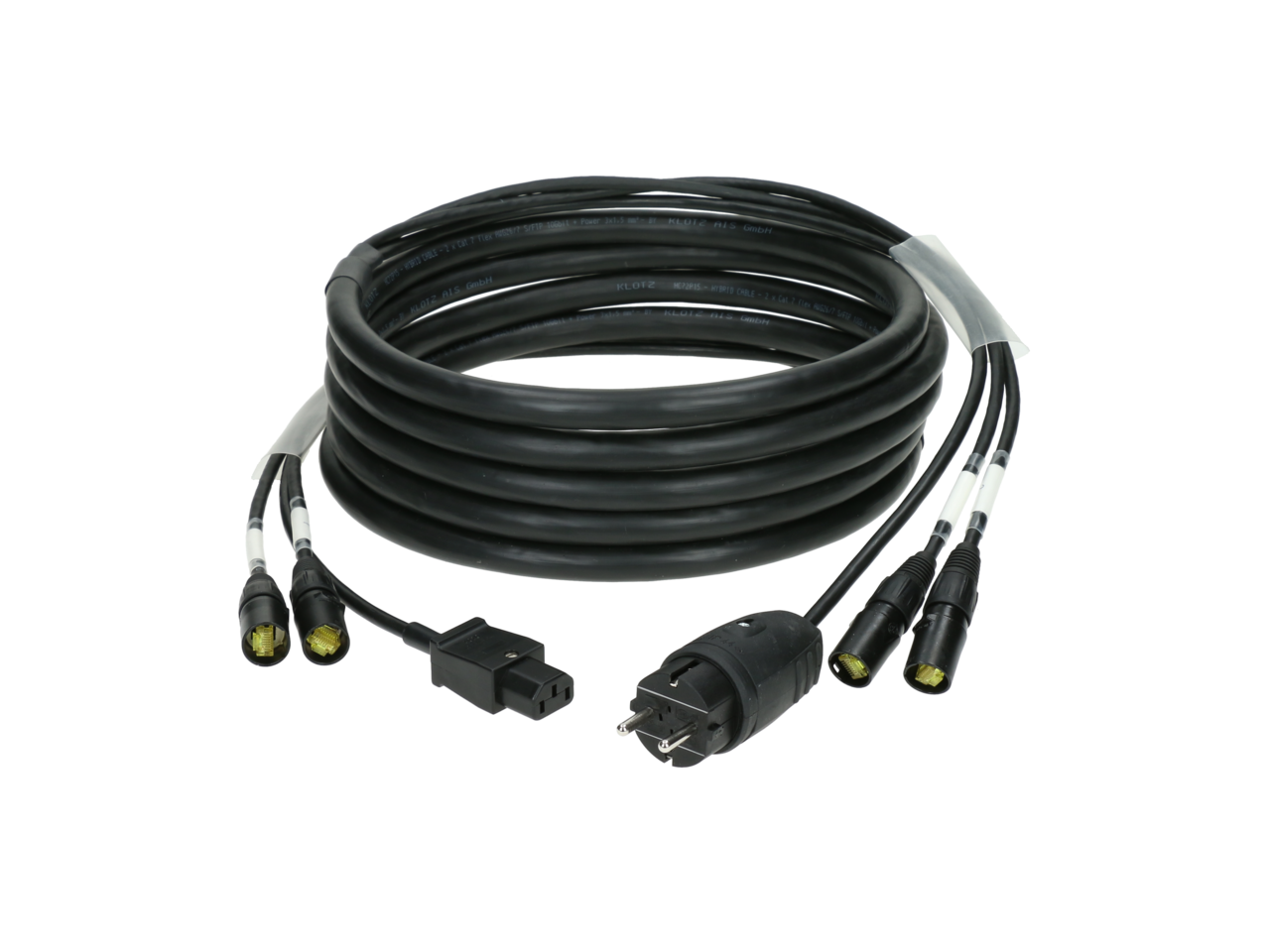

Klotz CAT7 & power 3G1.5 hybrid cable2x etherCON + Schuko => IEC - 16 A - 20 m

• 2x CAT7 patch cables, double shielded (S/FTP)
• with CAT6a RJ45 connectors
• power cable: 3x 1.5 mm²
• Schuko rubber plug, black
• IEC socket C13
• with transparent heat shrink for free labeling
• suitable for 10Gbit applications
• not supplied on cable drum

A hybrid cable that combines power line and data line. Remote equipment can thus be optimally integrated, and the cabling effort is minimized. This is particularly important over longer distances. In addition, interference caused by different ground potentials is avoided. The HC72P15 and HC72P25 hybrid cables enable a wide range of applications as a connection for modern, computer-controlled devices. Two flexible CAT7 cables connect components of digital audio networks such as Dante™, CobraNet® and EtherSound® or transmit DMX control signals based on the ArtNet®, MA-Net or Pathport protocols. The cable also serves as a solution in the IT sector when a network connection plus power line is required. Thanks to the double shielding (Al-foil + dense copper braiding) of the CAT7 cables, the interference-free transmission of high data rates over long distances is possible without any problems, even in electromagnetically influenced environments. Various connector combinations are available: CAT6a RJ45 and etherCON, powerCON TRUE1, Schuko and IEC.

cable

cable typ: HC72P15 - hybrid cable 2x CAT7 patch & power 3x 1.5 mm²

power cable: 3x 1,5 mm²

connectors

connector 1: etherCON, Schuko M

contact 1: silver-plated

connector 2: etherCON, IEC F

contact 2: silver-plated

Caracteristici

cable color	black
max. fuse	16 A
length	20 m
