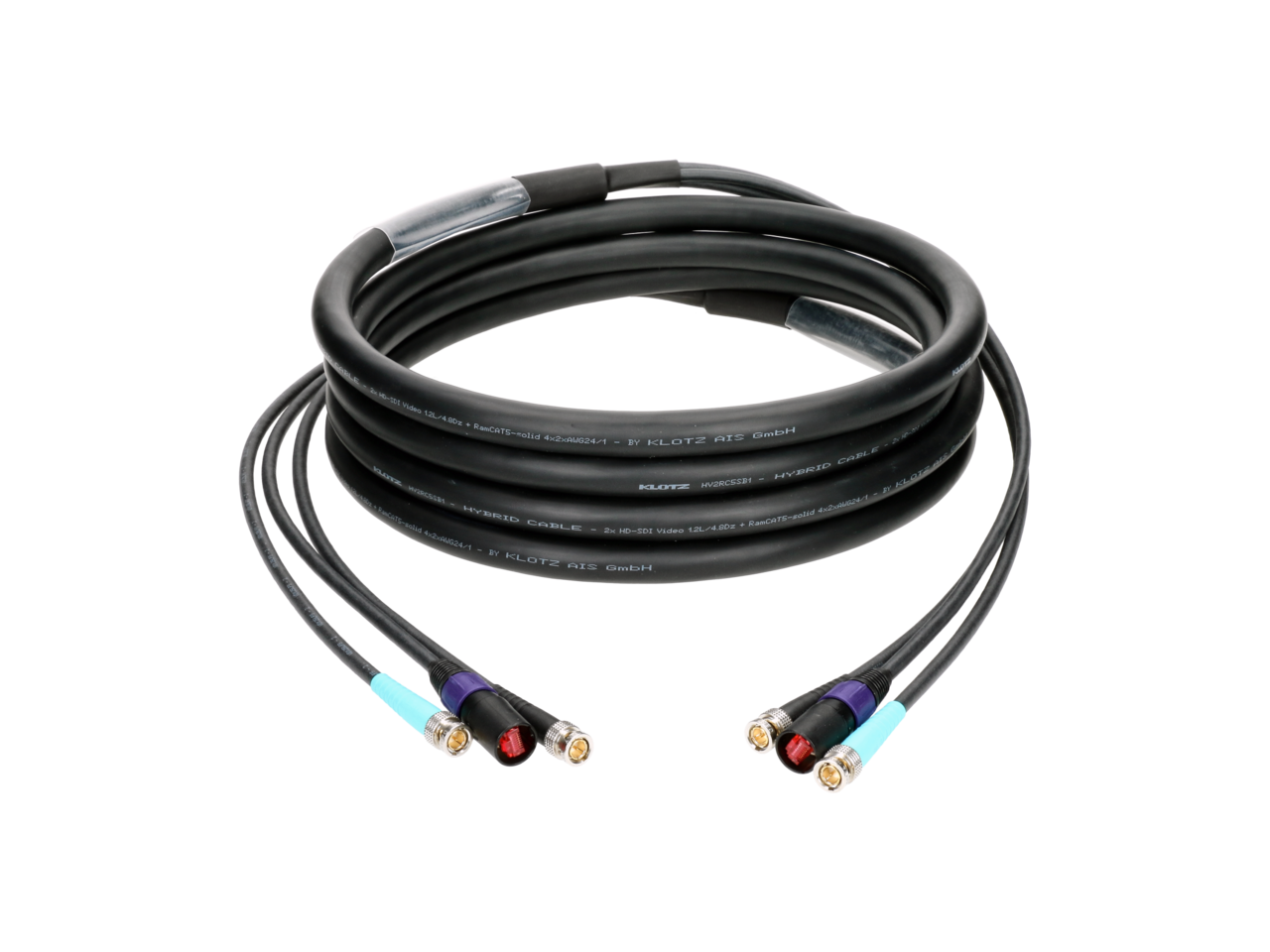

Klotz CAT5e & 12G SDI video hybrid cableetherCON + 2x UHD BNCPro - 25 m

• BNCPro plug - BNCpro plug
• etherCON - etherCON
• for HD / UHD / 12G / 4K
• for 1GBase-T; AES67 / Ravenna / MADI/ EtherSound™
• robust PVC outer jacket
• for mobile use

The requirements in the broadcast and video segment are constantly growing with the use of 12G-SDI workflows (UHD / 4K / 8K) and the bandwidths are constantly increasing. In addition, it is essential to transmit the signals reliably over the usual lengths, even in extreme situations. KLOTZ digital video cables are further improved due to the excellent electrical and mechanical properties of the Damar & Hagen connectors of the BNCpro, BNCslim series as well as the BNCmicro and the DIN 1.0/2.3 connectors. Especially the significant return loss ≥ 28 dB for 12G-SDI signals in combination with the well-known excellent properties of our cables offer a perfect trouble-free transmission even in critical situations. The KLOTZ video cables, as well as the connectors and the required crimping tools are also available individually for on-site assembly.

cable

cable typ: mobile hybrid cable - 2x VD125LPS - 1.2L/4.8 DZ PUR + 1x RamCAT5-solid

outer jacket: PVC

overall diameter: 20 mm

max. transmission length: UHD 12G 55 m; UHD 6G 93 m; UHD 3G 140 m; HD 3G 70 m; HD 1.5G 102 m; 10GBase-T 100 m; AES67 / Ravenna / MADI/ etherSound™ 120 m

connectors

connector 1: 2x BNCPro plug, 1x etherCON RJ45

connector 2: 2x BNCPro plug, 1x etherCON RJ45

Caracteristici

manufacturer BNC	Damar & Hagen
shell/sleeve	turquoise, black
manufacturer etherCON	Neutrik®
sleeve	violet
cable color	black
length	25 m
