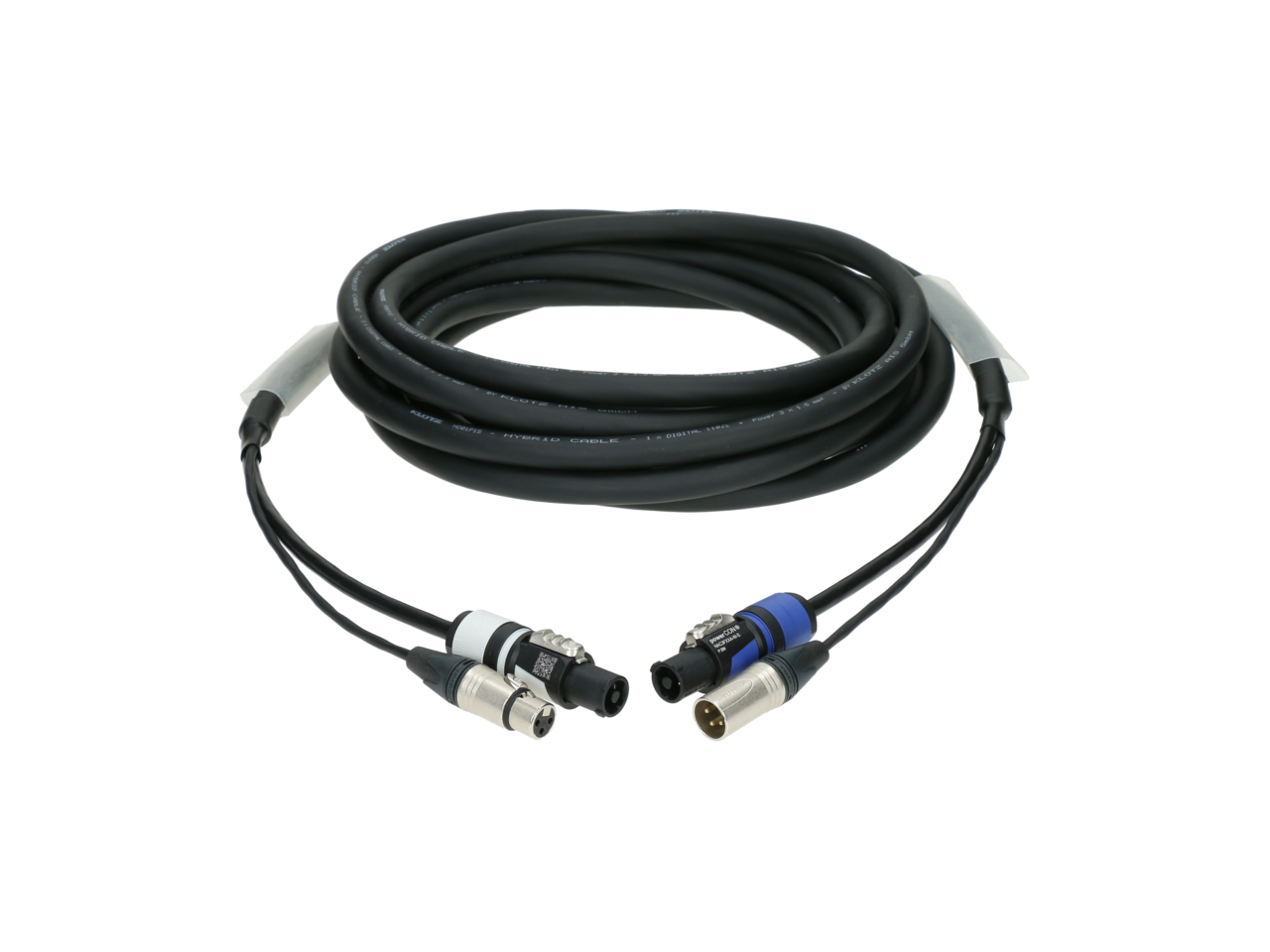

Klotz audio & power 3G1.5 hybrid cableXLR 3p + powerCON - 15 m

• hybrid cable suitable for analogue and digital signals
• power cable: 3x 1.5 mm²
• powerCON B-A for power daisy chaining
• the powerCON must never be plugged in or unplugged when connected to electrical load or current
• powerCON connector IEC EN 60320-1 / UL 60320-1 / CSA C22.2 No. 60320-1 certified, therefore approved as a component of cable harnesses according to IEC 60799 / UL 817 and devices according to IEC 62368-1
• suitable for all active speaker systems (with built-in power amplifier) from e.g. QSC, Meyer Sound, L-Acoustics, RCF, db technologies, Electro Voice, JBL, Yamaha,...
• not supplied on cable drum

A hybrid cable that combines power, audio and DMX conductors in a single product is the ideal solution. It significantly reduces cabling work – a particular advantage where long distances are involved. With characteristic impedance of 110 Ω, the double-shielded signal conductor is suitable for transmission of analogue audio signals as well as digital AES/EBU and DMX signals. However, the logic of the DMX standard is the precise opposite of audio XLR logic; in DMX, the female connector is on the transmitter side and the male connector is on the receiver. The rugged PVC outer jacket encloses the finely stranded power cable with cross-section of 3x 2.5 mm² and the double-shielded signal conductor (foil and braided copper shields). They are available with the following connector options: XLR 3-pin, power CON A, powerCON TRUE1 and earthed plug.

cable

cable typ: HD01P15: hybrid cable 1x digital audio + netz 1.5 mm²

power cable: 3x 1,5 mm²

jacket: PVC

connectors

connector 1: XLR 3p female, powerCON B (grey)

contact 1: silver-plated

connector 2: XLR 3p male, powerCON A (blue)

contact 2: silver-plated

Caracteristici

cable color	black
max. fuse	16 A
length	15 m
