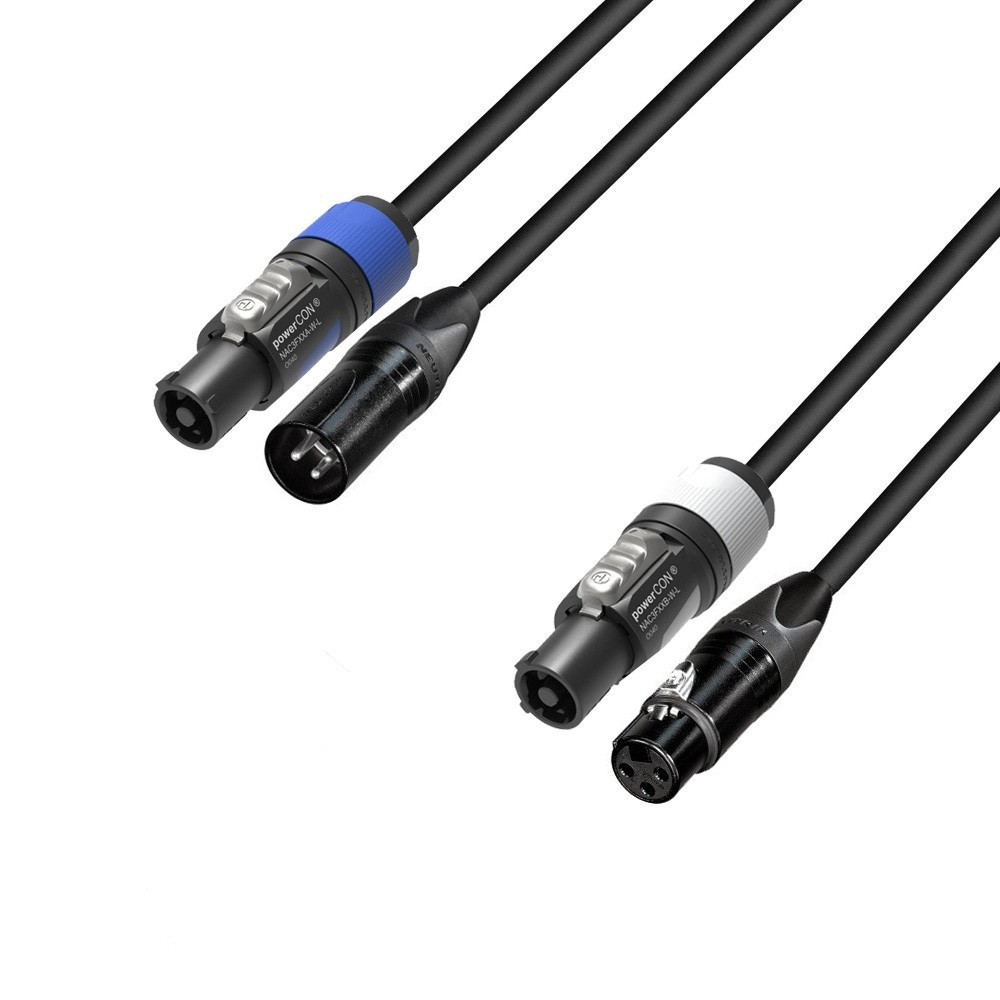

Adam Hall 5Star Hybrid pCon-XLR 10m

Audio/power hybrid cable

this Hybrid Cable for simultaneous tranmission of power and audio signals from our 5 STAR SERIES is manufactured in the EU
for this cable we only use original Neutrik® connectors. For a long-life plugging-cycle and superior transmission quality we use XLR with silver-plated contacts for the audio line, and the power line will be provided by the Neutrik powerCON® connectors
the powerCON® plugs are pluggable under load, and are therefore compliant to the highest standards for the event industry
the line with 0.22 mm² audio & 2.5 mm² power inner-conductor cross-section is engineered by our Adam Hall Cables® crew in Germany
it comes with a PVC jacket made of a special soft-PVC compound for the highest flexibility values

110⁶⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

569 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Adam Hall 5Star Hybrid pCon-XLR 10m Add to cart: 110⁶⁶ €

Elevate your audio setup with our cutting-edge Hybrid Audio & Power cable from our 5 STAR SERIES. Designed for professional audio engineers, this versatile cable allows for simultaneous transmission of audio signals and power, streamlining your rig and ensuring a seamless performance.

Efficient and clutter-free setups require this smart cable, fitted with original Neutrik® premium connectors, renowned for their durability and superior signal transmission values, minimizing signal loss and power drop.

Whether you are setting up for a concert, theater production, or any event requiring sophisticated audio control, our Hybrid Audio and Power transmission cable is the ultimate solution for efficiency and reliability. Trust in its European craftmanship and quality to keep your show running smoothly.

Specifications:

Cable length: 10 m

Split end length: 40 cm

Cable jacket: PVC (Polyvinyl chloride)

Cable diameter: 17 mm

Cable colour: Black

Connector type plug 1: XLR 3-pole female

Model name plug 1: Neutrik NC3FXX-BAG

Contact material plug 1: Silver plated

Connector type plug 2: XLR 3-pole male

Model name plug 2: Neutrik NC3MXX-BAG

Contact material plug 2: Silver plated

Conductor material: OFC (Oxygen-free copper)

Conductor diameter: 2 x 0,22 mm²

AWG: 24

Capacity/m: 55 pF

Conductor impedance/km: 85 Ohm

Shield: Spiral copper shielding

Cable jacket: PVC (Polyvinyl chloride)

Cable diameter: 5 mm

Plug type connector 1: Mains plug female power out

Model name connector 1: Neutrik NAC3FXXB-W-L

Plug type connector 2: Mains plug female power in

Model name connector 2: Neutrik NAC3FXXA-W-L

Conductor material: OFC (Oxygen-free copper)

Conductor diameter: 3 x 2,5 mm²

AWG: 13

Cable jacket: PVC (Polyvinyl chloride)

Cable diameter: 10 mm

Weight: 3.01 kg

Product code: K5HPCONA1000

Unit of sale: piece
