Omnitronic LH-020 3-Channel Mic Mixer

mini mixer

mixer compact pentru a mixa 3 microfoane la 1 ieșire de linie, cu control individual al nivelului
3 canale de intrare pentru microfon cu controale de nivel separate, alimentare fantomă comutabilă și tăiere joasă
1 ieșire master cu nivel de linie, clip LED
1 ieșire pentru căști (mufă de 6,3 mm)
intrări și ieșiri prin conectori XLR echilibrați

108⁹⁴ €

In stock and deliverable.

Central warehouse: 1

Add to cart

also deliverable via

561 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details better price?

Omnitronic LH-020 3-Channel Mic Mixer Add to cart: 108⁹⁴ €

3-channel microphone mixer

Compact mixer to mix 3 microphones to 1 line output, with individual level control
3 microphone input channels with separate level controls, switchable phantom power, and low cut
1 master output with line level, clip LED
1 headphone output (6.3 mm jack)
Balanced XLR connectors for inputs and outputs

Package contents

Power supply:	12 V DC 150 mA
Pin configuration:	Interior - exterior +
Protection class:	Protection class III

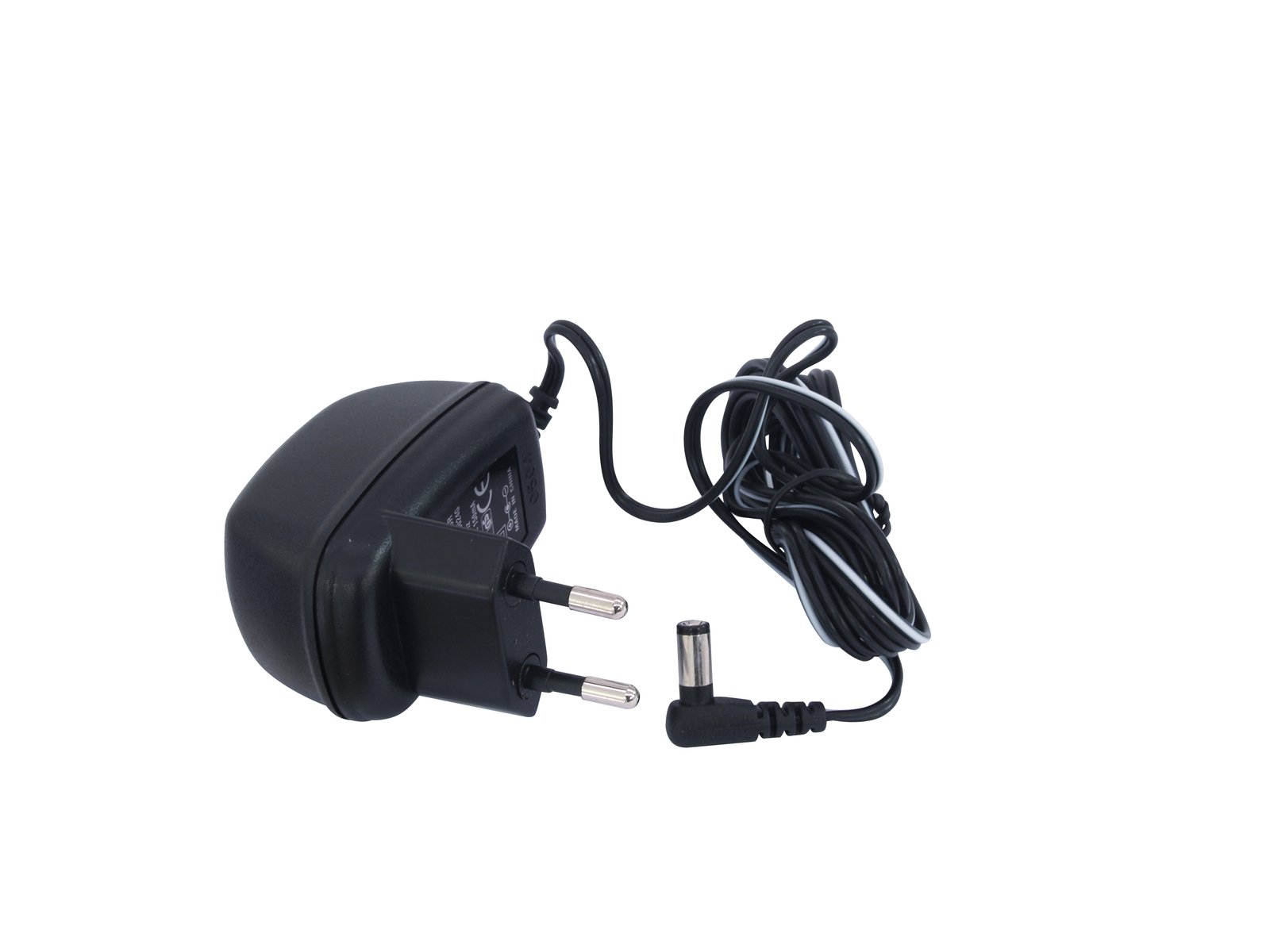

Power connection:	Mains input via coaxial power connector (M) power cable mounting version with AC adapter (supplied)
Frequency range:	25 - 16000 Hz
S/N ratio:	>75 dB
THD:	<0.02 % at 1 kHz
Phantom power:	18 V DC
Impedance:	Input: 600 Ohm 600 ohms
Gain:	60 dB
Status LED:	Power, clip
Connections:	Input: microphone via 3 x 3-pin XLR Output: microphone via 1 x 3-pin XLR Output: headphones via mounting version with 1 x 6.3 mm jack (stereo).
Input channels:	3 x mono via XLR, channel control via rotary selector
Switch:	Low cut switch,
Max. level:	Input: -14 dB Output: +14 dB
Dimensions:	Width: 14.3 cm Depth: 9.3 cm Height: 4.5 cm
Weight:	760 g
