MEC Pickups Stereo Potentiometer, (05A250K / 05C250K)/cc

Name: MEC Pickups Stereo Potentiometer, (05A250K / 05C250K)/cc
Brand: MEC Pickups
SKU: M 86252/L-
Price: 29.82 EUR
Availability: OutOfStock

Potentiometer

stereo potentiometer with a single shaft design.
available in two resistance options: 250 kOhm logarithmic and inverse logarithmic.
ideal for balance control in passive pickups.
m10 x 0.75 mm thread and 10 mm mounting diameter.
includes nut and washer for easy installation.

Variants:

29⁸² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

153 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Stereo Potentiometer, (05A250K / 05C250K)/cc Add to cart: 29⁸² €

- stereo potentiometer
- single shaft

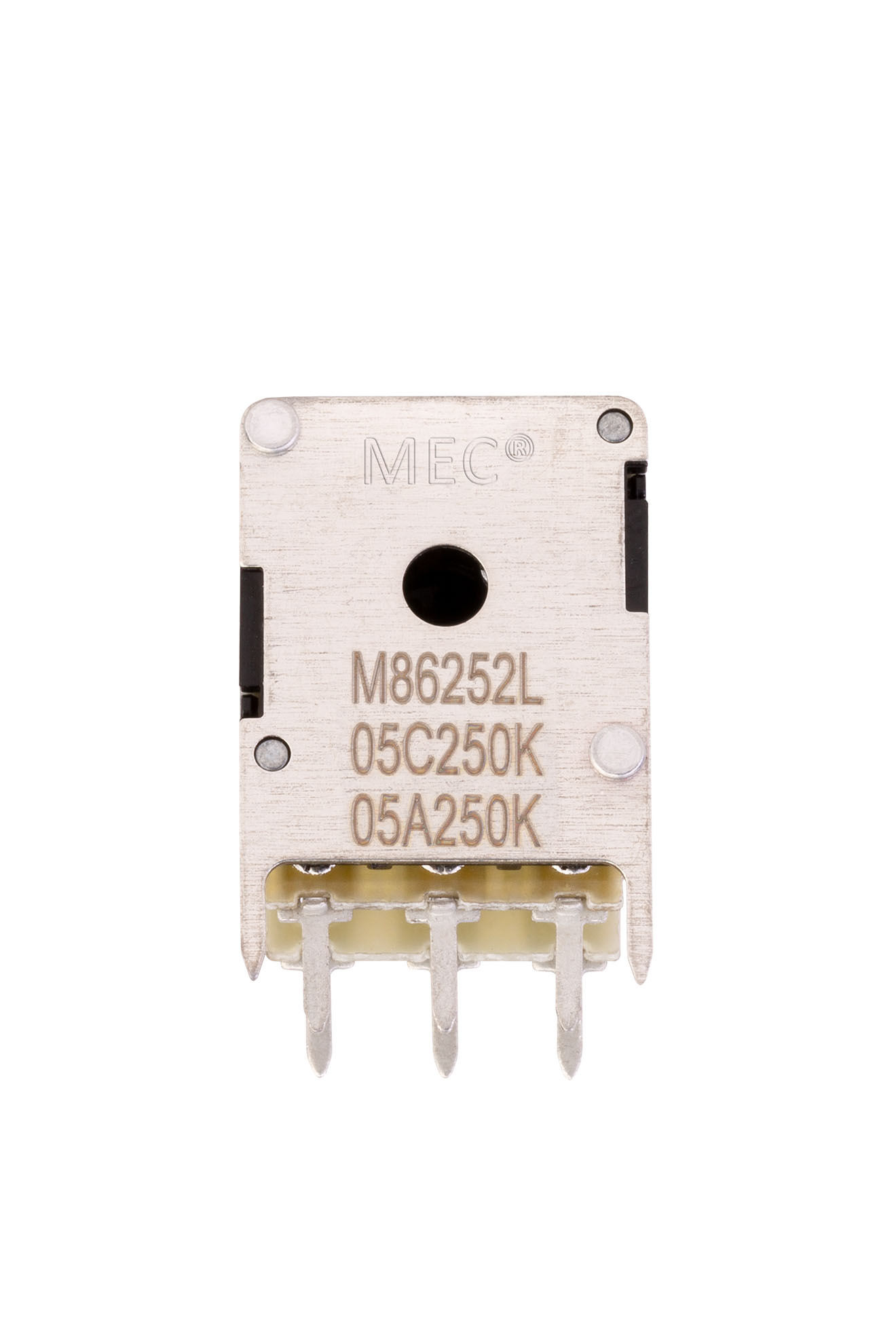

- R1 = 05A250K/cc (resistance 250 kOhm, (A) logarithmic, central detent)
- R2 = 05C250K/cc (resistance 250 kOhm, (C) inverse logarithmic, central detent)
- suitable for use as a balance control for passive pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 11 mm
- split knurled shaft
- shaft length 9 mm
- shaft diameter 6 mm

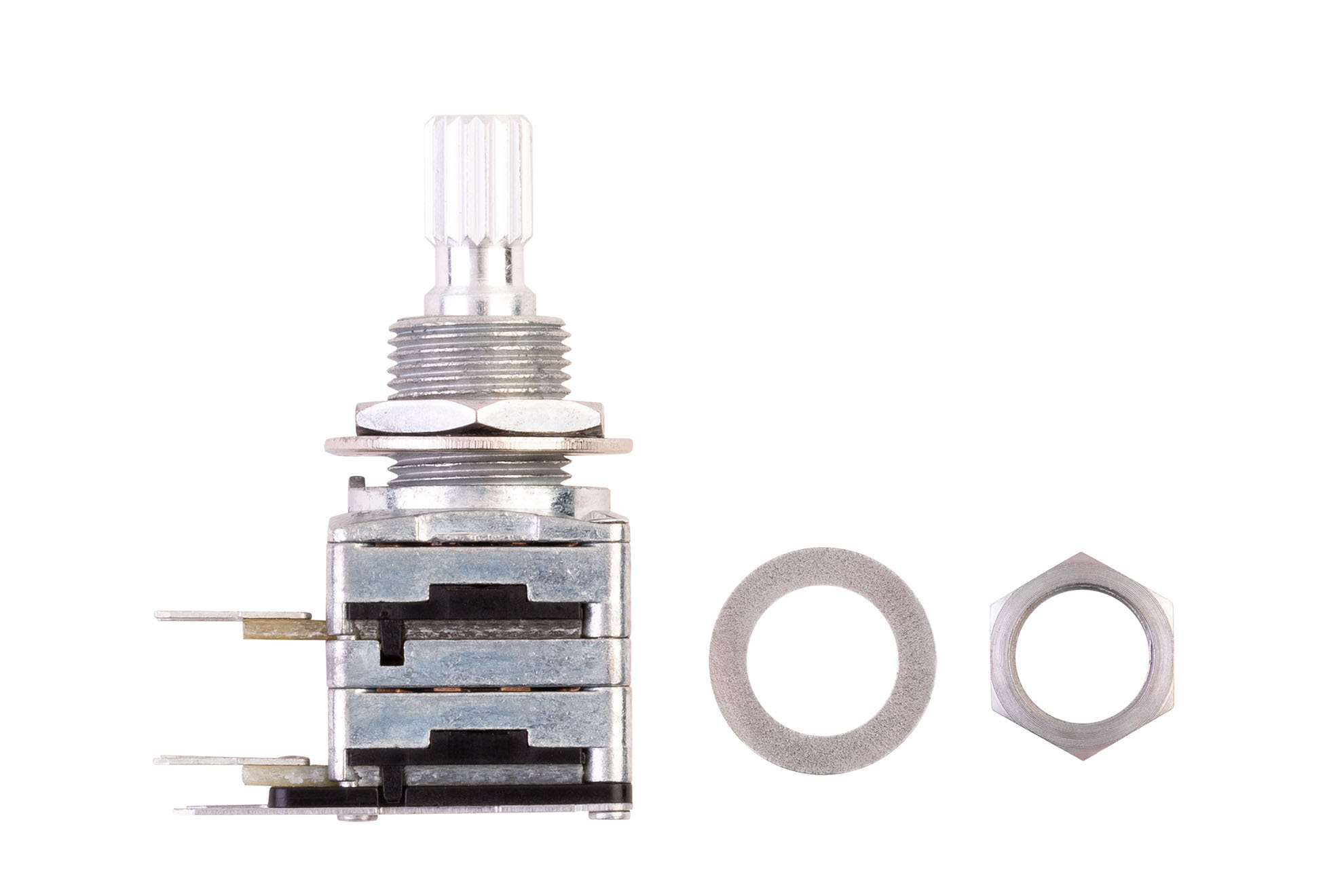

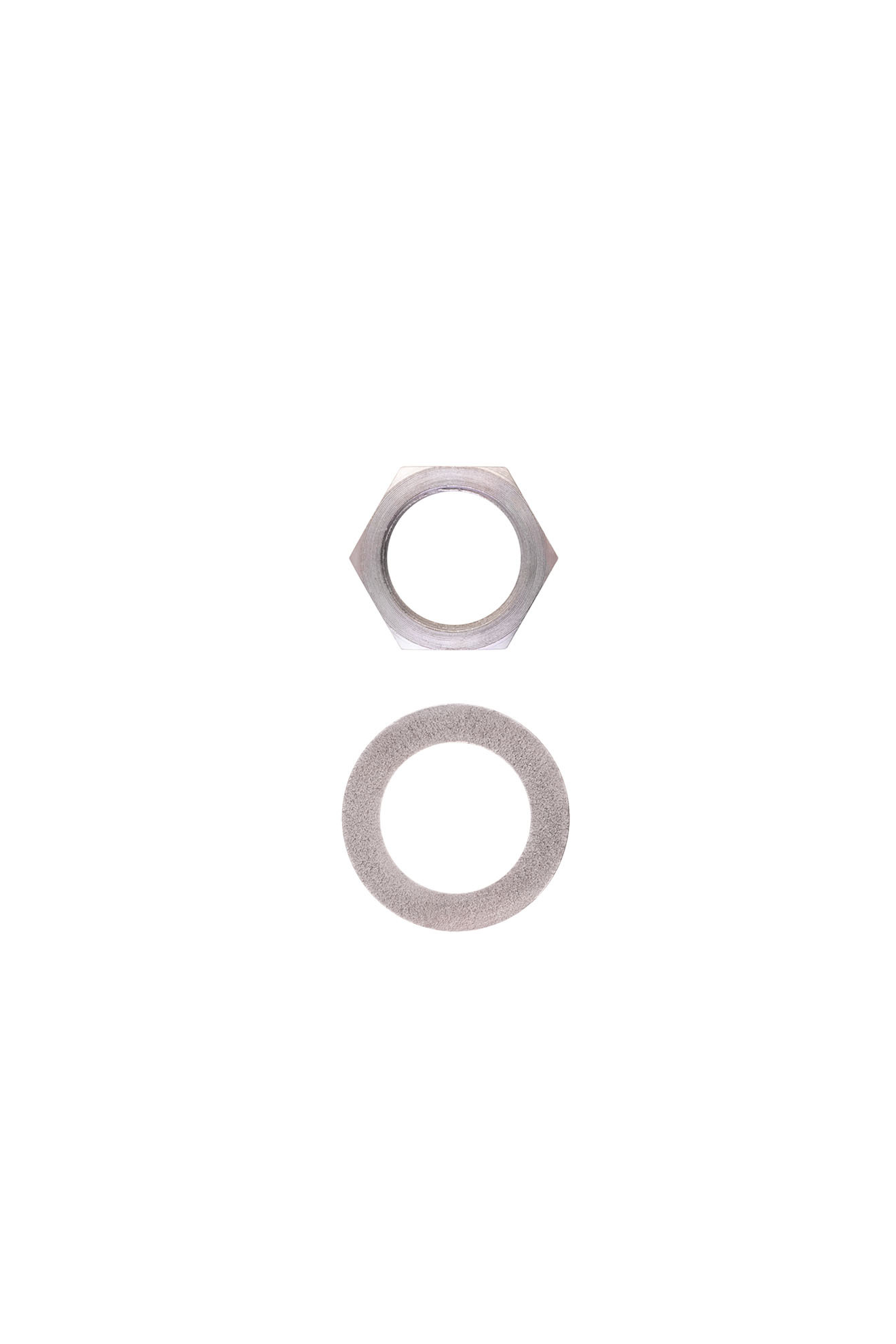

- includes nut and washer
- dimensions incl. packaging (L x W x H) 24 x 22 x 17 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have been installed, or if other damages affecting the condition of the goods are present.
