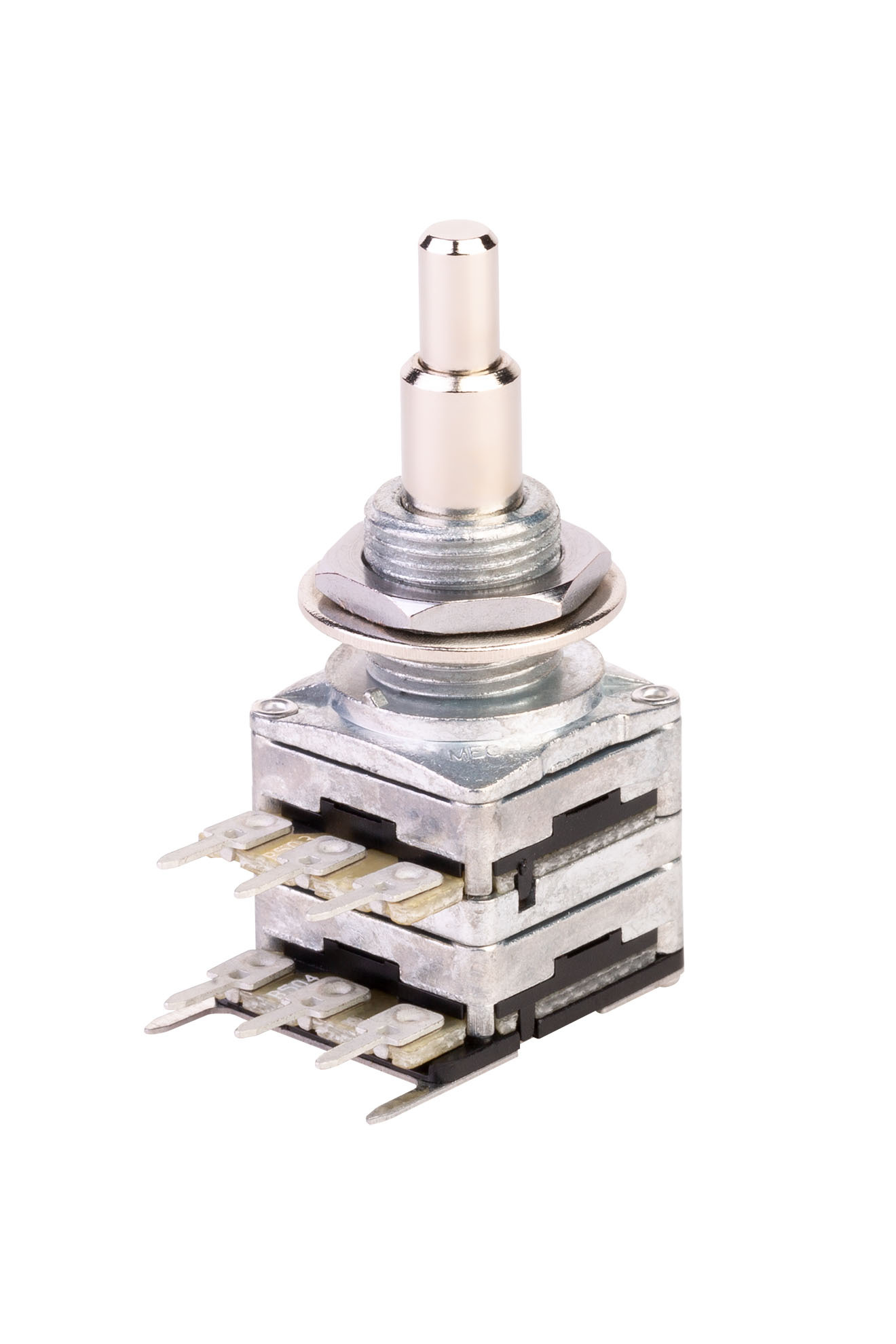

MEC Pickups Mono Stacked Potentiometer, B50K/cc / B500K

Name: MEC Pickups Mono Stacked Potentiometer, B50K/cc / B500K
Brand: MEC Pickups
SKU: M 85202
Price: 29.82 EUR
Availability: OutOfStock

Potentiometer

dual mono potentiometer with concentric shaft.
available in two resistance options: B50K/cc and B500K.
ideal for volume and tone control for active pickups.
includes nut and washer; mounting diameter of 10 mm.
dimensions: 24 x 16 x 17 mm including terminals.

Variants:

29⁸² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

153 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Mono Stacked Potentiometer, B50K/cc / B500K Add to cart: 29⁸² €

- dual mono potentiometer
- concentric shaft
- R1 = B50K/cc (resistance 50 kOhm, (B) linear, central detent)
- R1 = B500K (resistance 500 kOhm, (B) linear)
- suitable for volume and tone control for active pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 17 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed or other damages affecting the condition of the goods are present.
