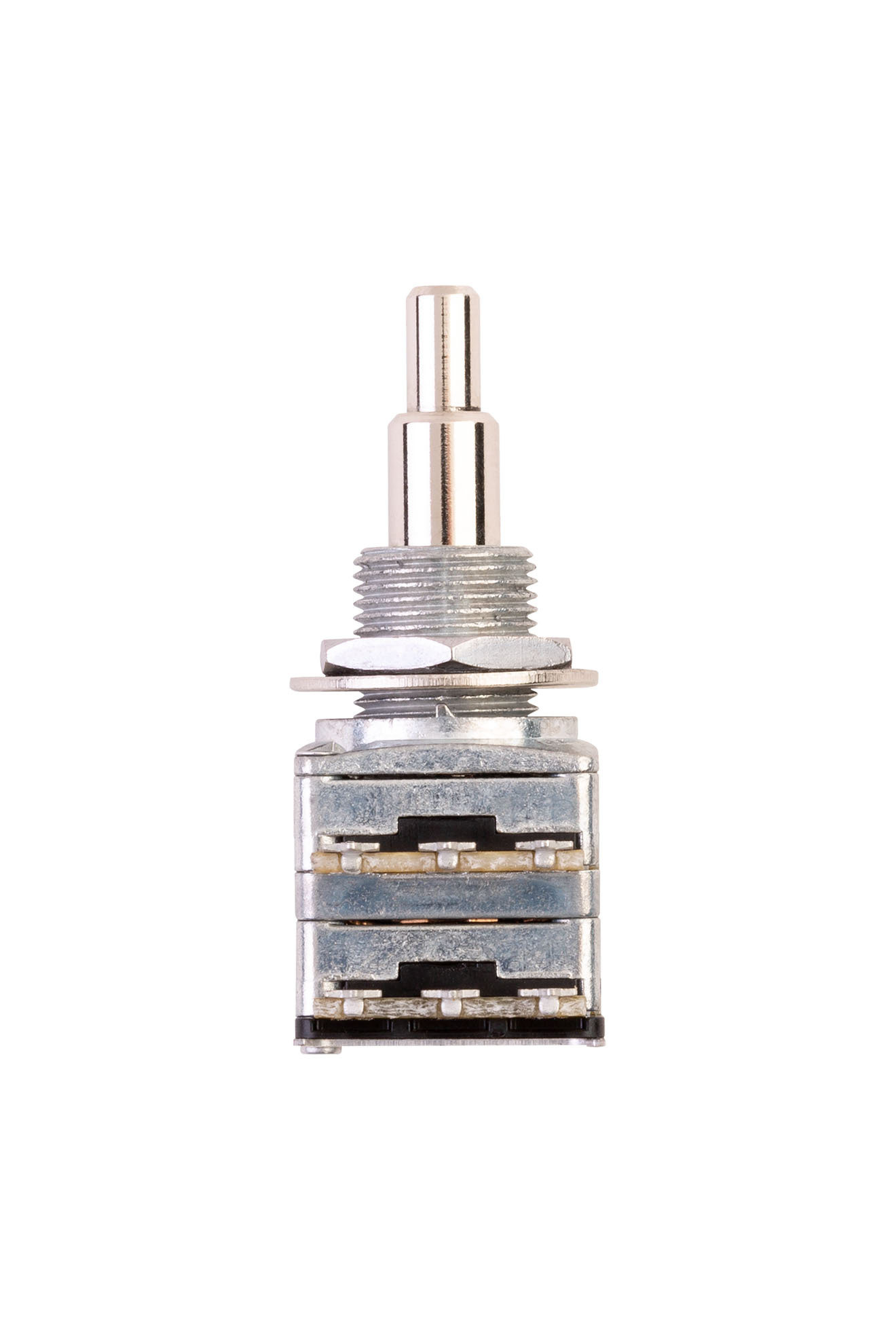

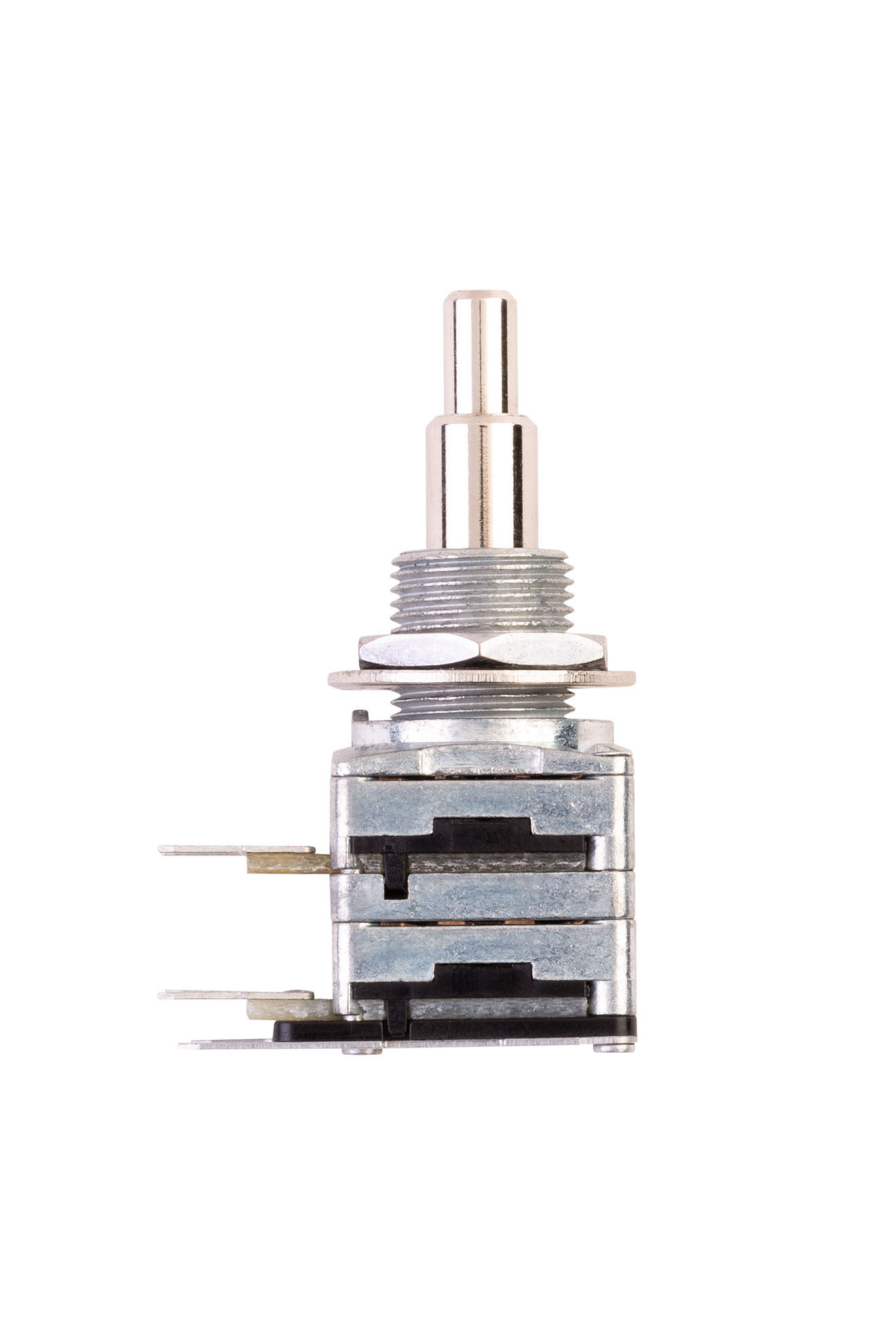

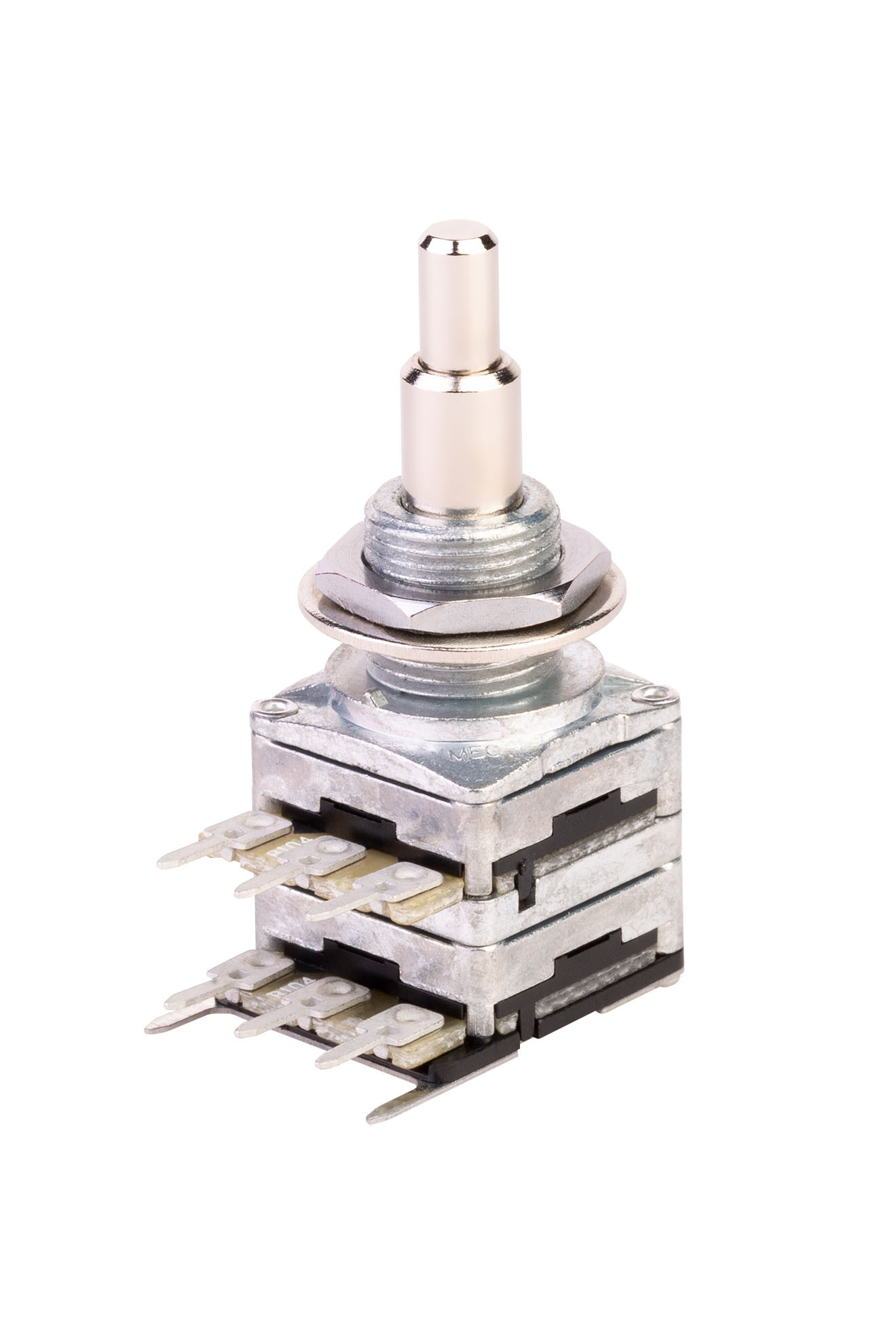

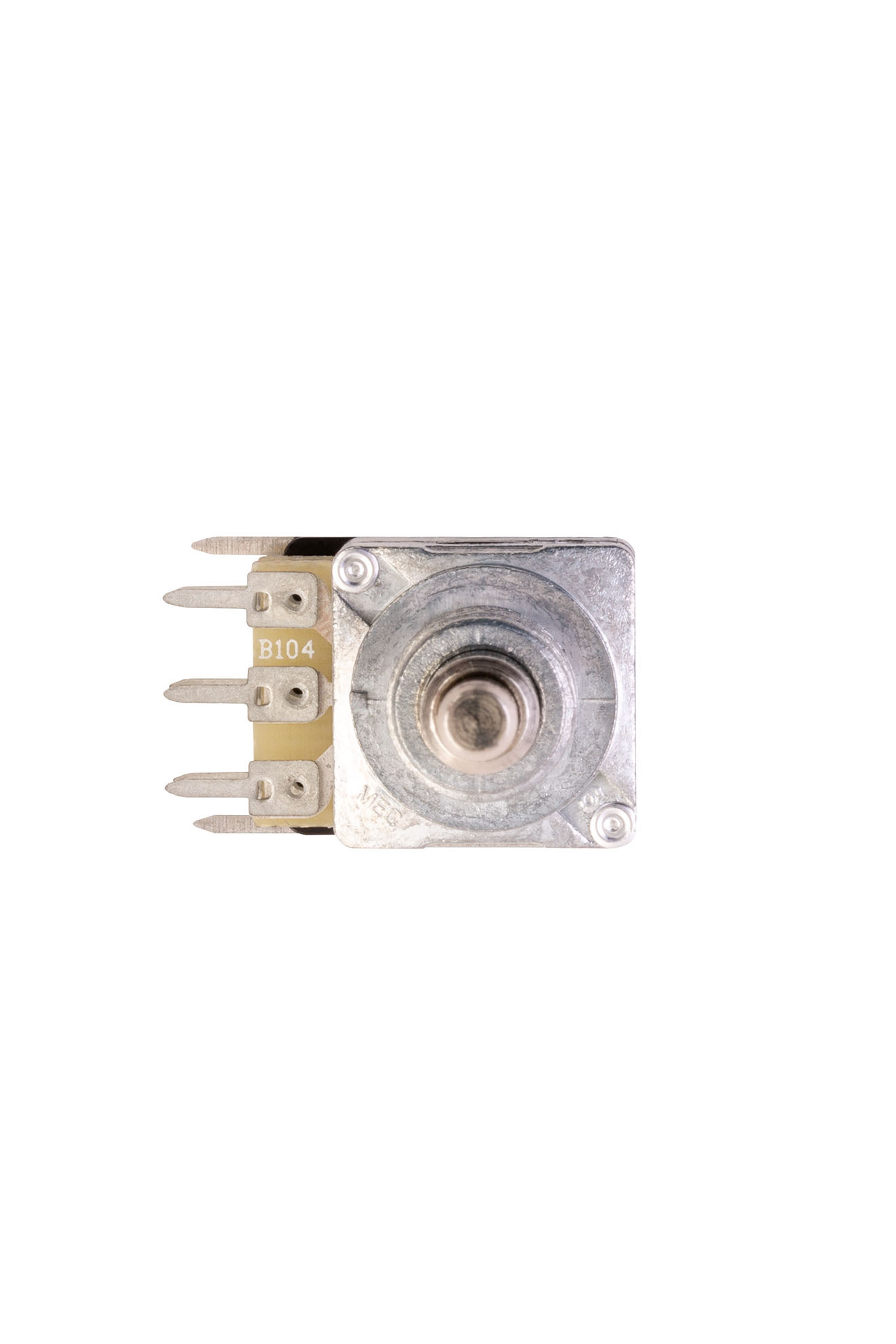

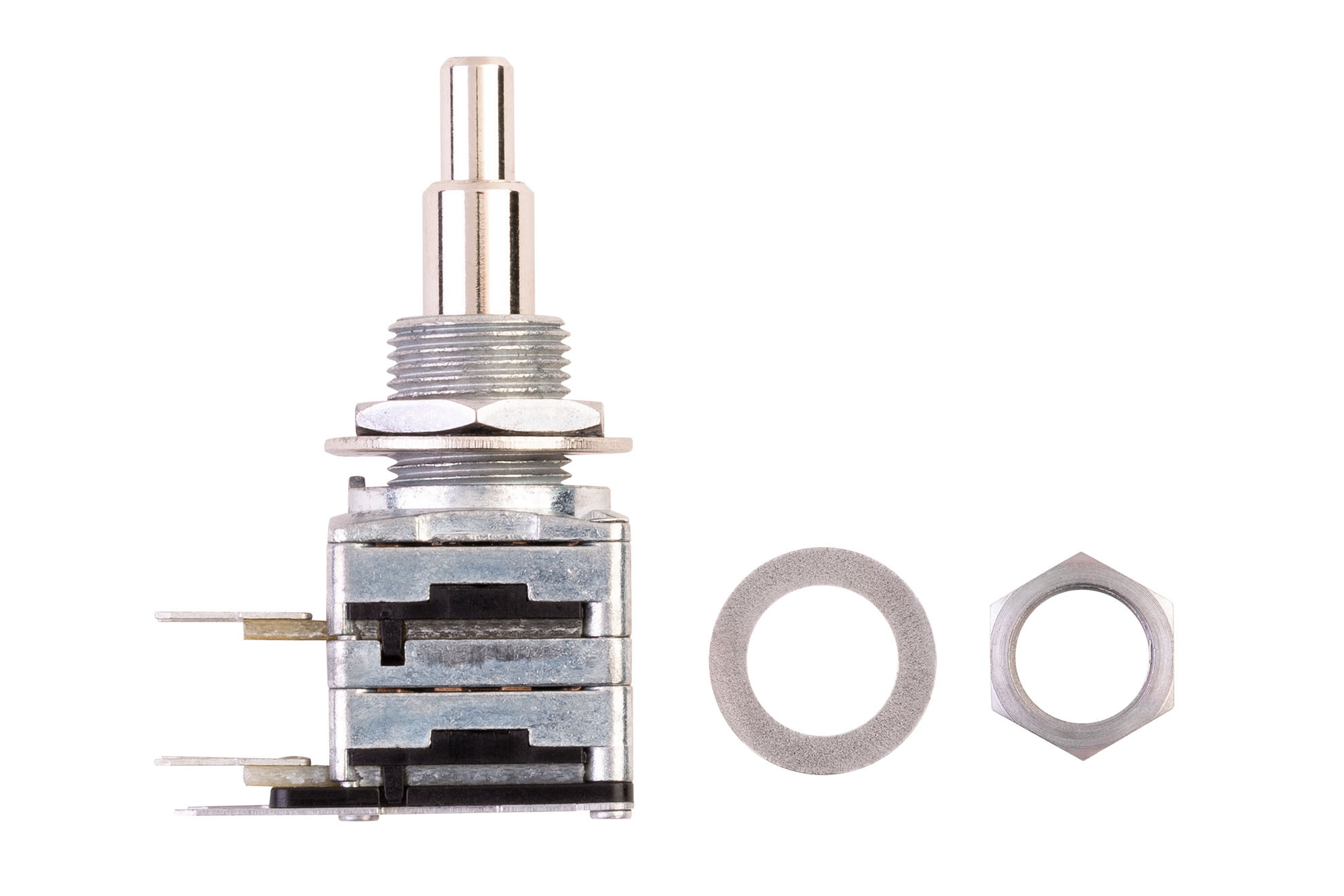

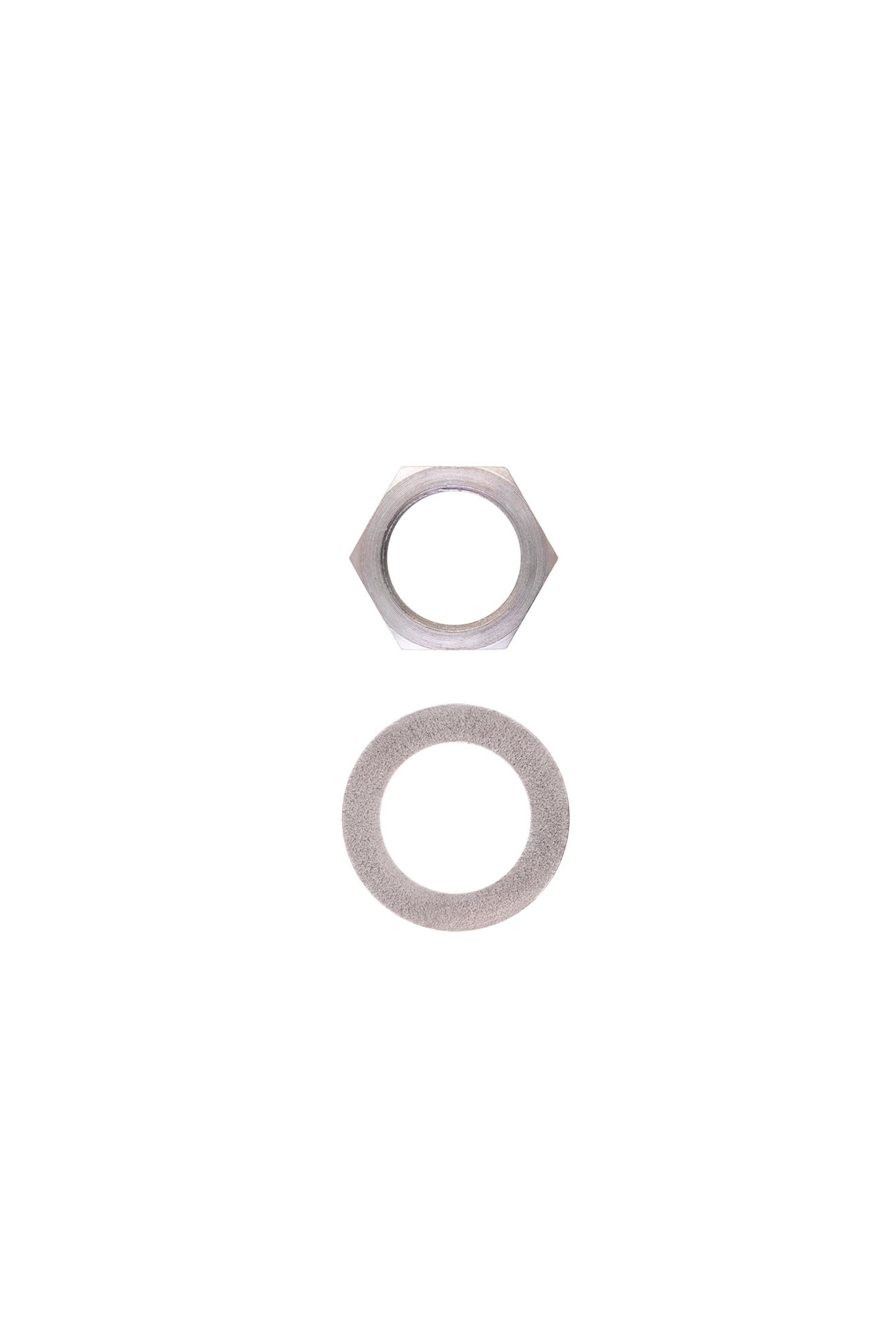

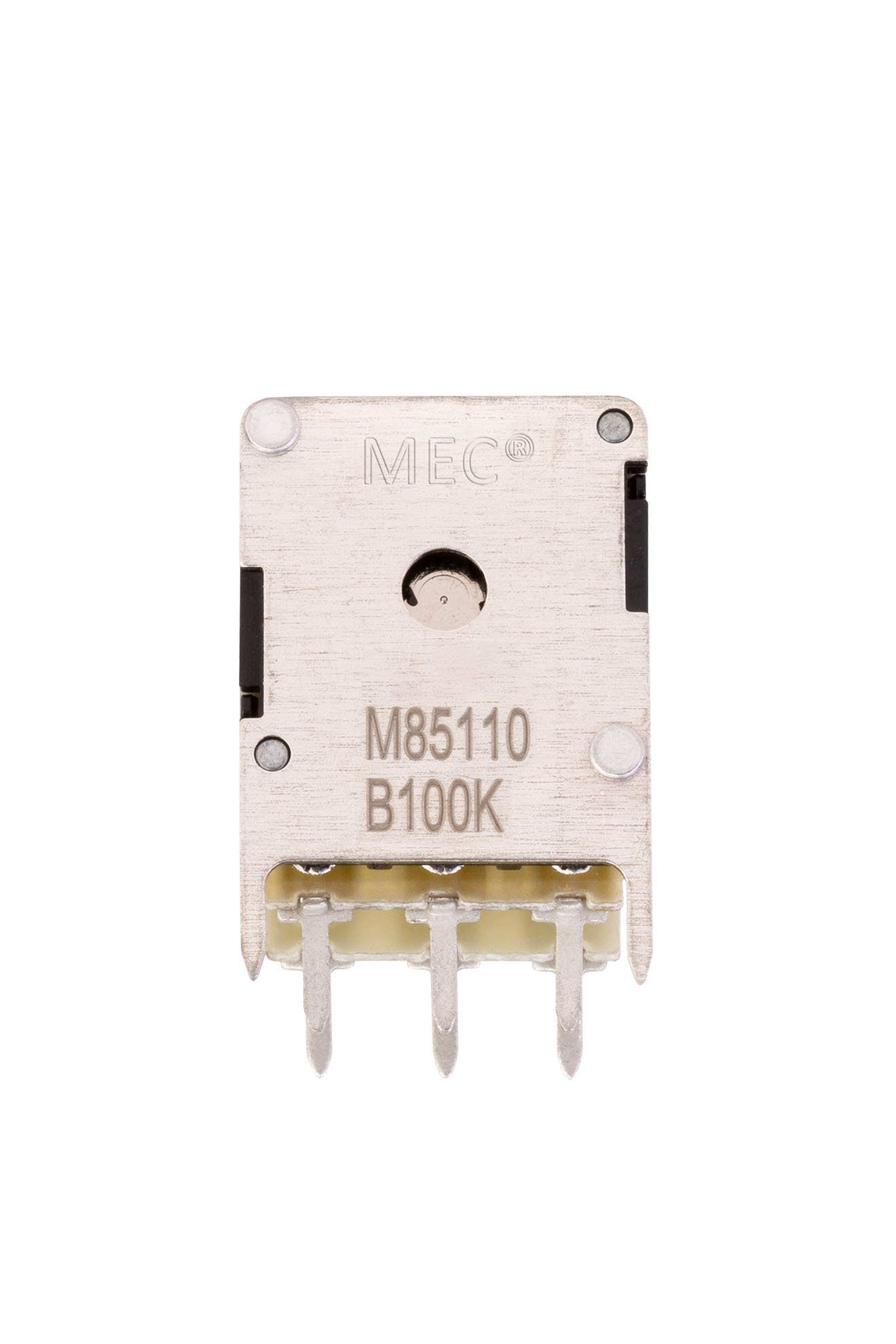

- dual mono potentiometer - concentric shaft - R1 = B100K (resistance 100 kOhm, (B) linear) - R2 = B100K (resistance 100 kOhm (B) linear) - central detent - suitable for controlling bass and treble in active electronics - thread M10 x 0.75 mm - mounting diameter 10 mm - thread length 9 mm - solid shaft - shaft length 14 mm (internal), 7 mm (external) - shaft diameter 4 mm (internal), 6 mm (external) - includes nut and washer - dimensions incl. terminals (L x W x H) 24 x 16 x 17 mm
- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or if there are other damages affecting the condition of the goods.
Did you find MEC Pickups Mono Stacked Potentiometer, B100K / B100K at a lower price at a Romanian retailer? Please let us know and we will propose a personalized offer.
The special offer is subject to the following conditions:
The competing company must be an authorized dealer for MEC Pickups Mono Stacked Potentiometer, B100K / B100K
The competing offer terms must be similar to those provided by SoundCreation: in stock, similar return guarantee, similar delivery conditions, etc.
