MEC Pickups Mono Stacked Potentiometer, A250K / B100K/cc

Name: MEC Pickups Mono Stacked Potentiometer, A250K / B100K/cc
Brand: MEC Pickups
SKU: M 85204
Price: 29.62 EUR
Availability: OutOfStock

Potentiometer

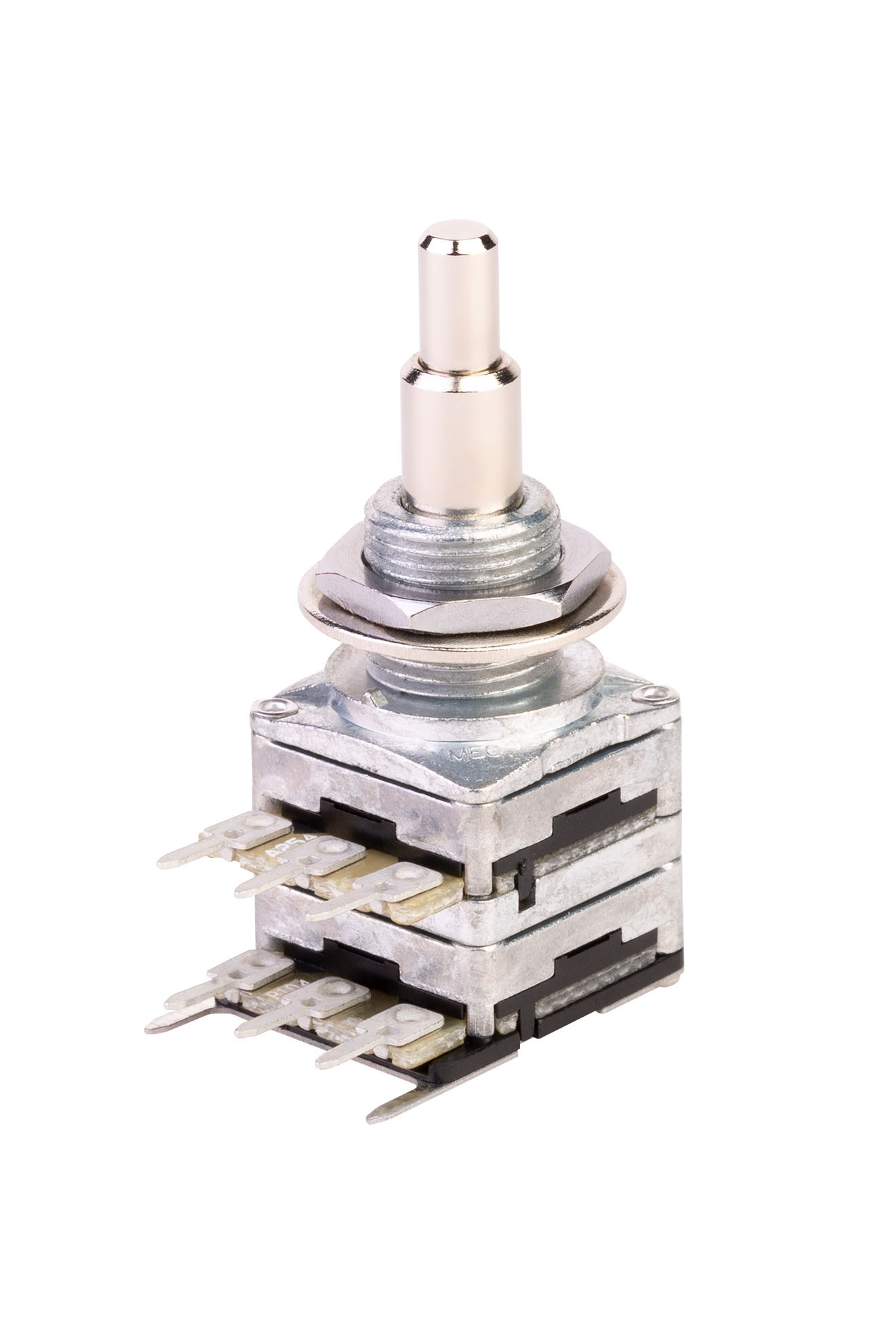

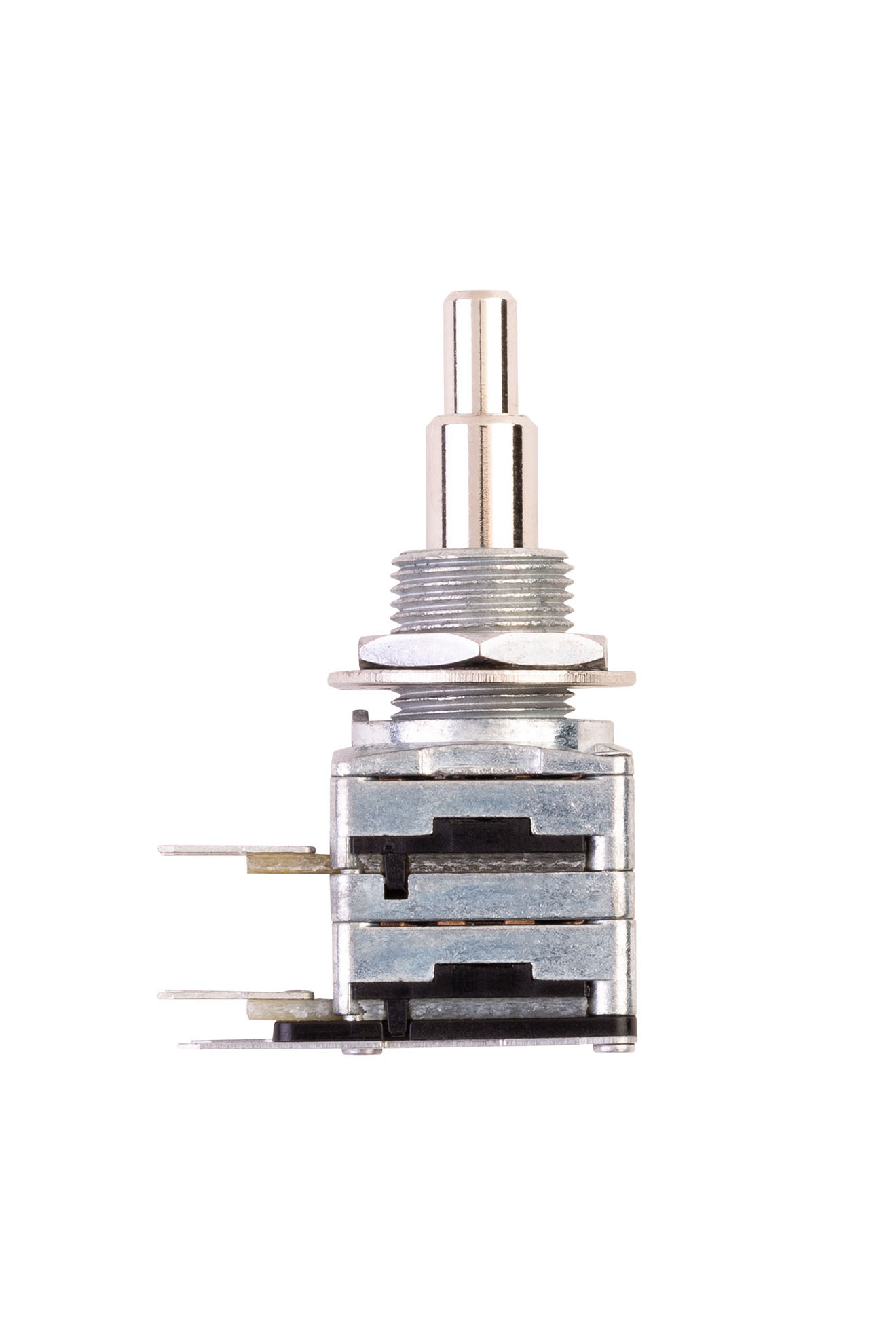

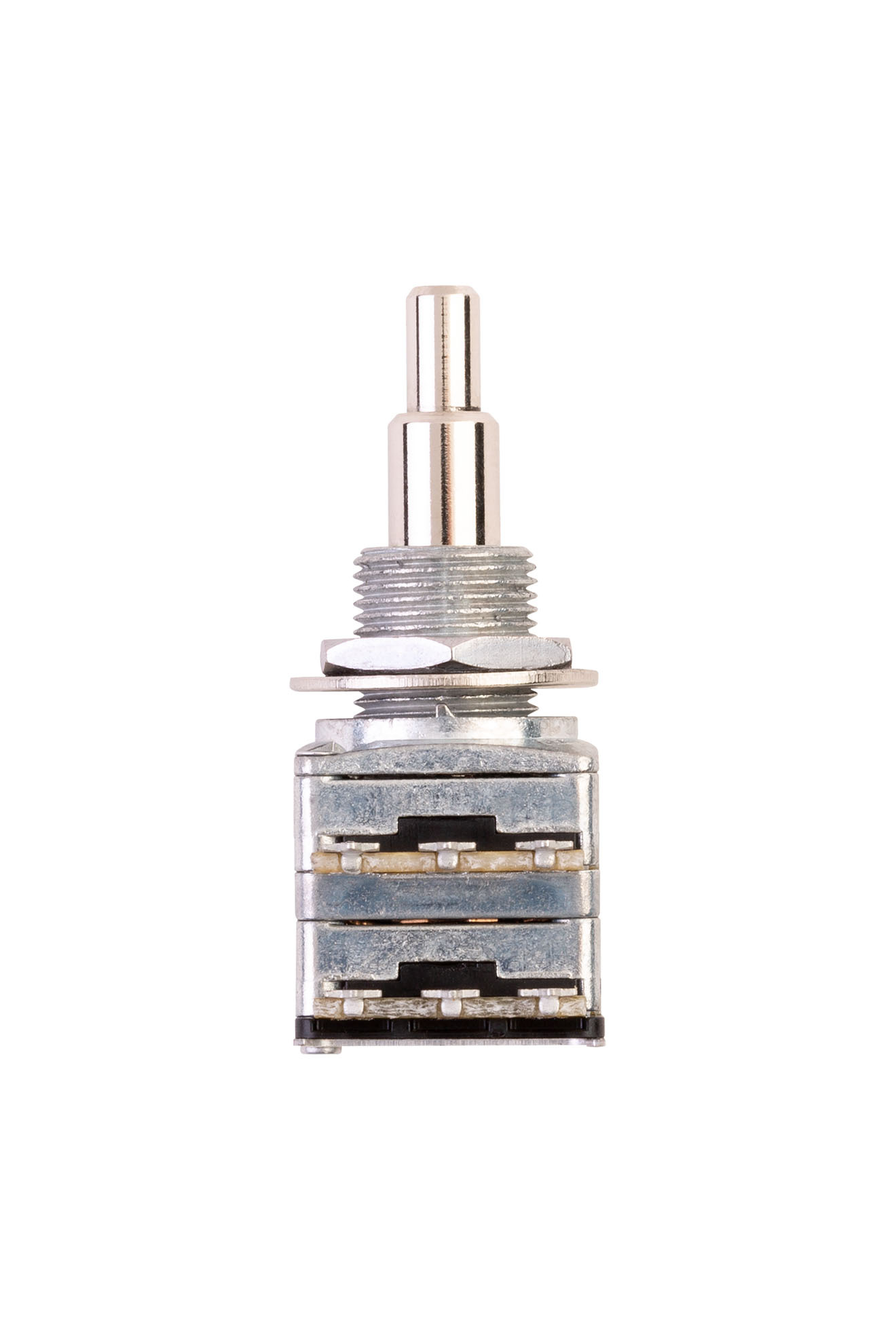

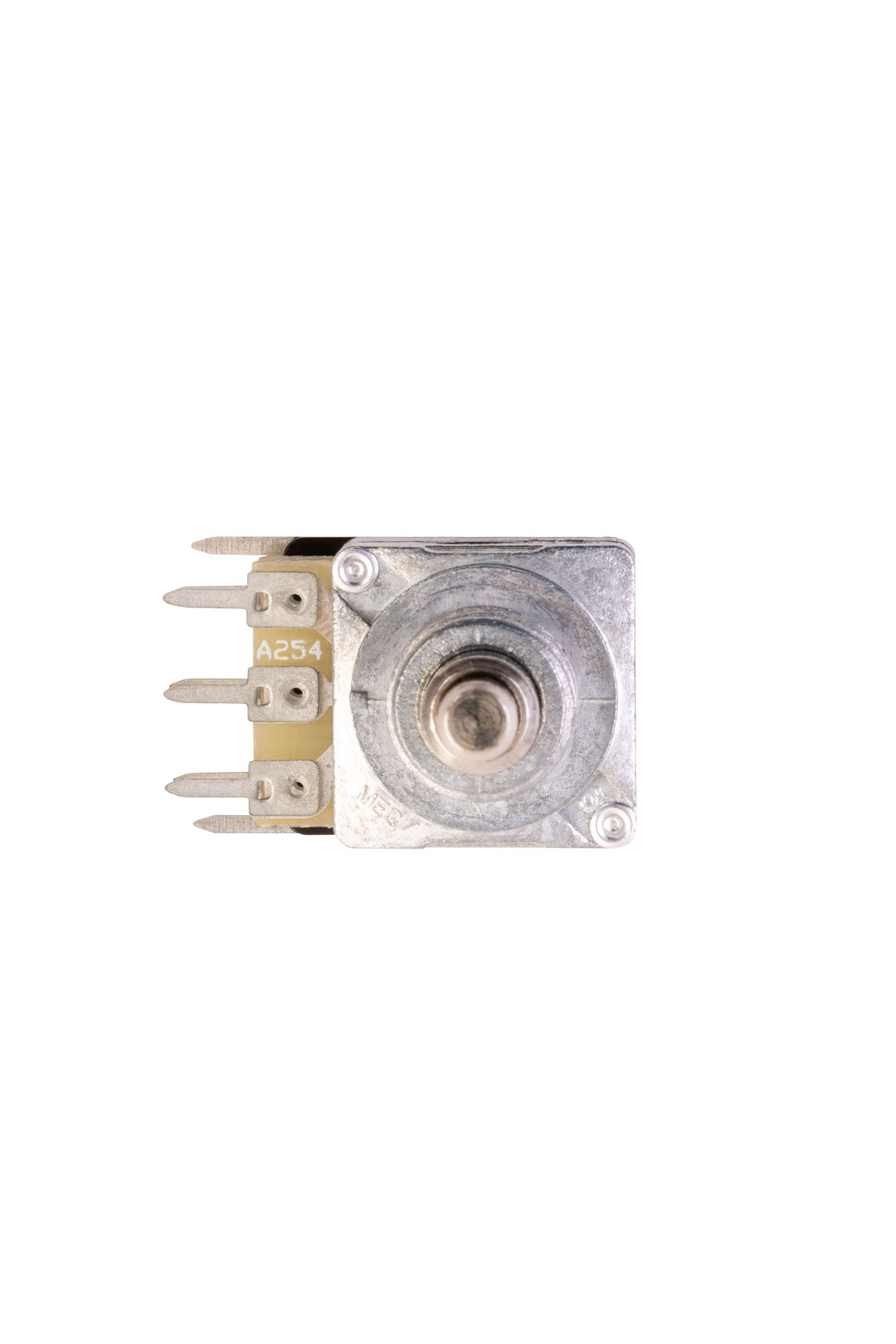

dual mono potentiometer with concentric shaft.

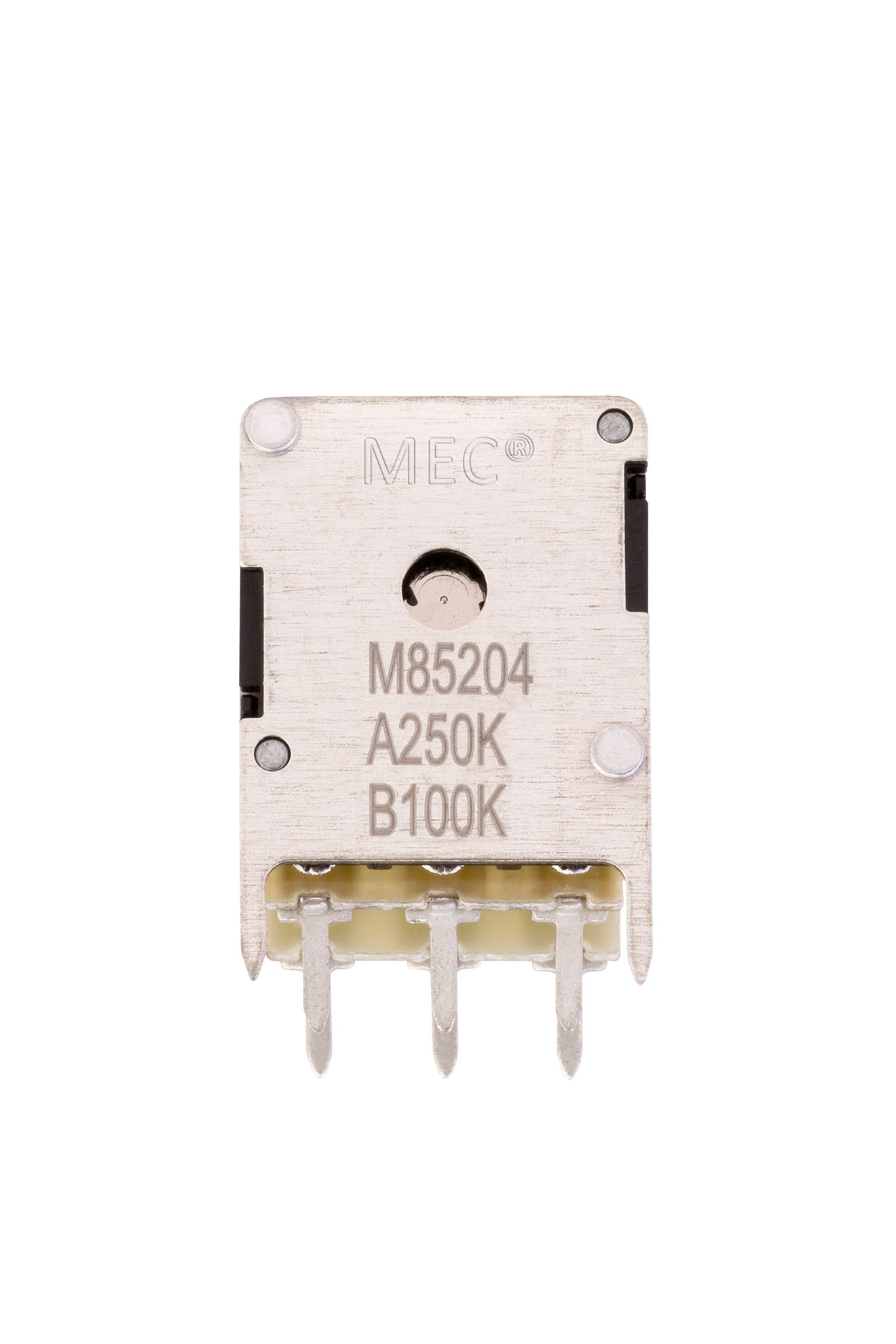

r1 = A250K (250 kOhm logarithmic) and R2 = B100K/cc (100 kOhm linear).
ideal for volume and tone control for active pickups.
m10 x 0.75 mm thread with a mounting diameter of 10 mm.
includes nut and washer, dimensions 24 x 16 x 17 mm.

29⁶² €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

152 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Mono Stacked Potentiometer, A250K / B100K/cc Add to cart: 29⁶² €

- dual mono potentiometer
- concentric shaft
- R1 = A250K (resistance 250 kOhm, (A) logarithmic)
- R2 = B100K/cc (resistance 100 kOhm, (B) linear, with central detent)
- suitable for use as volume and tone control for active pickups
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)

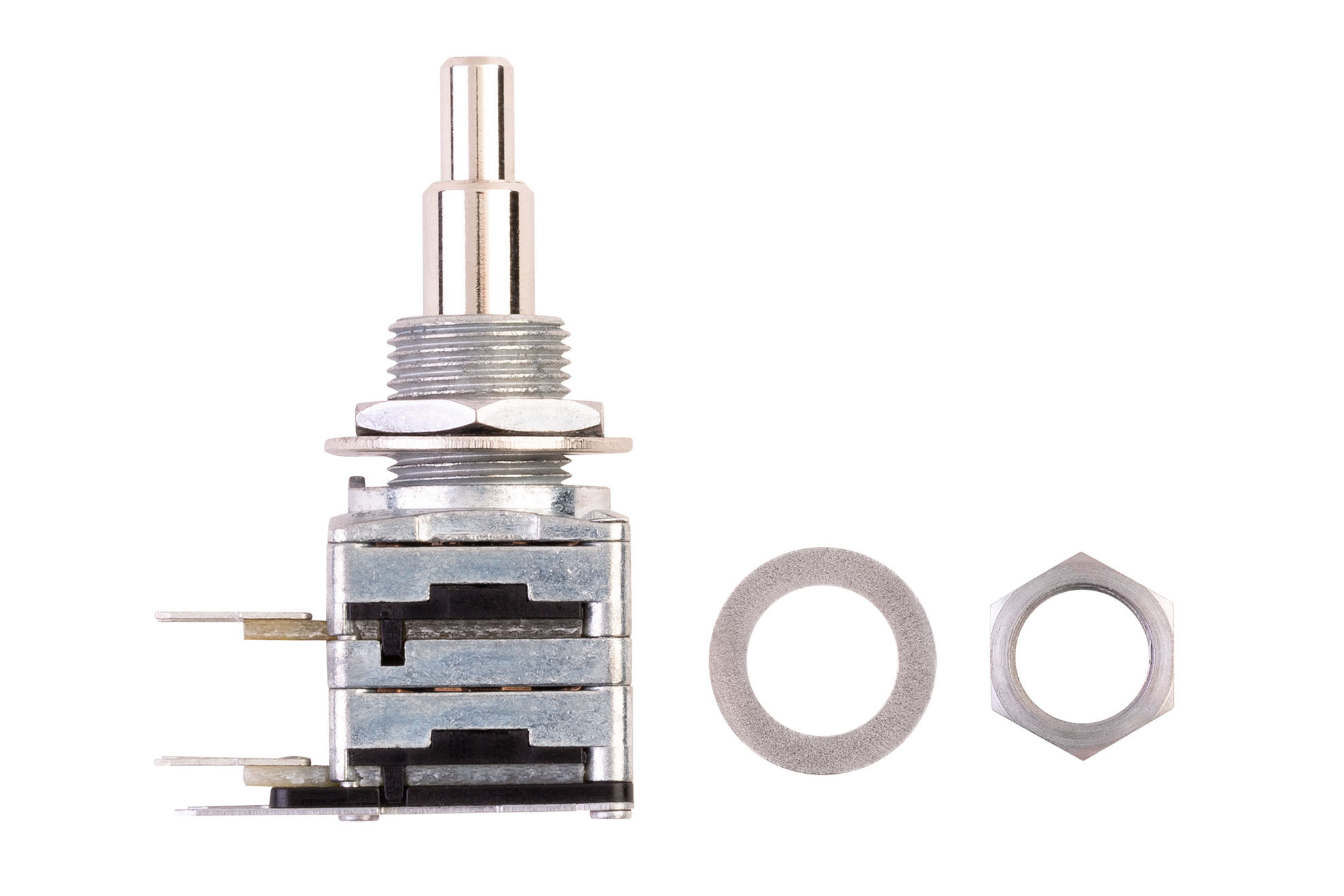

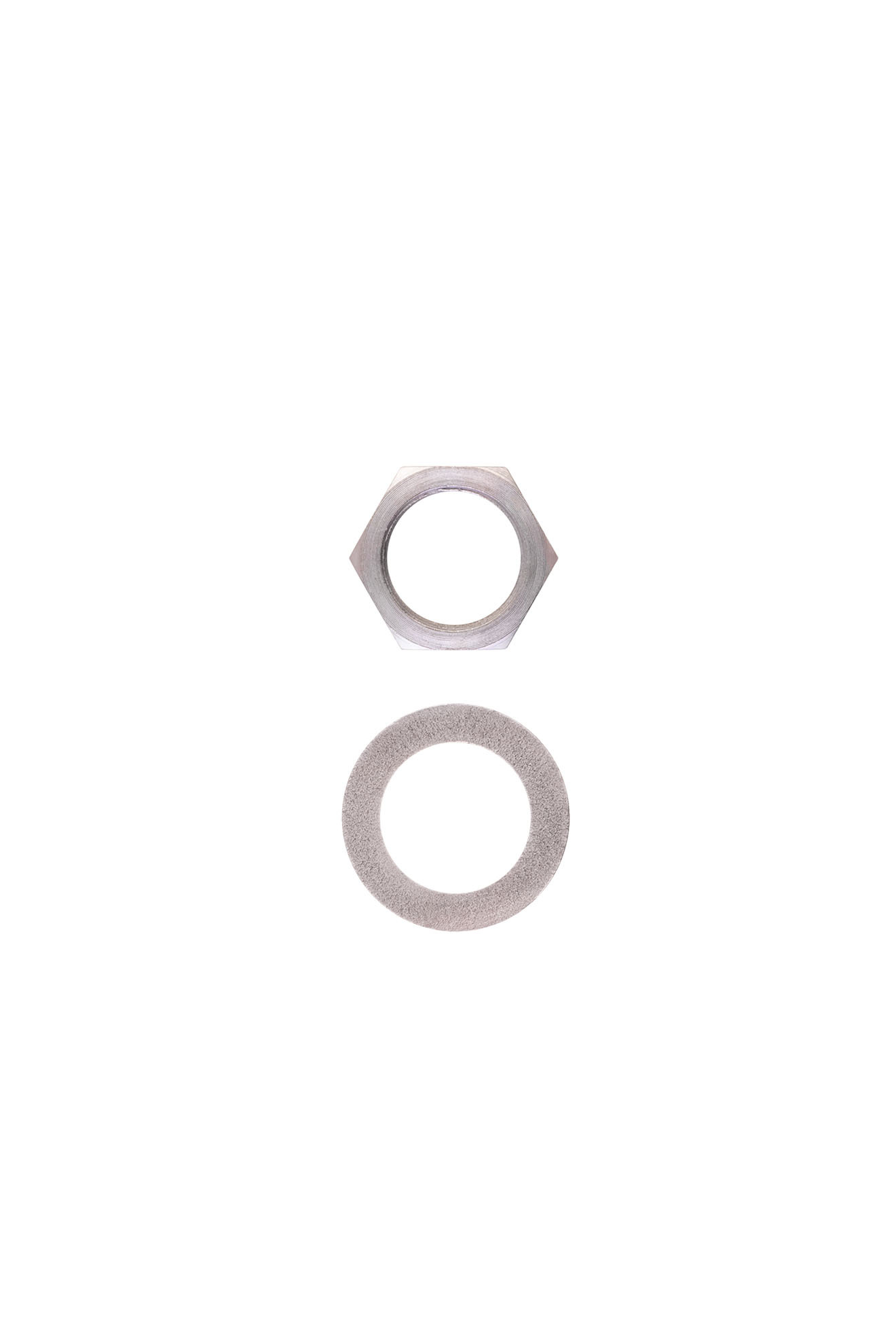

- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 17 mm
