MEC Pickups Balance Pot Module, for active Pickups, R5 JST Solderless Connector, 2.0 mm

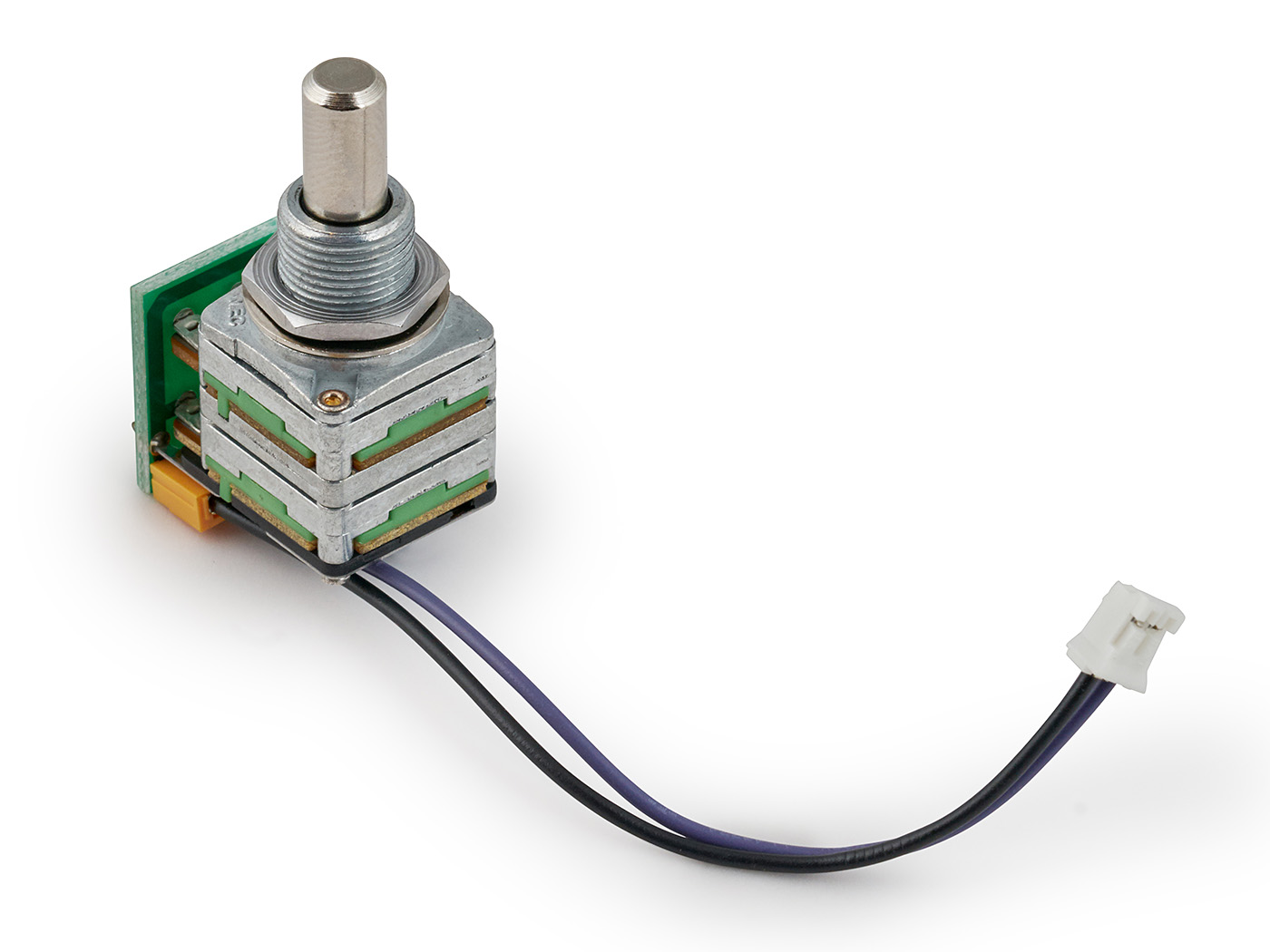

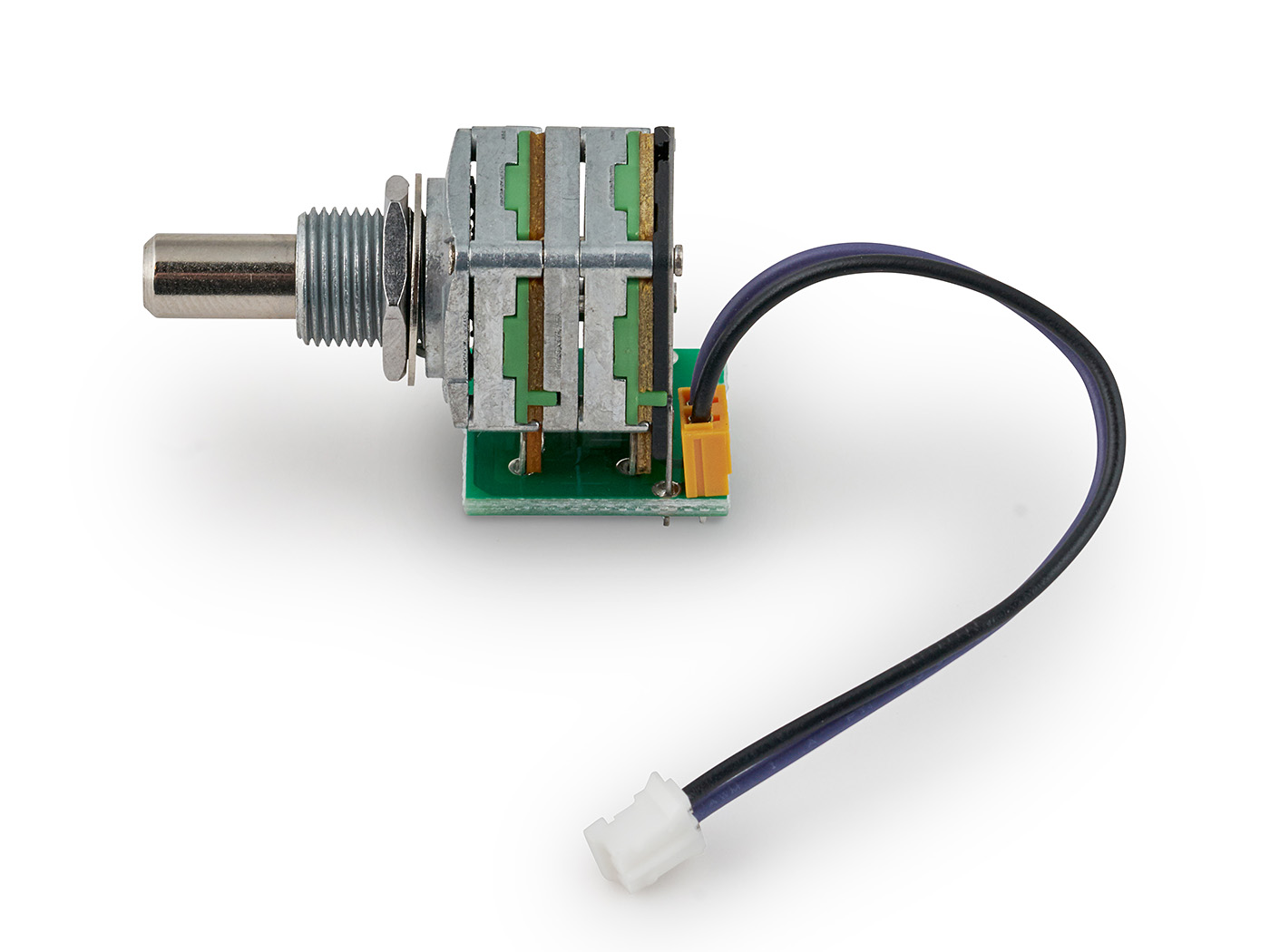

Balance Potentiometer Module

balance potentiometer module designed for active pickups.
single shaft with solid construction and M10 x 0.75 mm thread.
includes solderless JST R5 2 mm connector for easy installation.
pre-equipped with MEC M 85002 PCB module for enhanced functionality.
dimensions: 24 x 18 x 22 mm, with a mounting diameter of 10 mm.

Variants:

33⁸³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

174 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Balance Pot Module, for active Pickups, R5 JST Solderless Connector, 2.0 mm Add to cart: 33⁸³ €

- Balance potentiometer module
- Single shaft
- R1 = 05A25k (resistance 25 kOhm, (A) logarithmic)
- R2 = 05C25k (resistance 25 kOhm, (C) reverse logarithmic)
- Suitable for use as a balance control for active pickups
- Pre-equipped with MEC M 85002 PCB module
- Solderless JST R5 2 mm connector
- Thread M10 x 0.75 mm
- Mounting diameter 10 mm
- Thread length 9 mm
- Solid shaft
- Shaft length 11 mm
- Shaft diameter 6 mm
- Includes nut and washer
- Dimensions incl. housing (L x W x H) 24 x 18 x 22 mm

- Note: The return and refund policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have already been installed, or if other damages affecting the condition of the goods are present.
