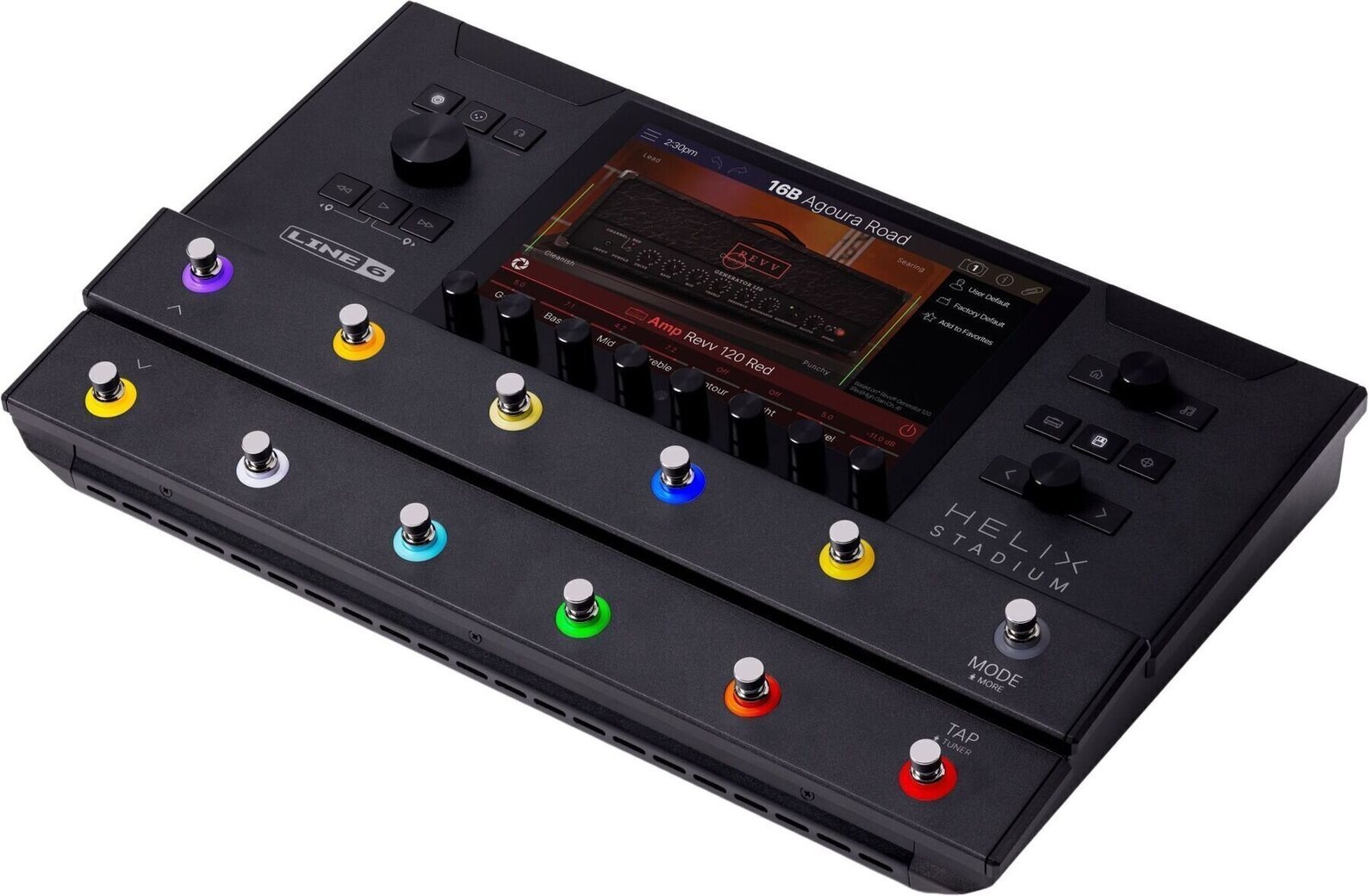

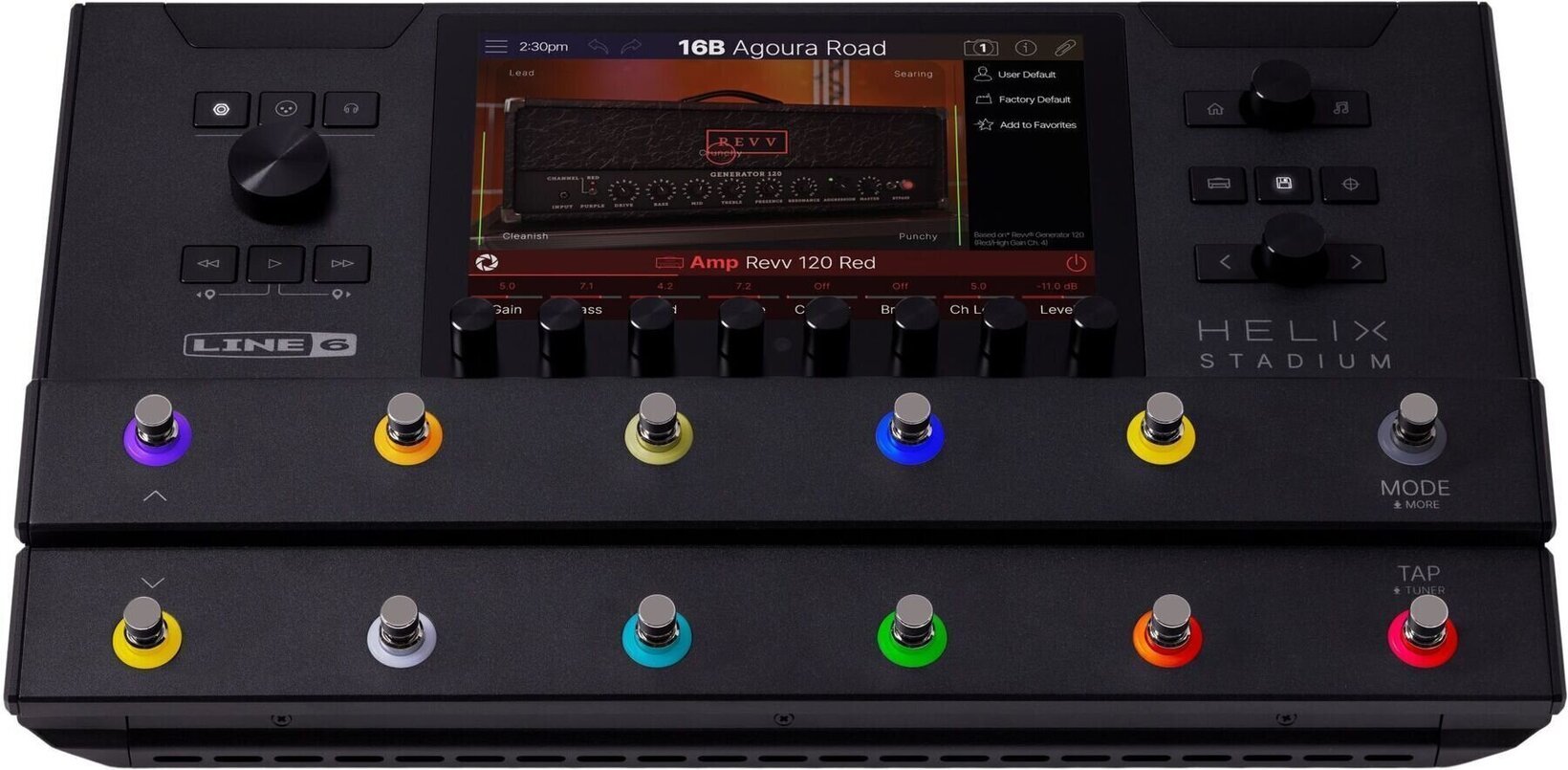

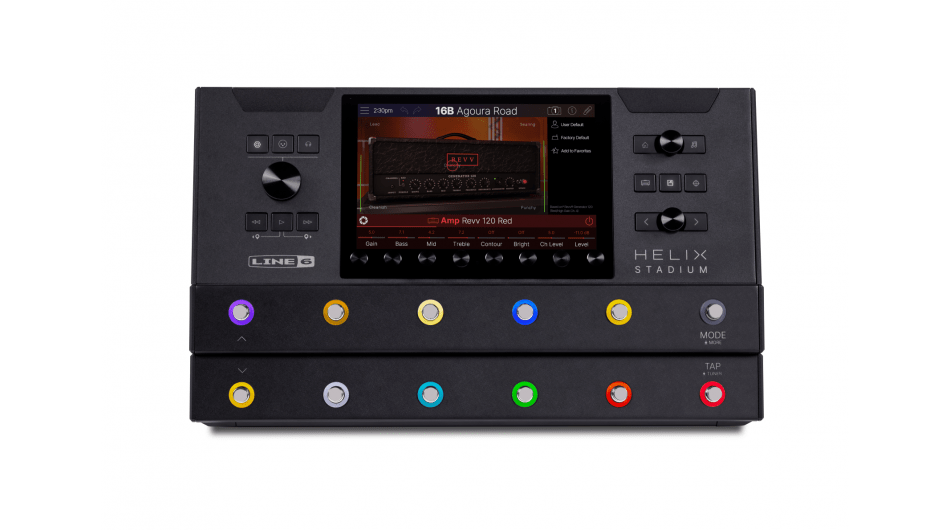

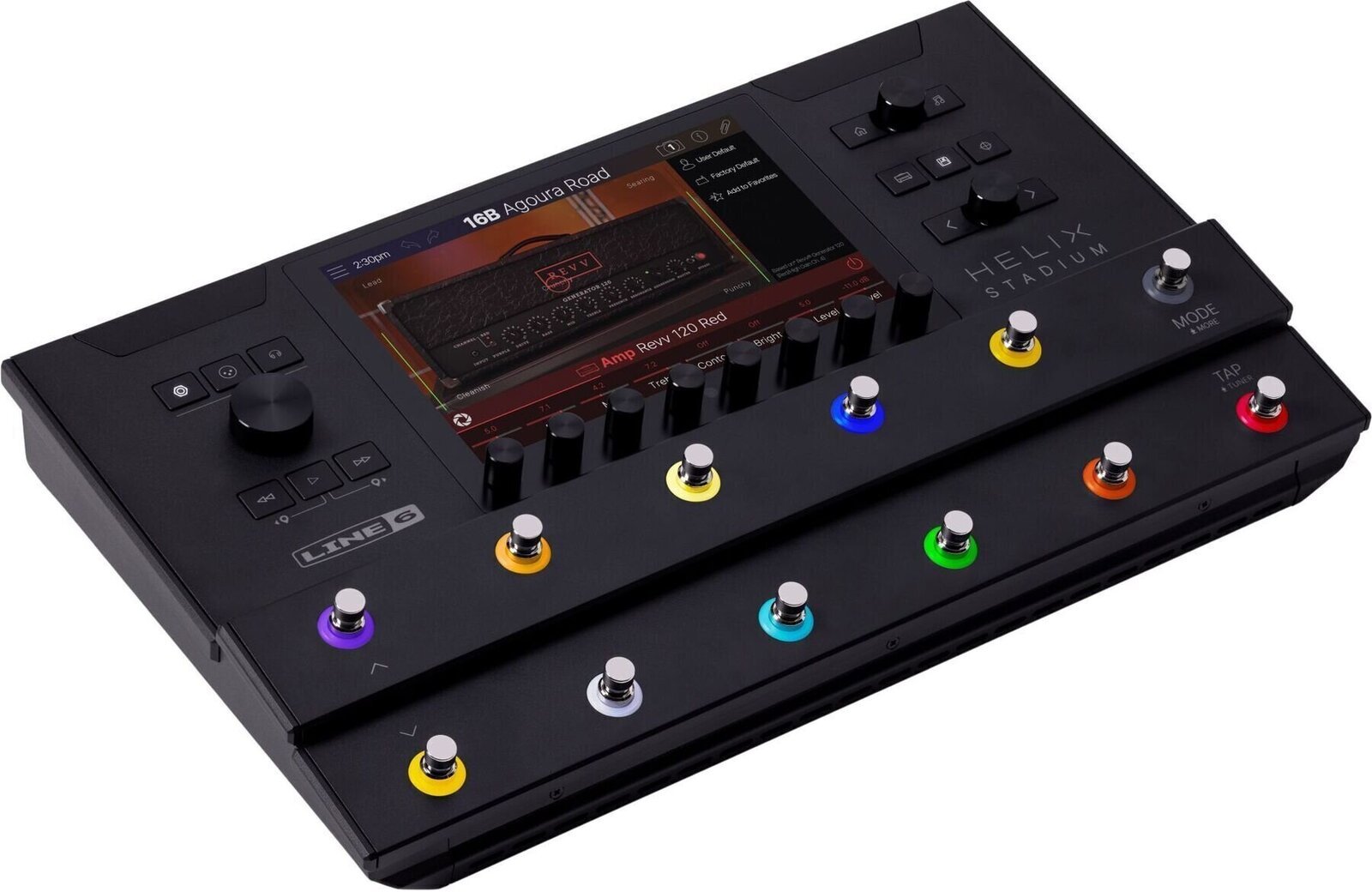

Line6 Helix Stadium Floor - Next-generation effects processor for electric guitar, based on the new "Agoura Modeling" technology. Specifically, it is a complete command centre for stage or studio, capable of controlling pedals, synthesizers, lighting, and even audio playback through the advanced Showcase engine.
Additionally, the Helix Stadium offers extensive connectivity: analog and digital inputs and outputs, USB-C and USB-A ports, Wi-Fi and Bluetooth connectivity, as well as support for expansion units like the Expand D10 and external expression pedals.
Next-generation effects processor for electric guitar
Agoura™ modeling technology – the new standard for authentic realism and dynamics
Cloud-based cloning engine for amplifiers, cabinets, and Proxy effects
The Hype function ensures a smooth transition between favourite tones
High-resolution 8" touch screen with an intuitive interface
12 footswitches with high-contrast OLED displays ("scribble strips")
Showcase™ engine for live automation: controls presets, playback, MIDI, lights, video
Full compatibility with existing Helix and HX presets
Wireless control via Wi-Fi and Bluetooth®
Free Helix Stadium Editor software for configuration and editing
Support for external expression pedals (e.g., Line 6 EX2™) and additional footswitches
Nexus™ port for connecting the optional Expand D10 unit (VDI, L6 LINK, 8-channel optical output) and EX2™ pedal
Built-in tuner / Balanced DI output
Integrated Loop FX for connecting the processor with external pedals
Technical Specifications:
Multi-effect and preamplifier for guitar
High-resolution 8" touch screen
12 switches with high-contrast OLED displays ("scribble strips")
Integrated expression pedal with "toe-switch" type switch
Power supply: internal, with included IEC cable
Construction: dual chassis – extruded aluminium + folded steel base

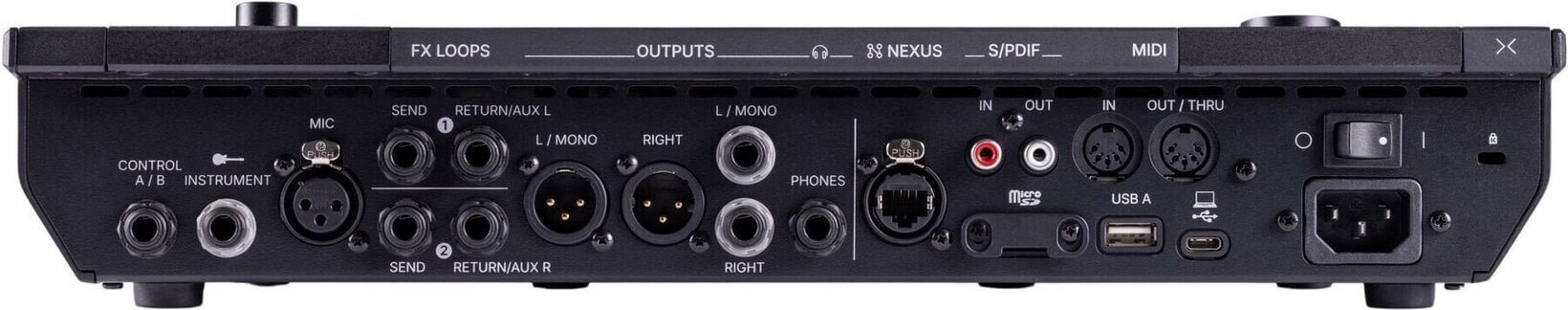

Extensive connectivity:
Instrument inputs: 2 x 6.3 mm jack (variable impedance, 126+ dB dynamic range)
Microphone input: XLR female, 128 dB dynamic range preamplifier
2 effect loops (Send/Return), expandable up to 4
Main outputs: 2 x XLR male + 2 x 6.3 mm jack (line)
Headphone output: 6.3 mm stereo jack
Digital input/output S/PDIF
MIDI ports (In/Out/Thru – 5-pin DIN)
USB-A and USB-C ports for control and storage
microSD slot (up to 32 GB)
Nexus™ port for Expand D10 and future peripherals
Inputs for external expression pedals and footswitches
