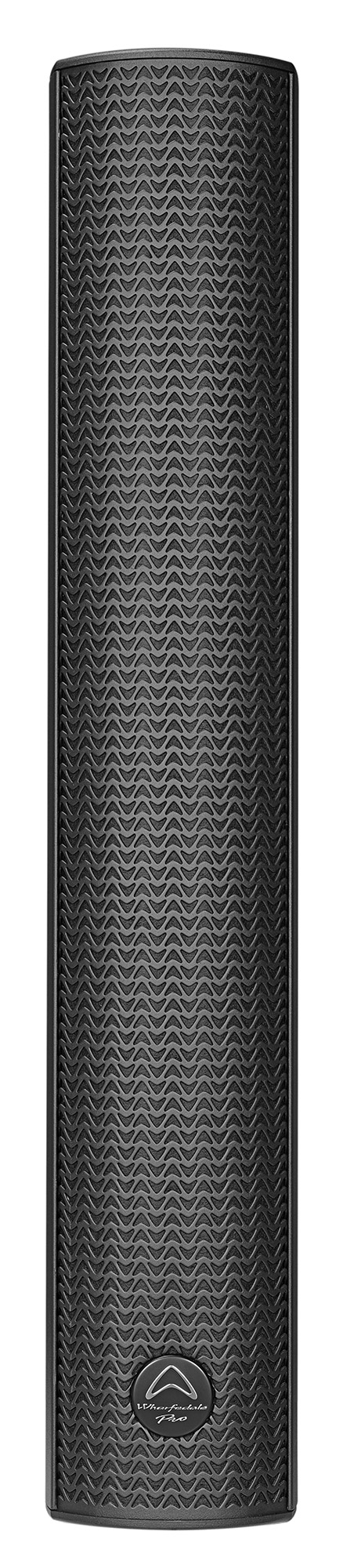

Wharfedale Pro SIGMA-XV5

Wharfedale Pro Sigma-XV5, passive speaker for installations, vertical array system with 5 x 3" drivers and 1 x 1" high-frequency driver with Evo-Fold waveguide. This mini EVO-Fold design provides consistent coverage of dispersion both horizontally and vertically, with sound radiating from a single, singular, and coherent source.

• 2-way passive system
• frequency response:
  • +/-3 dB: 160 Hz – 18 KHz
  • -10 dB: 150 Hz – 20 KHz
• sensitivity: 95 dB
• maximum sound pressure level: 123 dB
• system impedance: 8 Ohms
• LF drivers:
  • 5 x 75 mm / 3"
  • 33 mm / 1.3" voice coils
• HF driver:

  • 1 x 1" driver
  • 25.4 mm / 1" voice coil
  • exit diameter: 25.4 mm / 1"
  • PEI diaphragm
  • Mini EVO-Fold waveguide
• coverage: 120° x 30°
• power handling:
  • 180 W RMS
  • 360 W program
  • 720 W peak
• crossover frequency: 2.5 KHz
• connections:
  • 1 x speakON
  • 1 x terminal block
• U-mount bracket included
• aluminium cabinet
• dimensions: 126 x 720 x 145 mm
• weight: 6.8 kg
