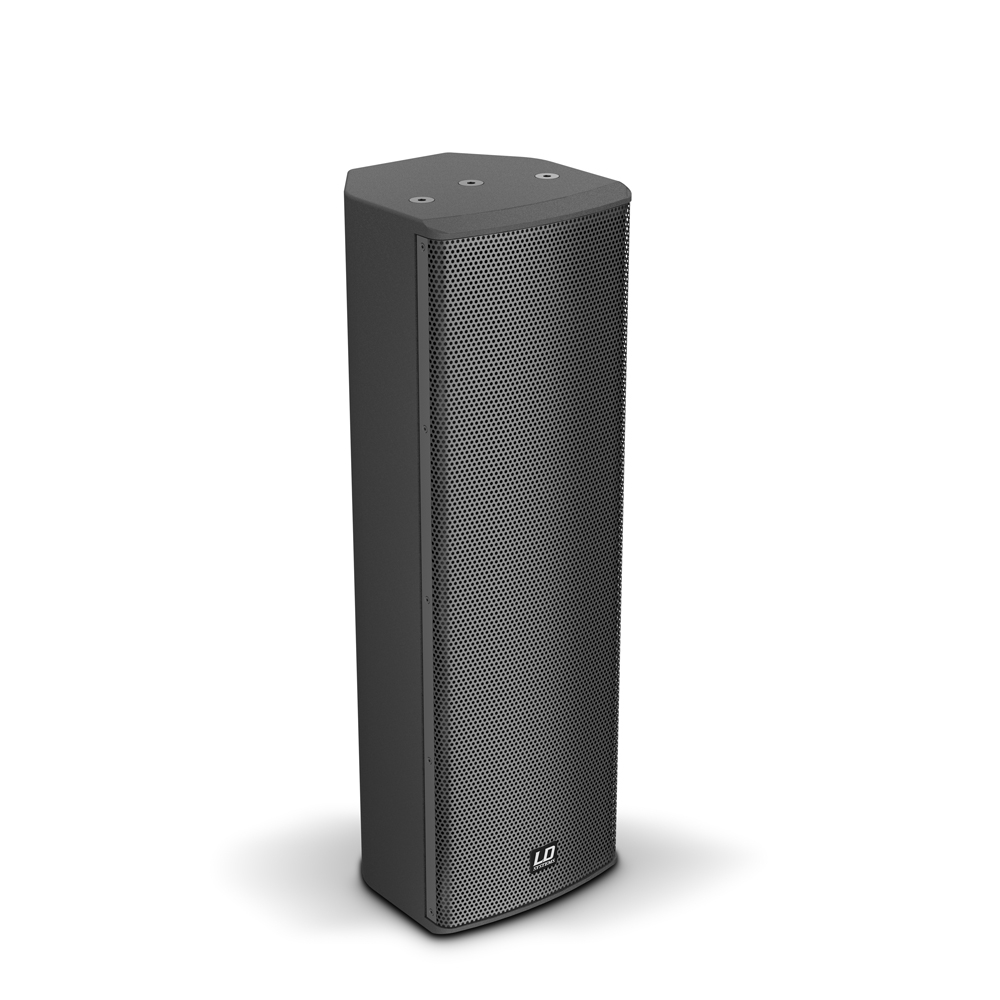

With its slim, streamlined design, the LD Systems SAT 262 G2 is excellently suited for permanent installation and discreet integration in virtually any setting. It features two 6.5" custom woofers and a 1” Celestion compression driver connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.
The SAT 262 G2 attains a maximum sound-level pressure of 116 dB over a frequency response curve of 65–19 kHz with a permanent load capacity of 180 watts. The reflex casing made of 12 mm MDF has four M8 mounting holes. The inputs are a speakON-compatible socket and a terminal block, while an additional terminal block serves as an output for convenient parallel connection.
Special wall holders are available as an accessory to facilitate wall mounting. The SAT 262 G2 is available in black (Art. No. LDSAT262G2) or white textured finish (Art. No. LDSAT262G2W).
Specifications:
Type: Passive
Peak load capacity: 360 W
RMS load capacity: 180 W
SPL (1 W/1 m): 93 dB
Frequency response: 65 - 19,000
Impedance: 8 Ω
Speaker system: 2-way system
Beam angle: 80° (hor.) / 60° (vert.)
Number of inputs: 2
Input connector types: Standard speaker connector 4-pole male & speakON®
