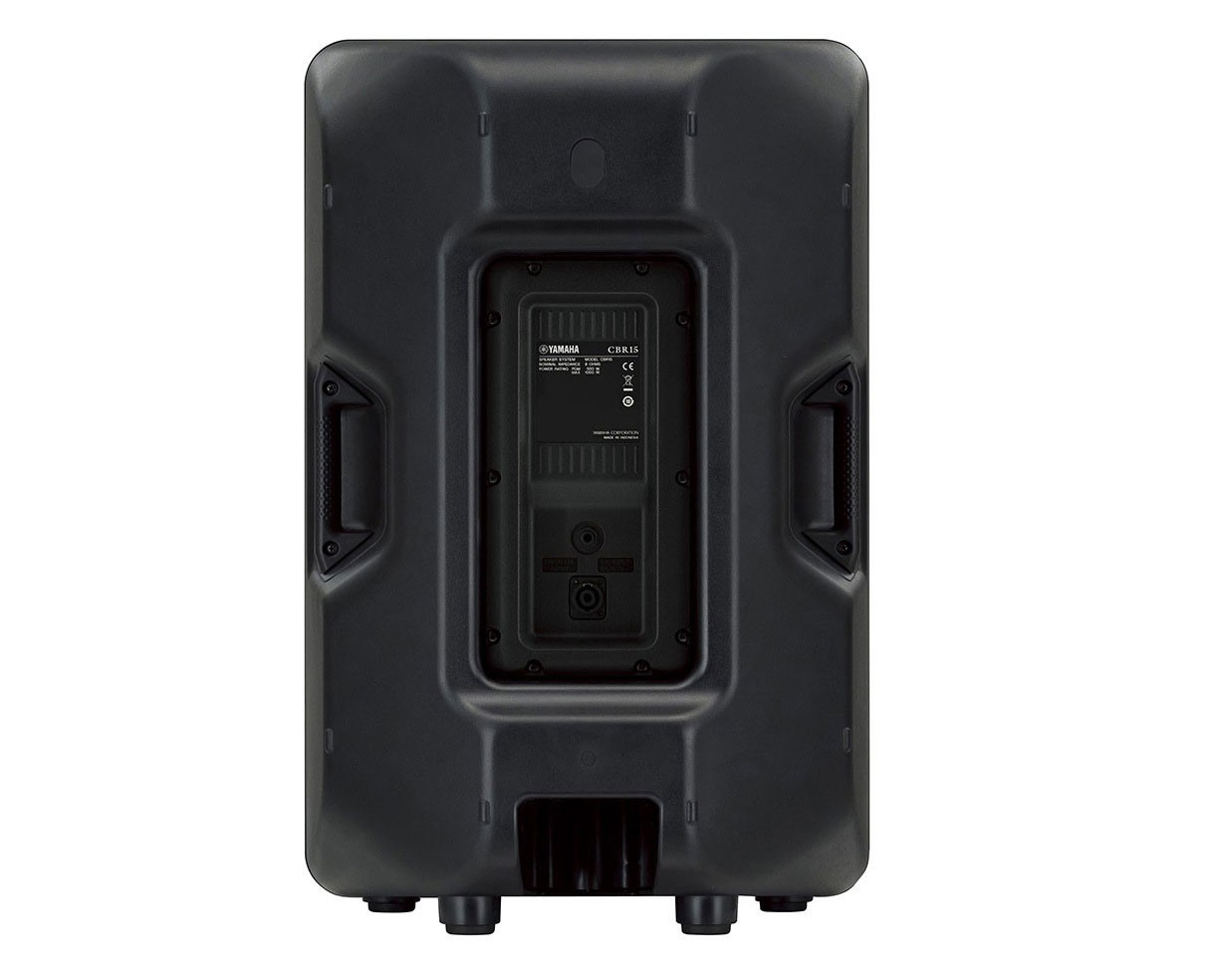

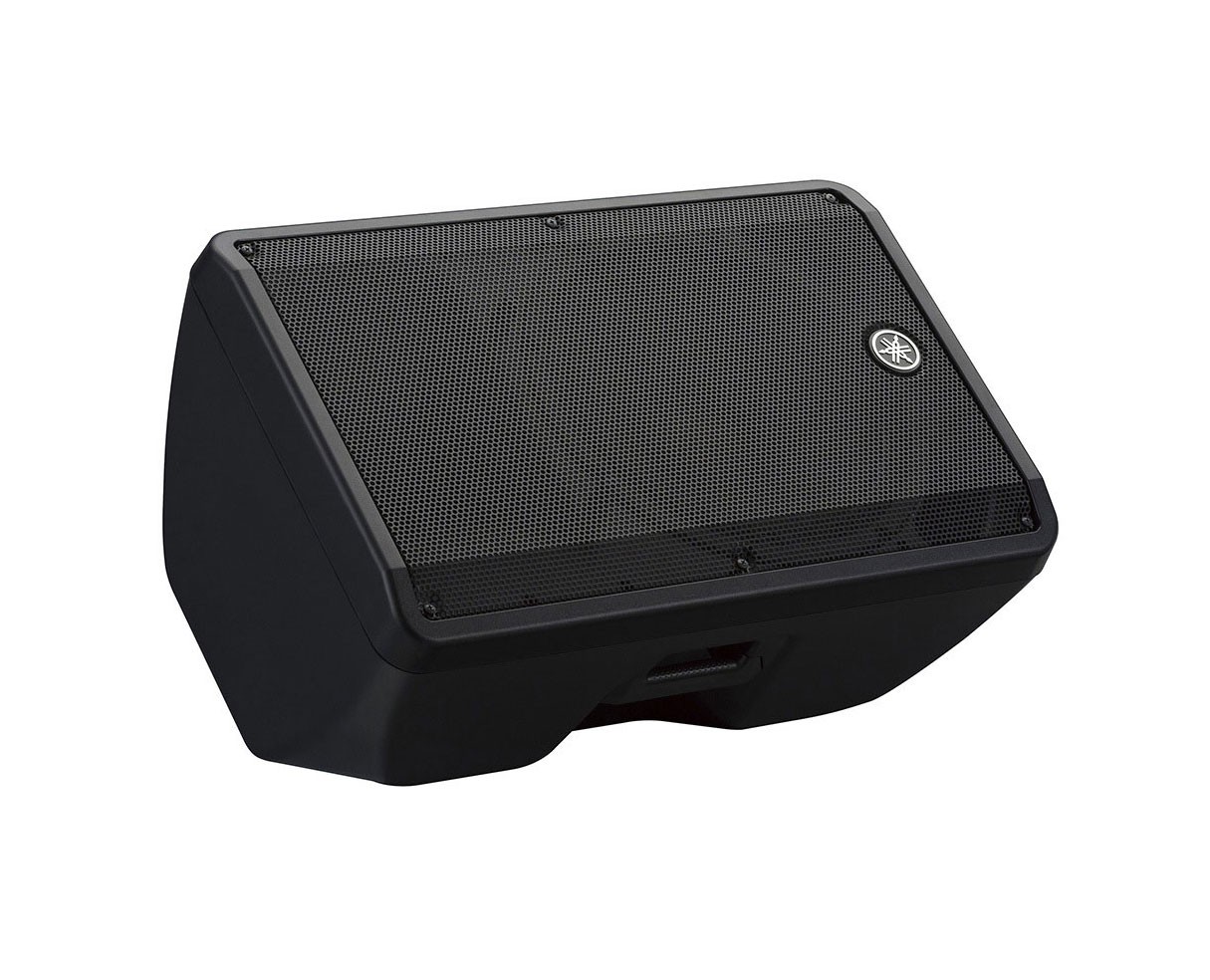

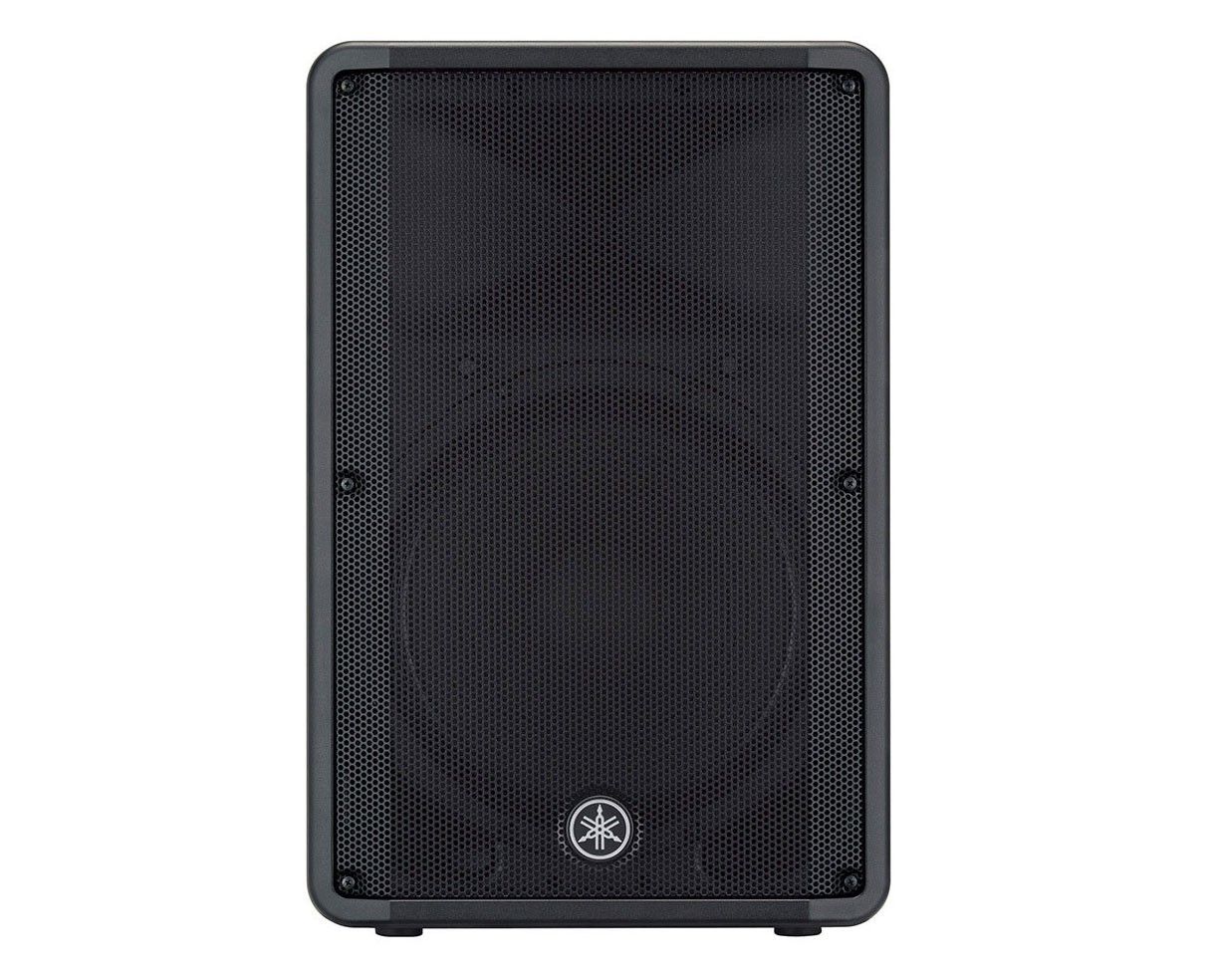

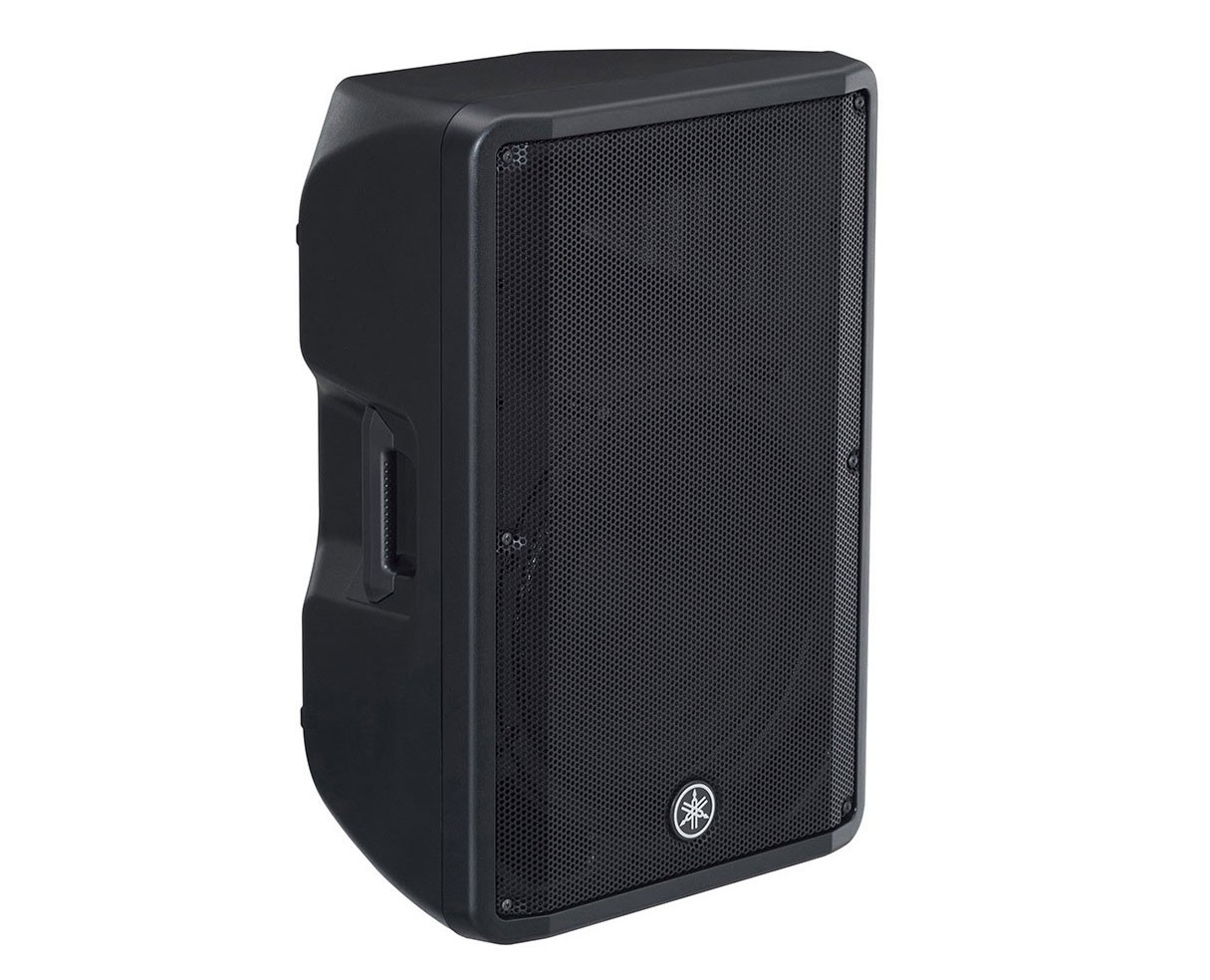

Yamaha CBR-15 - passive speaker with two-way and bass reflex design, equipped with a 15" low-frequency driver and a 1.4" high-frequency driver. Frequency response 46 Hz - 20 kHz, power 1000W Peak/500W RMS, impedance 8 Ohm, 126dB SPL Max, speakon and 1/4" jack connectors. Delivers the lowest frequencies in the CBR series, suitable for live situations, DJ events, or installations requiring prominent low frequencies and increased sound pressure levels.
Type: passive speaker with two-way and bass reflex design
Frequency response: 46 Hz - 20 kHz (-10dB)
Low-frequency driver: 15" with 2.5" voice coil (Ferrite Magnet)
High-frequency driver: 1.4"
Crossover frequency: 2.0 kHz
Power: 250W RMS
Impedance: 8Ω
Maximum sound pressure level (SPL): 96dB (1W; 1m on axis)
Calculated peak maximum sound pressure level: 126 dB SPL
