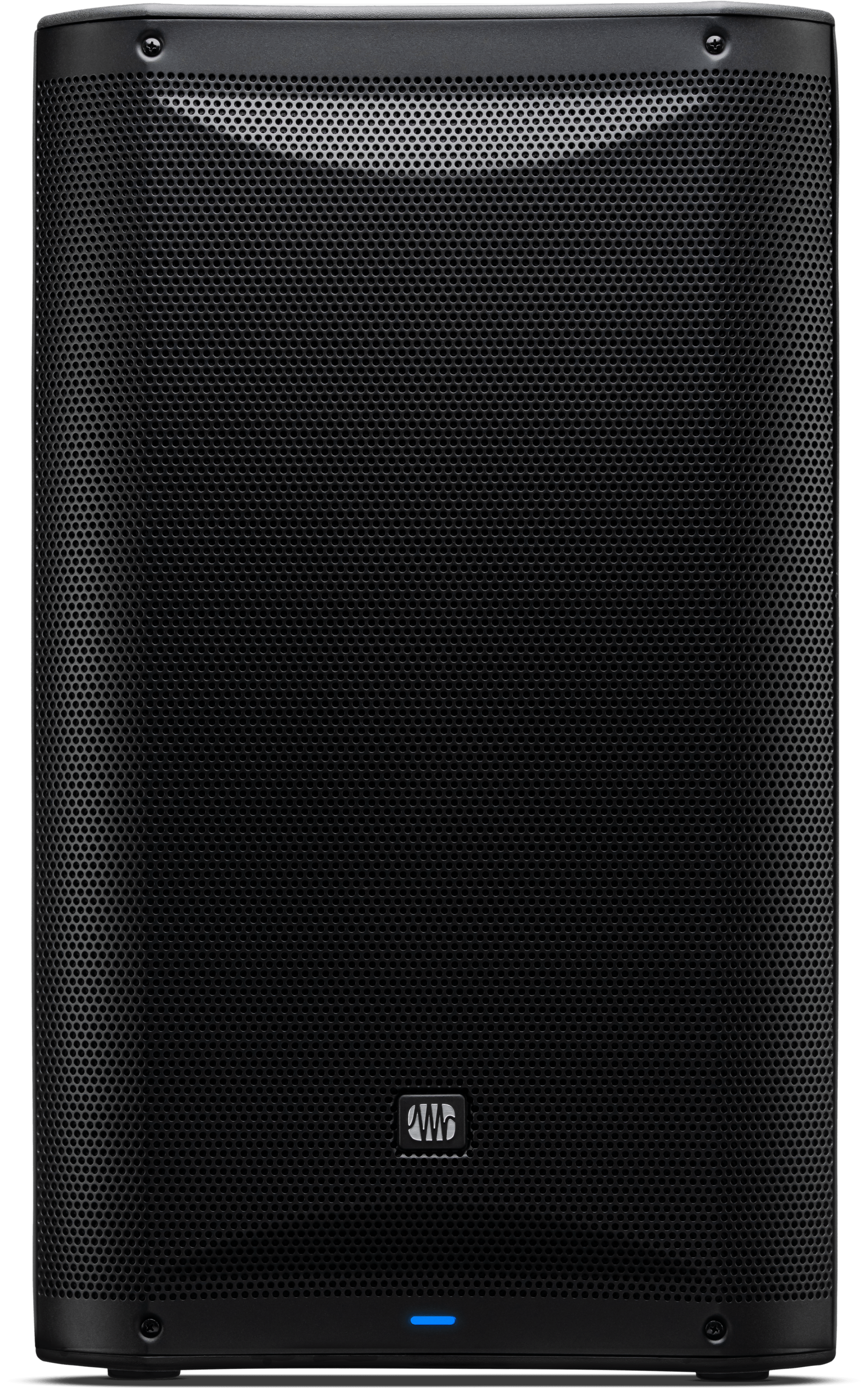

Presonus AIR XD 12 - Full-range active speaker that delivers clear sound, extended bass, and precise highs thanks to optimised drivers. It features Class D bi-amplification of 1,500 W, reaching up to 132 dB SPL. Includes DSP processing with presets, advanced EQ adjustments, and tuning modes for various applications, plus a 2.6” colour display for intuitive control.
It has Bluetooth with TWS mode for wireless stereo pairing, and the integrated mixer offers combo mic/line and aux inputs for versatile connectivity. The robust construction, with ergonomic handles and various mounting options, makes it ideal for DJ applications or live events.
Features:
- 12” woofer with a 2.56” voice coil for extended bass response, reaching down to 40 Hz
- 1.35” compression driver (high) with PEEK diaphragm
- Class D bi-amplification of 1,500 W for efficient power and SPL up to 132 dB
- Integrated DSP processing with performance presets, EQ ±10 dB, and tuning modes for speech, music, FOH, or monitor
- 2.6” colour display for quick and intuitive system control and level display
- Integrated Bluetooth with TWS Bridge mode for true wireless stereo playback
- Integrated mixer with 3 channels, combo mic/line and aux inputs for flexible connectivity
- 90° horizontal and 60° vertical dispersion
- Frequency response:
- 51 Hz – 20 kHz (-3 dB)
- 48 Hz – 20 kHz (-10 dB)
- Durable housing with ergonomic handles and multiple mounting options: suspended, on stand, stacked on the floor, or as a floor monitor
Specifications:
- System type: active, 2-way
- Bi-amplification: Class-D
- Power
- High frequency power: 468 W
- Low frequency power: 1060 W
- Total output power: 1500 W
- Maximum SPL: 132 dB
- Drivers
- Woofer: 12”, with 2.56 inch voice coil
- Tweeter: 1.35” compression driver with PEEK diaphragm
- Crossover frequency: 1.6 kHz
- Coverage pattern: 90° horizontal × 60° vertical
- Frequency response
- (-3 dB): 51 Hz – 20 kHz
- (-10 dB): 48 Hz – 20 kHz
- Connectivity
- Inputs: 4 (2 x combo XLR/TRS mic/line, 1 x 3.5 mm TRS stereo, Bluetooth stereo)
- Line output: 1 x XLR mix out, balanced
- Wireless via Bluetooth: version 5.0, with TWS stereo mode
- Integrated mixer
- Number of mixer channels: 3
- Audio control: Gain, Volume, High/Low EQ
- DSP processing
- Speaker modes, location settings, bass and treble adjustments
- 2.6” colour display for quick control
- Power
- Power consumption: 3.3 A (230V-50 Hz), 6.6 A (120V)
- Power supply voltage: 100-240 VAC, 50-60 Hz
- Housing material: H-PP moulded
- Grille: 1.2 mm steel
- Cooling: via passive radiator
- Handles: 2 (1 top, 1 side)
- Stand socket: dual positions (0° and 7.5°)
- Mounting points: 2 top, 1 rear (M10 for suspension)
- Dimensions (L x W x H): 360 x 351 x 619 mm
- Weight: 19.5 kg
