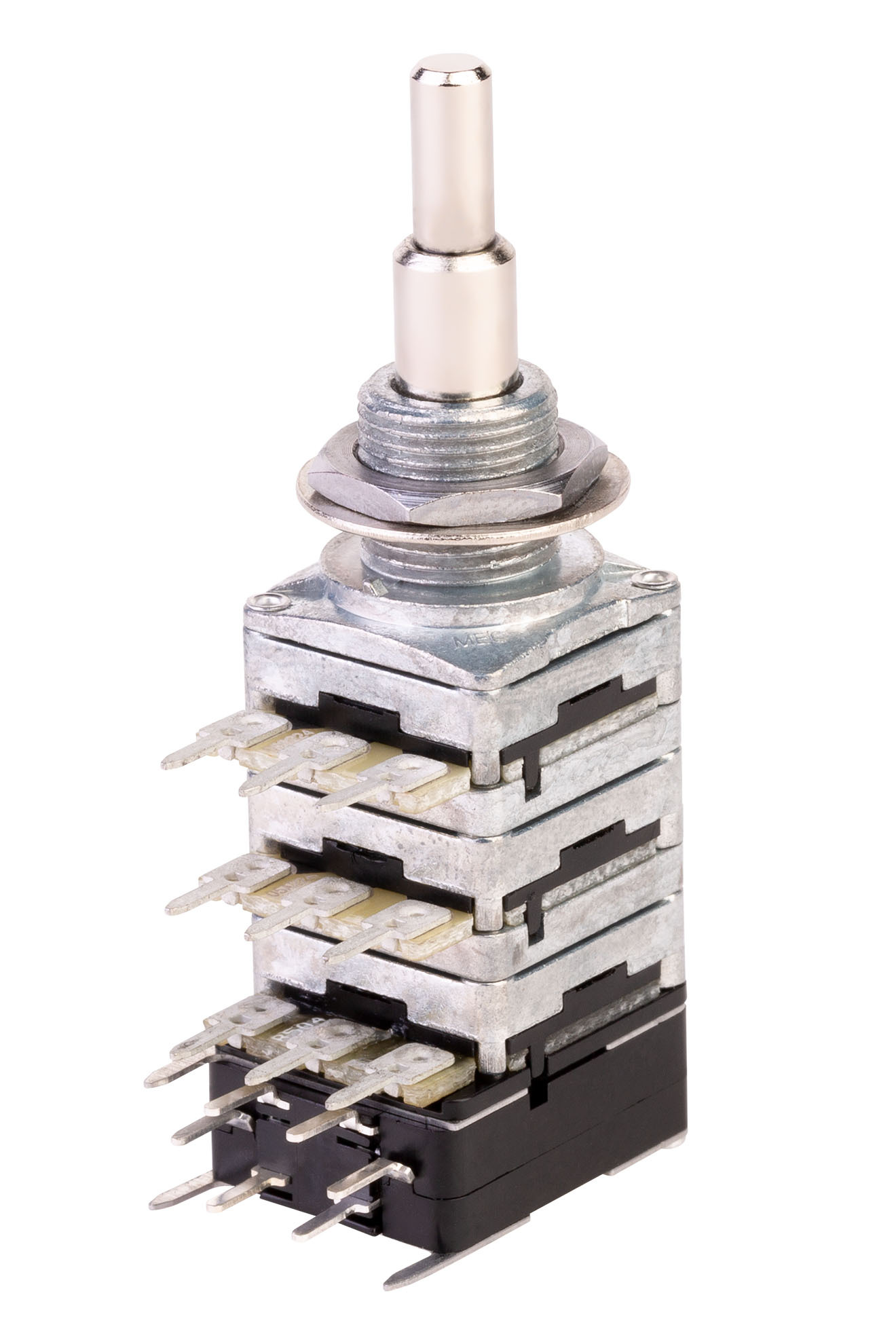

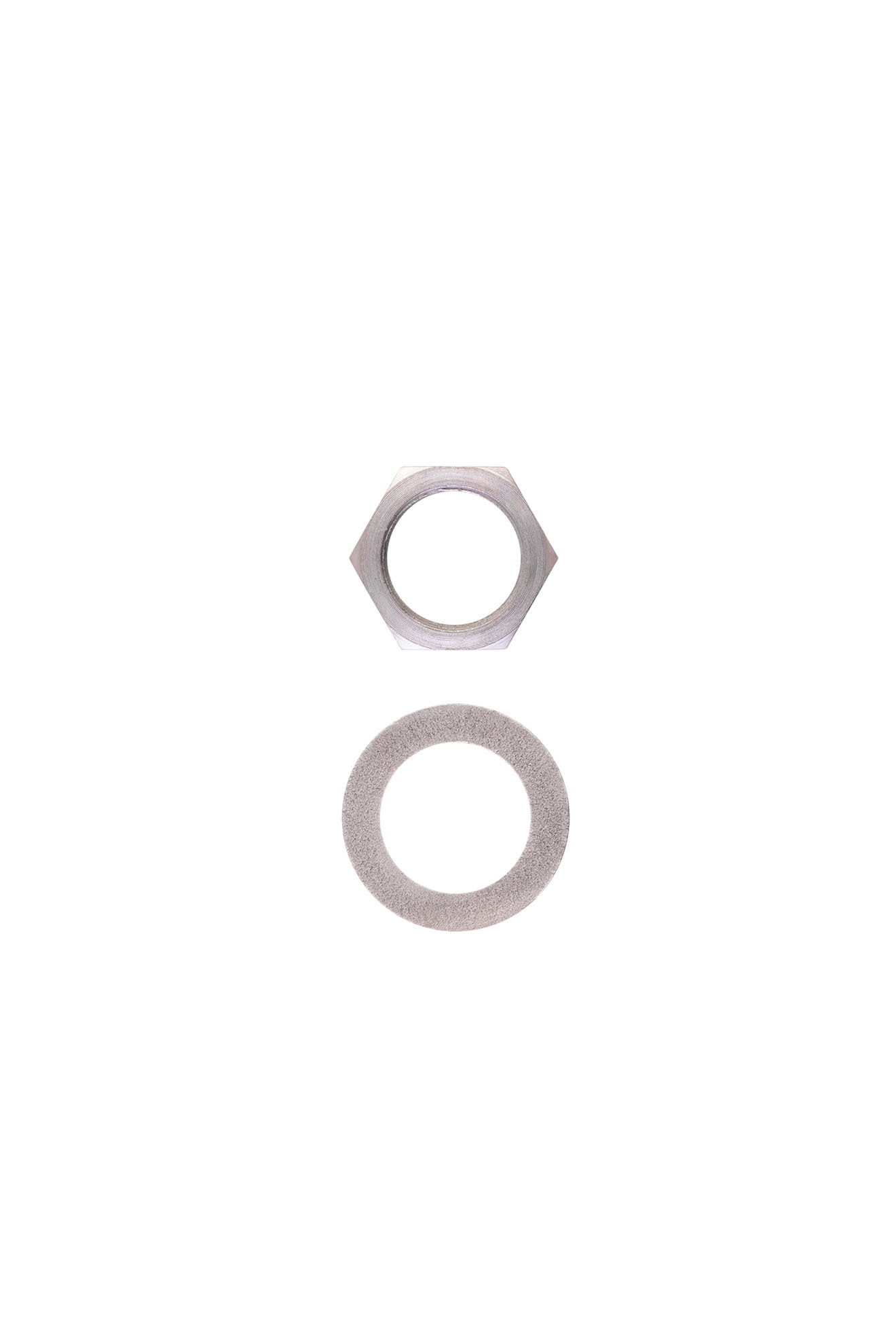

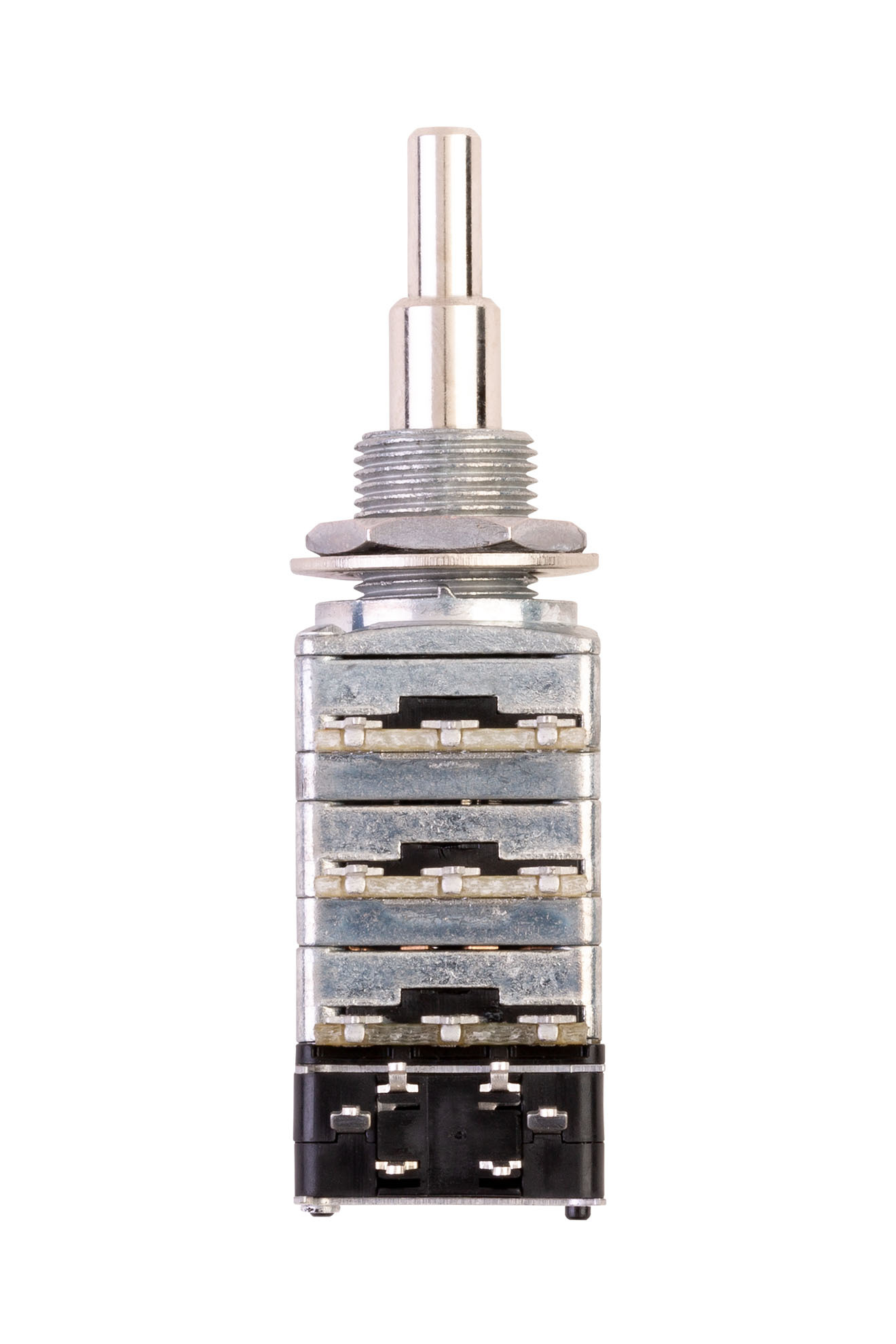

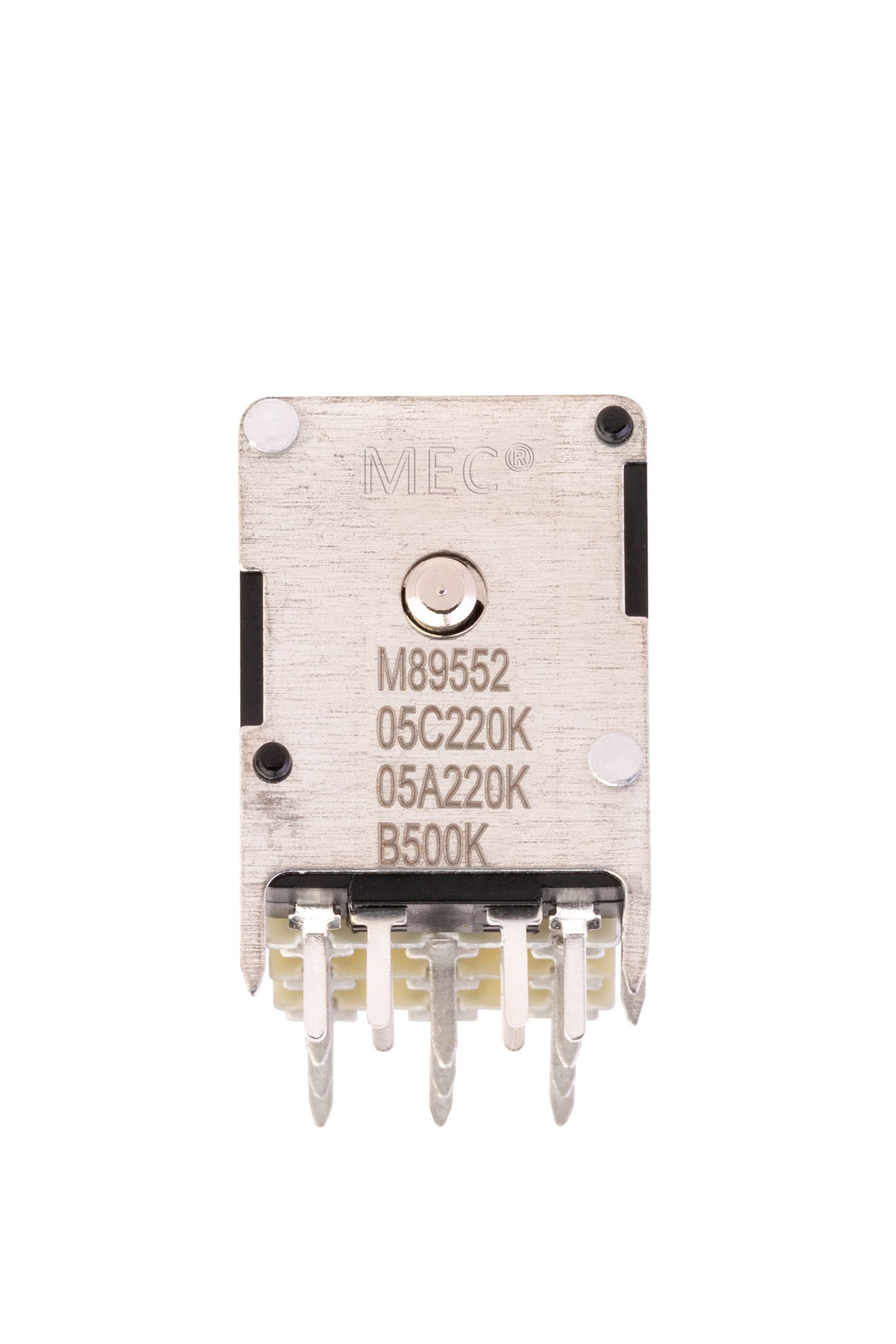

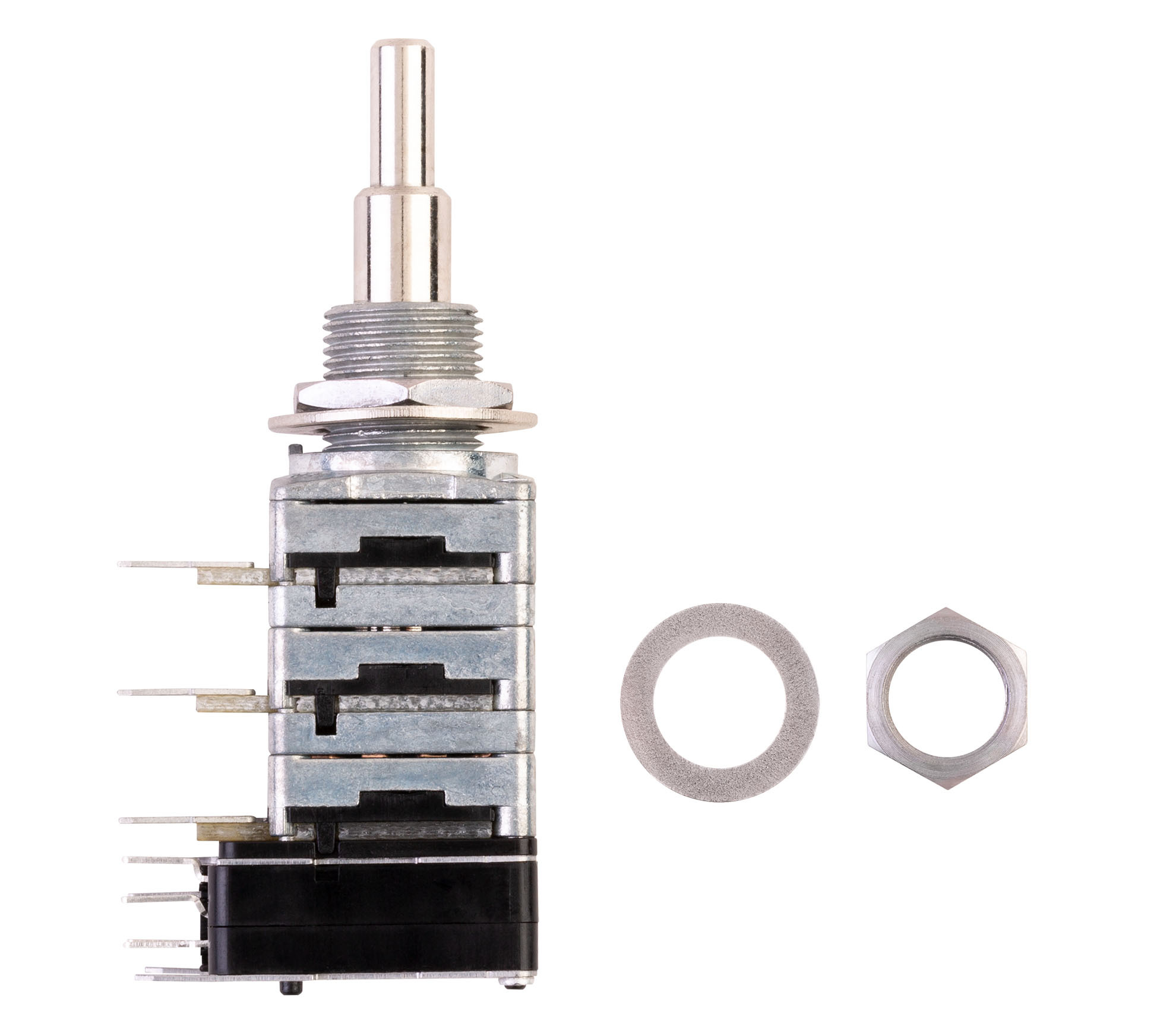

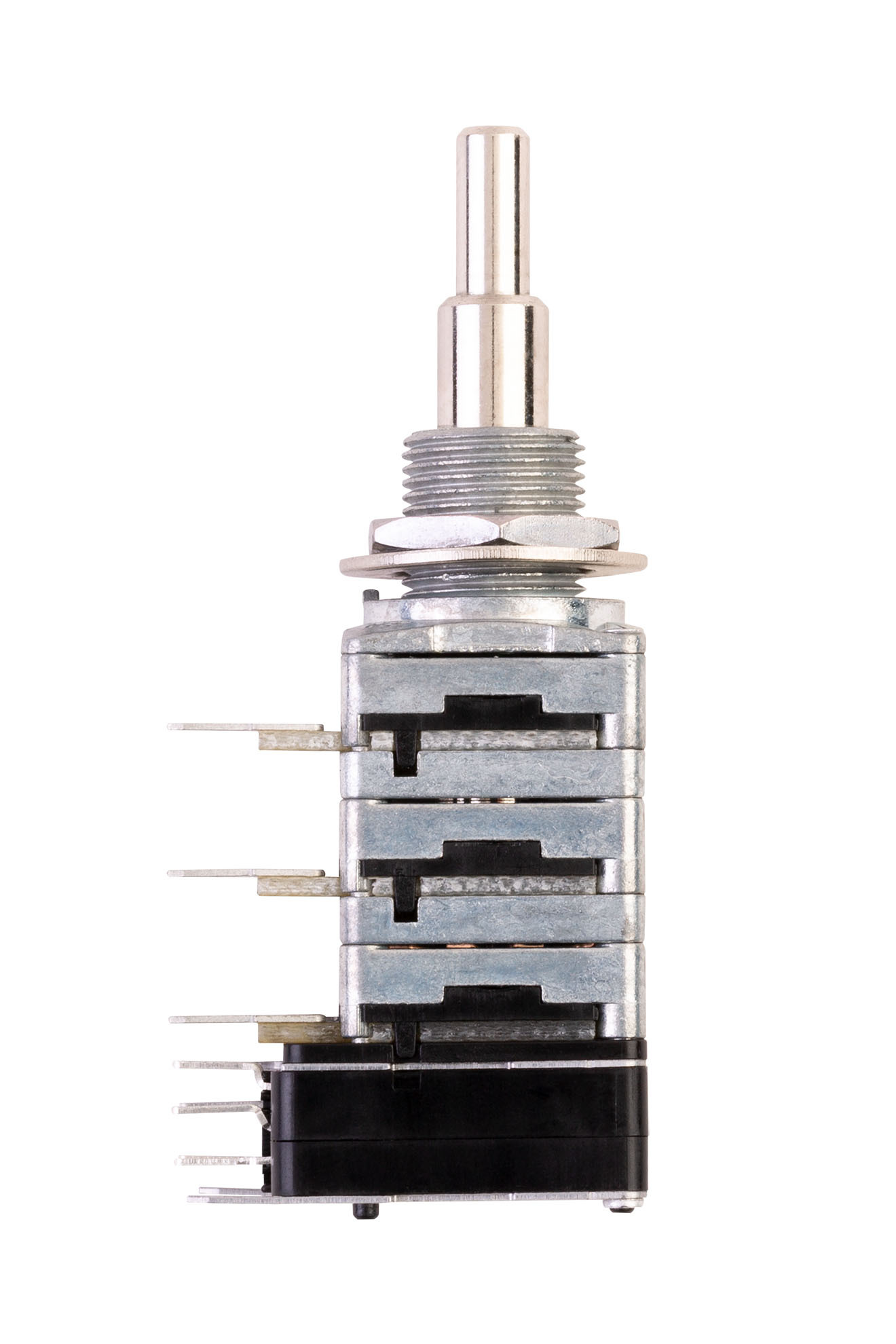

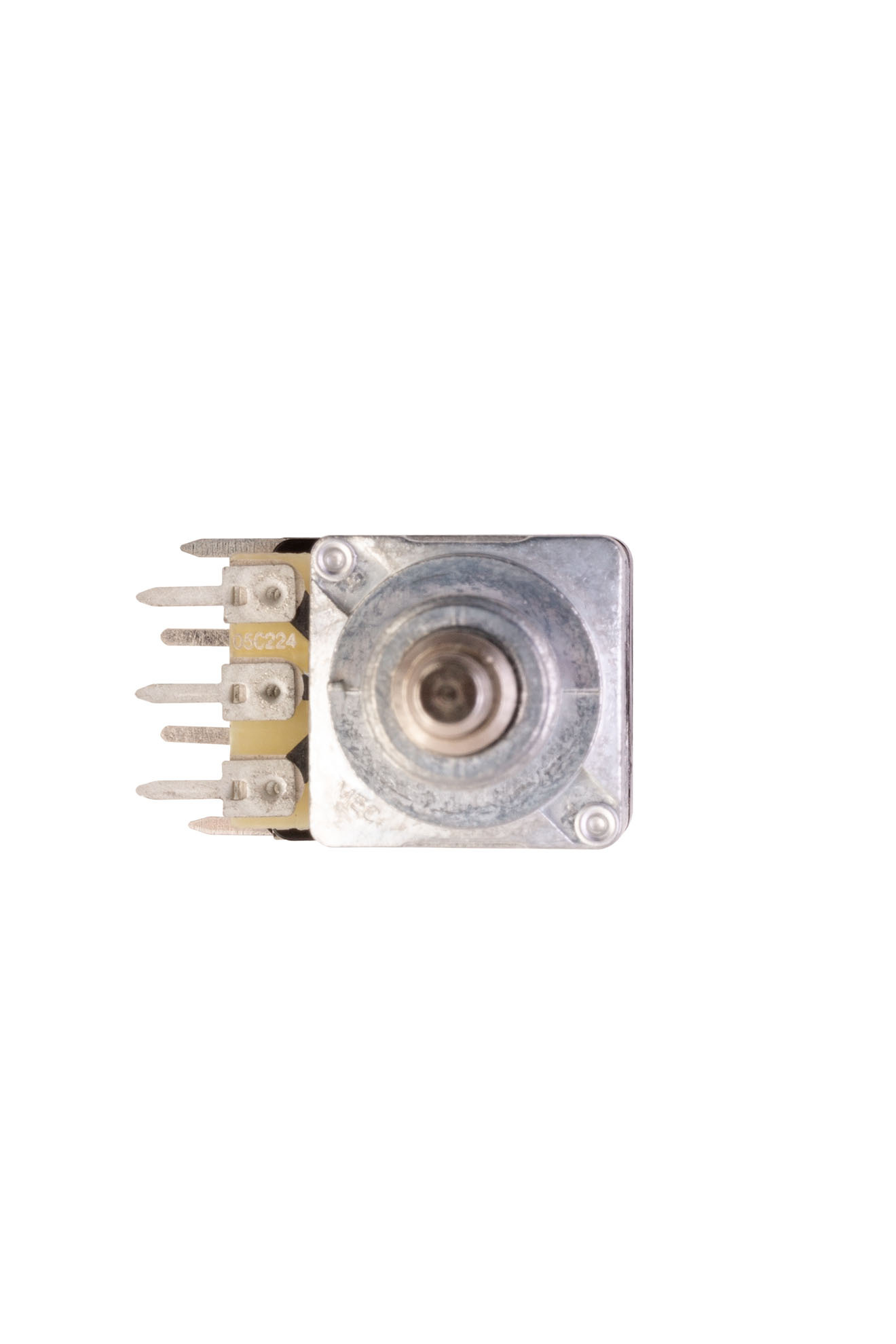

- Mono + stereo potentiometer with push/pull switch - Concentric shaft - R1 = B500K (resistance 500 kOhm, (B) linear) - R2 = 05A220K/cc (resistance 220 kOhm, (A) logarithmic, central detent) - R3 = 05C220K/cc (resistance 220 kOhm, (C) reverse logarithmic, central detent) - On/On DPDT - Suitable for volume + balance control for passive pickups - Thread M10 x 0.75 mm - Mounting diameter 10 mm - Thread length 9 mm - Solid shaft - Shaft length 14 mm (internal), 7 mm (external) - Shaft diameter 4 mm (internal), 6 mm (external) - Includes nut and washer - Dimensions incl. lugs (L x W x H) 24 x 16 x 31 mm - Note: Return policy does not apply to electronic components if their wires have been cut or soldered, if they show signs of use, if they have been installed already, or other damage affecting the condition of the goods is present.
Did you find MEC Pickups Mono + Stereo Stacked Potentiometer, B500K / (05A220K / 05C220K)/cc, Push/Pull at a lower price at a Romanian retailer? Please let us know and we will propose a personalized offer.
The special offer is subject to the following conditions:
The competing company must be an authorized dealer for MEC Pickups Mono + Stereo Stacked Potentiometer, B500K / (05A220K / 05C220K)/cc, Push/Pull
The competing offer terms must be similar to those provided by SoundCreation: in stock, similar return guarantee, similar delivery conditions, etc.
