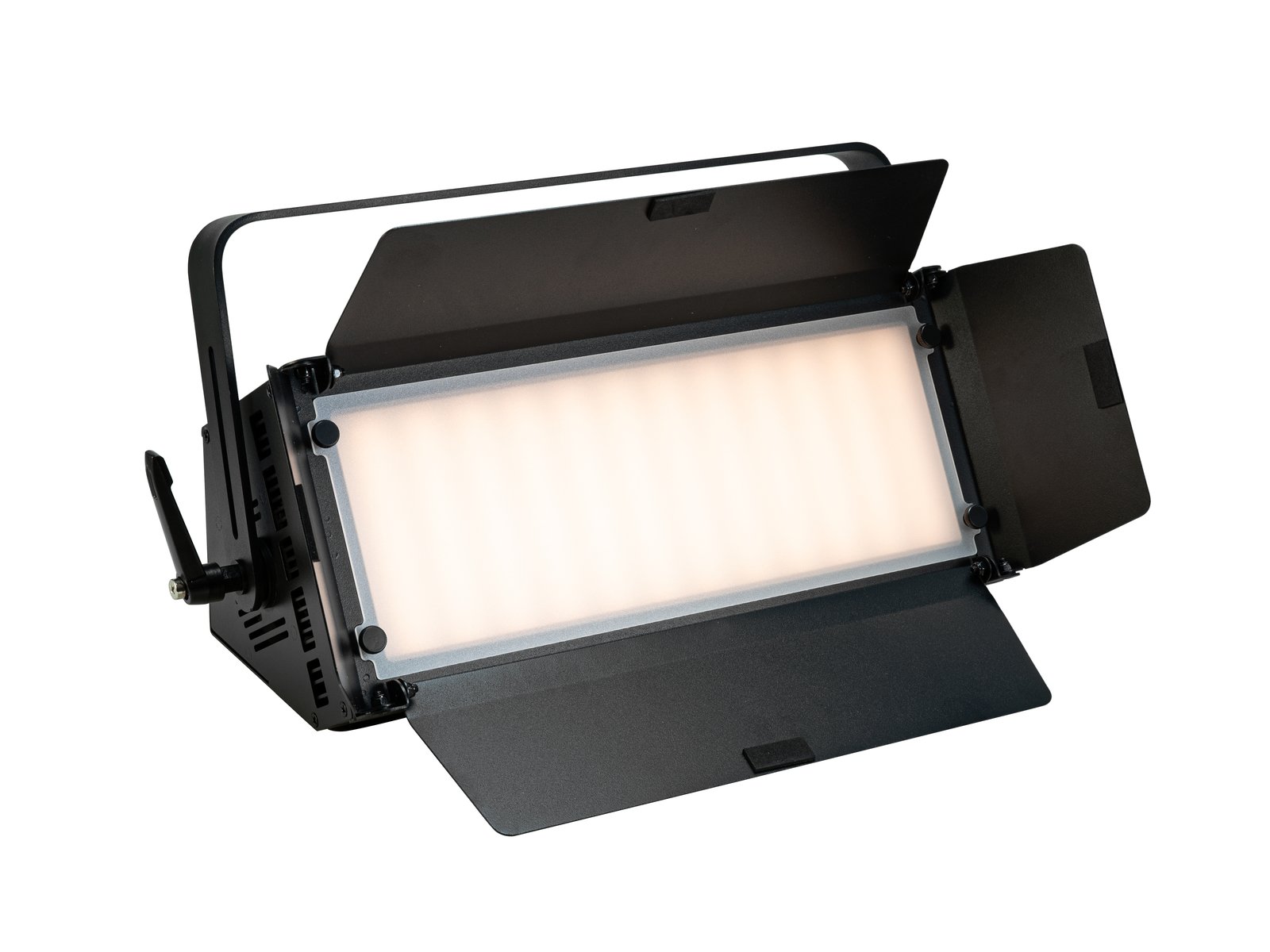

DMX-controlled surface light with 576 dual white LEDs, QuickDMX port, diffuser and barn doors
288 powerful LEDs 0,5 W SMD 5730 warm white (WW)
288 powerful LEDs 0,5 W SMD 5730 cold white (CW)
Variable color temperature 3000 K - 6000 K
Additional frost filter provides a wide, soft and homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Direct color temperature selection for 69 preset values
Dimmer electronic
Flicker-free
With a beam angle of 120°
Can be operated in 2-1; 2-2; 3-1; 3-2; 4 CH mode
The device is cooled by temperature-controlled fan
Very high color rendering index (CRI)
LCD display
Rubber feet
Controlling by DMX; Master/slave function; stand-alone; Quick select potentiometer for brightness and color temperature; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in Light´J; Light Captain
With Mounting bracket
For application areas such as: Video- and Photographic; Stage
Mains input and output for power linking up to 8 units
Package contents
1 x spotlight, 1 x user manual, 1 x power cord, 1 x diffusor cover, 4 x knurled screw
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
160 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
1 x P-Con (gray), mounting version
Lamp type:
LED lamp
LED:
288 x 0,5 W SMD 5730 cold white (CW) 288 x 0,5 W SMD 5730 warm white (WW)
Color temperature:
3000K - 6000K adjustable
DMX channels:
2-1; 2-2; 3-1; 3-2; 4
DMX input:
3-pin XLR (M) mounting version 5-pin XLR (M) mounting version
DMX output:
3-pin XLR (F) mounting version 5-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
DMX; Master/slave function; stand-alone; Quick select potentiometer for brightness and color temperature; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
