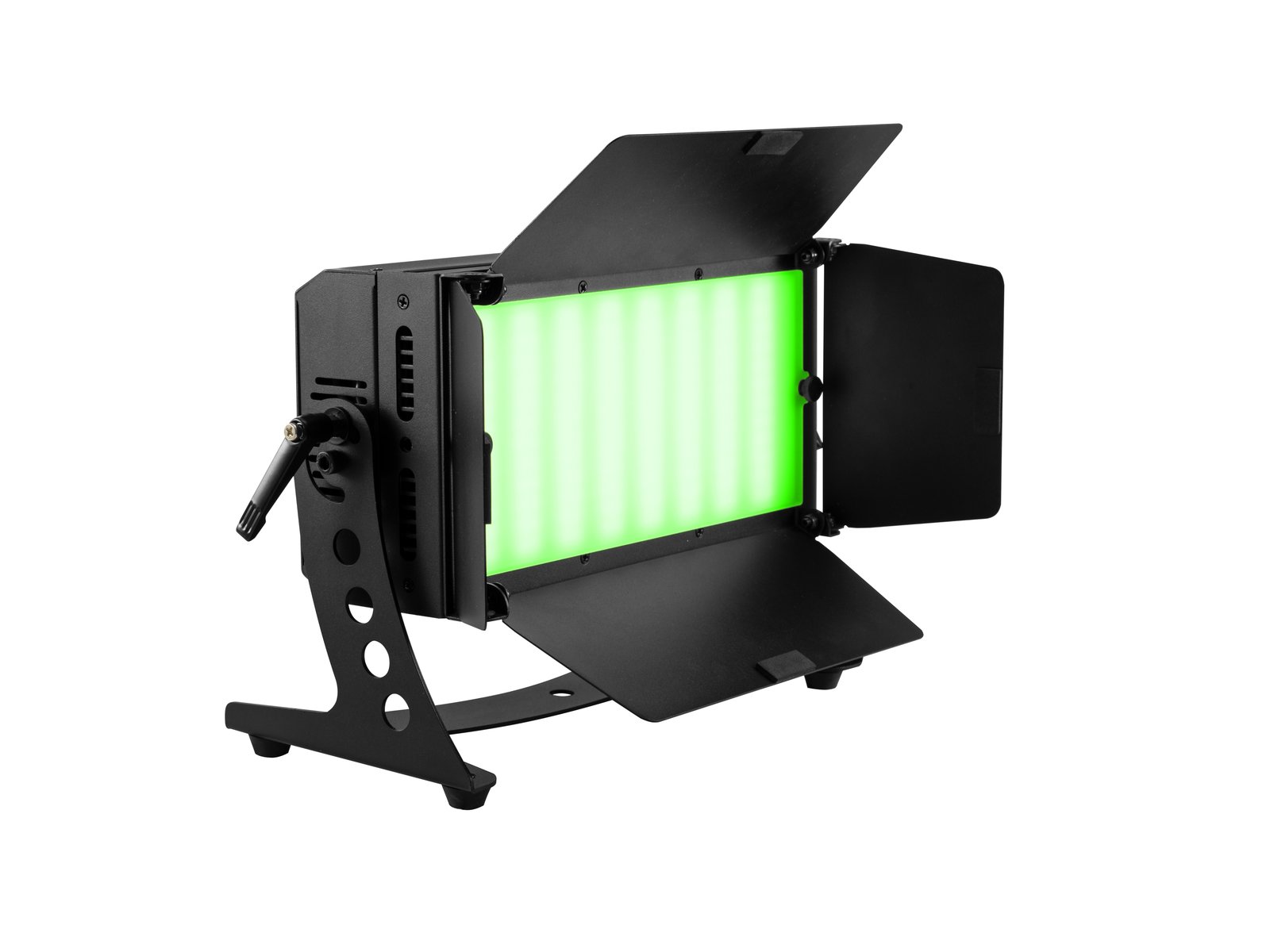

DMX-controlled surface light with RGB/WW color mixing, QuickDMX port, frost filter and barn doors
240 powerful LEDs 1,5 W SMD 5054 R/G/B (homogenous color mix)
144 powerful LEDs 1 W SMD 5054 warm white (WW)
Additional frost filter provides a wide, soft and homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Integrated Showprograms
Direct color selection for 15 preset colors
White balance adjustable; Dimmer electronic; dimmer curves with adjustable response; color change adjustable; color fade adjustable; color blend stepless
Strobe effect
Can be operated in 3; 4; 6; 8; 11 CH mode
The device is cooled by temperature-controlled fan
Controlling by stand-alone; DMX; Master/slave function; Quick select potentiometer for brightness and preset color; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 120°
Very high color rendering index (CRI)
With Mounting bracket
LCD display
Preprogrammed in Light´J; Light Captain
Mains input and output for power linking up to 8 units
Very quiet working noise
Package contents
1 x spotlight, 1 x user manual, 1 x power cord, 1 x diffusor cover, 2 x knurled screw
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
160 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
1 x P-Con (gray), mounting version
Fuse:
Fuse serviceable
Lamp type:
LED lamp
LED:
240 x 1,5 W SMD 5054 R/G/B (homogenous color mix) 144 x 1 W SMD 5054 warm white (WW)
Color temperature:
3000K
Flash rate:
1 - 23 Hz
DMX channels:
3; 4; 6; 8; 11
DMX input:
1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Stand-alone; DMX; Master/slave function; Quick select potentiometer for brightness and preset color; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:
Light´J; Light Captain
Beam angle:
120°
Beam angle (1/2 peak):
120°
Color rendering index (CRI):
96 Ra
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Dimensions:
Length: 34,7 cm Width: 13,1 cm Height: 21,1 cm
Weight:
3,73 kg
Noise classification:
Class 1 (very slight noise, suitable for noise-sensitiveenvironments)
