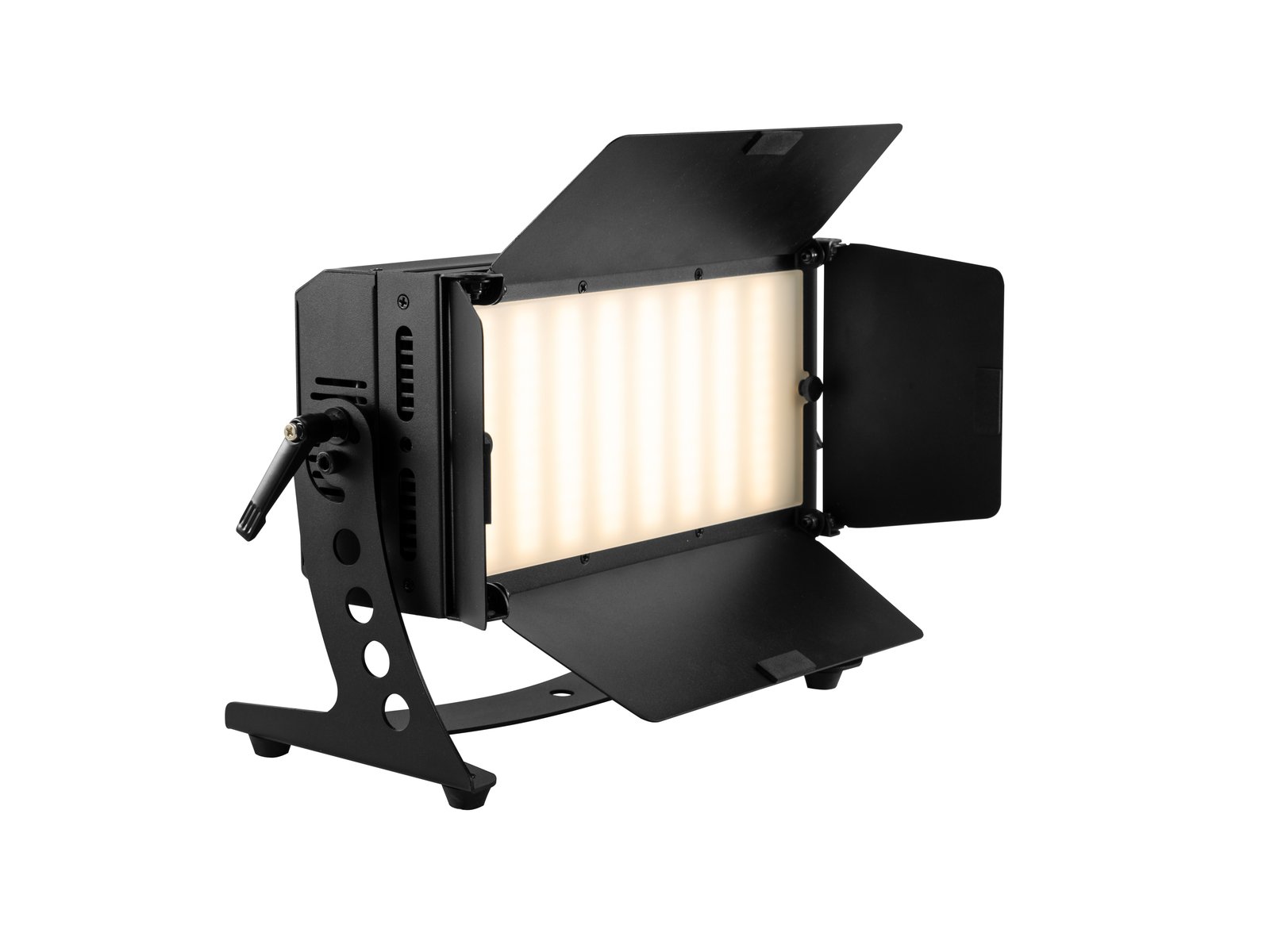

DMX-controlled surface light with 384 dual white LEDs, QuickDMX port, diffuser and barn doors
192 powerful LEDs 0,5 W SMD 5730 cold white (CW)
192 powerful LEDs 0,5 W SMD 5730 warm white (WW)
Energy-saving, durable and environmentally friendly
Additional frost filter provides a wide, soft and homogeneous light
4 barn doors to avoid blinding the audience and for protection during transport
Variable color temperature 2700 K - 5700 K
Very quiet working noise
Direct color temperature selection for 69 preset values
Dimmer electronic
Can be operated in 2-1; 2-2; 3-1; 3-2; 4 CH mode
The device is cooled by temperature-controlled fan
Controlling by Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Flicker-free
With a beam angle of 120°
Very high color rendering index (CRI)
With Mounting bracket
LCD display
For application areas such as: Video- and Photographic; Stage
Preprogrammed in Light Captain; Light´J
Mains input and output for power linking up to 8 units
Package contents
1 x spotlight, 1 x power cord, 1 x diffusor cover, 2 x knurled screw, 1 x user manual
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
100 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:
P-Con (gray), mounting version
Fuse:
T 3,15 A Fuse fix on board
Lamp type:
LED lamp
LED:
192 x 0,5 W SMD 5730 cold white (CW) 192 x 0,5 W SMD 5730 warm white (WW)
Color temperature:
2700K - 5700K adjustable
Flash rate:
1 - 20 Hz
DMX channels:
2-1; 2-2; 3-1; 3-2; 4
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Temperature-controlled fan
Control:
Quick select potentiometer for brightness and color temperature; DMX; Master/slave function; stand-alone; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
Preprogrammed in:
Light Captain; Light´J
Beam angle:
120°
Beam angle (1/2 peak):
120°
Color rendering index (CRI):
94 Ra
Housing color:
Black
Attachment system:
Mounting bracket
Display type:
LCD display
Material:
Metal
Dimensions:
Length: 34,7 cm Width: 13,8 cm Height: 21,1 cm
Weight:
3,52 kg
Noise classification:
Class 1 (very slight noise, suitable for noise-sensitiveenvironments)
