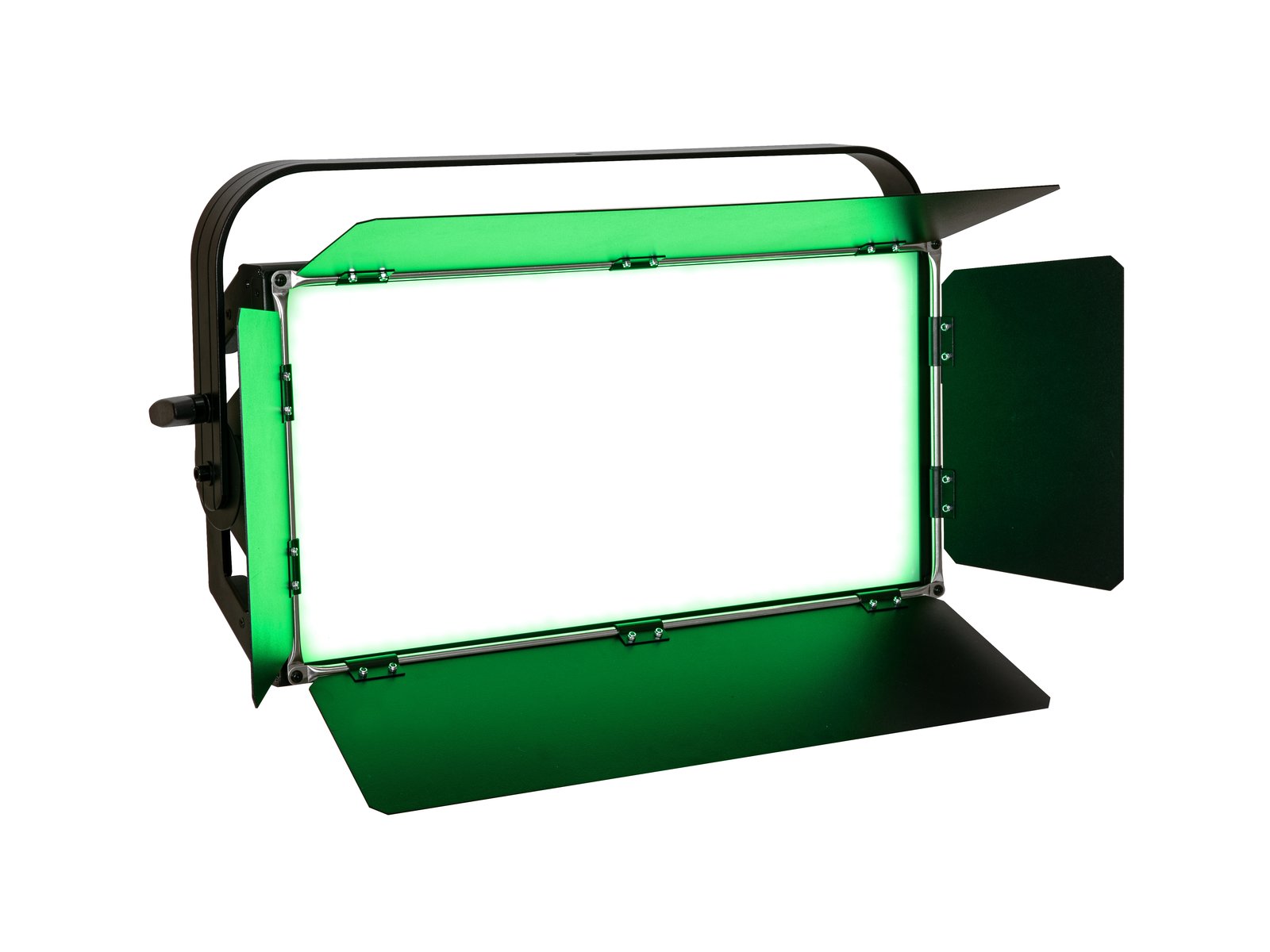

Eurolite LED PLL-2000 RGBALC Panel

Surface light

2688 powerful LEDs R/G/B/A/L/C (homogenous color mix)
color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; pulse-width modulation variable
milky front screen provides a homogeneous and soft light
4 barn doors to avoid blinding the audience and for protection during transport
with a beam angle of 120°

784⁵⁶ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

4037 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Eurolite LED PLL-2000 RGBALC Panel Add to cart: 784⁵⁶ €

DMX-controlled surface light with 2688 RGBALC LEDs and barn doors

2688 powerful LEDs R/G/B/A/L/C (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; pulse-width modulation variable
Milky front screen provides a homogeneous and soft light
4 barn doors to avoid blinding the audience and for protection during transport
With a beam angle of 120°
Flicker-free
Can be operated in 5 (HSI hue/saturation/intensity); 8; 9; 11 CH mode
Strobe effect
Very high color rendering index (CRI)
Controlling by stand-alone; DMX; Master/slave function
The device is cooled by passive convection cooling
With Mounting bracket
Multicolor LCD display
2 Rugged carrying handles
Preprogrammed in Light´J; Light Captain
Mains input and output for power linking up to 8 units

Package contents

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	200 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED:	2688 x R/G/B/A/L/C (homogenous color mix)
Flash rate:	12 Hz
DMX channels:	5 (HSI hue/saturation/intensity); 8; 9; 11
DMX input:	3-pin XLR (M) mounting version 5-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version 5-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; Master/slave function
Preprogrammed in:	Light´J; Light Captain
Beam angle:	120°
Beam angle (1/2 peak):	120°
Color rendering index (CRI):	96 Ra
Illuminance in Lux (lx):	Red (R) 1m: 185 lx, 3m: 6 lx, 6m: 0 lx Green (G) 1m: 913 lx, 3m: 123 lx, 6m: 32 lx Blue (B) 1m: 243 lx, 3m: 34 lx, 6m: 7 lx Amber (A) 1m: 1307 lx, 3m: 148 lx, 6m: 29 lx Lime 1m: 3712 lx, 3m: 519 lx, 6m: 127 lx Cyan 1m: 642 lx, 3m: 88 lx, 6m: 22 lx All 1m: 4587 lx, 3m: 643 lx, 6m: 155 lx
Lamp life:	50000 h
Luminous flux:	16000 lm
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	Multicolor LCD display
Carrying handle:	2 pc/pcs
Dimensions:	Width: 64,5 cm Depth: 14,0 cm Height: 34,5 cm
Weight:	9,80 kg
Energy efficiency class (A - G):	F
