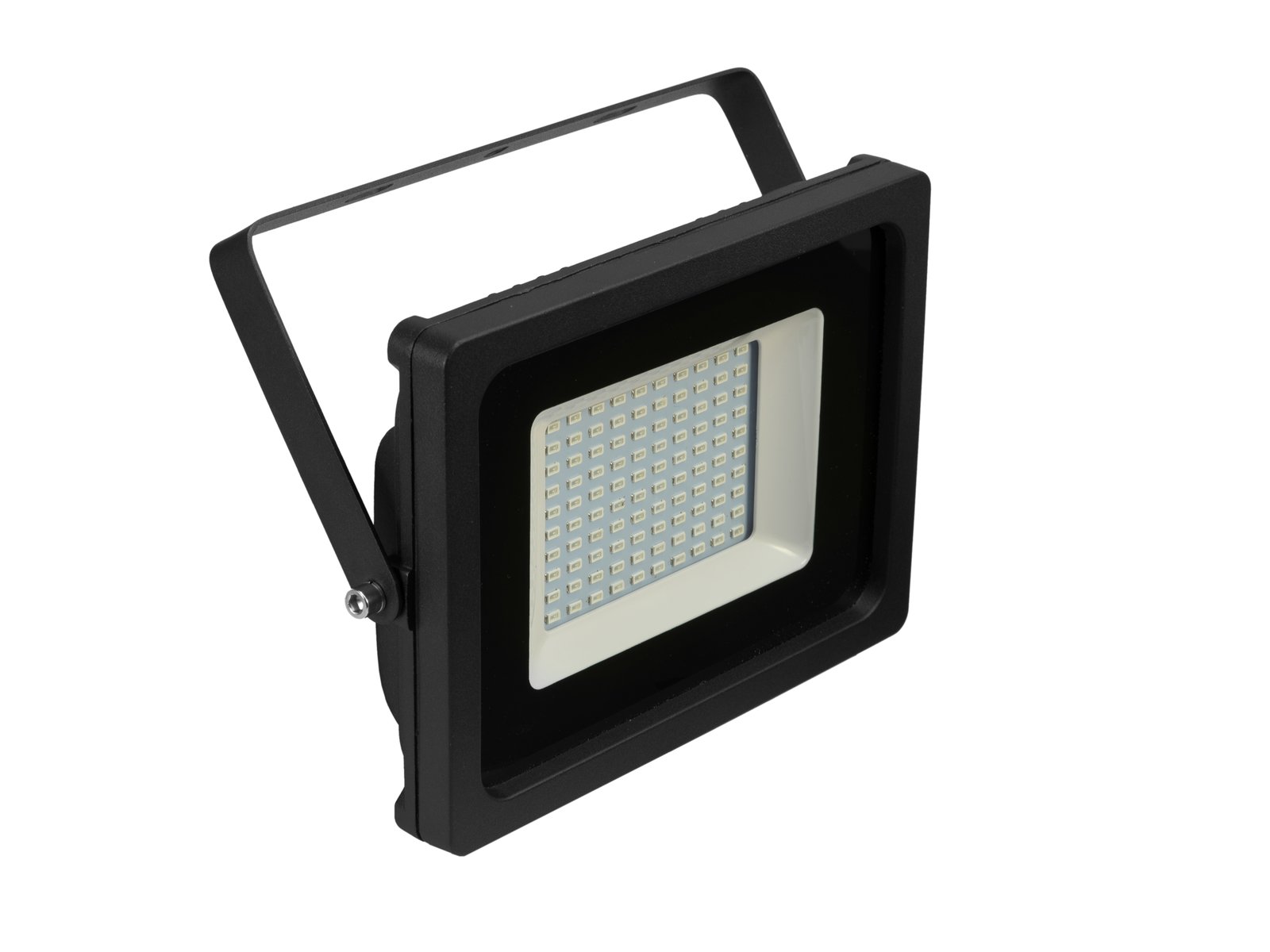

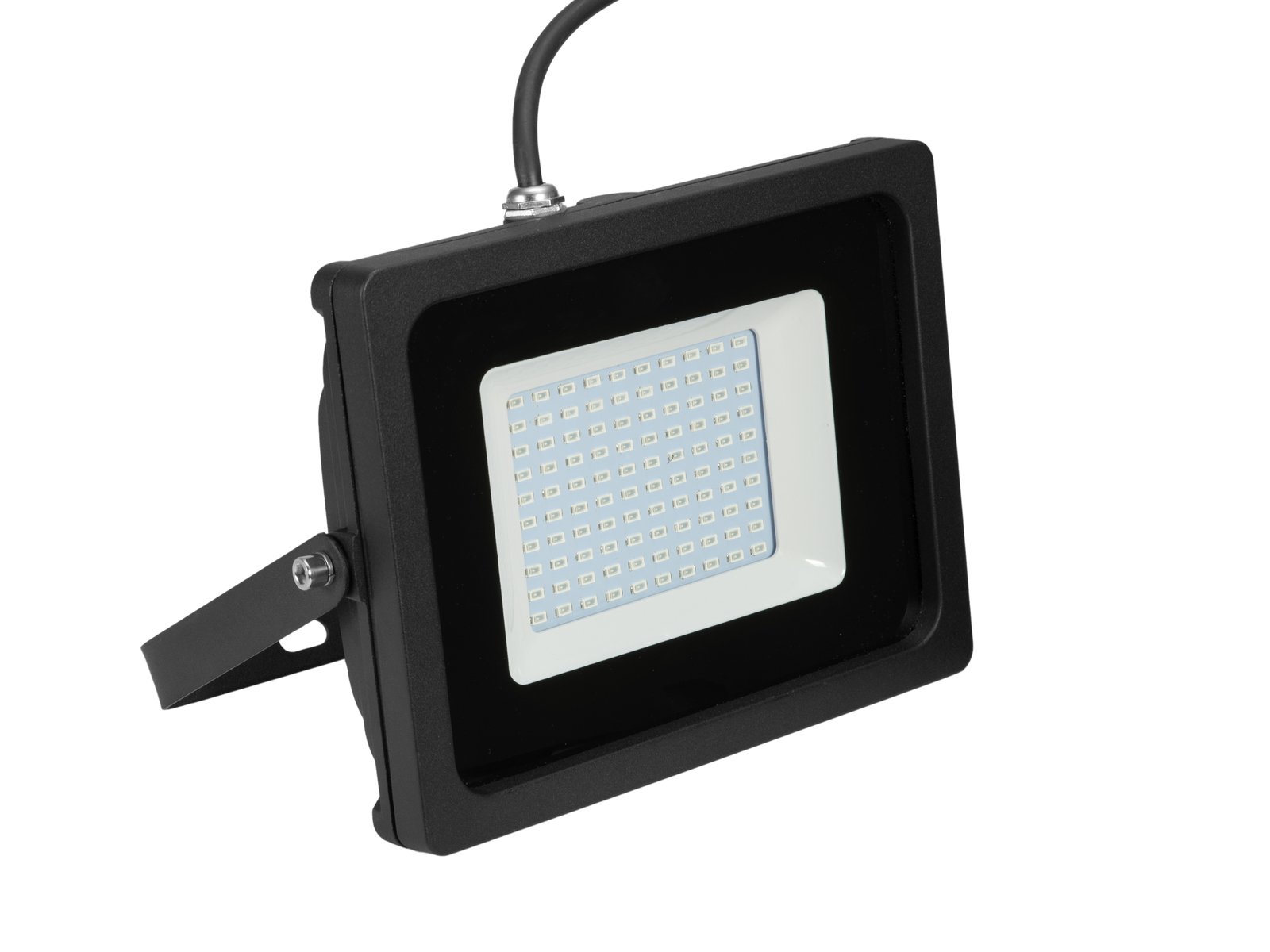

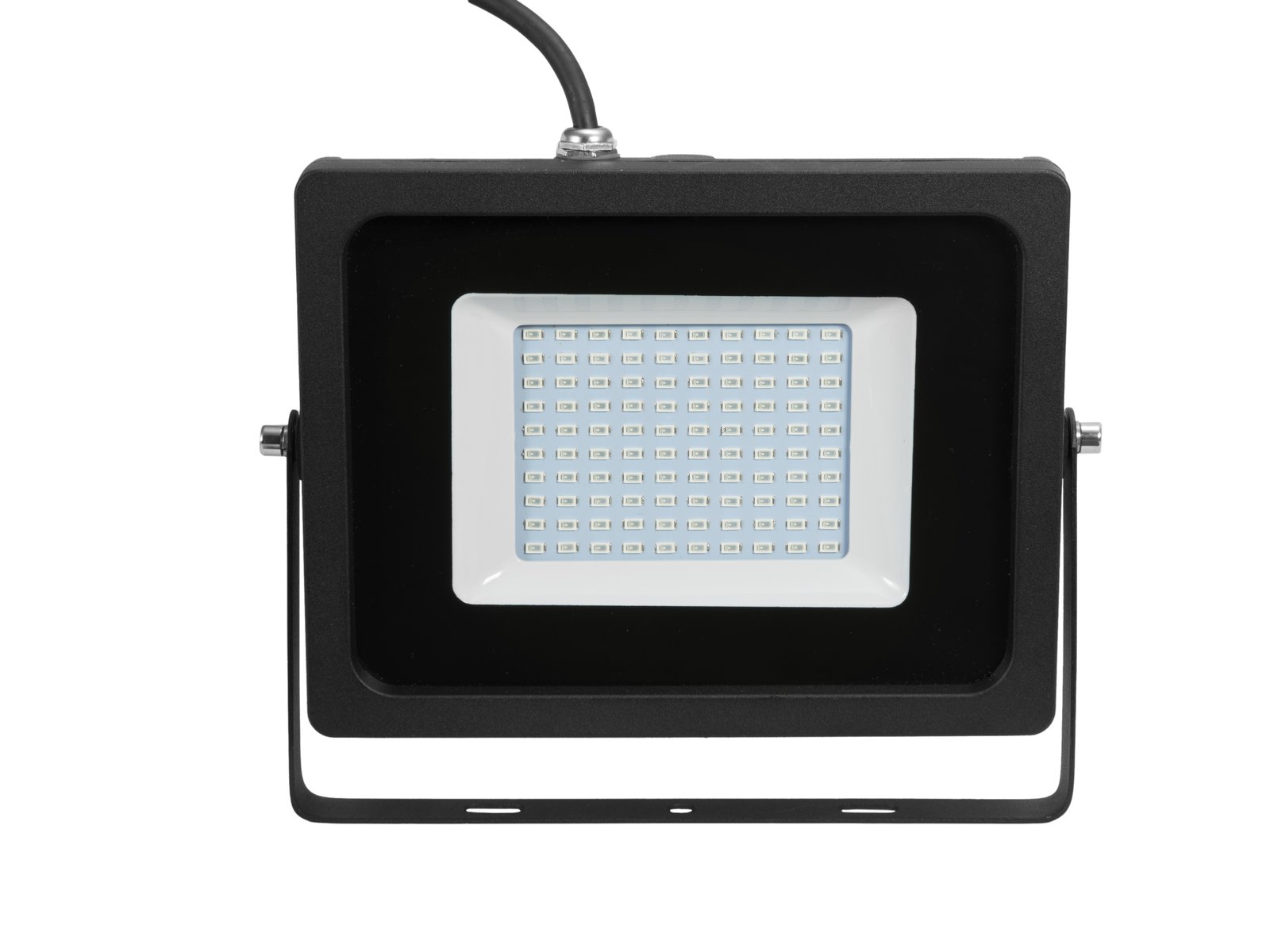

Flat outdoor projector (IP65) with coloured LEDs
- 100 powerful SMD 5730 orange LEDs
- The device is cooled by passive convection cooling
- Plug and play control
- With mounting bracket
- Suitable for outdoor use
- Various versions available
- Silent operation
Package contents
- 1 x reflector, 1 x user manual
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 55 W |
| IP rating: | IP65 |
| Protection class: | Class I |

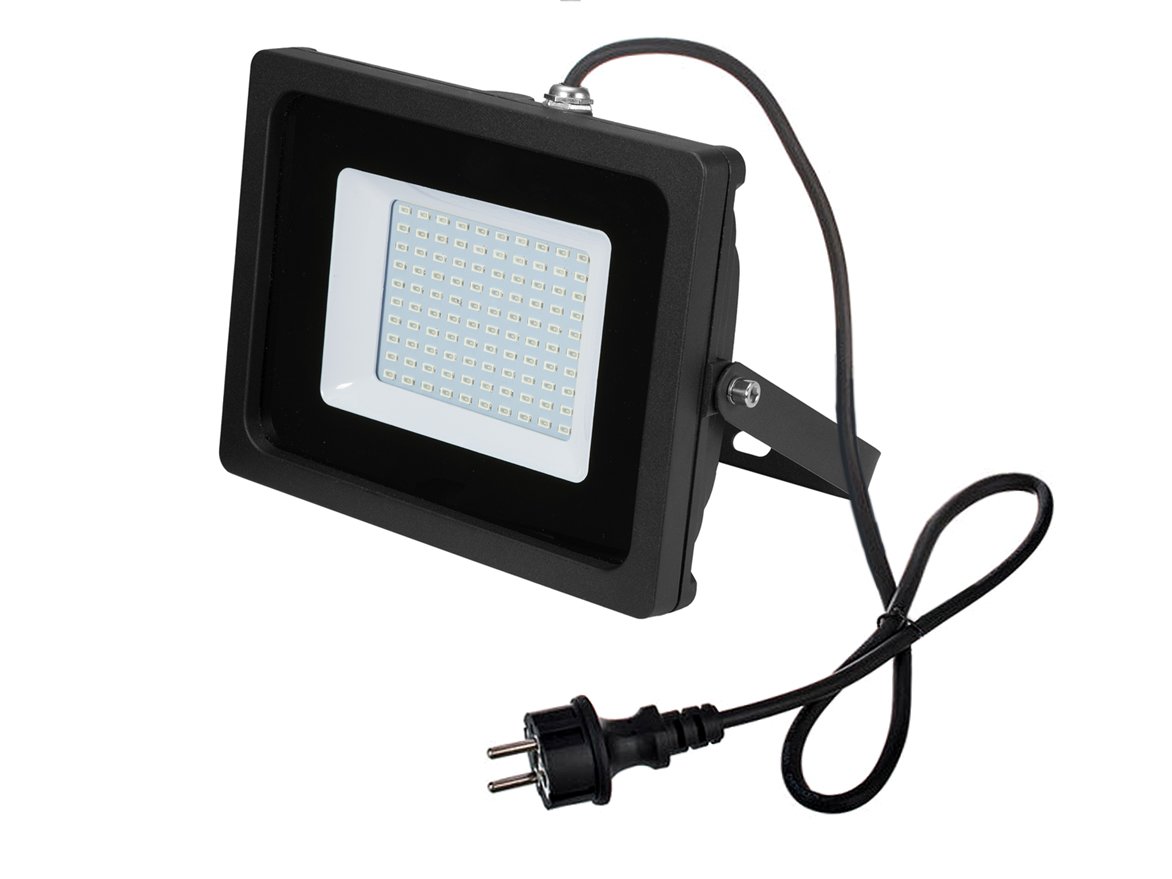

| Power connection: | Fixed power cable with safety plug |
| Cable construction: | 3 x 1.0 mm² H05RN-F |
| Cable length: | Approx. 1 m |
| Lamp type: | LED lamp |
| LED: | 100 x SMD 5730 orange |

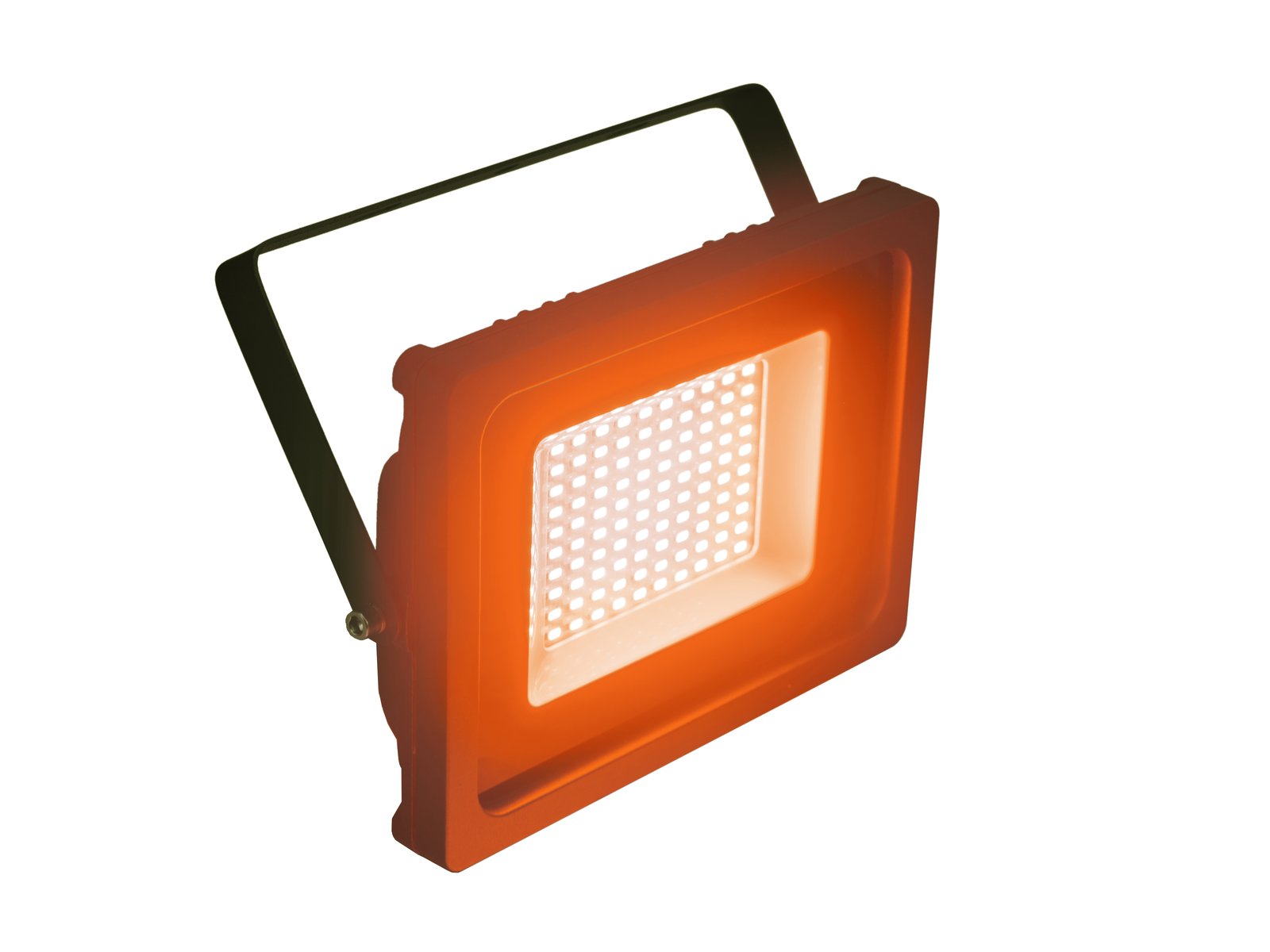

| Light colour: | Orange |
| Cooling: | Passive convection cooling |
| Control: | Plug and use |
| Beam angle (1/2 peak): | 70° |
| Beam angle (1/10 peak): | 120° |
| Housing colour: | Matt black |
| Mounting system: | Mounting bracket |
| Material: | Aluminium casting |
| Dimensions: | Width: 24 cm Depth: 4 cm Height: 19.5 cm |
| Weight: | 1.27 kg |
| Noise rating: | Class 0 (no noise) |
| Mounting bracket |
| Mounting hole diameter: | 3 x Ø8mm |
| Material: | Metal, 1.5 mm |
