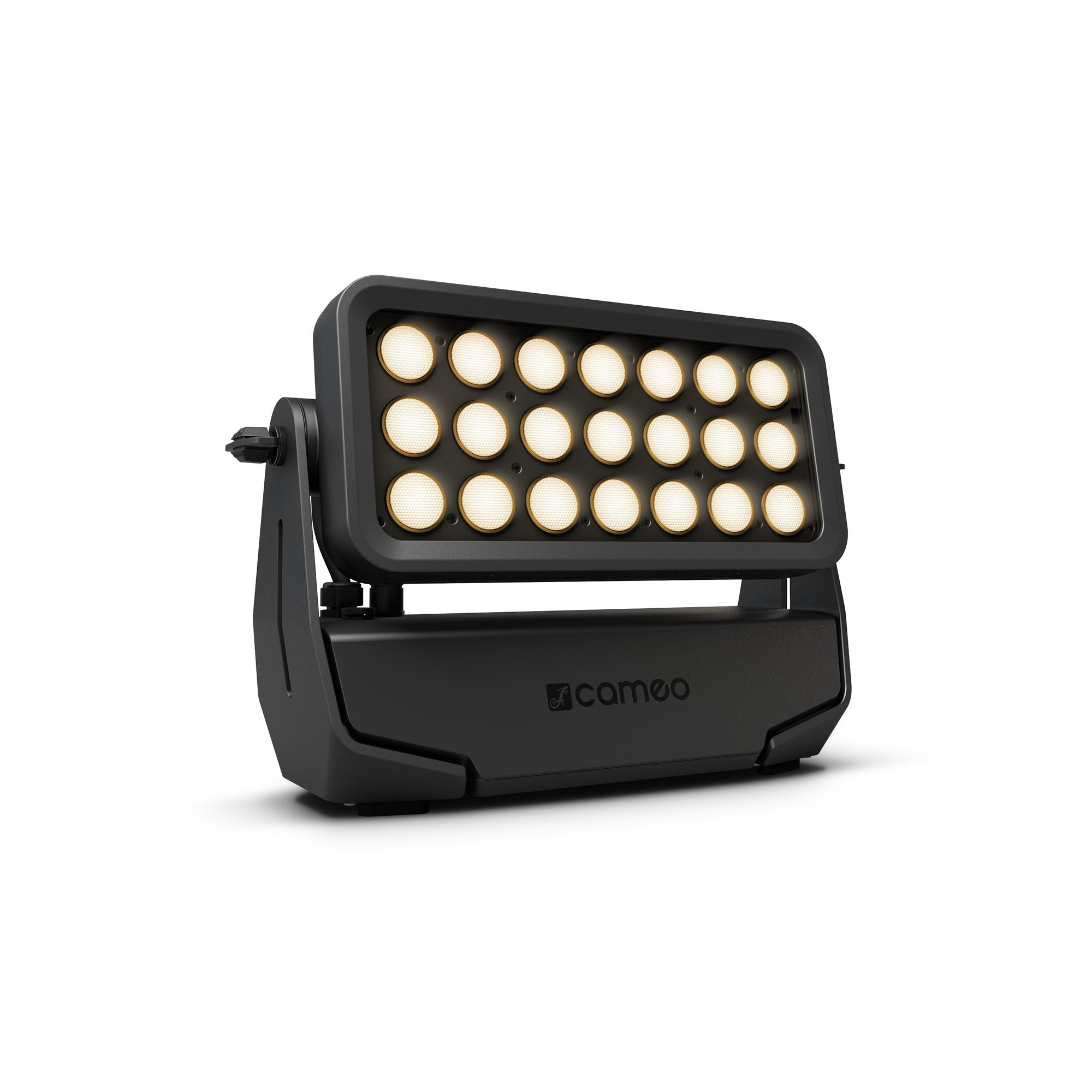

Equipped with a total of 21 x 12 W tunable white LEDs for a huge 20,000 lm output, the Cameo ZENIT® W300 TW is a powerful IP65 installmentsd wash light for demanding outdoor applications. In addition to RDM and standard DMX capability, it boasts a built-in 2.4 GHz W-DMX™ transceiver by Wireless Solution Sweden AB for convenient wireless control.
For maximum versatility, the ZENIT® W300 TW comes with Cameo's innovative SnapMag® technology. It allows you to add filter frames in less than a second without the need for tools or dismantling. Magnetic SnapMag® frames with precision light shaping diffusers and a 4-way barn door are available as dedicated accessories.
Featuring a 16-bit technology for high-resolution white mixing and dimming and an 18° beam spread, the ZENIT® W300 TW projects highly intense, uniform washes. With white temperature correction, selectable dimming curves and dimming response, the fixture is the perfect tool for truly professional lighting.
The ZENIT® W300 TW's die cast aluminium housing integrates temperature controlled fans that ensure optimized, low noise operation while a bright OLED display with four touch buttons permits easy, intuitive configuration. The fixture comes with an IR remote control, omega mounting bracket and power cord.
Specifications:
Illuminant type: LED white (tunable)
Illuminant power: 12 W
Luminous flux: 20,000 lm
Exchangable lens: No
Exchangable optics: No
Beam/Field angle: 18° / 35°
LED PWM frequency: 650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution: 16 Bit
Dimmer curves: Linear, Exponential, Logarithmic, Square
Power mode: Standard
LED colours: Warm white
Colour control: Direct (single control)
Correlated colour temperature (CCT): 2,600 - 6,500 K
CTO function: Linear (continuous)
Halogen simulation redshift/DTW: No
Calibration: User defined calibration
Colour rendering index (CRI): > 93
Iris: No
Animation: No
Framing blades: No
Controller protocols: DMX512, RDM, W‑DMX™ (Transceiver)
RDM features: DMX adress, DMX mode
Stand alone operating modes: Master/slave, Static
Data in connector: XLR 5-pole male, RJ-45 socket
Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Rated power: 265 W
Rated current: 1.3 A
Inrush current: 65 A
Mains connector: Mains plug device male IP65
Power out: Mains plug device female IP65
Max. mains output current: 8 A
Chassis material: Die-cast aluminium
Colour: Black
Cooling system: Fan cooling
Cooling modes: Auto, Max. intensity
Protection class: IP65
Ambient temperature: -15 - 40 °C
Maximum air humidity (non-condensing): 80 %
Width: 377 mm
Height: 256 mm
Depth: 140 mm
Weight: 8 kg
Included Accessories: Omega adaptor, Mains cable
