Monacor EDL-82HQ

Coaxial Wall Speaker Monacor EDL-82HQ

Coaxial Wall Speaker

hi-fi PA wall and ceiling speaker with 30 W power.
supports 100 V transmission technology or low impedance operation.
2-way design featuring a coaxial dome tweeter.
20 cm bass speaker with waveguide and silk dome.
magnetically attached protective grille for easy access.

164³⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

846 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Monacor EDL-82HQ Add to cart: 164³⁷ €

Monacor EDL-82HQ - Hi-fi wall and ceiling speaker with a power of 30 W.

Hi-fi PA wall and ceiling speaker, 30 W
100 V transmission technology or 8 Ω operation
2-way version with coaxial dome tweeter
20 cm (8") bass speaker with waveguide and 25 mm (1") silk dome
Swivelling tweeter via spherical joint
Excellent sound characteristics
Elegant protective metal grille, recessed, with a thin plastic frame
Magnetically attached protective grille on the front of the speaker
For wall thickness/ceiling thickness from 6 to 35 mm

Impedance (Z)	8 Ω
Transmission technology	100 V or low impedance

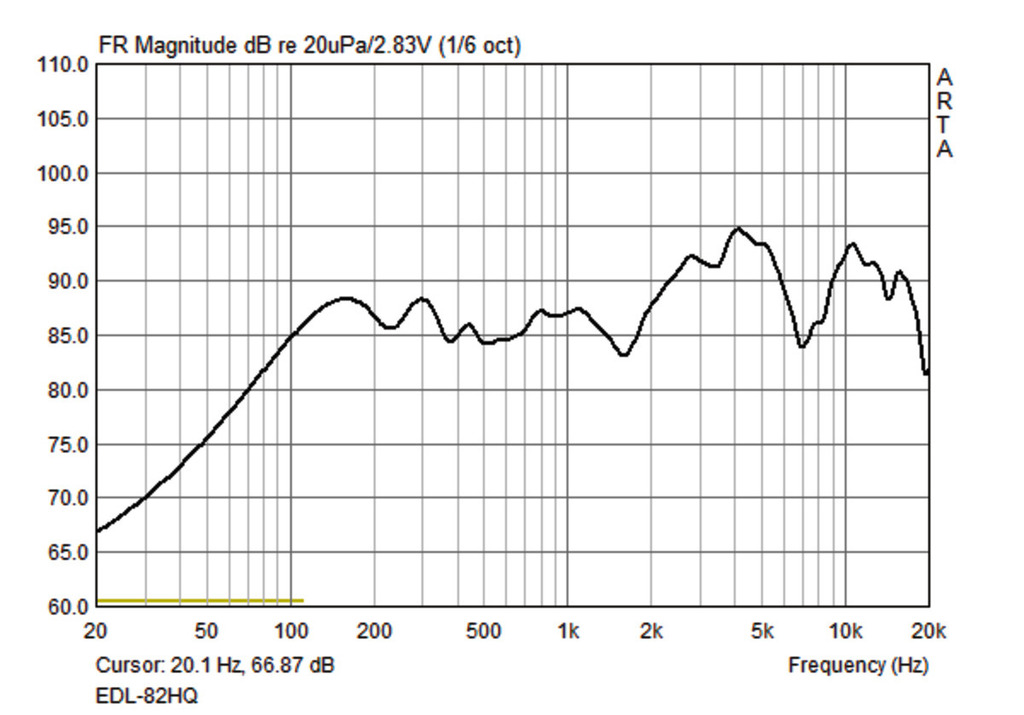

Frequency range	30-20,000 Hz
Resonance frequency (fs)	40 Hz
Nominal power (RMS)	50 W (8 Ω) 30/16/8/4 W (100 V)
Maximum musical output power (MAX)	100 W
SPL	89 dB/W/m

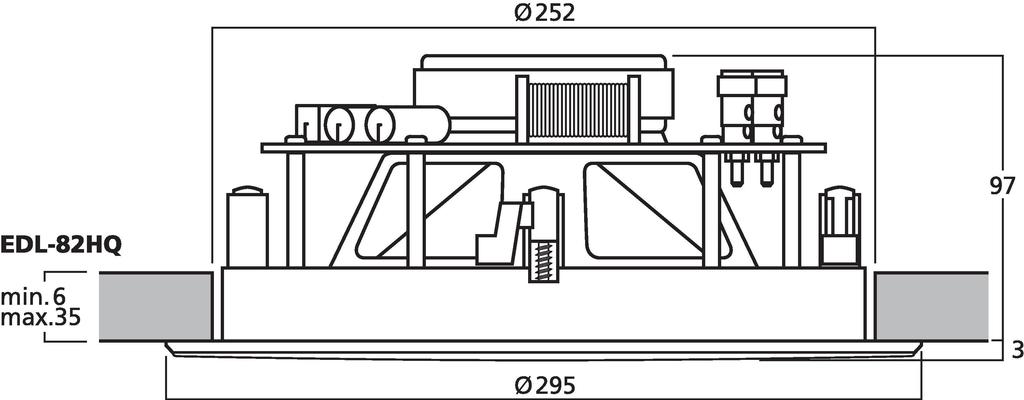

Mounting cut-out	Ø 252 mm
Mounting depth	99 mm
Dimensions	Ø 295 mm x 100 mm
Outer diameter	Ø 295 mm
Colour	white/black
Permissible ambient temperature	0-40 °C
Weight	2 kg

Product code: EDL-82HQ

Unit of sale: piece
