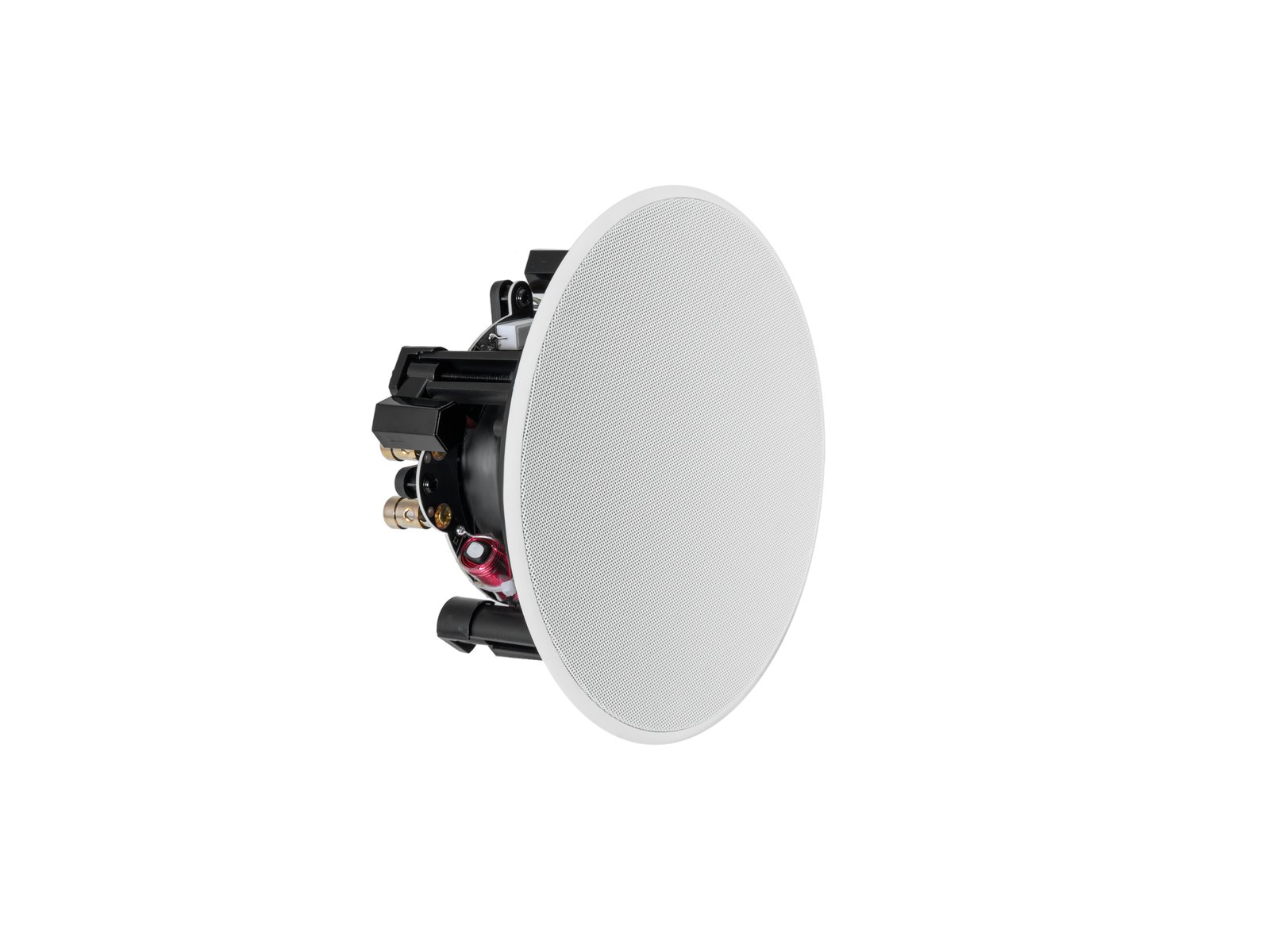

Omnitronic CST-508 2-Way Ceiling Speaker

The CST series models are frameless ceiling speakers with a particularly discreet appearance, designed for installation in hotels, restaurants, bars, lobbies, training rooms, conference halls, or shopping centres. The two-way coaxial systems have a frequency response of up to 20 kHz, balanced sound, and excellent speech intelligibility. The tweeter is protected against overload by a PTC and can be tilted 30 degrees to adapt to local conditions, as well as rotated freely 360°. Secure mounting clips allow for quick and easy attachment. The front grille is interchangeable.

Frameless 2-way coaxial speaker, LF: 5" HF: 0.75", 8 ohms, 30 W RMS

• Excellent sound reproduction
• With 2-way passive crossover, PTC protection for tweeter
• Swivelling tweeter
• Level matching switch -3 dB/0 dB/+3 dB
• For speech and background music in indoor PA systems

Package contents

• 1 x speaker, 1 x user manual

Power:	Program: 60W Nominal power: 30 W RMS
Frequency range:	50 - 20000 Hz
Sensitivity:	86 dB (1W/1m)
Max. SPL:	104 dB
Dispersion angle:	165° omnidirectional
Impedance:	8 ohms
Speaker:	1 x woofer (5.3") approximately 13.5 cm Tweeter (0.75") approximately 1.91 cm
Speaker type:	In-ceiling mounted speaker
Material:	ABS acrylonitrile butadiene styrene
Colour:	White, scratch and shock resistant
Mounting dimensions:	9.5 cm Ø 17.2 cm
Dimensions:	Height: 9.6 cm Diameter: Ø 21.1 cm
Weight:	1.24 kg
