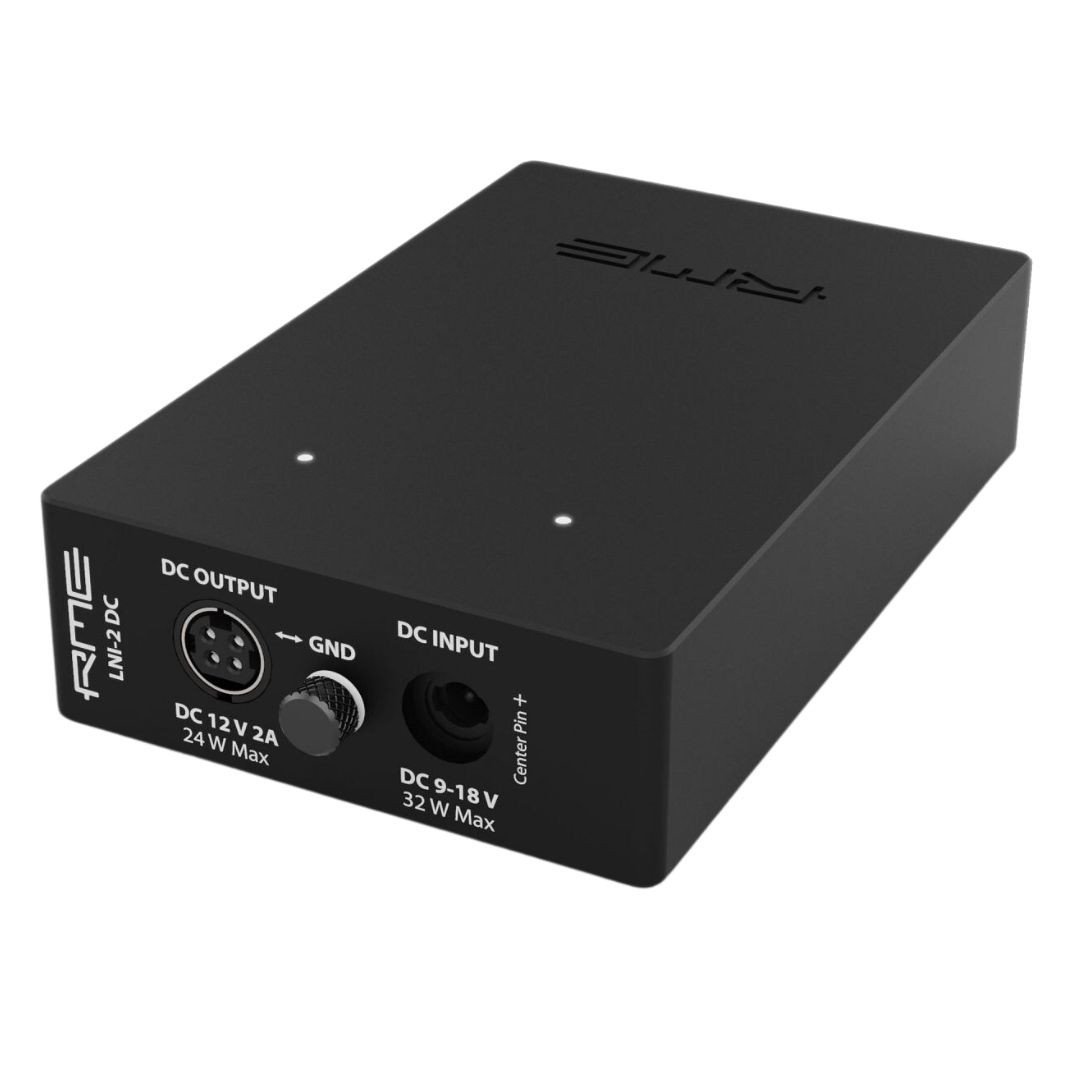

RME LNI-2 DC

LNI-2 DC is a 12-volt, 2-amp DC filter, with DC input and output.

DC Input

• Voltage range: 9 – 18 V DC
• Polarity: Centre +, Outer -
• Connector: 2.1x5.5mm, lockable or standard
• Idle consumption: 0.7 Watt
• Typical consumption: 31 Watts at 12V, 2 A

DC Output μFilter

• Voltage: 12.0 V
• Direct current: 2.0 A
• Continuous power: 24 Watt
• Maximum current: 3.0 A
• Noise: < 2 μV, < 1 μV A-weighted
• Output impedance: 0.012 Ohm
• Load regulation: 0.20 %
• Overload protection: > 3.0 A
• Overtemperature protection: > 80 °C
• Under-voltage detection: < 9.0 V
• Filter efficiency: >110 dB (10 Hz – 1 kHz), >70 dB (1 kHz - 200 kHz)

Features:

• Dimensions: 80 x 30 x 123 mm
• Weight: 605 g
• Temperature range: +5 °C to +40 °C
• Relative humidity: < 75%

Included accessories:

1. DC sensor connection cable with lockable 2.1x5.5 mm plug, 1 m
2. DC sensor connection cable with 2.1x5.5 mm plug, 1 m
