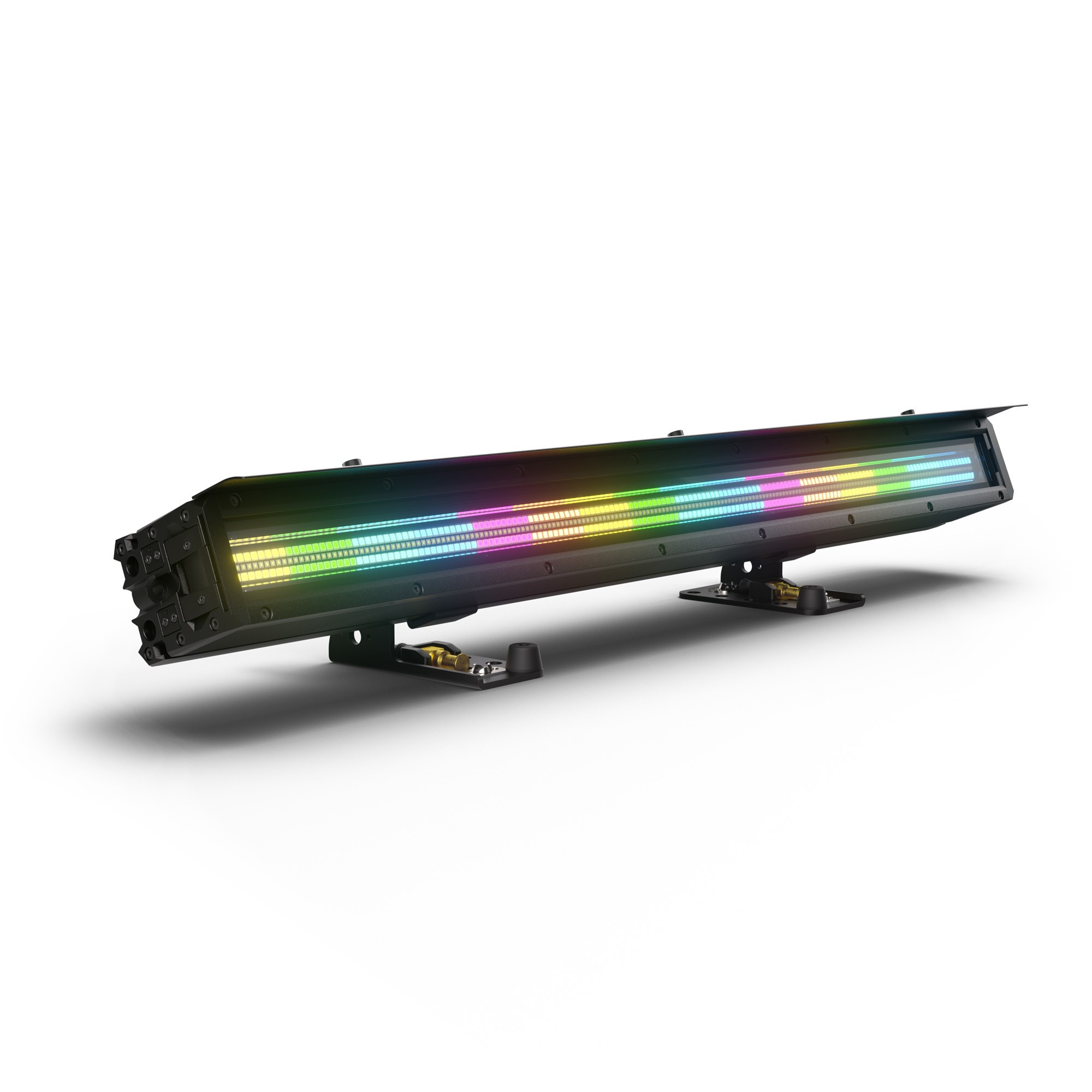

Cameo PIXBAR SMD IP G2


LED SMD Bar IP65

  • Note: The technical specifications are preliminary.
  • simple and efficient interconection of up to 3 units with the optional STACK-KIT
  • adjustable feet for truss-bracing positioning
  • optional VERTI-MOUNT for standing or hanging application
  • easy slide-in filter mechanism with locking mechanism
Cameo
Variants:
PIXBAR® 400 IP G2
PIXBAR® 400 IP G2
PIXBAR® 600 IP G2
PIXBAR® 600 IP G2
1 81673
Currently unavailable. Request details
Central warehouse: 0
Add to cart
Shipping free
Warranty 24 months
Returns 14 days

Another remarkable addition to PIXBAR® Generation 2 lineup is the cutting-edge SMD LED version. With its sophisticated functions and robust design, it is the ideal lighting option for any event, whether indoors or outdoors. Like the other PIXBAR® G2 models it's equipped with an IP65 certification, and well-thought-out accessories to unlock the whole potential.

Whether hanging or standing, the optional connection system allows for a variety of creative designs and placement options creating unique lighting effects and set designs. Up to three units can be connected vertically with the optional VERTI MOUNT and STACK KIT for a seamless and synchronized lighting effect. With the M20 adapter the new PIXBAR®-Series can be mounted on M20 threaded base plates. Truss mounting is also made easier thanks to the adjustable feet. All filters can be inserted quickly and easily using the slide-in mechanism of the filter rail.

Additionally, the IP65 LED bars operate quietly thanks to the fanless cooling system, while still ensuring a strong light output. SPIN16® adaptors are also included with each device. So, what are you waiting for? Upgrade your lighting game with Generation 2 of the PIXBAR®-Series.

Specifications:

Illuminant type: LED RGBW
Luminous flux: 8,051 lm
Exchangable lens: No
Exchangable optics: No
LED PWM frequency: 650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution: 16 Bit
Dimmer curves: Linear, Exponential, Logarithmic, S curve
Colour mix functions: RGB
LED colours: Red, Green, Blue, White
Colour control: Direct (single control), CTC with tint
Correlated colour temperature (CCT): 2,100 - 8,000 K
Halogen simulation redshift/DTW: Yes
Calibration: Factory calibration, RAW, User defined calibration
Strobe: 0 - 20 Hz
Iris: No
Animation: No
Framing blades: No
Controller protocols: DMX512, RDM, W-DMX™ (Receiver)
Number of DMX control modes: 15
Additional DMX features: DMX delay, System settings
RDM features: DMX adress, DMX mode
Stand alone operating modes: Autorun, Master/slave, Static, Endless loop
Data in connector: XLR 5-pole male
Data out connector: XLR 5-pole female
Operation voltage: 100 V AC - 240 V AC / 50 - 60 Hz
Rated power: 180 W
Min. Cos Phi power factor (230 V): 0.97
Rated current: 0.77 A
Inrush current: 44 A
Mains connector: Mains plug device male IP65
Power out: Mains plug device female IP65
Chassis material: Die-cast aluminium
Coating: Powder coated
Colour: Black
Cooling system: Convection cooling
Protection class: IP65
Risk group: 2
Noise level in operation: 0 dB
Ambient temperature: -10 - 45 °C
Maximum air humidity (non-condensing): 100 %
Width: 1,018
Height: 206
Depth: 162
Weight: 12.5

Product code: CLPBSMDIPG2

Unit of sale: piece
