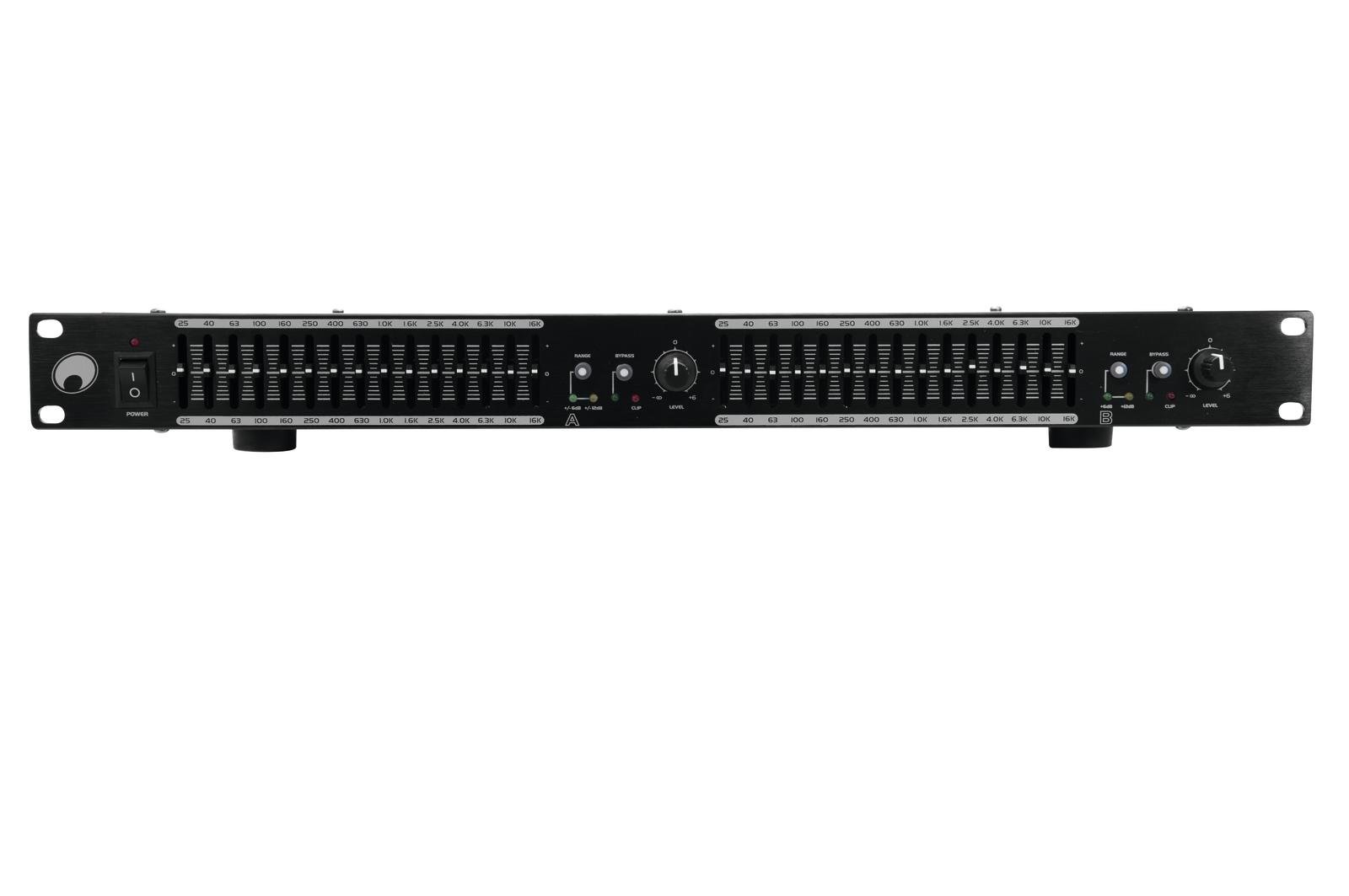

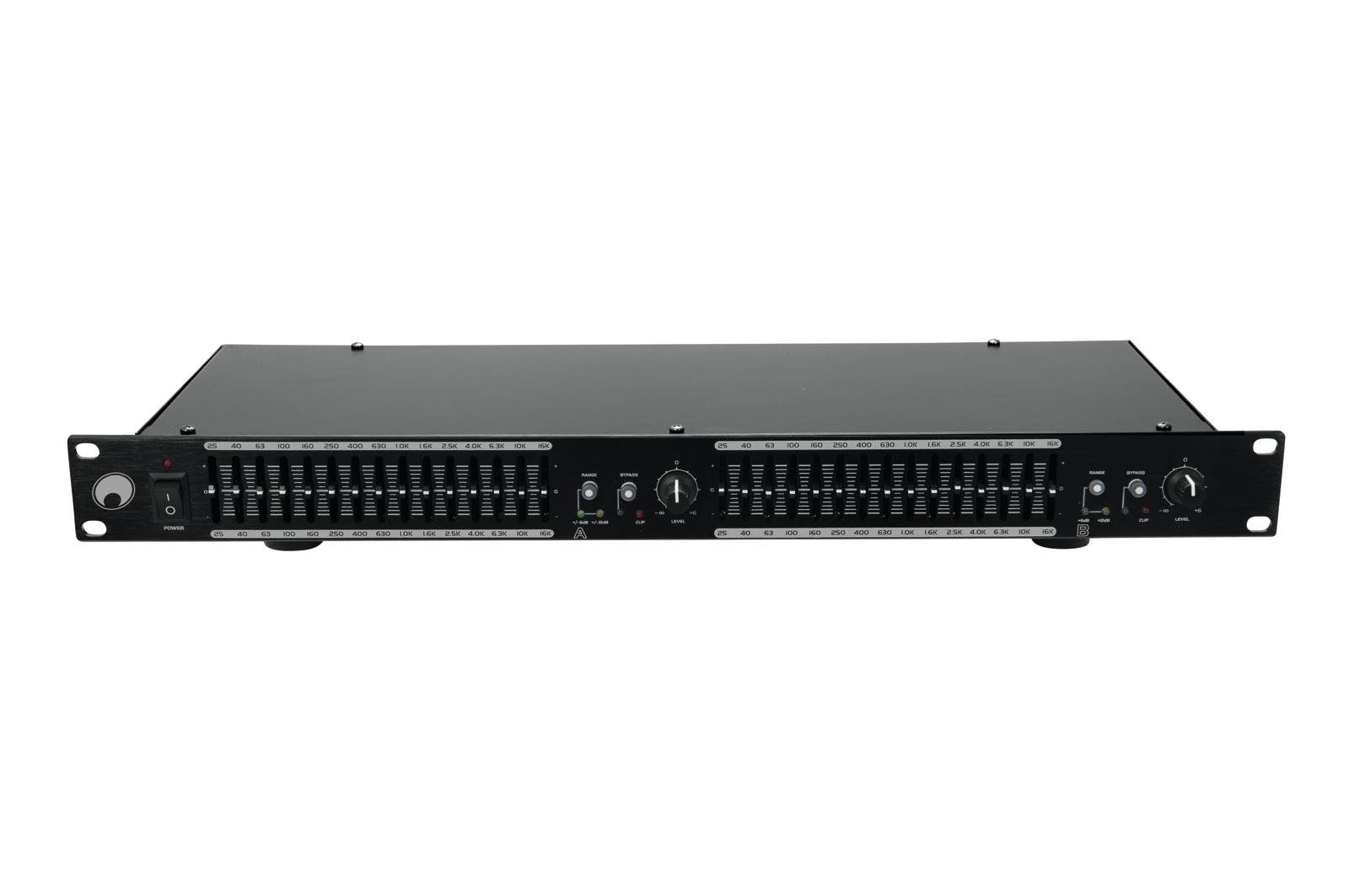

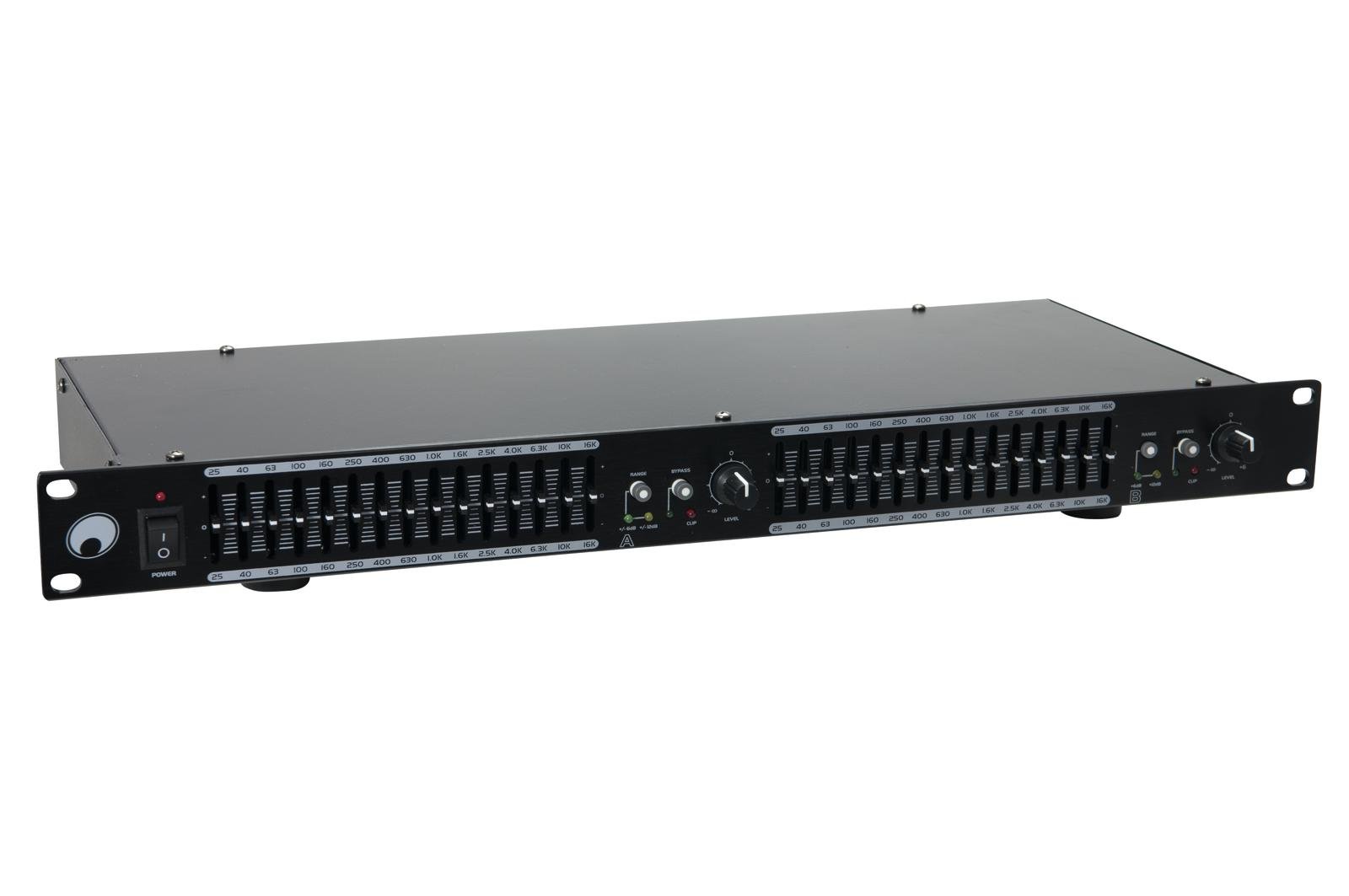

2 x equalizer with 15 bands
- 2-channel version, 2 x 15 frequency controls with steps of 2/3 octaves
- Short glide frequency controls with centre click
- Switchable EQ gain from ±6 dB to ±12 dB
- Separate level control per channel
- Bypass switch allows instant comparison of original sound with processed sound
- Inputs and outputs via 6.3 mm jack plugs and XLR connectors
- (19") 48.3 cm rack mount 1 U
Package contents
- 1 x user manual, 1 x power cable, 1 x device
| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 13 W |
| Power connection: | Mains input via IEC (M) connector, power cable mounting version with safety plug (supplied) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >96 dB |
| THD: | <0.05 % at 1 kHz |
| Impedance: | Input: 20 kOhm, balanced.
Input: 15 kOhm, unbalanced.
Output: 300 kOhm, balanced.
Output: 150 kOhm, unbalanced. |
| Gain: | Output: - ? to + 6 dB |
| Control range: | ±6dB, ±12dB, switchable |
| Control elements: | Groundlift selector |
| Status LED: | Clip |

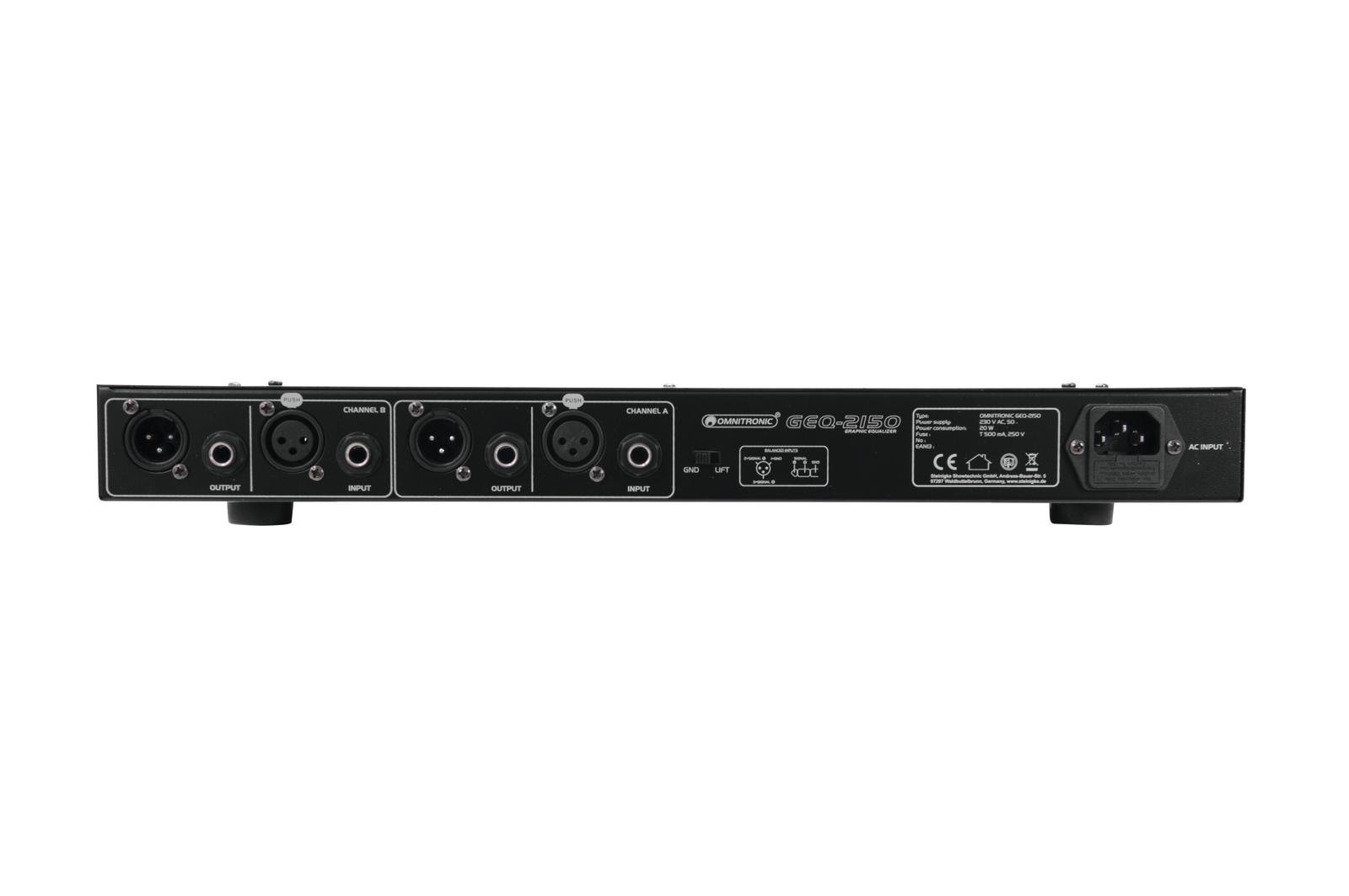

| Connections: | Input: line via 2 x 3-pin XLR
Input: line via 2 x 6.3 mm jack (unbalanced)
Output: line via 2 x 3-pin XLR
Output: line via 2 x 6.3 mm jack (unbalanced) |
| Equalizer: | Master: 2 x 15-band graphic equalizer
Centre frequency: ISO standard, 2/3 octave, 25/40/63/100/160/250/400/630 Hz, 1/1.6/2.5/4/6.3/10/16 kHz |
| Max. level: | Input: +24 dBu, balanced.
Input: +18 dBu, unbalanced.
Output: +24 dBu, balanced.
Output: +18 dBu, unbalanced. |
| Housing design: | (19") 48.3 cm rack mount 1 U |
| Dimensions: | Width: 48.3 cm
Depth: 22 cm
Height: 4.45 cm |
| Weight: | 2.40 kg |
