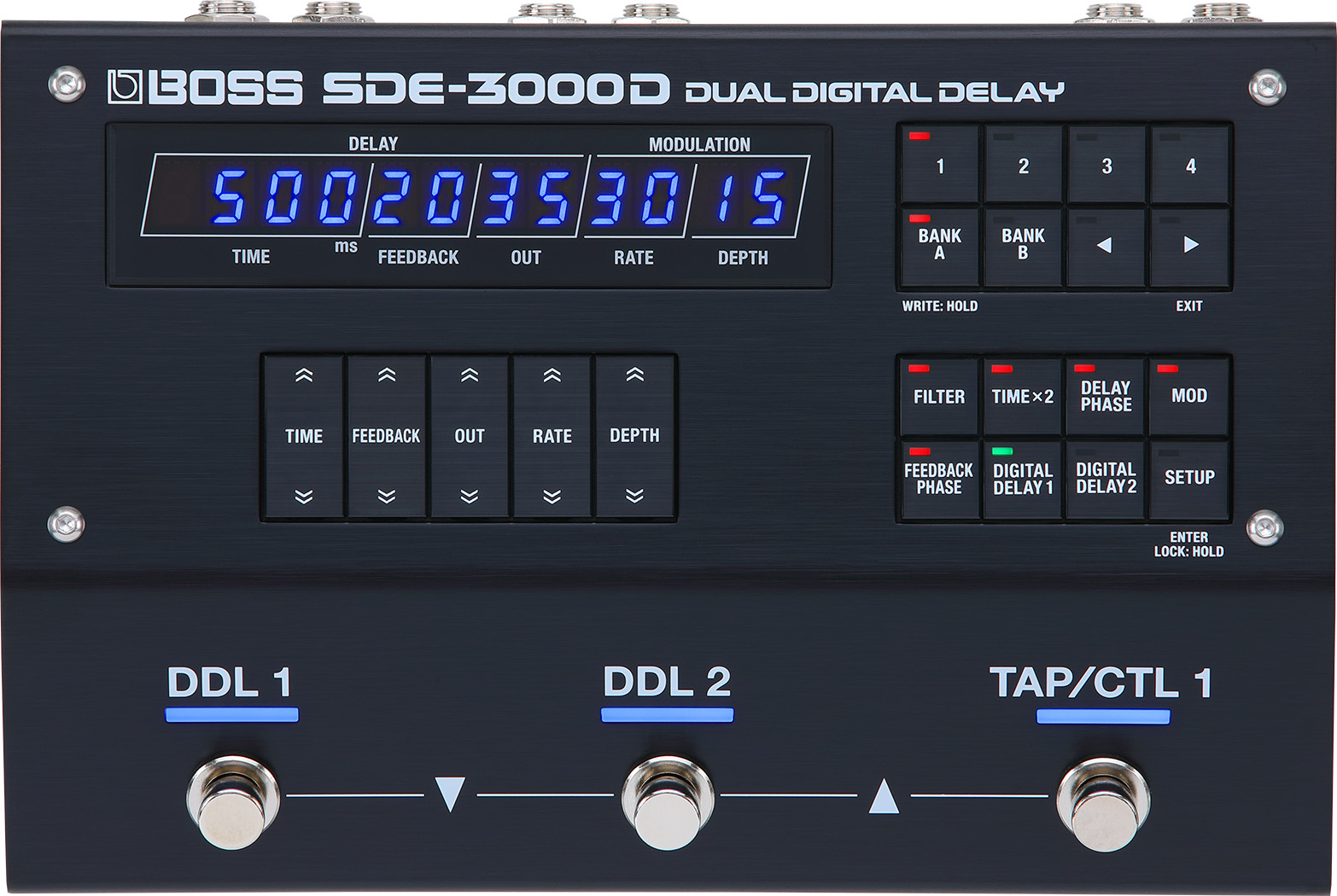

Boss SDE-3000D Dual Digital Delay - Launched in 1983, at the dawn of the digital effects era, the Roland SDE-3000 is a sanctified icon among fans of classic equipment. With its extremely musical character, long delay times, and the ability to store and recall presets, this rack-mounted legend became the primary delay machine for the best guitarists, musicians, and engineers of the time, and its special sound is still revered forty years later.
SDE-3000D offers you not one, but two authentic reproductions of the beloved SDE-3000 in a floor-based pedal. Fully independent delays, flexible internal routing, and extensive I/O provide modern versatility for all types of mono and stereo setups. The modulation and tone shaping capabilities have also been enhanced, and there are 100 memories for storing your preferred settings. And with a multitude of integrated and external control options, including deep MIDI support, you can integrate this vintage-inspired voice with any stage or studio setup.
Features:
Faithful floor reproduction of the legendary rack-mounted Roland SDE-3000 digital delay from the 1980s
Classic warm digital delay sound, with extensive features for modern platforms
Distinctive retro display and panel controls based on the original SDE-3000
Includes two fully functional delays, each with independent parameters, mono/stereo modulation, and panning
Adjustable delay time across a wide range with two interval settings: 0–1500 ms and 0–3000 ms
Characteristic modulation inspired by the original circuit design
Phase switches for primary feedback loop and delay
Adjustable low-cut and high-cut filters for shaping delay feedback sounds
Two inputs and two outputs for dual mono, wet/dry, or stereo setups
Selectable series or parallel operation for the two delays
Save and recall sounds with 100 available memories
Assignable footswitch control onboard for tap tempo, hold, and more
Connectors for extensive operation with up to four footswitches, two expression pedals, or GA-FC/GA-FC EX control pedal
MIDI I/O on space-saving mini TRS connectors
Technical Specifications:
Sampling frequency: 48 kHz
AD Conversion:
24 bits + AF method
AF method (Adaptive Focus method) This is a method from Roland & BOSS that significantly improves the signal-to-noise (SN) ratio of AD and DA converters.
DA Conversion: 32 bits
Floating point processing: 32 bits
Effects:
SDE-3000 STEREO DELAY x2
FOOT VOLUME
Memories: 100
Nominal input level: INPUT (L/MONO, R): -10 dBu
Maximum input level: INPUT (L/MONO, R): +12 dBu
Input impedance: INPUT (L/MONO, R): 1 M ohm
Nominal output level: OUTPUT (L/MONO, R): -10 dBu
Output impedance: OUTPUT (L/MONO, R): 1 k ohm
Recommended load impedance: OUTPUT (L/MONO, R): 10 k ohms or greater
Controls: TIME button, FEEDBACK button, OUT button, RATE button, DEPTH button, 1--4 buttons, BANK A button, BANK B button, LEFT button, RIGHT button, FILTER button, TIME×2 button, DELAY PHASE button, MOD button, FEEDBACK PHASE button, DIGITAL DELAY1 button, DIGITAL DELAY2 button, SETUP button, DDL1 switch, DDL2 switch, TAP/CTL1 switch
Display: 7 segments, 12-digit LED
Connectors:
INPUT jack (L/MONO, R), OUTPUT jacks (L/MONO, R): 1/4 inch phone type
CTL2,3/EXP1 jack, CTL4,5/EXP2/GA-FC jack: 1/4 inch TRS phone type
