Adam Hall 3Star D 222 AES/EBU DMX

DMX AES/EBU Cable

extremely flexible cable with excellent transmission properties.
well protected against external influences with spiral copper shield.
lightweight and robust, suitable for difficult conditions.
total diameter of 5 mm and 24 AWG.
temperature range of -20 to 70 °C.

1³⁴ €

In stock and deliverable.

Central warehouse: 10+ In stores: 10

Add to cart

also deliverable via

7 points of loyalty

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

Adam Hall 3Star D 222 AES/EBU DMX Add to cart: 1³⁴ €

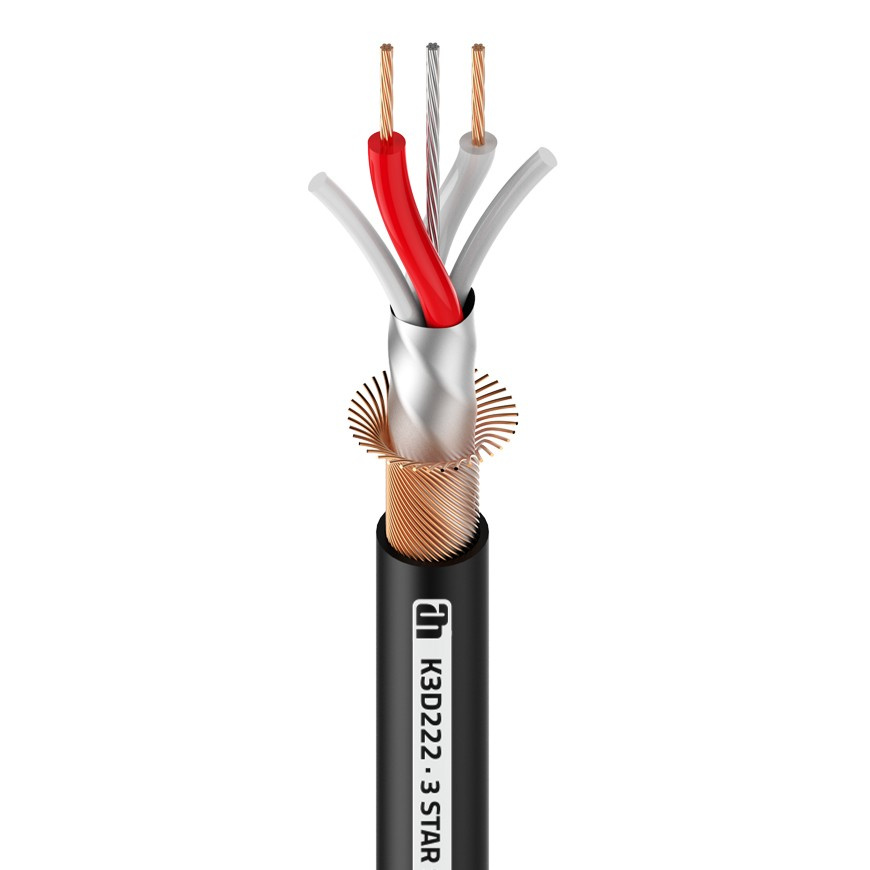

Adam Hall 3Star D 222 AES/EBU DMX - The 3 STAR D 222 is the absolute classic when it comes to transmitting DMX signals. If you are looking for an extremely flexible cable with excellent transmission properties, this is the cable for you. It is well protected against external influences by its spiral copper shield and the aluminium foil with braided wires. Due to its extremely thin diameter, it is very lightweight and flexible, yet at the same time robust and suitable for use on difficult roads.

Total diameter: 5 mm
AWG: 24
Cross-section of the central conductor: 0.22 mm²
Material of the central conductor: OFC
Construction of the central conductor: 7 x 0.20 mm
Number of inner conductors: 2
Shield material: Copper
Shield: Spiral screen
Line overvoltage impedance: 120 Ohm(i)
Line resistance: 85 Ohm(i)
Capacitance: 45 pF/m
Temperature range: -20 - 70 °C
