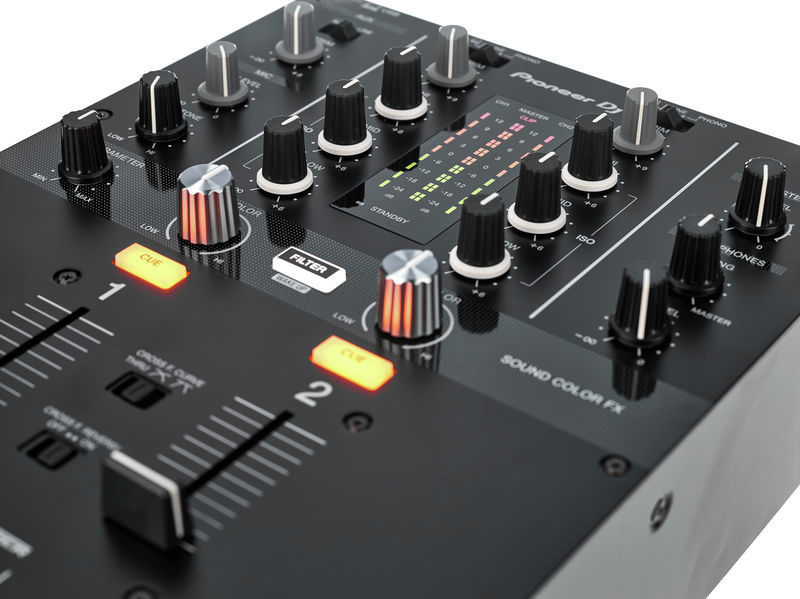

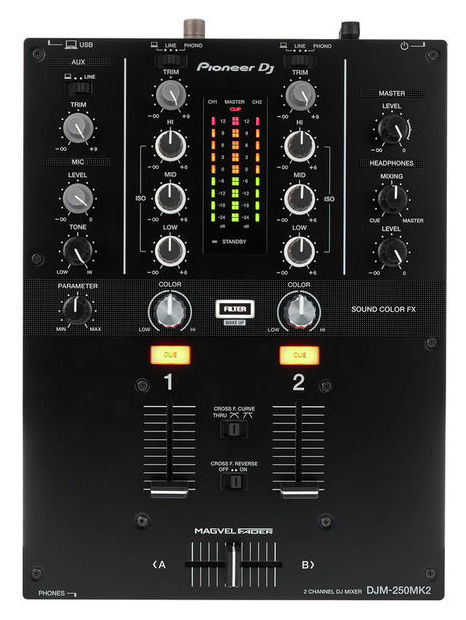

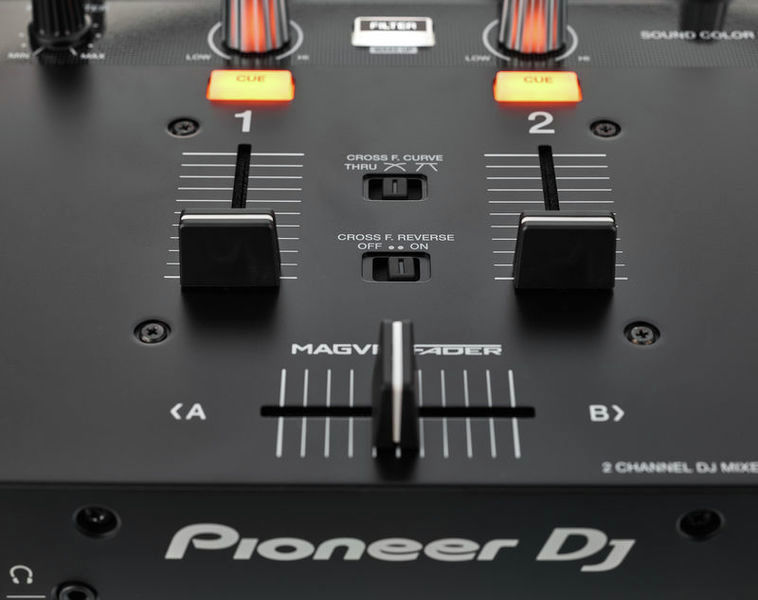

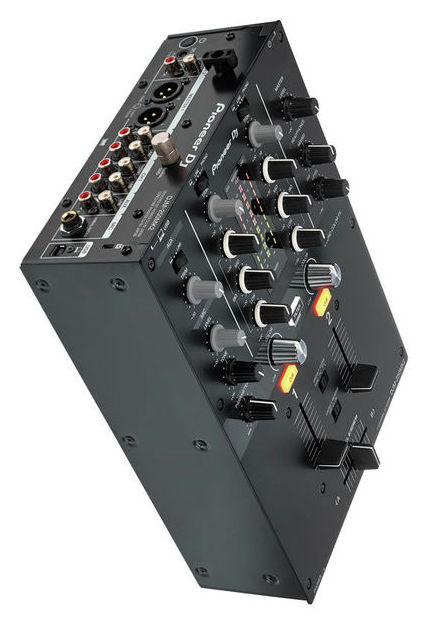

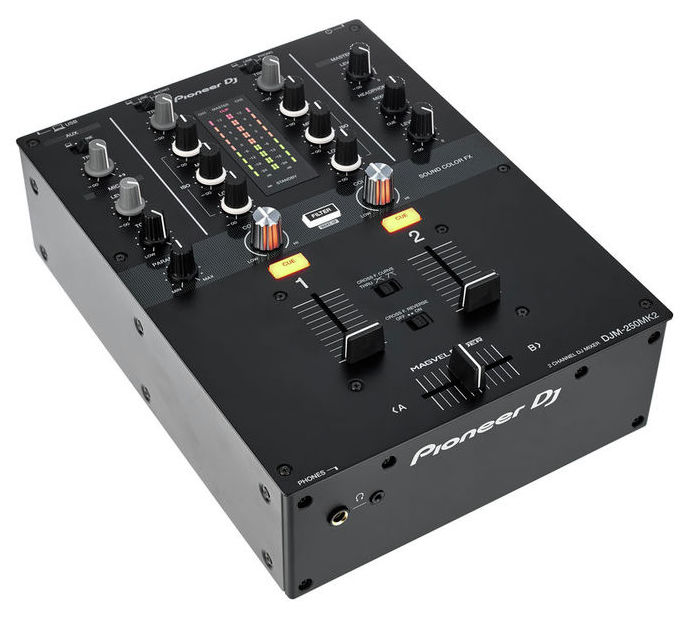

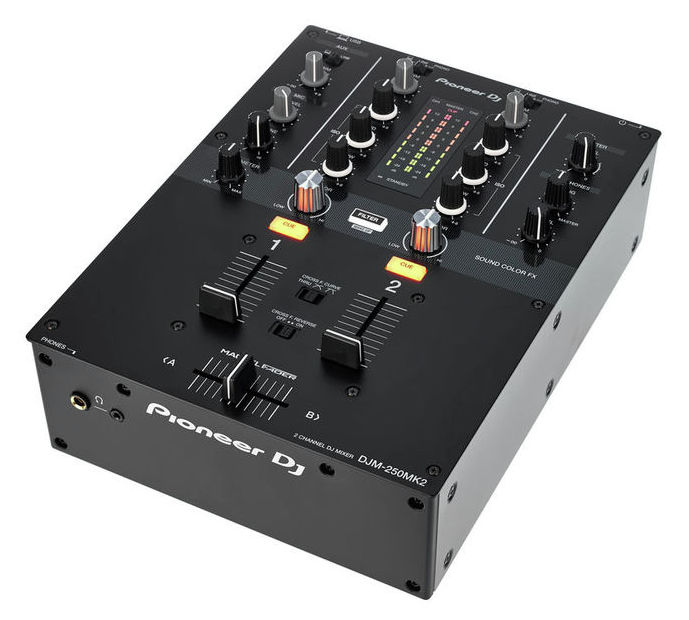

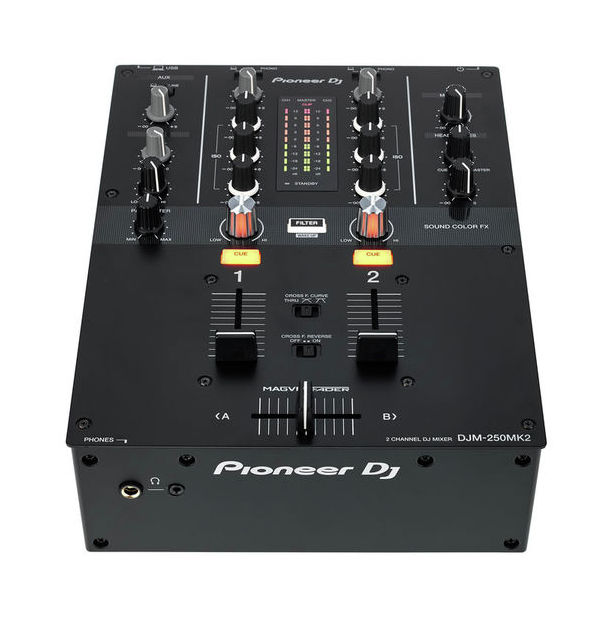

Pioneer DJM-250 MK2 - a 2-channel DJ mixer, with auxiliary input and microphone input, offering professional-level functionality in an entry-level unit, and featuring a Magvel crossfader and Sound Color FX filter. Each channel of the mixer benefits from stereo RCA line inputs and stereo RCA phono inputs for connecting turntables. In addition to all this, it offers an auxiliary input with RCA connectors for introducing audio signals from an external source. The output section provides balanced XLR and unbalanced RCA connectors for integration into any audio system, and for monitoring, 1/4" and 1/8" jack connectors are provided for headphones that can be used simultaneously. Each channel features a linear fader, 3-band EQ, and Sound Color control that shapes frequencies in real-time. The crossfade curve is adjustable and includes a reverse function. The mixer is delivered with a power supply, USB cable, and a license for downloading rekordbox dj and rekordbox.
Technical specifications:
Number of channels: 2

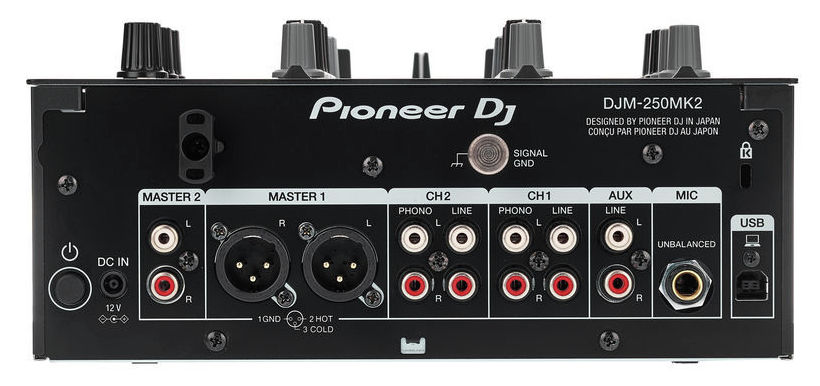

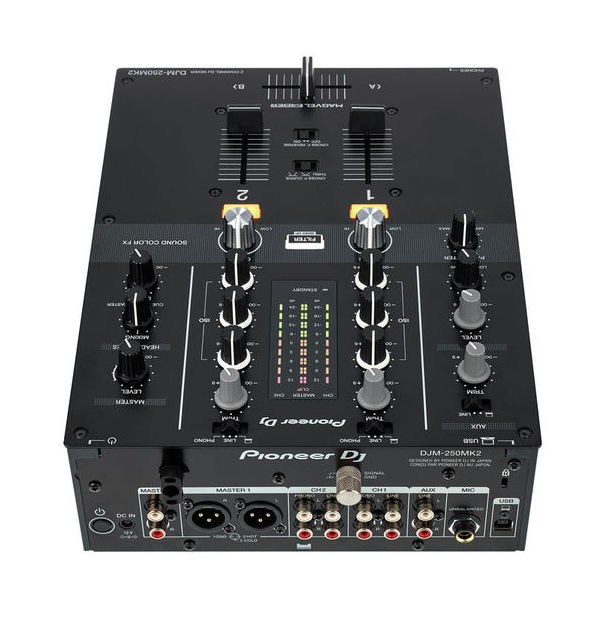

Input connectors:
Channel 1:
Line: 2x RCA
Phono: 2x RCA
Channel 2:
Line: 2x RCA
Phono: 2x RCA
Aux line: 2x RCA
Mic: TS jack 1/4" / 6.35 mm
Turntable ground connector
Output connectors:
Master 1: 2 x XLR (L,R)
Master 2: 2 x RCA (L,R)

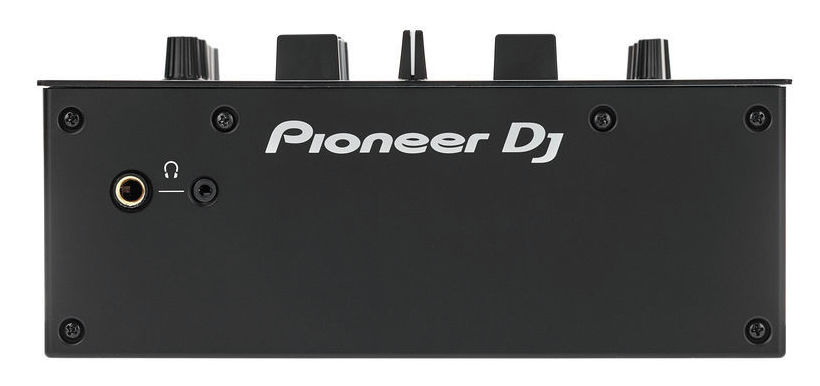

Headphone output:
1 x 1/4" / 6.35 mm TRS stereo jack
1 x 1/8" / 3.5 mm TRS stereo jack
USB: type B
Sampling rate: 48 kHz
Bit depth: 24-bit
Frequency response: line 20 Hz to 20 kHz
Signal-to-noise ratio:
Phono: 80 dB
Line: 94 dB
Microphone: 77 dB
Aux: 90 dB
THD:
Line - Master 1: 0.005%
Output level:
Standard output level:
Master 1: +6 dBu
Master 2: +2 dBu
Headphones: +8 dBu
Rated output level:
Master 1: +25 dBu
Master 2: +21 dBu
Load impedance:
Master 1: 10 kOhm
Master 2: 10 kOhm
Headphones: 32 Ohm
Output impedance:
Master 1: 1 kOhm or less
Master 2: 390 Ohm or less
Headphones: 2 Ohm or less
Line crosstalk: 90 dB
EQ controls:
Channel isolators:
High: -∞ to +6 dB (20 kHz)
Mid: -∞ to +6 dB (1 kHz)
Low: -∞ to +6 dB (20 Hz)
Microphone EQ:
High: 0 dB to -12 dB (10 kHz)
Low: 0 dB to -12 dB (100 Hz)
Optimal operating temperature: 5 to 35°C
Optimal operating humidity: 5 to 85% (without condensation)
