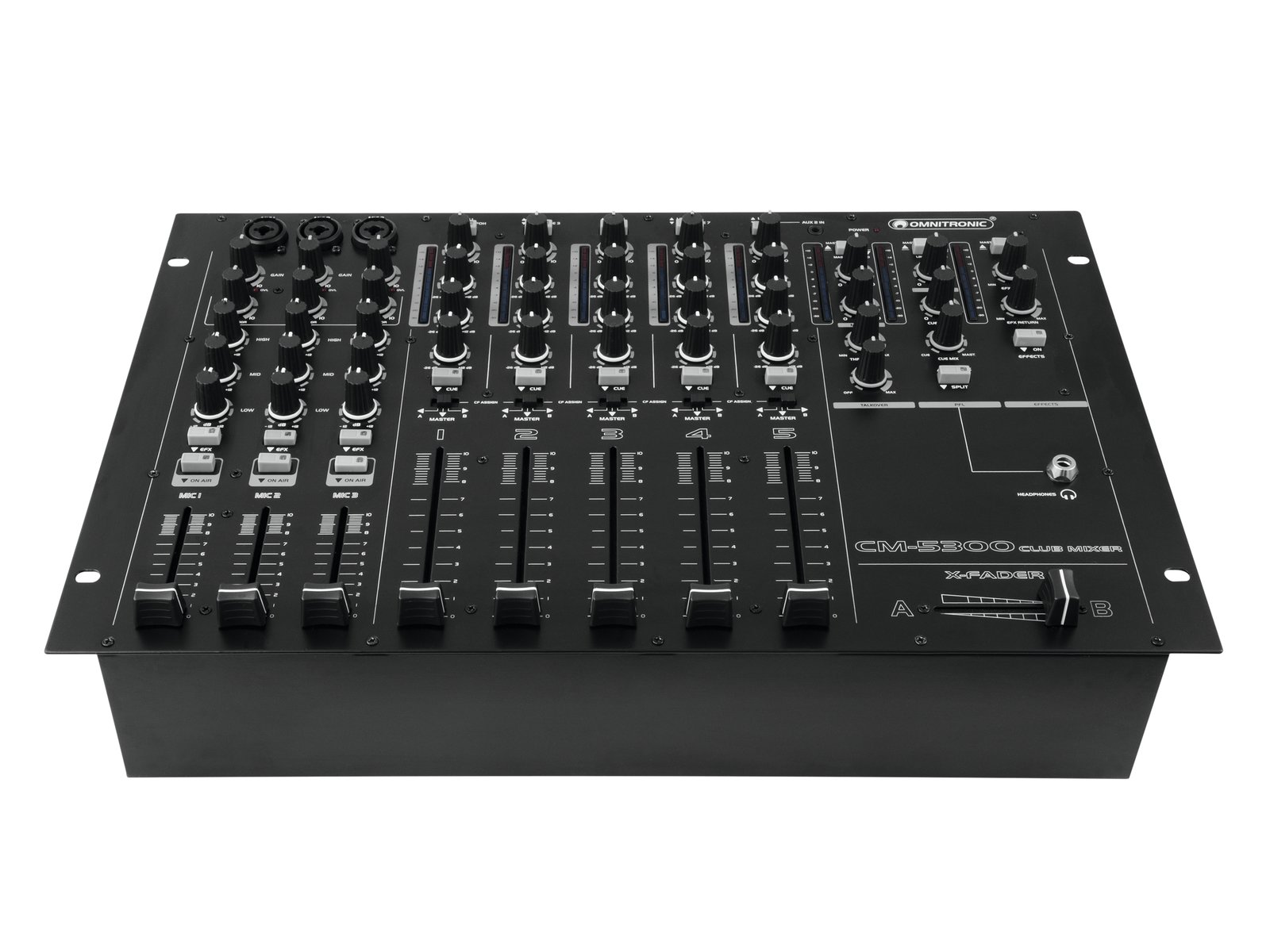

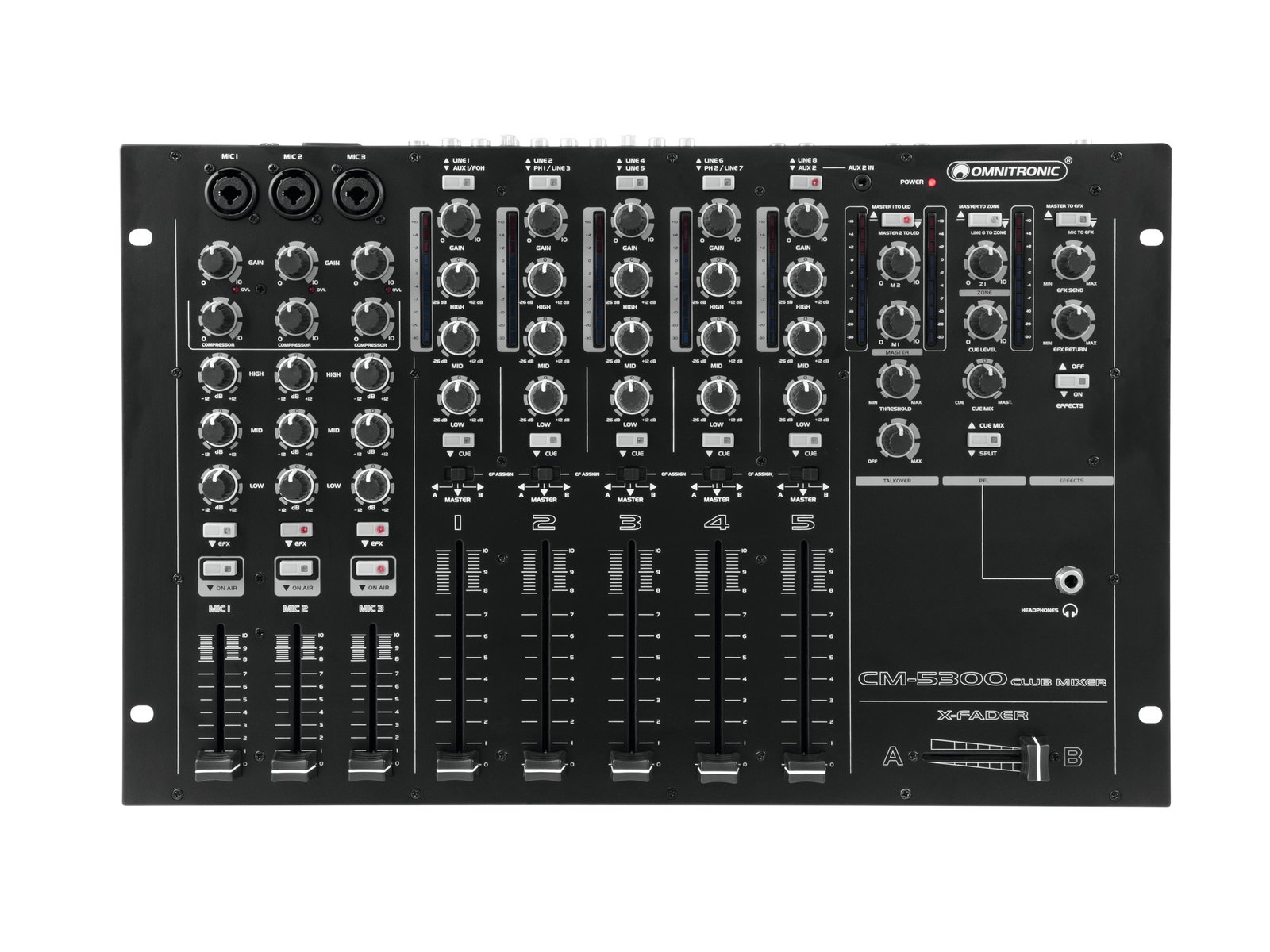

Omnitronic CM-5300 Club Mixer

CM-5300 is a high-quality stereo mixer, featuring an extensive set of characteristics for clubs and numerous mobile PA applications. The 3 microphone channels have a one-button compressor, adjustable talkover function, and a 3-band EQ. The 5 stereo channels come with gain controls, individual VU meters, kill EQs with 3 bands, 100 mm dual-rail faders, and assignable crossfader. Channel 1 can be used for FOH signals, and channel 6 has a 3.5 mm AUX input. The stereo and mono output sections have their own level meters, trimmers for adjusting the maximum output level, and electronically balanced XLR connectors. Additionally, there is a subwoofer output with an integrated active crossover.

• High-quality stereo mixer for clubs and numerous mobile PA applications
• 5 stereo input channels with gain control, kill EQ with 3 bands (+12/ -26 dB) and 10-segment LED level indicator
• Auxiliary input on the front panel
• Rear stereo FOH input for stage mixers
• Smooth input faders with dual lengths (60 mm/100 mm)
• 3 microphone input channels with front combo connector
• Gain control, peak LED, 3-band EQ, and on/off switch on microphone channel
• One-button compressor on microphone channel
• Adjustable automatic talkover with 2 parameters for automatic music level reduction when the microphone is used
• Smooth crossfader with two fully assignable channels (45 mm)
• Master section with two separately controllable stereo outputs, output 2 switchable to mono
• 10-segment LED stereo level meter, switchable between both master outputs
• Balanced XLR and RCA outputs
• Additional mono zone output (with switchable HPF at 80 Hz) that can be directed to the main bus or channel 5
• 10-segment LED level meter for zone output
• Mono subwoofer output with integrated active crossover (frequency/level adjustable)
• All outputs with rear maximum level setting controls
• Adjustable send/return effects path, assignable to microphone or master bus
• PFL section with PFL/master mix control and cue mix/split option
• Recording output, independent of master
• (19") 48.3 cm rack mount 7 U
