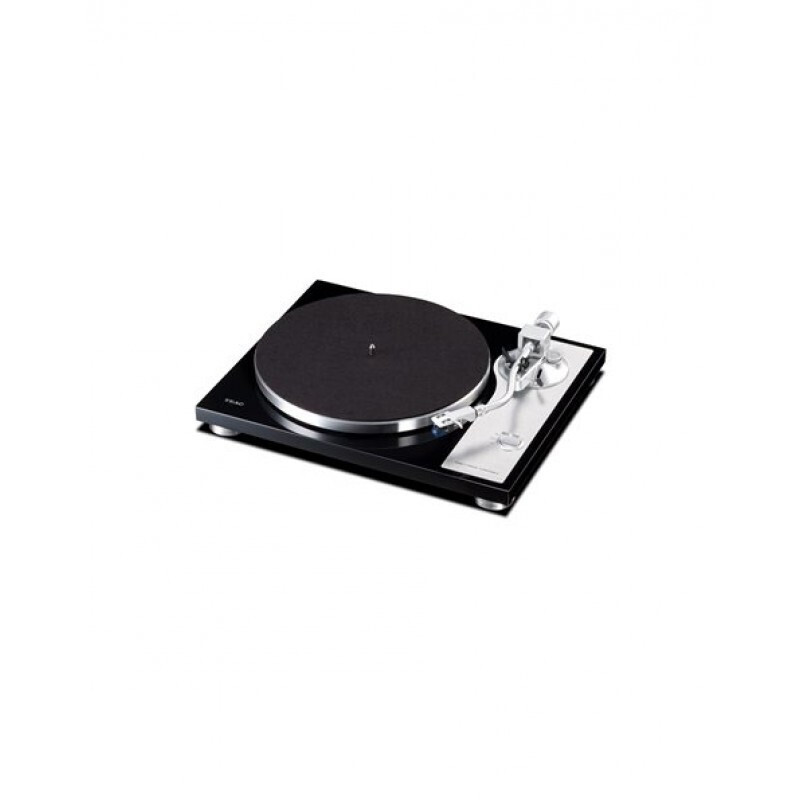

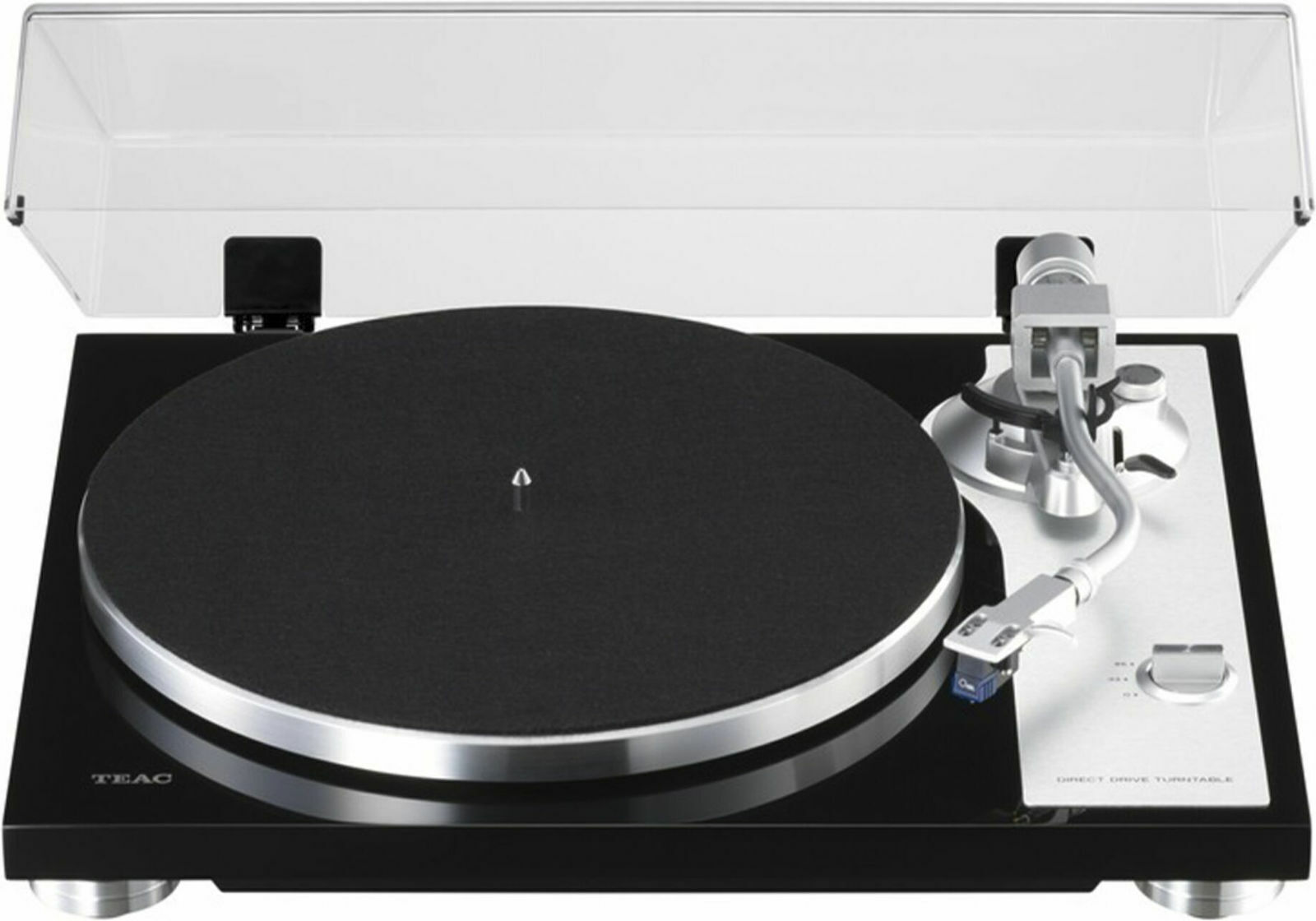

Teac TN-4D-SE/B

TEAC TN-4D-SE - Direct drive turntable with a brushless DC motor, designed for playing vinyl records at speeds of 33⅓ and 45 RPM. Includes a switchable PHONO/LINE integrated preamplifier, S-shaped tonearm, and factory-installed MM SUMIKO Oyster cartridge.

• Turntable
• Drive mechanism: direct drive
• Motor: brushless DC
• Operation: manual
• Playback speeds: 33⅓, 45 RPM
• Wow & Flutter: 0.1%
• Signal-to-noise ratio: ≥67 dB (A-weighted)
• Platter:
  • Material: cast aluminium
  • Diameter: 30 cm

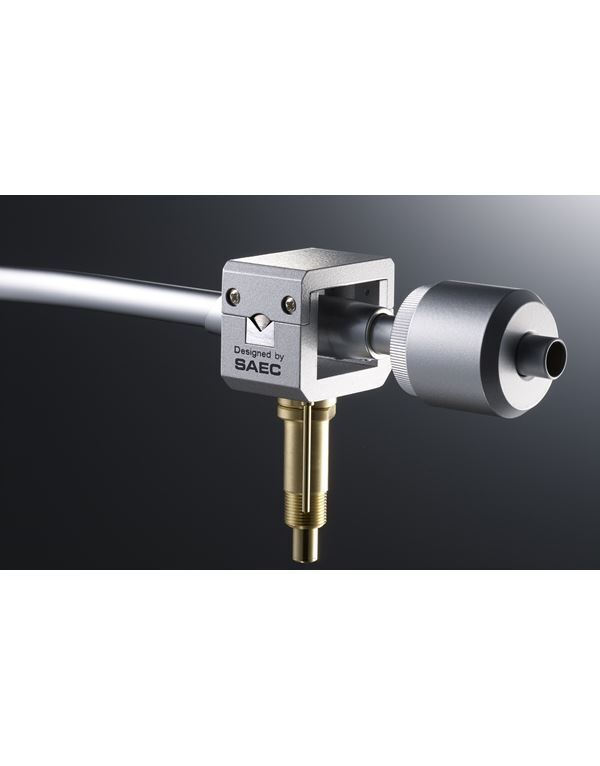

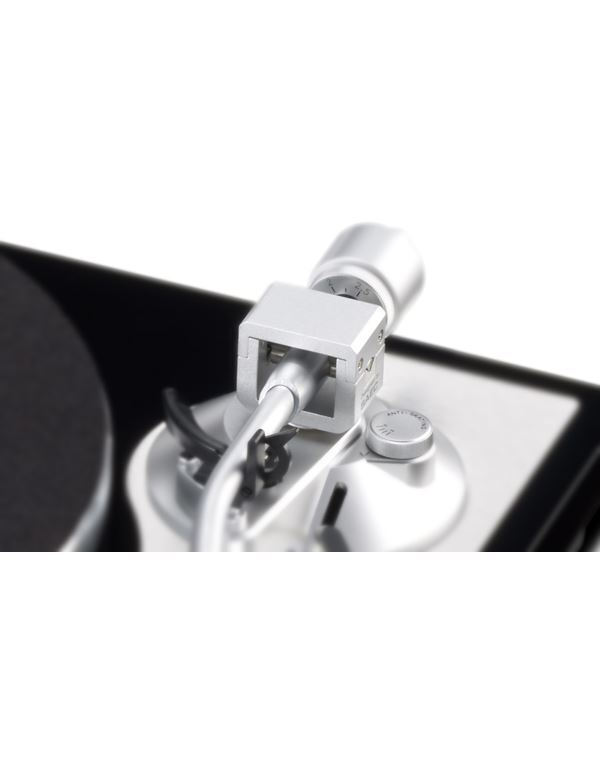

• Tonearm:
  • Shape: S
  • Type: static balanced
  • Effective length: 223 mm
  • Pressure range: 0–5 g
  • Compatible cartridge weight: 3–12 g / 14–23 g (including head)

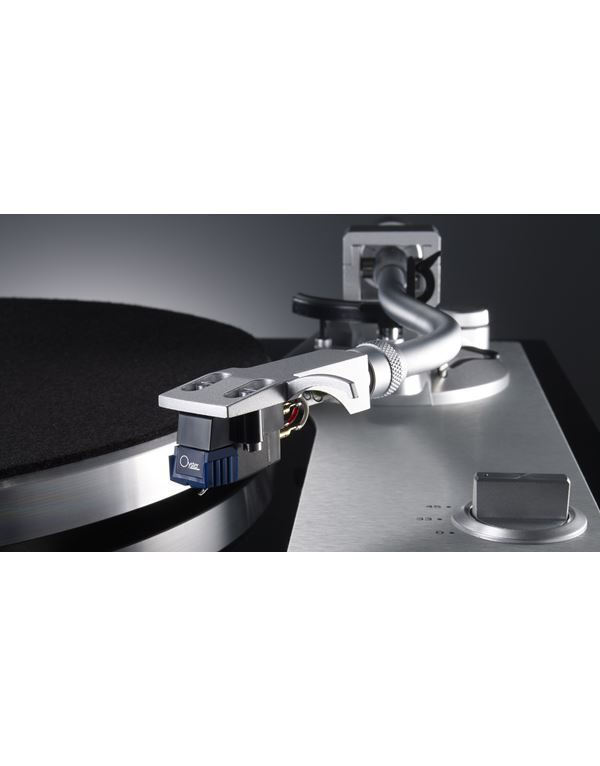

• Head and cartridge:
  • Cartridge type: MM
  • Installed model: SUMIKO Oyster
  • Output voltage: 4.0 mV (1 kHz)
  • Recommended tracking force: 2.3 g
  • Cartridge weight: 5.3 g
  • Head weight: 11 g (with accessories)
  • Compatible needle: SUMIKO Oyster

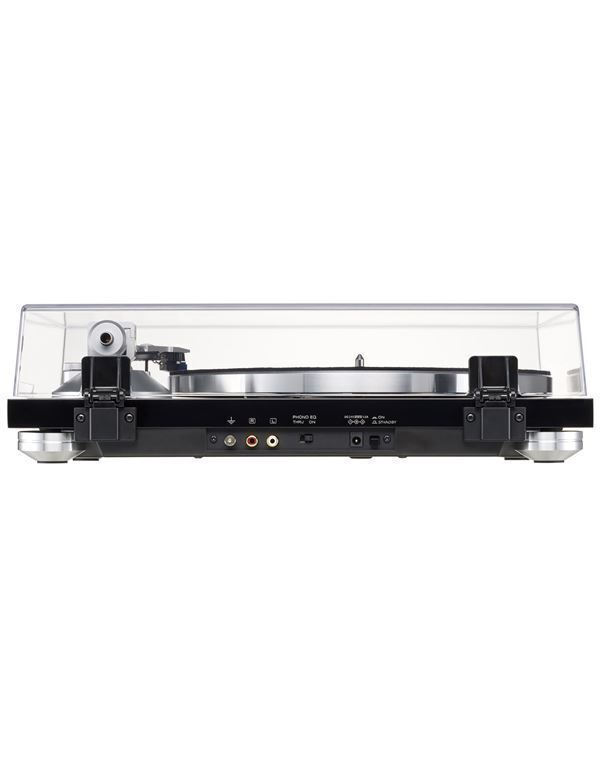

• Analog outputs:
  • Connector: RCA x 1 pair
  • Output modes: PHONO / LINE
  • PHONO output: 4.0 mV
  • LINE output: 224 mV (-13 dBV)
• Integrated preamp: yes
• Functions: anti-skating
• Integrated speakers: no
• CD playback: no
• Radio: no

Dimensions / Power

• Power supply: AC 100–240 V, 50/60 Hz
• Power consumption: 2 W
• Standby consumption: ≤0.5 W
• Dimensions (L × W × H): 420 × 117 × 356 mm
• Weight: approx. 6.1 kg
• Colour: Piano Black

Included accessories

• Felt mat
• EP adapter
• Counterweight
• Installed SUMIKO Oyster head
• Platter
• Dust cover
• Audio RCA cable with GND terminal
• AC adapter
• User manual with warranty certificate
