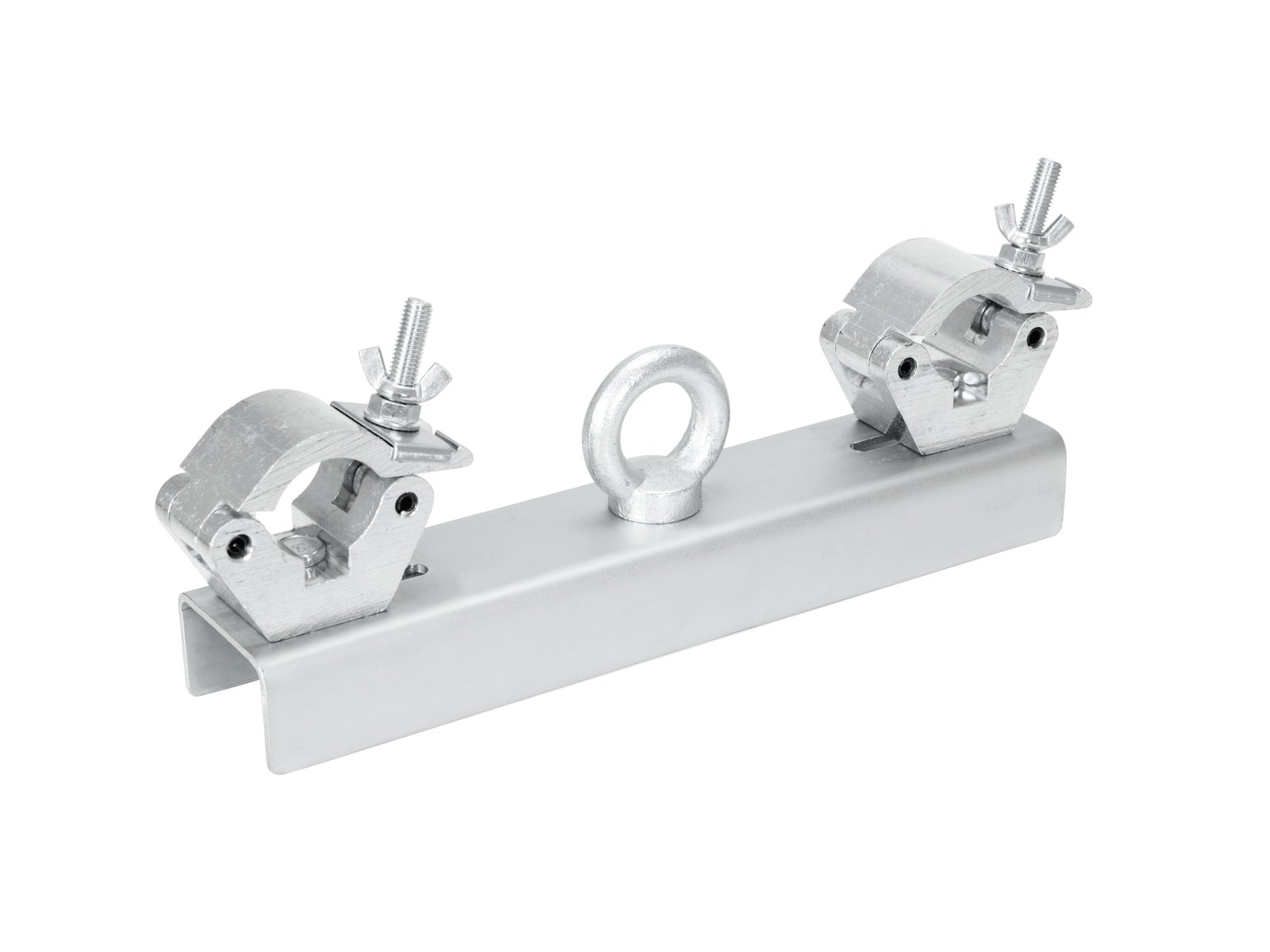

Alutruss GI-1/Clamps Truss Adapter silver

Truss adapter

with two TPC-50 clamps
trusspipe: 50 mm
u-profile for hanging truss from the ceiling
designed for trusses from 25 to 40 cm
thanks to its adjustable system, just one adapter can be used for different trusses

112⁵⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

579 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Alutruss GI-1/Clamps Truss Adapter silver Add to cart: 112⁵⁷ €

Truss mount

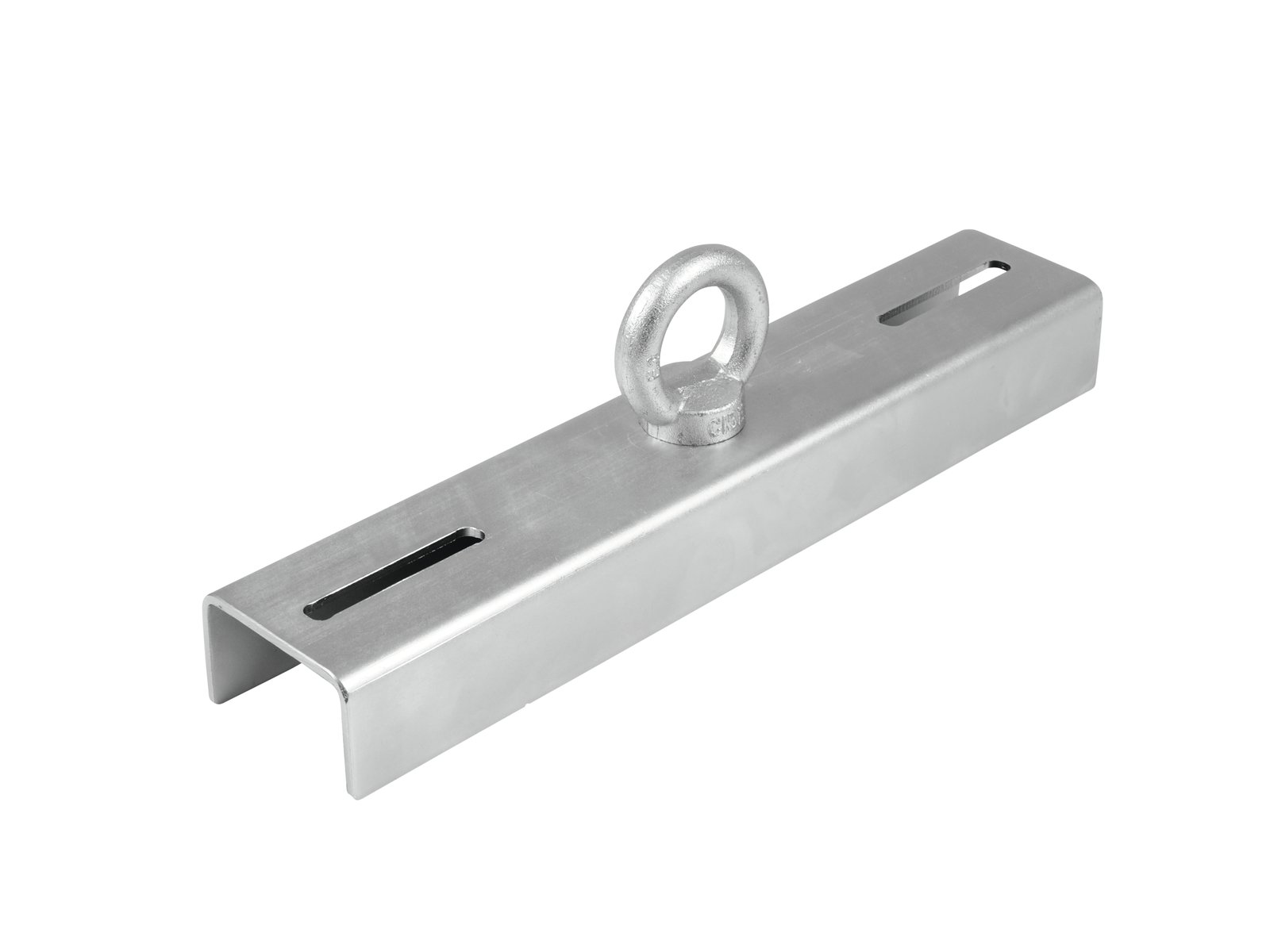

ALUTRUSS GI-1 Truss Adapter silver

Truss mount

U-profile for hanging truss from the ceiling
Designed for trusses from 25 to 40 cm
Thanks to its adjustable system, just one adapter can be used for different trusses
M20 ring bolt with washer and self-locking nut
Made in Europe

Package contents

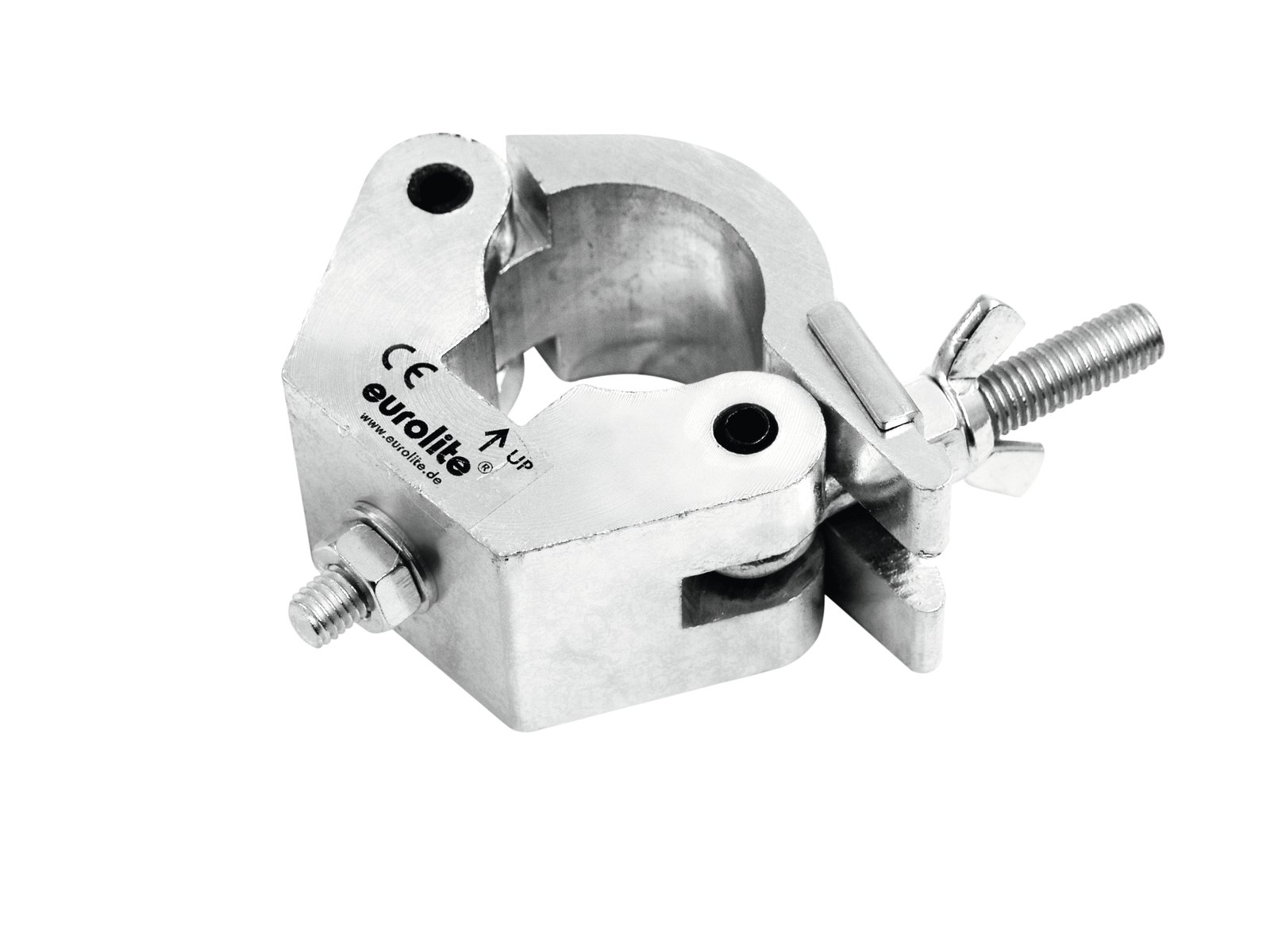

EUROLITE TPC-50 Half Coupler

Mounting coupler for 50 mm tube, maximum load WLL 800 kg

Trusspipe:	50 mm
Dimensions:	Height: 5 cm
Weight:	3,86 kg
ALUTRUSS GI-1 Truss Adapter silver
Maximum load BGV C1 (8-fold):	250 kg
Max. load WLL (4-fold):	500 kg
Material:	Steel, 3,5 mm
Color:	Alu colored
Dimensions:	Length: 40 cm Width: 8 cm Height: 12 cm
Weight:	2,44 kg
EUROLITE TPC-50 Half Coupler
Maximum load BGV C1 (8-fold):	400 kg
Max. load WLL (4-fold):	800 kg
Tube diameter sector:	45 - 50 mm
Material:	Aluminum
Color:	Silver
Mounting screw:	M10
Dimensions:	Length: 11 cm Width: 5 cm Depth: 11,50 cm
Weight:	710 g
