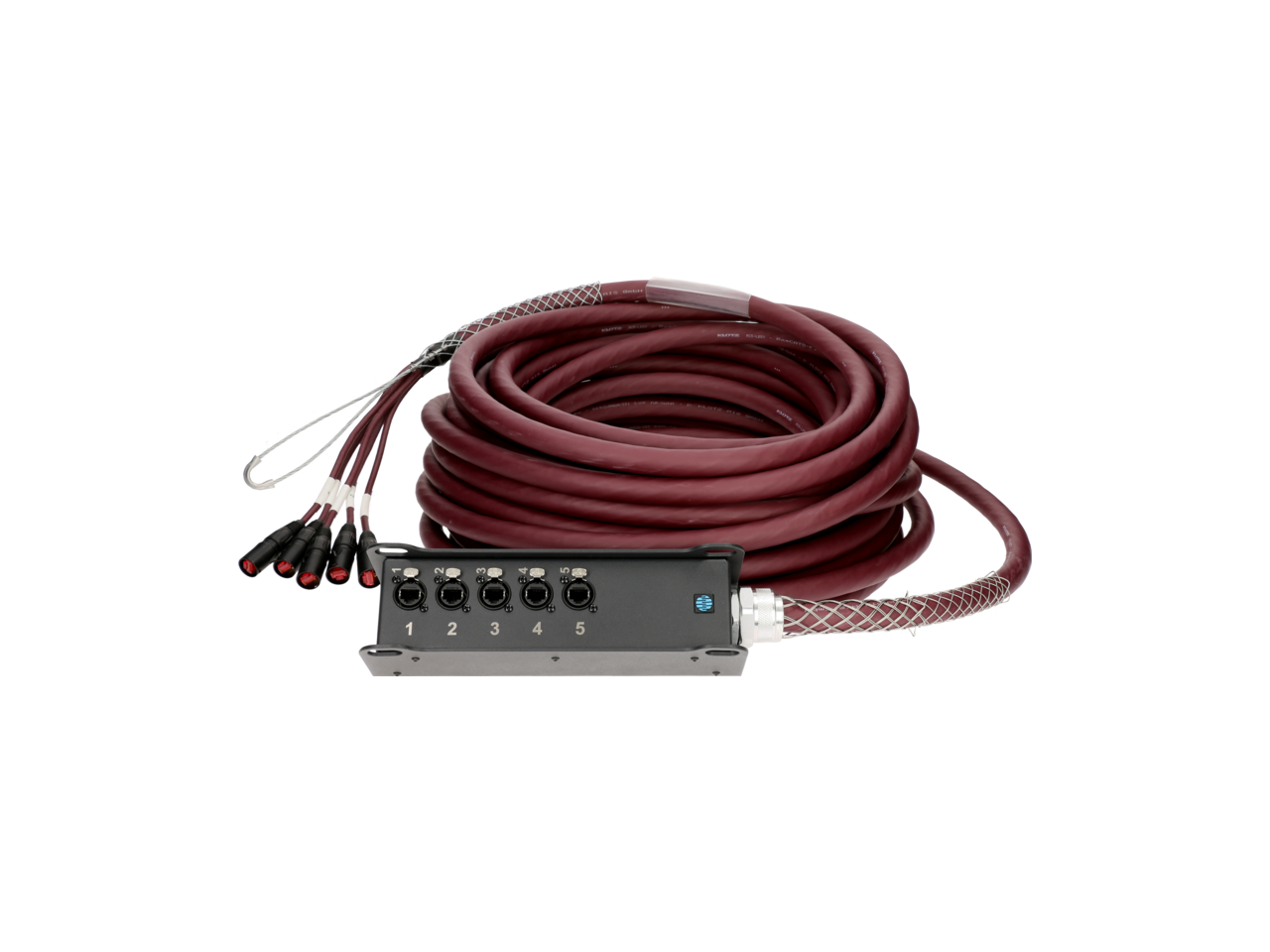

Klotz RamCAT 5-fold network multicore system, highly flexible RC5-LB5V cable, TrussLink stagebox, standard versionCAT5e (S/UTP) / etherCON - etherCON - 40 m

• ruggedized CAT5 outdoor, S/UTP, AWG26 stranded
• PUR overall jacket
• 5-fold ultra-rugged data multicore
• rugged aluminium housing (based on our popular StraightLink series)
• M10 screw thread and four holes for safety lanyards
• steel mesh with loop
• aluminium strain relief, extra-long, conical/ circular rubber insert with additional steel mesh for evenly strain distribution and maximum load (RemkeHD)

The 5-way network multi-core systems RC-EBE-V are the standard version of the RC-EBE-V-6A. They have also been specially designed for use with LED video walls, but are not as massive as the heavy-duty version. On the controller side, our Steel Basket Grip (SBG) is not used for strain relief on the RC-EBE-V, but a simpler cable basket with hanging loop. Also the heavy and expensive etherCON Cat.6a connectors were replaced by etherCON Cat.5e connectors. Everything else, such as our RC5-LB5V as bulk cable, the Remke HD strain relief with cable grip on the Rigg/Floor stagebox from the TrussLink series - specially developed for this system - remains unchanged. The M10 thread, e.g. for a Manfrotto Superclamp, and the four holders for a safety rope on the TrussLink stagebox are also included. This makes the RC-EBE-V the ideal systems for economical customers who do not have much dry hire and do not need the heavy duty version.

cable

cable typ: RC5-M5 - 5x (4x 2x 0.15 mm²) AWG 26/19, stranded conductor, PUR jacket, Ø 19.6 mm

outer jacket: PUR

fanout length: 0.25 m

strain relief: steel mesh with loop

connectors

fanout connectors: etherCON RJ45 plug CAT5e

panel connectors: etherCON RJ45 panel socket

box

housing: TrussLink RAL7021

dimension: w= 253 mm; h= 71 mm; d= 76,5 mm

Caracteristici

application	standard touring
housing	TrussLink RAL7021
cable type	RC5-LB5V
cable jacket	PUR
cable color	claret violet
cable length	40 m
