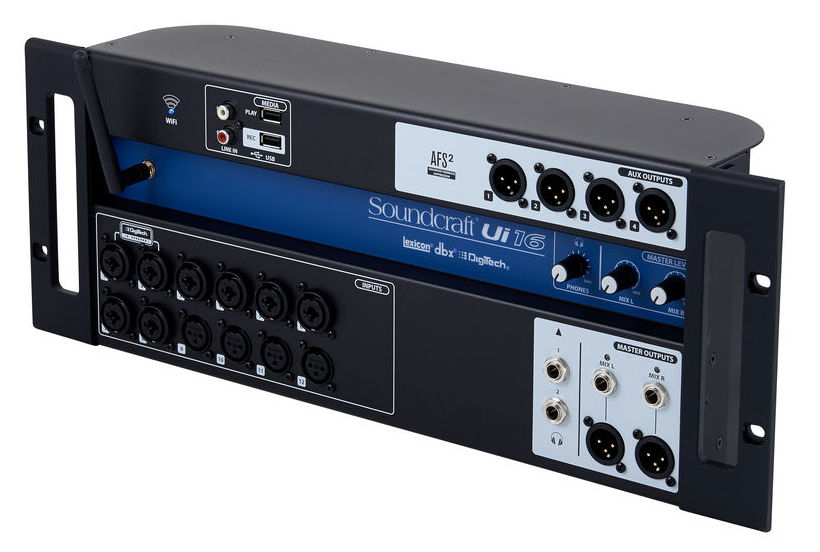

Soundcraft Ui16 – 16-channel digital mixer, controllable via an app on tablet/PC/smartphone. Features HARMAN signal processing from dbx, Digitech, and Lexicon. Offers integrated stagebox and DSP, built-in Wi-Fi and Ethernet connectivity, integrated preamplifiers and mixing algorithms, 3 Lexicon effects buses (reverb, delay, and chorus), dbx AFS2 feedback suppressor, Digitech amp modelling, 120-band real-time analyser for inputs and outputs, and +48V phantom power. Input channels feature 4-band parametric EQ, high-pass filter, compressor, De-Esser, and noise gate. All outputs include 31-band graphic EQ and compressor. Provides 2 USB channels for recording and playback. Can be controlled simultaneously by up to 10 devices (tablets, PCs, smartphones).
Compatible with iOS, Android, Windows, Mac OS, and Linux operating systems and platforms (via HTML5). Connectivity includes 8 XLR line/microphone inputs, 4 XLR microphone inputs, 2 Hi-Z instrument inputs, and a stereo line input with RCA connectors, 4 balanced XLR auxiliary outputs, 2 outputs with 6.3 mm jack connectors and level control, main outputs on XLR and 6.3 mm jack. The 2 USB audio playback channels support MP3, WAV, and AIFF formats, with direct-to-memory recording capability. Also features an HDMI output connection for display. Comes bundled with Ableton Live Lite 9.
Features:
16-channel digital mixer
12 microphone inputs: 4 XLR and 8 Combo (XLR/Jack)
2 instrument inputs
2 RCA inputs
Controllable via iOS, Android, Windows, Mac OS, Linux (via HTML5)
Up to 10 devices can connect simultaneously
Built-in wireless module
Lexicon effects (Reverb, Delay, Chorus)
Soundcraft preamplifiers
120-band real-time analyser
4-band parametric EQ
Gate, Compressor, De-Esser, HPF
Direct USB recording and playback
19-inch rack compatible
Technical specifications:
Dimensions: 110 x 177 x 483 mm
Weight: 3.61 kg
You can find a wide range of explanatory videos by visiting the Soundcraft Ui16 page
